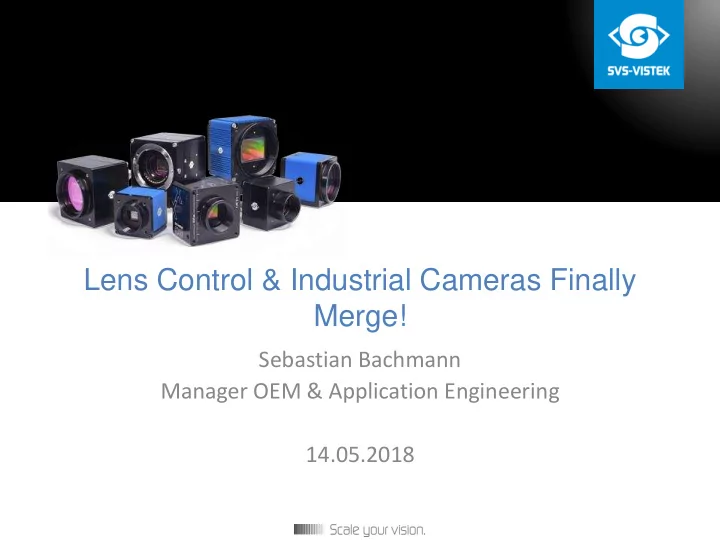

Lens Control & Industrial Cameras Finally Merge! Sebastian Bachmann Manager OEM & Application Engineering 14.05.2018 Contents Who is SVS-Vistek? Current situation of lens control Lens control from CCTV market New
SLIDE 2
SLIDE 3
Who is SVS-Vistek?
▪ Camera Manufacturer ▪ 60 employees ▪ VGA up to 120MP ▪ (Dual) GigE Vision, USB3 Vision, Camera Link, CoaxPress ▪ Customizations, OEM solutions ▪ Sebastian Bachmann ▪ Manager OEM and Application Engineering
SLIDE 4
Current situation of Lens control
▪ Physical Adjustment needed ▪ Change lens settings ▪ Move camera ▪ Multiple camera systems ▪ => expensive, complexe, inaccurate ▪ Fixed-Iris ▪ Manual-Iris
SLIDE 5
Fixed Iris
▪ No iris control ▪ Often small M12 lenses ▪ Brightness control over exposure time or gain ▪ Focus controlled by screw-in depth ▪ No possibility to fix the focus
SLIDE 6
Manual Iris
▪ Aperture control manual ▪ Focus control manual ▪ Often fixed focal length ▪ Physical adjustment needed ▪ Often one time adjustment during installation
SLIDE 7
Lens control options from CCTV
▪ Auto-Iris ▪ P-Iris
SLIDE 8
CCTV market - Auto Iris
▪ Motorized control of iris ▪ DC-Iris: Control of iris is in the camera ▪ Video-Iris: Control of iris in the lens ▪ Depending on lightning conditions the iris can be
- pened and closed
▪ Control cable needed
Computar.com
SLIDE 9
CCTV market - P-Iris
▪ P-Iris – Precision Iris ▪ Exact controlling of the aperture ▪ Set aperture to an exact value ▪ Control cable needed
Computar.com
SLIDE 10
New Lens control options
▪ Liquid lens – up to 2/3“ ▪ Micro-Four-Third lens – up to 4/3“ ▪ Canon lens – larger sensors
SLIDE 11
What is a Liquid Lens?
▪ Electronically controllable variable focus ▪ Water / oil ▪ Focus is very fast ▪ No zoom ▪ No aperture control
Corning Incorporated
SLIDE 12
Liquid Lens
▪ Fixed Iris ▪ Focus control with Software ▪ Cable for controlling needed ▪ GeniCam Implementation
SLIDE 13
What is a Micro-Four-Third Lens?
▪ Coming from DSLR cameras ▪ Manufacturers: Panasonic, Olympus, Sigma, etc. ▪ Lenses in different price ranges ▪ Direct communication with camera ▪ Bayonet mount
Marie-Lan Nguyen
SLIDE 14
Micro-Four-Third Lens
▪ Control of – focal length – focus – aperture ▪ Via camera software
SLIDE 15
Micro-Four-Third Lens
▪ Genicam compliant ▪ GigE Vision compliant ▪ USB3 Vision compliant
SLIDE 16
Micro-Four-Third Lens
▪ Application know settings of the camera ▪ Full control of all lens settings
SLIDE 17
Canon Lens
▪ Canon EF-Mount ▪ Known from SLR-market ▪ Adapter solution ▪ Communication to adapter via pins ▪ Communication to camera via cable ▪ Adapter for controlling focus and aperture
SLIDE 18
Canon EF-Lens
▪ Genicam Compliant ▪ Easy accessible
SLIDE 19
Applications
▪ Defense ▪ Parcel inspection ▪ Track and Trace / Packaging ▪ Traffic ▪ Automation ▪ High Level Surveillance ▪ Aerial Imaging ▪ Broadcast / Sports
SLIDE 20
Defense
GFDL
SLIDE 21
Parcel inspection
SLIDE 22
Track & Trace / Packaging
SLIDE 23
Traffic
SLIDE 24
Automation
SLIDE 25
High Level Security
euroluftbild.de/Erich Meyer
SLIDE 26
Aerial Imaging
SLIDE 27
Broadcast / Sports
Stephan Hoogerwaard
SLIDE 28
Conclusion
▪ Old dream has come true! ▪ Solutions available ▪ Easy to control ▪ Suitable for multiple applications
