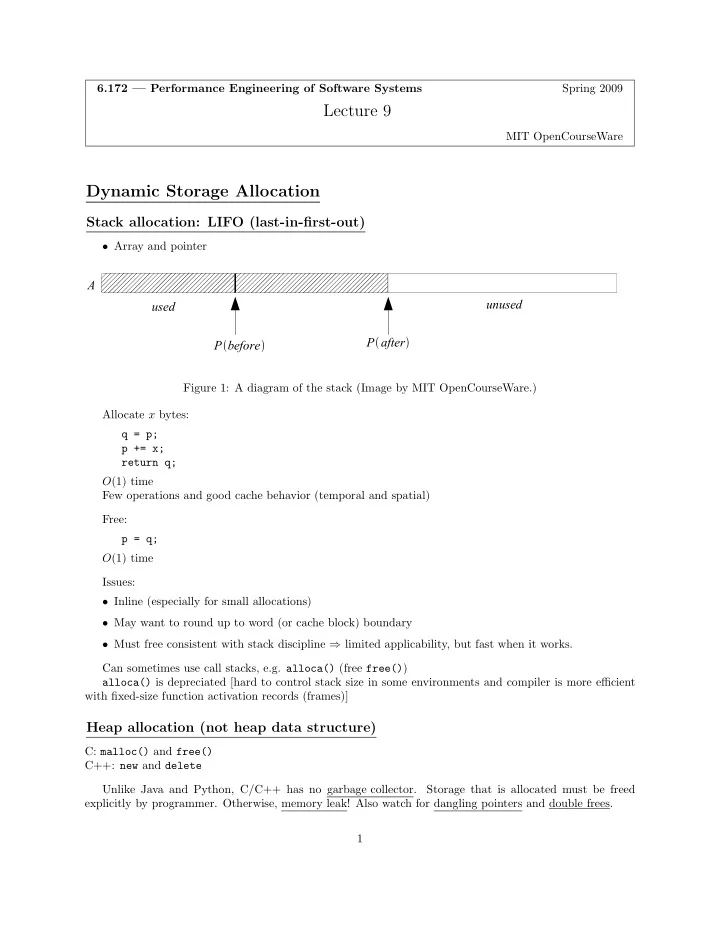

6.172 — Performance Engineering of Software Systems Spring 2009

Lecture 9

MIT OpenCourseWare

Dynamic Storage Allocation

Stack allocation: LIFO (last-in-first-out)

Array and pointer

• A

used Pbefore Pafter unused

Figure 1: A diagram of the stack (Image by MIT OpenCourseWare.) Allocate x bytes: q = p; p += x; return q; O(1) time Few operations and good cache behavior (temporal and spatial) Free: p = q; O(1) time Issues: Inline (especially for small allocations)

• May want to round up to word (or cache block) boundary
• Must free consistent with stack discipline ⇒ limited applicability, but fast when it works.

Can sometimes use call stacks, e.g. alloca() (free free()) alloca() is depreciated [hard to control stack size in some environments and compiler is more efficient with fixed­size function activation records (frames)]

Heap allocation (not heap data structure)

C: malloc() and free() C++: new and delete Unlike Java and Python, C/C++ has no garbage collector. Storage that is allocated must be freed explicitly by programmer. Otherwise, memory leak! Also watch for dangling pointers and double frees. 1

Lecture 9 6.172, Fall 2009

Fixed-size allocation

nil freelist A

Figure 2: A diagram of a free list (Image by MIT OpenCourseWare.) Allocation: remove head of free list — O(1) time Free: add block to free list — O(1) time Few ops and good locality

• Problem. External fragmentation: blocks distributed across memory

loss of spatial locality ⇒

Variable-size allocation

Idea: Leverage efficiency of fixed­size allocation. Accept some internal fragmentation. Binned free lists Allocator supports a reduced set of canonical sizes, typically {1, 2, 4, 8, 16, . . .} (or slightly larger for book- keeping info, cache alignment)

1 2 r largest requested block size

Figure 3: A diagram of a binned­free list (Image by MIT OpenCourseWare.) Allocate x:

• look in bin lg x
• if empty, find block in larger bin and split
• No larger blocks, allocate new address space.

2

Lecture 9 6.172, Fall 2009

high addr

• stack

dynamically allocated heap uninitialized data bss initialized data code low addr initialized to0 at programstart read from program file

Figure 4: The typical storage layout of a program(Image by MIT OpenCourseWare.) Question: 64­bit virtual memory (VM) never run out of address space. Why not just allocate what ⇒ you need and never free? Answer: VM is backed up by physical memory, e.g. disk. Also, severe external fragmentation. Goal: use as little VM as possible.

• Theorem. Let M be the maximum amount of memory in use at any time by a program. Then binned free

lists uses at most O(M lg M) VM address space.

• Proof. No bin ever contains more than

2M

• memory. At most lg(2M) bins.

round up

• Theorem. Let M be the VM address space used by the optimal allocator (with no coalescing). Then binned

free lists uses at most 6M VM address space. Coalescing

• Splice adjacent blocks together to make larger blocks

3

Lecture 9 6.172, Fall 2009

• Ameliorates external fragmentation
• No good bounds on effectiveness
• Works in practice, because storage tends to be deallocated as a stack (LIFO) or in batches.
• Clever schemes for finding adjacent blocks, e.g. ”‘buddy”’ system

Garbage collection Idea: Rather than user freeing storage, runtime does it. Built­in (Java, Python) (or build by hand) Roots: storage directly accessible (global vars, stack). Objects not reachable from roots through pointers can be recycled. Key issues:

• Identify pointers in objects (strong typing)
• Prohibit pointer arithmetic ­ may slow down some codes.

Reference counting

• Keep count of number of pointers to each object. If pointer count drops to 0, put in free list.

3 1 1

Figure 5: A diagram of reference counting garbage collection (Image by MIT OpenCourseWare.)

• Problem. Cycle never garbage collected.

Nevertheless, good scheme for acyclic structures. 4

Lecture 9 6.172, Fall 2009 Abstraction Objects form a directed graph. Garbage Collected objects not reachable from roots. ⇒ graph searching (e.g., DFS or BFS) Recall BFS: Mark roots and put into FIFO Q; (a bitfield) while (Q not empty) { u = dequeue(Q); for (each (u,v) incident on u) { if (v unmarked) { mark v; enqueue(Q,V); } } } Example.

a b c r e f g h i j d

Figure 6: A diagram of a BFS (Image by MIT OpenCourseWare.) Q : r cd

• ef
• g
• Observation: All reachable objects are placed in contiguous storage in Q.

Copying GC:

live dead next allocation live next allocation From space Tospace

Figure 7: A diagram of a copying garbage collector (Image by MIT OpenCourseWare.) When From space is full, copy to To space. 5

Lecture 9 6.172, Fall 2009 Issue: Since To address is different than the From address, pointers must be updated.

• I. When object copied to To space, store forwarding pointer in From object, which implicitly marks it

as moved.

• II. When object removed from Q in To space, update all its pointers.

Example.

head tail From To Before head tail From To After

Figure 8: A diagram of a copying garbage collector (Image by MIT OpenCourseWare.) Linear time

• After copying, allocate new unused space equal to (or constant fraction of) used space ⇒ amortize GC

time, keep VM address space small.

From To used unused

Figure 9: A diagram of a copying garbage collector (Image by MIT OpenCourseWare.) Old To becomes new From

• New To allocated at start if room, otherwise after new From ⇒ VM address space ≤ constant optimal

6

Lecture 9 6.172, Fall 2009 Other GC Strategies

• mark and sweep
• generational

7
