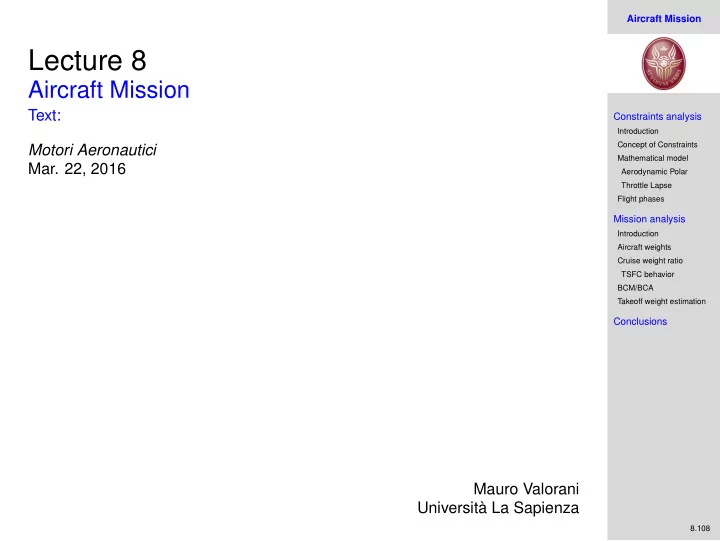

8.108

Lecture 8

Aircraft Mission

Text: Motori Aeronautici

• Mar. 22, 2016

Mauro Valorani Università La Sapienza

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.109

Agenda

1

Constraints analysis Introduction Concept of Constraints Mathematical model

Aerodynamic Polar Throttle Lapse

Flight phases

2

Mission analysis Introduction Aircraft weights Cruise weight ratio

TSFC behavior

BCM/BCA Takeoff weight estimation

3

Conclusions

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.110

The difficulties of engine design Gas Turbine engines exert a dominant influence on aircraft performance and must be custom tailored for each specific application. ⇒ Engine Specifications come from Aircraft Specifications The design process is both started by and constrained by an identified need The process is inherently iterative

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.111

The need : Request for Proposal (RFP) It’s the mission specification that defines the desired engine performance. The aircraft customer describes the desired aircraft performance in a document such as a Request for Proposal Example:

1

Takeoff, field is at 2000 ft pressure altitude. Takeoff ground roll must be less than 2500 m at MTOW

2

Takeoff rate of climb greater than 1000ft/min

3

Subsonic cruise at Best Cruise Mach, maximum range 10000 km

4

Payload of 60000 kg

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.112

Design Process

Figure: Design process, schematic

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.113

A Roadmap DESIGN PROCESS ⇒ Constraint and Mission Analysis

Choice of (TSL/WTO) and (WTO/S) Estimation of WTO to obtain TSL

ENGINE SELECTION ⇒ Parametric Cycle Analysis and Performance ENGINE COMPONENTS ⇒ Components Sizing

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.114

Design Process

MASS FLOW CONSTRAINT & MISSION ANALYSIS PARAMETRIC CYCLE ANALYSIS Mission Specs Efficiencies (1st attempt) Thrust Cycle parameters (βc, T4, BPR, …) Specific Thrust Ia Component sizing Assumed TSFC behavior with h, V, δT OFF-DESIGN Geometries Efficiencies (Actual) Cross-section, blade profiles, combustor, … Desired TSFC Reference flight condition Tech limitation

Figure: Design process, schematic

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.115

The concept of constraints The requirements of the RFP can be converted into a series of functional relationships between: the thrust-to-weight ratio at sea-level takeoff TSL/WTO the wing loading at takeoff WTO/S We are looking for equations of the kind: TSL/WTO = f (WTO/S) for each of the requirements (flight phases). These will represent constraints that have to be attained simultaneously. Of course, many legitimate solutions exist, and none can be identified as

• ptimal or unique.

The "best" solution is always given by judgment and compromise.

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.116

Constraints Diagram Each requirement gives life to a curve in the constraint diagram. The solution space is the region above all the curves For a given WTO, a low WTO/S means large wing area and increased drag, while a high TSL/WTO results in a large thrust requirement. One may prefer, therefore, relatively low thrust and high wing loadings.

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.117

Constraints Diagram Design points of actual passenger/cargo aircrafts. The selected design point is very sensitive to the application and the preferences of the designer.

1 lbf ft2 = 47.88 N m2

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.118

Constraints Diagram Design points of actual fighter aircrafts.

1 lbf ft2 = 47.88 N m2

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.119

Master equation The design process starts by considering the forces that act on the aircraft (modeled as a point mass): lift, drag, thrust, weight. Equation of motion in the velocity direction: T cos(AOA + ϕ) − D − W sin(θ) = W g0 dV dt (15) where AOA is the angle between Velocity and Wing Chord Line, ϕ is the angle between Wing Chord Line and Thrust axis. Multiplying by the velocity V, we obtain the energy conservation equation: (T cos(AOA + ϕ) − D)V = W

• V sin(θ) + d

dt

• V 2

2g0

• (16)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.120

Master equation Assuming small angles of attack (AOA ≈ 0) and small thrust vector misalignments with V (ϕ ≈ 0), and recalling that V Sinθ = dh

dt :

V (T − D) W = d

• V 2

2g0 + h

• dt

= dze dt = Ps (17) where ze represents the aircraft mechanical energy (kinetic + potential) and is often referred to as "energy height". Ps is the time rate of change of the energy height and is called weight specific excess power. Isolating the thrust-to-weight ratio at LHS: T W = D W + Ps V (18) Here, both T and W depend on the flight condition and mission phase.

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.121

Master equation: assumptions for T and W It is assumed that the installed thrust and the actual aircraft weight are given by (SL=Sea Level Static, TO=Take-Off): T = αTSL (19) W = βWTO (20) where α is the full throttle thrust lapse (dependent on altitude, speed and afterburner on/off) and β depends on how much fuel has been consumed. The equation becomes: TSL WTO = β α

• D

βWTO + Ps V

• (21)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.122

Aerodynamic polar Recall that lift can be expressed through the lift coefficient as follows: L = nW = 1 2 ρV 2SCL = qSCL q := 1 2 ρV 2 (22) ⇒ CL = nW qS = nβ q WTO S (23) and that also drag has a similar expression: D = qCDS (24) where CD can be expressed through the aerodynamic lift-drag polar: CD = CD0 + K1C2

L + K2CL

(25)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.123

Aerodynamic polar Conventional form: CD = CDmin + K ′C2

L + K ′′(CL − CLmin)2

(26) where: K ′ is the induced drag (inviscid drag due to lift) K ′′ is the skin+pressure drag (viscous drag due to lift) Expanding: CD = (K ′ + K ′′)C2

L − (2K ′′CLmin)CL + (CDmin + K ′′C2 Lmin)

• r:

CD = CD0 + K1C2

L + K2CL

(27) where K1 = K ′ + K ′′ K2 = −2K ′′CLmin CD0 = CDmin + K ′′C2

Lmin

Assumptions widely used: K1 =

1 πARe

K2 ≃ 0

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.124

The equation: TSL WTO = β α

• D

βWTO + Ps V

• (28)

becomes, using the expression D = qCDS and the aerodynamic polar: TSL WTO = β α

• q

β(WTO/S)

• k1C2

L + k2CL + CD0

• + Ps

V

• (29)

and using the expression for CL = nβ

q WTO S

:

TSL WTO = β α

• q

β(WTO/S)

• k1
• nβ

q (WTO/S)

2 + k2

• nβ

q (WTO/S)

• + CD0
• + Ps

V

• (30)

This equation is the sought after TSL/WTO = f (WTO/S) which depends on flight conditions (α, β, V, ρ, n, PS) aircraft aerodynamic features (CD0, k1[AR, e], k2)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.125

Throttle Lapse (α) The available thrust is expressed as: T = αTSL The meaning of α is NOT that of a throttle setting, but rather that of a

• ff-design engine behavior, affected by flight conditions.

It can be obtained from full off-design runs or from semi-empirical models. Flight conditions (altitude and Mach number) are often blended together into a single parameter: the Dimensionless Freestream Total Temperature θ0 θ0 := T0a TSL = Ta

• 1 + (γ−1)

2

M2

a

• TSL

(31) where 0 = total a = freestream SL = (Standard day) Sea Level ⇒ TSL = 15C

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.126

Constant θ0 contours note that: θ0 = 1 at sea level static conditions, θ0 can be greater or less than 1, θ0 depends only on Mach number above the tropopause (being T0 constant), the range of θ0 of today’s aircrafts is 0.8 /1.4

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.127

Engine behavior The engine compressor pressure ratio πc depends upon the turbine temperature ratio τt the throttle setting T04 the flight conditions θ0 With the hypothesis of choked turbine (≡ constant temperature ratio τt), it can be demonstrated that πc varies only with the ratio

T04 θ0 .

From the TurboJet power balance [ −( ˙ ma + ˙ mf )LT = ˙ maLC ]: ηm(1 + f)(h04 − h05) = h03 − h02 (32) τc − 1 = ηm(1 + f) (1 − τt) 1 TSL (cpt T04) (cpc θ0) ; τ := h0dn h0up ; T02 ≈ T0a (33) ⇒ πc = [1 + ηc (τc − 1)]

γ γ−1 =

• 1 + C1

T04 θ0

• γ

γ−1

(34) where the constant C1 is: C1 = ηcηm(1 + f) (1 − τt) 1 TSL cpt cpc

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.128

Engine behavior (cont’d) We came up with the relationship between πc and the ratio T04

θ0

πc =

• 1 + C1

T04 θ0

• γ

γ−1

it follows that πc increases as the ratio T04

θ0 increases.

Example: with fixed Mach number and throttle setting, πc increases if the aircraft climbs to higher altitudes (thus θ0 diminishes) πc diminishes if, for fixed altitude and throttle setting, the aircraft is accelerated to higher Mach numbers

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.129

Theta break This image shows the behavior of πc in function of θ0 for fixed values of T04. The horizontal line corresponding to πcmax is due to the intervention of the Engine Control System

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.130

Theta Break (cont’d)

Role of the Engine Control System

Prevent aircraft engines from operating outside their safety margins, such as: maximum compressor pressure ratio (preventing stall phenomena) maximum cycle temperature (preventing the turbine to overheat) These two limits are clearly visible in the previous slide. The ECS has two logics of operation: when πc is below its maximum allowable value, it limits the maximum allowable temperature reducing πc itself if πc reaches its maximum, it reduces T04 The value of θ0 at which the control logic switches from limiting πc to limiting T04 is known as: θ0break

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.131

The importance of Theta Break in the design phase At any flight condition different from θ0 = θ0break the engine cannot be

• perated at its maximum compressor pressure ratio and maximum cycle

temperature simultaneously. If θ0 < θ0break the engine can be operated at πcmax but T04 < T04max (obtaining less specific thrust than nominal) if θ0 < θ0break the engine can be operated at T04max but πc < πcmax (with greater fuel consumption than nominal) The engine designer would therefore have the engine operating as closer as possible to θ0 = θ0break and this can be done with a wise choice of θ0break The design with θ0break = 1 implies MAX THRUST AT SEA LEVEL STATIC A design with θ0break > 1 may be advisable for supersonic aircrafts

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.132

How to design Theta Break? Recalling from eq. (34) that the control system acts to maintain the ratio

Tt4 θ0

constant in order to keep πc = πcmax = constant, it follows immediately that, in the case of θ0break ≥ 1: T04max θ0break = T04 θ0

• πcmax

=

• T04SL

θ0SL

• πcmax

= T04SL (35) being θ0SL = 1. The engine has to be designed to have T04SL given by eq. (35), that is the ratio between the maximum allowable and the desired θ0break . Defining the Thottle Ratio as the ratio between the maximum allowable temperature and the sea-level-static temperature: TR := T04max T04SL = θ0break (36) it follows that TR is identical to θ0break .

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.133

Throttle Lapse Example of engine behavior with varying Mach and altitude. It was obtained with semi-empirical models of the kind: α = f[h, M, TR] (TR fixed by design) (37)

Figure: Throttle Lapse of two Low-BPR-TurboFan (one with TR=1.0 and one with TR=1.1) as a function of Mach with varying altitude

Remember that T = αTSL

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.134

Flight Phases The "master equation" (eq. 30) can be specialized for each flight phase, in

• rder to obtain the constraints that have to be attained to satisfy the RFP

. The following cases will be analyzed: Constant altitude/speed cruise Constant altitude/speed turn Takeoff Roll All the other flight phases can be obtained similarly and easily

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.135

Constant altitude/speed cruise Master equation (eqn. 30):

TSL WTO = β α

• q

β(WTO/S)

• k1
• nβ

q (WTO/S)

2 + k2

• nβ

q (WTO/S)

• + CD0
• + Ps

V

• Known quantities:

Constant altitude and speed ⇒

dh dt = 0 dV dt = 0 ⇒ PS = 0

Level flight ⇒ n = 1 (L = W) Aerodynamic polar (assigned): k1, k2, CD0 as functions of M, AR, e Assumptions: β = 0.7 ÷ 0.9 (an high enough value to simulate the beginning of the cruise phase, which is the more demanding scenario) The requirements are given in terms of: Desired cruise altitude h Desired cruise Mach number M Altitude and Mach number appear in: α(h, M) q = 1

2ρ∞(h)V 2 ∞ = 1 2γp∞(h)M2 ∞

Aerodynamic polar (CD depends on Mach)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.136

Constant altitude/speed cruise (cont’d)

Figure: Constant altitude/speed cruise constraint. h = 11000 m, M = 0.85

The minimum of the curve is found at:

WTO

S

• minT/W =

q β

• CD0

K1

⇒ TSL

WTO

• min = β

α

• 2
• CD0K1 + K2
• which is the condition of minimum thrust and drag (maximum range)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.137

Constant altitude/speed turn Master equation (eqn. 30):

TSL WTO = β α

• q

β(WTO/S)

• k1
• nβ

q (WTO/S)

2 + k2

• nβ

q (WTO/S)

• + CD0
• + Ps

V

• Known quantities:

Constant altitude and speed ⇒

dh dt = 0 dV dt = 0 ⇒ PS = 0

Aerodynamic polar (assigned): k1, k2, CD0 as functions of M, AR, e Assumptions: β = 0.7 ÷ 0.9 The requirements are given in terms of: Desired cruise altitude h Desired cruise Mach number M Desired turn rate n > 1 Remember that during a turn L = nW where n =

1 cosφ =

• 1 + V 2

g0r (r is the

radius of curvature)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.138

Constant altitude/speed turn (cont’d)

Figure: Constant altitude/speed turn constraint. h = 11000 m, M = 0.85, n = 1.1

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.139

Takeoff Ground Roll Master equation (eqn. 18): V(T − D) W = d

• V 2

2g0 + h

• dt

the takeoff ground roll distance is obtained with the assumption of constant altitude dh/dt = 0 and TSL >> D: TSL WTO = β αg0 dV dt which can be rearranged to (dt = ds/V): ds = β αg0 WTO TSL VdV and integrated to yield: sG = β αg0 WTO TSL V 2

TO

2g0 Being: 1 2 ρSV 2

STALLCLmax = βWTO

where VTO = kTOVSTALL and kTO ≈ 1.2, the equation can be recast to give: sG = β2 α k2

TO

(TSL/WTO) ρ g0CLmax WTO S

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.140

Takeoff Ground Roll (cont’d) The ground roll distance equation: sG = β2 α k2

TO

(TSL/WTO) ρ g0CLmax WTO S

• tells that the ground roll distance is inversely proportional to:

density ρ, which is function of altitude and temperature. High elevation airports and hot days deteriorate take-off performance. aerodynamic performance CLmax , whose value is increased by the use

• f high lift devices (slats, flaps, ...)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.141

Solving the previous equation for TSL/WTO, the take-off constraint as a function of WTO/S can be obtained: TSL WTO = β2 α k2

TO

sG ρ g0CLmax WTO S

• (38)

Known quantities: CLmax (≈ 1.5 ÷ 2.7 depending on installed H-L-devices) Assumptions: β = 1 (MTOW) The requirements are given in terms of: Desired field elevation and temperature ⇒ ρ[h, T] Desired Takeoff speed (VTO = kTO VSTALL, es: kTO = 1.2) Field length available sG Note that airport elevation and temperature affect also the engine performance through α(h, M0)

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.142

Takeoff Roll (cont’d) The relationship is linear

Figure: Takeoff Roll. h = 1500 m, CLmax = 2.4, sG = 2000 m, HOT (ISA +30) vs COLD (ISA +0) day

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.143

Constraint diagram Cases analyzed: constant altitude/speed cruise, constant altitude/speed turn, takeoff roll, horizontal acceleration, service ceiling

Figure: All constraints

The solution space is the white region over the constraint curves. We can choose: TSL WTO and WTO S

Aircraft Mission Constraints analysis

Introduction Concept of Constraints Mathematical model Aerodynamic Polar Throttle Lapse Flight phases

Mission analysis

Introduction Aircraft weights Cruise weight ratio TSFC behavior BCM/BCA Takeoff weight estimation

Conclusions

8.144

Aim of the mission analysis Constraint analysis ⇒

TSL WTO

and

WTO S

Next step ⇒ establish the size of the aircraft via the estimation of the maximum takeoff weight WTO (o MTOW) With the MTOW in hand, the Sea level Max Thrust TSL and the wing area S are immediately obtained: TSL WTO · WTO = TSL WTO S −1 · WTO = S
