Lecture 4 Why the Grass May Not Be Greener On The Other Side: A Comparison of Locking vs. Transactional Memory Paul E. McKenney, Maged M. Michael, Josh Triplett, Jonathan Walpole Advanced Operating Systems October 26, 2011 SOA/OS Lecture 4,

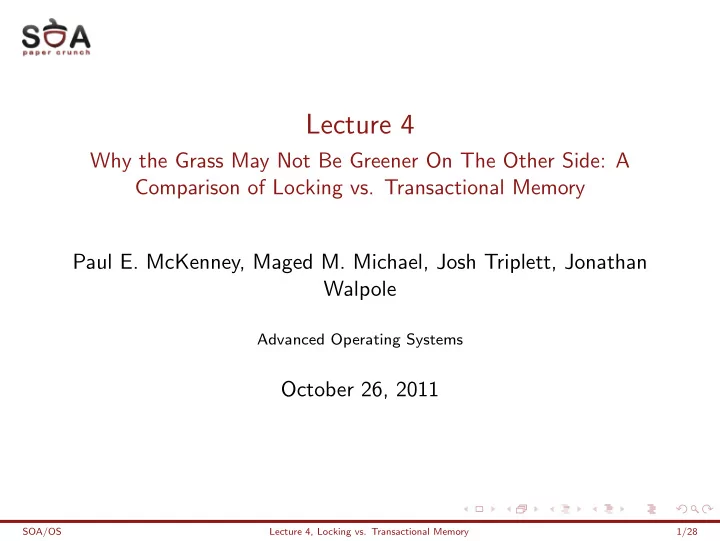

SLIDE 1

Lecture 4

Why the Grass May Not Be Greener On The Other Side: A Comparison of Locking vs. Transactional Memory Paul E. McKenney, Maged M. Michael, Josh Triplett, Jonathan Walpole

Advanced Operating Systems

October 26, 2011

SOA/OS Lecture 4, Locking vs. Transactional Memory 1/28

SLIDE 2

Introduction Locking Transactional Memory Epilogue Keywords Questions

SOA/OS Lecture 4, Locking vs. Transactional Memory 2/28

SLIDE 3

Outline

Introduction Locking Transactional Memory Epilogue Keywords Questions

SOA/OS Lecture 4, Locking vs. Transactional Memory 3/28

SLIDE 4

Context

◮ parallelism is norm ◮ synchronization ◮ locking – long and viable record of production use ◮ transactional memory (TM) – promising synchronization

mechanism

◮ constructive critique

SOA/OS Lecture 4, Locking vs. Transactional Memory 4/28

SLIDE 5

Locking

◮ mutual exclusion ◮ critical section ◮ overhead ◮ contention ◮ mutex, semaphore, spinlock

SOA/OS Lecture 4, Locking vs. Transactional Memory 5/28

SLIDE 6

Transactional Memory

◮ “atomic transaction” for group of memory operations ◮ lock-free operations ◮ basic operations

◮ load transaction (read), store transaction (write) ◮ commit (successful if no conflict) ◮ abort ◮ validate

◮ extended LL/SC (load-link, store-conditional) ◮ software/hardware (STM, HTM)

SOA/OS Lecture 4, Locking vs. Transactional Memory 6/28

SLIDE 7

Outline

Introduction Locking Transactional Memory Epilogue Keywords Questions

SOA/OS Lecture 4, Locking vs. Transactional Memory 7/28

SLIDE 8

Strengths

◮ intuitive and easy to use

◮ one CPU may manipulate a given object

◮ can be used on any hardware ◮ ubiquitous

◮ well defined API ◮ large body of software using locking ◮ large number of experienced developers

◮ contention concentrated within locking primitives

SOA/OS Lecture 4, Locking vs. Transactional Memory 8/28

SLIDE 9

Strengths (2)

◮ minimal performance degradation with locking ◮ wide range of protected operations (including non-idempotent) ◮ natural interactions with a large variety of synchronization

mechanisms (RCU, atomic operations)

◮ natural interaction with debuggers and other software tools

SOA/OS Lecture 4, Locking vs. Transactional Memory 9/28

SLIDE 10

Weaknesses

◮ deadlock

◮ more than one lock ◮ random ordering ◮ non-composable ◮ interrupt or signal handlers

◮ priority inversion

◮ low-priority thread holds lock ◮ medium-priority thread preempts low-priority thread ◮ high-priority thread attempts to acquire lock and blocks ◮ medium-priority thread runs instead of high-priority thread

SOA/OS Lecture 4, Locking vs. Transactional Memory 10/28

SLIDE 11

Weaknesses (2)

◮ data partitioning

◮ some data structures may not be partitioned

◮ expensive cache misses ◮ blocking synchronization primitive ◮ locking acquisition is non-deterministic

SOA/OS Lecture 4, Locking vs. Transactional Memory 11/28

SLIDE 12

Improvements

◮ deadlocks

◮ locking hierarchy ◮ conditional lock acquisition ◮ masking signals or interrupts

◮ priority inversion

◮ priority inheritance ◮ raising the lock holder’s priority ◮ preemption disabling when locks are held ◮ RCU

SOA/OS Lecture 4, Locking vs. Transactional Memory 12/28

SLIDE 13

Improvements (2)

◮ partionable data

◮ hash tables ◮ radix trees

◮ contention, overhead

◮ specialized designs, patterns ◮ RCU

◮ preemption, blocking, page faulting

◮ scheduler-conscious synchronization

◮ non-deterministic lock acquisition

◮ RCU (read-side critical section) ◮ FCFS primitives

SOA/OS Lecture 4, Locking vs. Transactional Memory 13/28

SLIDE 14

Remaining Challenges

◮ software tools to aid in static analysis ◮ software tools to evaluate lock contention ◮ better codification of effective design rules ◮ augmenting synchronization methodologies ◮ locking algorithms for good scalability and performance for

ill-structured update-heavy non-partionable data structures

SOA/OS Lecture 4, Locking vs. Transactional Memory 14/28

SLIDE 15

Outline

Introduction Locking Transactional Memory Epilogue Keywords Questions

SOA/OS Lecture 4, Locking vs. Transactional Memory 15/28

SLIDE 16

Strengths

◮ atomic execution of operations spanning multiple object ◮ simplicity

◮ load and store sequence of memory ◮ atomic, linearizable transactions

◮ composability

◮ may be nested ◮ span multiple data structures

SOA/OS Lecture 4, Locking vs. Transactional Memory 16/28

SLIDE 17

Strengths (2)

◮ scalability

◮ small transactions rarely conflict (intersect) ◮ fine grained locking without effort and complexity

◮ non-blocking operations

◮ thread failure doesn’t affect another thread

◮ hardware implementation, durable usage in database systems

SOA/OS Lecture 4, Locking vs. Transactional Memory 17/28

SLIDE 18

Weaknesses

◮ non-idempotent operations

◮ may be performed multiple times upon transaction retry ◮ client buffers message and commits after server reply

◮ poor interaction with existing synchronization mechanisms

◮ 300% overhead for locks acquired within transactions

◮ excessive conflicts

◮ data structures that impede fine-grained locking ◮ software may be designed to avoid this problem

SOA/OS Lecture 4, Locking vs. Transactional Memory 18/28

SLIDE 19

Weaknesses (2)

◮ rollback overhead

◮ in case of conflicts ◮ starvation

◮ sparse hardware support (HTM)

◮ not in commodity hardware ◮ portability problems

◮ performance issues

◮ atomic operations ◮ dynamic allocations ◮ memory reclamation ◮ data copying ◮ bookkeeping

◮ no standard API ◮ poor interaction with existing tools

SOA/OS Lecture 4, Locking vs. Transactional Memory 19/28

SLIDE 20

Improvements

◮ non-idempotent operations

◮ include buffering mechanism with the scope of the transaction ◮ apply simple locking

◮ partitioning – sample designs that apply to locking ◮ rollback overhead

◮ contention manager ◮ convert read-only transactions to non-transactional form

◮ focus on STM (performance issue?), debugging HTM? ◮ apply transactions to heavyweight operations (system calls)

SOA/OS Lecture 4, Locking vs. Transactional Memory 20/28

SLIDE 21

Outline

Introduction Locking Transactional Memory Epilogue Keywords Questions

SOA/OS Lecture 4, Locking vs. Transactional Memory 21/28

SLIDE 22

Where Does TM Fit in?

◮ update-heavy workloads on large non-partitionable data

structures

◮ complex fine-grained locking designs incurs complexity to

avoid deadlock

◮ single threaded software having an embarrassingly parallel core

SOA/OS Lecture 4, Locking vs. Transactional Memory 22/28

SLIDE 23

Conclusion

◮ the grass is not necessarily uniformly greener on the other side ◮ work required to integrate synchronization mechanisms ◮ combining strengths

SOA/OS Lecture 4, Locking vs. Transactional Memory 23/28

SLIDE 24

Outline

Introduction Locking Transactional Memory Epilogue Keywords Questions

SOA/OS Lecture 4, Locking vs. Transactional Memory 24/28

SLIDE 25

Keywords

◮ research ◮ papers ◮ group ◮ conference

SOA/OS Lecture 4, Locking vs. Transactional Memory 25/28

SLIDE 26

Resources

◮ Maurice Herlihy, J. Eliot B. Moss – Transactional Memory:

Architectural Support for Lock-Free Data Structures

◮ Paul. E McKenney, Maged M. Michael, Josh Triplett,

Jonathan Walpole – Why the Grass May Not Be Greener On The Other Side: A Comparison of Locking vs. Transactional Memory

SOA/OS Lecture 4, Locking vs. Transactional Memory 26/28

SLIDE 27

Outline

Introduction Locking Transactional Memory Epilogue Keywords Questions

SOA/OS Lecture 4, Locking vs. Transactional Memory 27/28

SLIDE 28

Questions

?

SOA/OS Lecture 4, Locking vs. Transactional Memory 28/28
