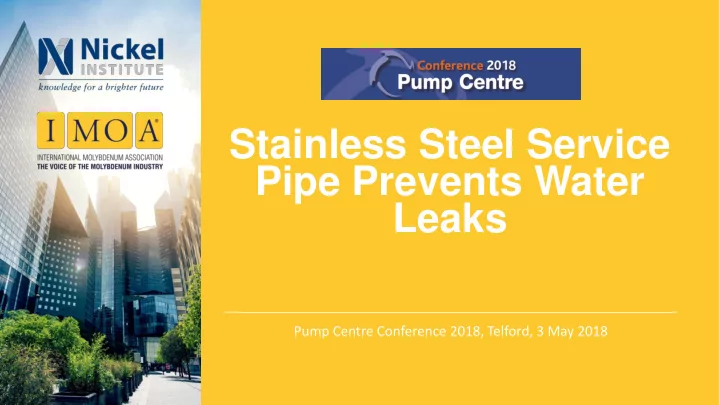

Stainless Steel Service Pipe Prevents Water Leaks

Pump Centre Conference 2018, Telford, 3 May 2018

slide-2
SLIDE 2

Antitrust rem eminder

  • Nickel Institute does not present forecasts or comments on

supply/demand, nickel markets or prices

  • We are committed to full compliance with the competition
  • r antitrust laws in all jurisdictions where our members are

active

  • NI Guidelines (NI website) provide an overview of areas of

legal risk

  • All participants in NI activities share responsibility for

adherence to the Guidelines

  • If any doubt exists about the appropriateness of specific

discussions or activities, legal advice should be obtained before they are undertaken

2

NI is committed to antitrust compliance

slide-3
SLIDE 3

NI’s four priorities and strategic objectives

  • Nickel Classifications Management: Obtain classifications based on

sound science for nickel metal and nickel containing chemicals

  • Standards and Compliance for Health and Environment: Ensure

appropriate science-based health and environment standards for nickel and nickel-containing chemicals globally

  • Life Cycle Management: Demonstrate nickel’s valuable and lifelong

contribution to the economy and society

  • Promotion and Market Development: Build the nickel brand and grow

markets for nickel containing material; support existing and new uses

3

Supporting the market for nickel

slide-4
SLIDE 4

Mem ember Companies

4

Leading nickel producers

Vale Canada Limited PT Vale Indonesia Tbk Vale Japan Limited AngloAmerican Marketing Ltd AngloAmerican Platinum

GNC Holdings

slide-5
SLIDE 5

5

Leakage Rate in Major Cities

0% 10% 20% 30% 40% 50% 60% 70%

* Source : OECD (Water Governance In Cities, 2014)

An average of 35 – 40% water is wasted in India

slide-6
SLIDE 6

6

Water Loss Problems

  • 25 – 30% non-revenue water in most parts of the world
  • Some areas with more than 50%
  • Waste of precious water resource
  • Waste of water treatment, chemicals
  • Waste of electricity (4% of global electricity used in water supply)
  • Need for additional infrastructure
  • Need for additional dams and reservoirs

Other problems of water leaks:

  • Secondary damage due to flooding, road collapse, water damage
  • Hygienic concerns, ingress of contaminants at low pressure
  • High cost of maintenance to fix leaks
slide-7
SLIDE 7

7

Most Leakage Cases are in Service Pipes

Water Mains 5% Service pipes 95% Mains 0.4% Submains 3.9% Service pipes 95.7% TAIPEI TOKYO

slide-8
SLIDE 8

8

High Leakage Rate in Service Pipes

  • Material degradation (old systems)
  • Length of service pipe
  • Many joints
  • Joints are prone to leakage due to earthquakes, traffic, earth settling

Source: Taipei Water Department

slide-9
SLIDE 9

9

Solution: Corrugated Stainless Steel Pipe

slide-10
SLIDE 10

10

Service Pipe Connects Main with Water Meter

Source: Bureau of Waterworks, Tokyo Metropolitan Government

slide-11
SLIDE 11

11

Corrugated Stainless Steel Service Pipe

Easy to install and much less prone to leakage

Source: Tokyo Suido Services

slide-12
SLIDE 12

12

Advantages of Corrugated Stainless Steel Service Pipe

  • Hygienic
  • Non-reactive with water (non-leaching)
  • Corrosion resistant
  • Long service life (100+ years)
  • Fewer connections, less prone to leakage
  • Strong, so connections can be tightened and slip-off force is high
  • Bendable, flexible:
  • Resistant to earthquakes
  • Resistant to soil movement
  • Resistant to traffic vibrations
  • Resistant to accidental mechanical damage
  • Resistant to frost damage
slide-13
SLIDE 13

Tokyo, Taipei and Seoul Case Studies

slide-14
SLIDE 14

臺北管網改善與使用管材介紹

Upgraded Pipeline and Types of Pipes Used in Taipei

2015/8/5

slide-15
SLIDE 15

Overview of North Water Sector

Service Area: 434 km2 Population: 3.88 M Households: 1.65 M Coverage: 99.60% Total distribution: 2.26 M CMD Supply to TWD: 1.97 M CMD Supply to TWC: 0.29 M CMD Annual Turnover: 4.9 B NTD Employment: 1,040 persons

3 Major purification plants Feitsui Reservoir

slide-16
SLIDE 16
  • 5-

Water Supply Shortage in 2002

Level in Feitsui Reservoir

Water Level (EL.M)

upper limit160 lower limit 141 July 9th Safe level for sufficient water

supply: on July 9th , 141m (EL.M)

May13th -128 3rd stage, water supply control by area

117.5 Severe lower limit

28.4% leakage rate in pipeline, plus only half of average rainfall in the Feitsui Reservoir region in 2012, resulted a 49-day intermittent water supply.

Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec 2012

Average level 1988- 2000

slide-17
SLIDE 17

Old Pipelines and Severe Leakage

Service pipe

Residual pipe

Unknown, redundant

  • r inoperative pipes

Taipei once keen on expanding the water supply instead of controlling the water loss.

Joint pipe Distribution pipe Residual pipe

Pipes are covered by

  • ther utilities’ lines

resulting in complicated pipelines, ageing and leakage

slide-18
SLIDE 18

A Long-term Pipeline Upgrading Project

To improve the performance of the pipelines, to reduce water loss and to prevent from water shortage suffered in 2002.

long-term mid-term

I II III IV

年

2003 2005 2010 2015 2020 2025 22% 17% 13% 10%

Target rate of leakage

This long-term leakage control project is planed to conclude within 20 years.

Estimated budget: US$690 million Present

slide-19
SLIDE 19

DMA Analysis

Actual Water Revenue Rate of 450 DMAs, the low WRR areas are Wuanhua, Sanzhong, Zhongyong and old town Nearly 40% of these DMAs had Water Revenue Rate lower than 50%.

slide-20
SLIDE 20

20

Taipei Failures: Pipe Materials and Cause

2% 1% 53% 28% 1% 11% 4% DIP CIP-MJP PVC PB GIP LP SSP 8% 83% 1% 1,25% 1,25% 6% Corrosion Cracks Snap off O-rings Disconnected Excavation Others

Water Mains 5% Service pipes 95%

  • 80% of leakages occurred in plastic pipes
  • Among them, 28% in PB pipe, even if it accounts to
  • nly 3% in length, reflecting poor quality of PB

material against leakage

slide-21
SLIDE 21

Qualified Pipes

Service pipes: Corrugated SS (below 50mm)

With elbows

Corrugated pipes

Reduce the connections, reduce the rate of leaks

Traditional connections Corrugated pipes

15 connections 3 connections

One elbow two joints Joints prone to leakage or breaking during earthquake Bendable, deflect during earthquake Bendable, no joints, avoiding leakage

With corrugated pipes

Potential leakage down 20%

slide-22
SLIDE 22

Achievement 213區

Before 213 DMAs have Improved Water Revenue Rate over 90% After

slide-23
SLIDE 23

Reduction of Leakage

After 9-year implementation, leakage is reduced by 10.28%.

Long-term

28.44 27.51 26.70 26.99 25.77 24.19 23.61 22.02 21.60 20.51 19.10 17.88 16.71

14 16 18 20 22 24 26 28 30 '02 '03 '04 '05 '06 '07 '08 '09 '10 '11 '12 '13 '14

漏 水 率

%

年度

Leakage drop 10.28%

2005-2014

Mid-term

slide-24
SLIDE 24

Year Rain fall

  • ver

Feitsui Reservoir (mm) Fetsui Reservoir Storage % Leakage rate

  • f TWD‘s

network Annual Water Supply to TWD Annual Water Supply to TWC 2002 1377 58% 28.44% 8.78 0.74 2014 1201 92% 16.70% 6.99 1.23 Difference

  • 176mm

+34%

  • 11.74%
  • 1.79

+0.49

Thanks to NRW drop Taipei has survived the severe drought without water shortage in 2014

Intermittent water supply

Less rainfall, end of 2014 Leakage drop 11.74%

Water saved

1.23 supplied to TWC 0.56 in reservoir

(Increasing reservoir capacity)

Less Leakages = No Water Shortage in Great Taipei Area

(x100 million)

slide-25
SLIDE 25

25

Water Distribution – powerful arguments

Tokyo example:

  • Decrease of the leakage rate from

15.4% to 2.2%:

  • USD 200 million pa
  • Decrease of the number of water

leakage repair cases from 57,970 cases in 1980 to 9,774;

  • USD200 million pa
  • Advantage of long useful service

life of stainless steel >100 year

  • USD 45million pa
  • CO2 emissions – savings over

1980 emissions;

  • >700 k tonnes of CO2
slide-26
SLIDE 26

26

Water Distribution – powerful arguments

Seoul example:

  • Decrease of the leakage rate from 27%

to 2.5%

  • Decrease of the number of water

leakage repair cases from around 60,000 cases to around 10,000 cases

  • Reduced water production from 7.3 m

to 4.5 m CMD

  • Reduced the number of water

treatment plants from 10 to 6

slide-27
SLIDE 27

27

Asian Results: Leakage Rates Over Time

0% 5% 10% 15% 20% 25% 30% 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014

Tokyo Seoul Taipei

Sources: Tokyo: Tokyo Waterworks Bureau; Seoul: Ministry of environment, Republic of Korea; Taipei: Taipei Water Department; Hong Kong: OECD report 来源：东京-东京水务局， 首尔-韩国环境部，台北-台北水务处，香港-经合组织报告

slide-28
SLIDE 28

Thank you for your attention
