Storage Tank Corrosion Mitigation What is the Problem? Leaks leading to: Wastage Lost resources Environmental damage What is the Problem? Corrosion is the main cause of these leaks. Other causes could be environmental

slide-1
SLIDE 1

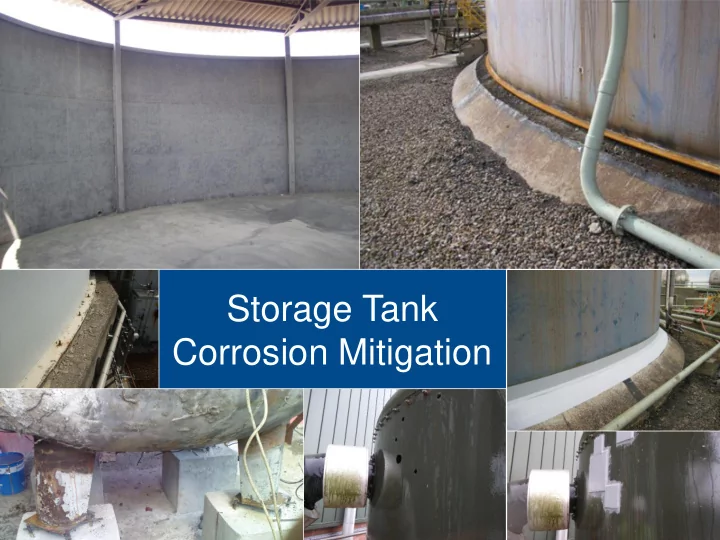

Storage Tank Corrosion Mitigation

slide-2
SLIDE 2
  • Leaks leading to:
  • Wastage
  • Lost resources
  • Environmental damage

What is the Problem?

slide-3
SLIDE 3

Corrosion is the main cause of these

  • leaks. Other causes could be

environmental damage or damage due to impact

What is the Problem?

slide-4
SLIDE 4

Belzona Solutions for Storage Tanks

slide-5
SLIDE 5

Tank Base Sealing

Problem areas for Tanks

Deteriorated Base Seam Defects Through-wall Defects Corroded Hand Rails Internal Corrosion 1 2 3 4 5

slide-6
SLIDE 6

Tank Base Sealing

Solutions for Tanks

Tank Base Sealing Composite Patch Repair Plate Bonding for Through-wall Defects Hand Rails Bonding Internal Lining 1 2 3 4 5

slide-7
SLIDE 7

Tank Base Sealing

  • Corrosion of tank wall and

chine angle

  • Deterioration of seal
  • Corrosion of tank base
  • Tank

Wall

  • Tank base
  • Water / moisture ingress

under the tank base through this joint, when the tank moves the capillary action squeezes the water under the base

  • Concrete or

Asphalt

Problem Areas

slide-8
SLIDE 8

Tank Base Sealing Traditional Repairs Mastics Steel Skirt Bonded Rubber

slide-9
SLIDE 9

Tank Base Sealing

Tank Base Sealing 1

slide-10
SLIDE 10

Tank Base Sealing: Belzona 3111

slide-11
SLIDE 11

Tank Base Sealing

Belzona Tank Base Sealing System

Advantages of using a Belzona system?

  • Microporous
  • Flexible
  • Weather resistant
  • Excellent adhesion
slide-12
SLIDE 12

Case studies – Tank Base Sealing

Petrochemical Plant, UK (2010)

slide-13
SLIDE 13

Case studies – Tank Base Sealing

Refinery, West France (2004)

  • 1. Failing System
  • 2. Surface conditioned
  • 3. Testing the Annular Ring
  • 4. Application – 13 years on
slide-14
SLIDE 14

Case studies – Tank Base Sealing

International Petroleum company, China (2014)

  • 1. Tank farm overview
  • 2. Damaged tank base
  • 3. Application of Belzona 3211
  • 4. Completed application
slide-15
SLIDE 15

Case studies – Tank Base Sealing

Petrochemical Plant, Croatia, 2014

slide-16
SLIDE 16

External Protection

External solutions for Tanks

External Corrosion Protection

Problems – Corrosion - UV damage

slide-17
SLIDE 17

External Protection

Problem:

  • Corrosion
  • Environmental damage
  • Impact damage

Conventional repair methods:

  • Hot work – Health and safety issues
  • Impractical as tank needs to be empty
  • Damaging to the internal lining in the

process

slide-18
SLIDE 18

External Protection

Belzona Solution:

Advantages:

  • High Zinc content
  • UV resistance
  • Cold applied
  • Durable
  • Spray applied
slide-19
SLIDE 19

Plate Bonding

Introduction

slide-20
SLIDE 20

Belzona plate bonding permanent repair Deteriorated tank roofs Evident through-wall defects

Tank roof repair

2006, Oil Distributor, England

slide-21
SLIDE 21

External Tank Protection

PEMEX Mexico, Tamaulipas field

  • 1. External corrosion
  • 2. Belzona 5111, 6111 and 5811
  • 3. Completed application
  • 4. 12 years later
slide-22
SLIDE 22

External Tank Protection

IVECO-Turin, Italy

slide-23
SLIDE 23

External Tank Protection

Chemical Plant, Poland

slide-24
SLIDE 24

External Tank Protection

Sugar Factory, France

Coating of the silos Finished application

slide-25
SLIDE 25

External Protection

Petroleum plant, South Africa (2013)

slide-26
SLIDE 26

Internal Protection

Internal Solutions for Tanks

Internal Lining 5

slide-27
SLIDE 27

Internal Protection Common Problems:

  • Corrosion
  • Erosion
  • Chemical attack
  • Maintenance/cleaning (steam
  • ut)

Leads to:

  • Thin/through wall defects
  • Leaks
  • Delamination of existing

coating

slide-28
SLIDE 28

Internal Protection Conventional Repairs:

  • Welding
  • Standard paint systems

Belzona Solution:

  • Cold applied
  • Resistant to a wide range of

chemicals/temperatures

  • High adhesion
  • Long-term protection
  • In-situ repair
slide-29
SLIDE 29

Internal Protection

Oil company, Tunisia

slide-30
SLIDE 30

Internal Protection

International Oil company, Chad (2003)

slide-31
SLIDE 31

Internal protection

Tank, Pulp Factory, Germany (2007)

slide-32
SLIDE 32

Internal Protection

France, 2017

slide-33
SLIDE 33

Belzona Solution

Corrosion Protection of small bore nozzles Small bore nozzles are difficult to blast properly, difficult to apply coating and cannot inspect properly A cost effective alternative to CRA is to insert corrosion inert sleeve and bond into place using suitable Belzona material Same Belzona adhesive can be used to form flange face providing complete protection.

slide-34
SLIDE 34

Nozzle Insert Technology

slide-35
SLIDE 35

Nozzle Insert Technology

slide-36
SLIDE 36

Flange Face Forming

slide-37
SLIDE 37

Flange faces formed using Belzona materials to prevent corrosion and leaks

Flange Face Forming

slide-38
SLIDE 38

Belzona solutions – Storage Tanks

Why Belzona?

Resistance to a wide range of chemicals and temperatures Fast curing for minimal downtime Solvent free no shrinkage Maintainable Brush or spray applied Cold applied No hot work

Application: In-service performance:

Long-term solution High adhesion

slide-39
SLIDE 39

Belzona seals tank shell to the concrete floor

Romania April 2018

CASE STUDY 1

slide-40
SLIDE 40

APPLICATION SITUATION

13m 12m

Volume: 1500m3

A steel tank with a concrete floor used to store a mix of salt water and oil

slide-41
SLIDE 41

PROBLEM

There was a gap of up to 6 mm between the concrete floor and the steel shell. It had to be sealed to stop the tank from leaking.

slide-42
SLIDE 42

SOLUTION

1. Enlarge the gap 2. Remove contaminated concrete 3. Clean and sandblast steel 4. Degrease the surface

slide-43
SLIDE 43

SOLUTION

  • 5. Insert NBR rubber

cord into the gap

  • 6. Close the gap with

Belzona 4111

  • 7. Apply Belzona 1321

for corrosion protection

slide-44
SLIDE 44

No leaks after 1 year

  • f operation

4 people completed this application in 5 days

OUTCOME

slide-45
SLIDE 45

Belzona restores tank wall and protects against corrosion

Romania August 2018

CASE STUDY 2

slide-46
SLIDE 46

APPLICATION SITUATION

12.3m 9m

Volume: 980m3

A steel tank used to store a mix of salt water and oil

slide-47
SLIDE 47

PROBLEM

The tank suffered from an advanced internal corrosion.

slide-48
SLIDE 48

SOLUTION

1. Clean, degrease and sandblast the area 2. Apply Belzona 1111 to restore the wall thickness 3. Bond steel plates

  • ver holes

4. Apply Belzona 5892 to protect the tank bottom and shell from corrosion

slide-49
SLIDE 49

Fast and easy back to service

Belzona was the only alternative due to the risk of sparks

OUTCOME

slide-50
SLIDE 50

Belzona repairs a crack and holes in a tank shell

Romania May 2019

CASE STUDY 3

slide-51
SLIDE 51

APPLICATION SITUATION

A 20-year-old with significant mud deposits

slide-52
SLIDE 52

PROBLEM

  • 80% wall

thickness loss

  • Crack developed

from the bottom of the tank

slide-53
SLIDE 53

SOLUTION

1. Old plate removed 2. Nozzle bonded with Belzona 1212 to redirect the leak 3. Area sandblasted

slide-54
SLIDE 54

SOLUTION

  • 4. Belzona 1111 used to

restore lost wall thickness

  • 5. Specially designed

metal plate bonded in place

  • 6. Plug fitted and

Belzona 3412 applied for corrosion protection

slide-55
SLIDE 55

Welding was the

  • nly alternative =

4 weeks downtime Belzona solution = 2 days with no disruption

OUTCOME
