LDE RECERT TAGS

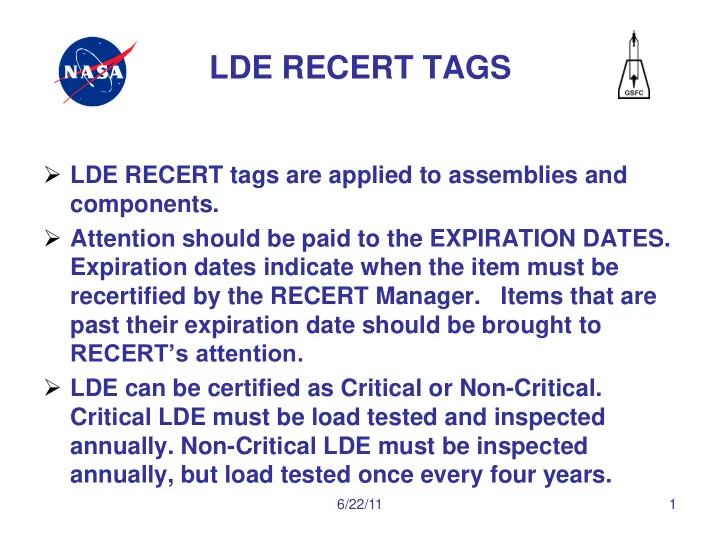

  • LDE RECERT tags are applied to assemblies and

components.

  • Attention should be paid to the EXPIRATION DATES.

Expiration dates indicate when the item must be recertified by the RECERT Manager. Items that are past their expiration date should be brought to RECERT’s attention.

  • LDE can be certified as Critical or Non-Critical.

Critical LDE must be load tested and inspected

  • annually. Non-Critical LDE must be inspected

annually, but load tested once every four years.

slide-2
SLIDE 2

SAMPLE

LDE RECERT TAGS

Lift Slings tested as a complete assembly will be tagged with a single RECERT Proof Tag. The components of the assembly will each have a RECERT Inspection tag. The Proof Test Tag will indicate: Safe Working Load LDE ID number Criticality of item Proof Test Expiration (Due Date)

6/22/11 2

slide-3
SLIDE 3

SAMPLE

LDE COMPONENT RECERT TAGS

Critical LDE Component RECERT Proof load test tag. Tag lists: Safe Working Load (SWL)- amount the item is rated to lift LDE ID # - should match markings on item Due Date – date when current certification expire and item needs to be returned to RECERT for testing/inspection

6/22/11 3

slide-4
SLIDE 4

Sample Critical LDE Component RECERT TAGS

NDT Inspection tags are provided for all critical lifting components These tags list the inspection date, the due date is one year after the inspection date. All critical LDE requires annual testing/inspection.

6/22/11 4

slide-5
SLIDE 5

6/22/11 5

SAMPLE LD (CRANE) RECERT Tags

  • Every Lifting Device
  • n center requires a

Certification Tag.

  • RECERT TAG will list:
  • LDE ID number
  • Safe Working Load
  • Criticality
  • Due Date
slide-6
SLIDE 6

6/22/11 6

CRANE Power Main Disconnect

  • Crane power switches ,

main power disconnects, RECERT tags and log books are typically located together.

slide-7
SLIDE 7

CRANE LOG BOOKS

  • Crane Log books are to

be filled out and signed by operator after performing the daily checkout, prior to using the crane.

  • Any and all discrepancies

should be recorded in the logbook.

6/22/11 7

slide-8
SLIDE 8

Typical LDE Components

  • LDE lifting

components can be nylon straps, wire rope slings, turnbuckles, shackles, hoist rings, eye bolts, etc.

6/22/11 8

slide-9
SLIDE 9

LDE Lifting Components

  • Any component used in a lifting activity at GSFC

requires certification and a current RECERT tag.

  • Components must not be overloaded by

exceeding the SWL .

  • Critical components may be used for a Non-

critical lift.

  • Non critical components cannot be used in a

critical lift.

  • All LDE requires a visual inspection by the users

prior to use.

6/22/11 9

slide-10
SLIDE 10

LDE Components Typical Defects

  • The sides of this ring

were straight when it was made.

  • When it was overloaded

the sides were deformed (bowed-in) as seen here.

  • This lifting ring was
  • verloaded and is unsafe

for use.

6/22/11 10

slide-11
SLIDE 11

LDE Components Typical Defects

  • Nylon Lifting strap

shown on left has significant fraying.

  • A strap with any

noticeable fraying

  • r fiber damage

(burns, cuts, etc) , should be removed from service.

6/22/11 11

slide-12
SLIDE 12

LDE Components Typical Defects

  • Wire rope with broken

strands and bulged at end fitting.

  • Wire rope sling with

any broken strands at end fittings are to be removed from service

6/22/11 12

slide-13
SLIDE 13

LDE Components Typical Defects

  • Swivel Hoist rings

must be able to swivel freely and must maintain OEM components.

  • This item was frozen

and could not swivel. Bolt appears to of been replaced with non OEM fastener.

6/22/11 13

slide-14
SLIDE 14

LDE Components Typical Defects

  • LDE owner

modifications are typically not allowed.

  • This shackle was

machined for clearance by user, it was removed from service when discovered by RECERT.

6/22/11 14

slide-15
SLIDE 15

LDE Lifting Fixtures

6/22/11 15

  • Specialty

lifting fixtures like this “Flip Rite” unit are considered LDE and require certification by RECERT.

slide-16
SLIDE 16

LDE Overview

  • All LDE must be inspected prior to use
  • Critical and Non-Critical LDE have different

testing/inspection requirements and intervals.

  • LDE tested as an assembly will only have a

single load test tag, but each component of the assembly will have an individual inspection tag.

  • Components of an assembly cannot be removed

and used for other lifting configurations.

6/22/11 16

slide-17
SLIDE 17

Powered Industrial Trucks

  • PIT’s include Fork Lift

Trucks of various configurations ( ride on, walk behind, etc).

  • PIT’s will have a

RECERT certification tag displayed on the unit.

  • The Certification tag will

list: LDE ID number. SWL, Certification expiration (Due) date, etc.

6/22/11 17

slide-18
SLIDE 18

PIT Logbooks

  • Each PIT has a

logbook for users to record Daily checkout inspection entries.

  • Logbook should

be filled out by

  • perators prior to

use.

6/22/11 18

slide-19
SLIDE 19

Mobile Aerial Platforms

  • MAP’s include:

scissors lifts, bucket lifts (JLG, etc) and other powered devices used to position personnel at elevated work locations.

6/22/11 19

slide-20
SLIDE 20

MAP Logbook

  • Each MAP has a

logbook for users to record Daily checkout inspection entries.

  • Logbook should be

filled out by

  • perators prior to

use.

6/22/11 20

slide-21
SLIDE 21

6/22/11 21

RECERT ON-LINE DOCUMENTS & CONTACTS

  • RECERT URL:

http://recert.gsfc.nasa.gov/
