IXYS

2008 Product Marketing IXYS

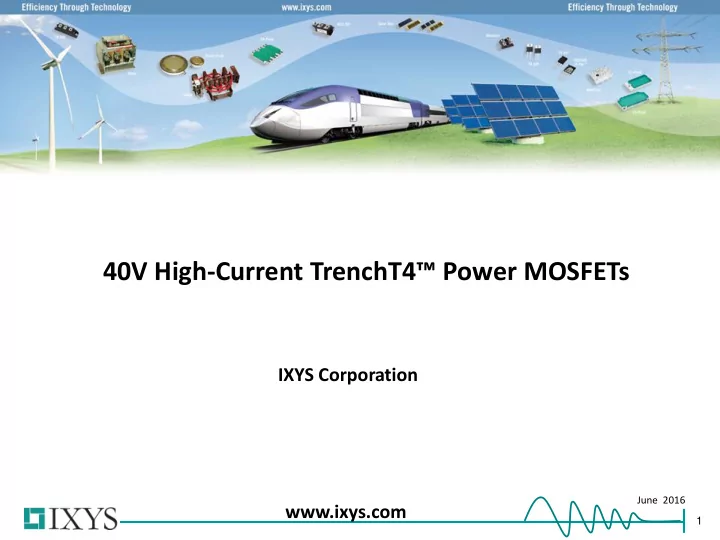

40V High-Current TrenchT4™ Power MOSFETs

IXYS Corporation www.ixys.com

June 2016

2

• New generation of high-current Trench MOSFETs from IXYS Corporation
• Ultra low on-state resistance RDS(on)
• Avalanche rated
• 175°C operating temperature
• Higher efficiency
• High power densities
• Easy to mount
• Available in international standard packages: TO-220, TO-263 (3- or 7-lead),

TO-247

Product Line Introduction (40V TrenchT4™ MOSFETs)

Ideal for synchronous rectification applications

Key Technology Advantages

3

TrenchT4™ Technology

• RDS(on) as low as 1.7mΩ
• High-current handling capability
• Reduction in the number of MOSFETs needed
• Paralleling multiple devices avoided

Avalanche Ruggedness

• Robust against device failure caused by voltage transients and

accidental turn-on of parasitic bipolar transistors inherent in the MOSFET structure

• Junction temperature up to 175°C

4

Available Parts

Applications

5

Ideal for Synchronous Rectification

• Synchronous rectification
• High current switching power supplies
• Battery powered electric motors
• Resonant-mode power supplies
• Electronic ballasts
• Class-D audio amplifiers
• Electric forklifts
• Cordless power tools

Synchronous buck converter Brushed DC motor (cordless tools) Half-bridge Class-D audio amplifier

Competitive Landscape

6

The IXYS part displays a superior ruggedness:

• Higher avalanche rating, EAS= 1.2J
• Lower thermal resistance, RthJC= 0.31 °C/W

The World OF IXYS

Industry Mind Share Strong Product Promotion and Focus Joint Strategic and Marketing Programs Broad Technologies with Strong Power Solutions Great Partner for Demand Creation Creating New Products For Today and Tomorrow’s Needs IXYS POWER, IC, and Microcontroller Solutions
