[PPT] - ITS DEPLOYMENT IN ROAD TRANSPORT IN ROMANIA Directive 2010/40/EU - PowerPoint Presentation

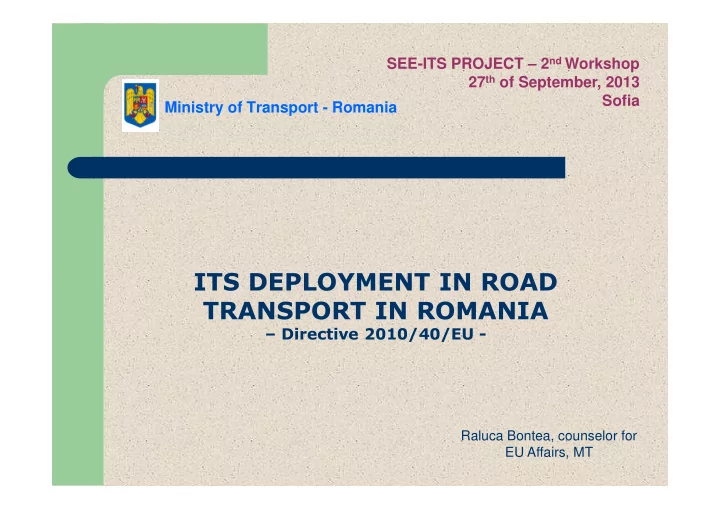

SLIDE 1

Ministry of Transport - Romania

ITS DEPLOYMENT IN ROAD TRANSPORT IN ROMANIA

– Directive 2010/40/EU - SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

Raluca Bontea, counselor for EU Affairs, MT

SLIDE 2

Ministry of Transport - Romania

Development of ITS in Road transport

indisputable advantages -

more efficient use of existing infrastructure congestion reduction driving time reduction number of accidents and victims of road accidents reduction environmental performance improvement

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 3

Ministry of Transport - Romania

Romanian National Legal Framework Legislation

Government Ordinance 7/2012

regarding the deployment

f

Intelligent Transport Systems in the field

f

road transport and for interfaces with other modes of transport

transposes provisions of Directive 2010/40/EU
ensures the support framework for the

coordinated deployment and use at national level of ITS in the road transport field, in harmonisation with similar systems implemented in the EU

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 4

Ministry of Transport - Romania

Romanian National Legal Framework Legislation

Government Ordinance 7/2012
sets priority areas for the development and use of

specifications and standards for ITS (same as in Directive 2010/40/EU):

I. Optimal use of road traffic and travel data
II. Continuity of traffic and freight management ITS

services

III. ITS road safety and security applications
IV. Linking the vehicle with the transport infrastructure

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 5

Ministry of Transport - Romania

Romanian National Legal Framework Legislation

Government Ordinance 7/2012
sets priority actions (within the priority areas) for the

development and use of specifications and standards: (a) the provision of EU-wide multimodal travel information services (b) the provision of EU-wide real-time traffic information services (c) data and procedures for the provision, where possible, of road safety related minimum universal traffic information free of charge to users

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 6

Ministry of Transport - Romania

Romanian National Legal Framework Legislation

Government Ordinance 7/2012

(d) the harmonised provision for an interoperable EU- wide eCall (e) the provision of information services for safe and secure parking places for trucks and commercial vehicles (f) the provision of reservation services for safe and secure parking places for trucks and commercial vehicles

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 7

Ministry of Transport - Romania

Romanian National Legal Framework Legislation

Government Ordinance 7/2012
sets Guidelines for standards and specifications:
1. The specifications adopted by the Commission in

accordance with Article 6 shall be applied to all ITS applications and services which fall under the scope of the Ordinance, when these are deployed. This is without prejudice to the right of Romania to decide on its deployment of such applications and services on its territory.

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 8

Ministry of Transport - Romania

Romanian National Legal Framework Legislation

Government Ordinance 7/2012
sets Guidelines for standards and specifications:
2. Romania shall also make efforts to cooperate with
ther Member States in respect of the priority areas,

insofar as no specifications have been adopted

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 9

Ministry of Transport - Romania

Romanian National Legal Framework Legislation

Government Decision 835/2010 regarding

the Ministry of Transport –the Ministry of Transport is appointed reporting body to the European Commission, in accordance with art. 17 of the Directive 2010/40/EU

Government Decision proposal for the

approval of the Regulations on the organisation and

peration of the Coordination Council for ITS

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 10

Ministry of Transport - Romania

Romanian National Legal Framework Institutions The Ministry of Transport

coordinating institution for the transposition

into national law of Directive 2010/40/EU

holds the Presidency and Secretariat of the

ITS CC, while the Ministry of Communications holds the Vice-presidency

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 11

Ministry of Transport - Romania

Romanian National Legal Framework Institutions

ITS Coordination Council

14 public institutions and 5 local authorities associations

ensures

coordination at national level

f

the necessary actions for implementing the G.O. 7/2011 and realisation of cooperation between the authorities that deploy ITS services and applications that fall under the scope of the Ordinance

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 12

Ministry of Transport - Romania

ITS Coordination Council 1) Ministry of Transport 2) Ministry of Communications 3) Ministry of the Interior 4) Ministry of Regional Development and Public Administration 5) Ministry of the Economy 6) Ministry of Education 7) Ministry of Environment 8) Ministry of Health 9) Ministry of Defence 10) Special Telecommunications Service 11) National Authority for Management and Regulation in Communications

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 13

Ministry of Transport - Romania

ITS Coordination Council 12) Romanian Space Agency (ROSA) 13) The Romanian Standards Association 14) National Institute of Statistics 15) Romanian Federation of Local Authorities 16) Romanian Municipalities Association 17) Association of Romanian Towns 18) Romanian Association of Communes 19) National Union of County Councils of Romania

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 14

Ministry of Transport - Romania

Romanian National Legal Framework Institutions MT - advisory ITS group for commercial and technical aspects of ITS deployment

to support ITS CC’s activity
to ensure close cooperation with ITS

stakeholders (ITS service providers/users associations, transport operators, manufacturing industry, social partners, professional associations and local authorities)

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 15

Ministry of Transport - Romania

Reported projects 2011:

A. RNCMNR
1. Traffic Monitoring and Information

System– development strategy and pilot project on Motorway A1

2. Extension of Traffic Monitoring and

Information System to Motorway A2

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 16

Ministry of Transport - Romania

Reported projects 2011:

A. RNCMNR
3. Bypass Construction Arad with deployment of

ITS (CCTV, SOS, VMS, traffic monitoring system, weather stations, radio system)

4. Construction of Timisoara –Arad motorway

and Timisoara-Lugoj motorway with deployment of ITS (CCTV, SOS, VMS, traffic monitoring system, weather stations, radio system)

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 17

Ministry of Transport - Romania

Reported projects 2011:

A. RNCMNR
5. Study for minimum requirements for

ITS services on Corridor IV (information services, traffic management services, freight transport and logistics services, vehicle weight and dimensions monitoring and control services, infrastructure safety and security monitoring services)

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 18

Ministry of Transport - Romania

Reported projects 2011:

B. Local authorities

Modernisation of public transport through ITS, Traffic monitoring, Information services, Security surveillance

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 19

Ministry of Transport - Romania

Reported projects 2011:

C. Ministry of Regional Development
1. Real-time Traffic Information system on

national roads and main Bucharest arteries (through a Web public portal, a Mobile Web application and a national information ITS system)

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 20

Ministry of Transport - Romania

Reported projects 2011:

C. Ministry of Regional Development
2. Participation in the SEETAC project–through the

establishment and implementation of an effective and coordinated South East Transport Axis (SETA) framework, promoting and fostering the institutional cooperation for rapid implementation of transport priority projects – definition of multimodal transport scenarios, mobility standards and spatial planning

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 21

Ministry of Transport - Romania

Reported projects 2011:

C. Ministry of Regional Development
3. Traffic fluidization through a control and traffic

monitoring system, better road infrastructure, public transport and increased road safety in Craiova

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 22

Ministry of Transport - Romania

Reported projects 2011:

D. Ministry of Communications
1. eCall (with ITS Romania as project leader)–study

and elaboration of eCall National system architecture and implementation guide –has led to European Project HeERO (Harmonised eCall European Pilot)

2. Emergency Information system –study for

vehicle to infrastructure real time information transfer –test platform for Radio Data System -RDS through existing radio network and testing for future Traffic Message Channel -TMC applications

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 23

Ministry of Transport - Romania

Reported projects 2011:

D. Special Telecommunications Service

(112 public-safety answering point –PSAP- administrator), ITS Romania (project leader), RNCMNR

Romania is one of the HeERO 1 pilot countries.

Phase 1: the start-up of an interoperable and harmonised in-vehicle emergency call system

to create the mechanism to differentiate eCalls from

the regular emergency 112 calls

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 24

Ministry of Transport - Romania

Reported projects 2012:

A. Local Authorities

1.Traffic Management and Fluidization System – Pitesti, Brasov, Galati, Zalau, Timisoara, Ramnicu Valcea, Alexandria, Deva; Integrated electronic ticketing system, passenger information regarding public transport network (Brasov, Cluj); Safety and Security video surveillance (Galati, Iasi), Public Transport Monitoring and Surveillance, incident management system (Iasi)

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 25

Ministry of Transport - Romania

Reported projects 2012:

A. Local Authorities
2. Crossborder road transport managent

system in order to increase mobility (Iasi County Council, Ungheni Region, the Republic

f Moldova and Odessa Region, Ukraine)
3. Urban traffic adaptive control system (UTC),

public transport management system (PTM), traffic management system through CCTV - Bucharest

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 26

Ministry of Transport - Romania

Reported projects 2012:

B. Romanian Space Agency under

coordination of European GNSS Agency, European Space Agency, European Comission Extension of EGNOS to Eastern Europe – applications; demonstrate through flight trials the benefits of EGNOS in areas of Eastern Europe where EGNOS is not available; study the impact of SBAS technology in transport management; promote EDAS, EGNOS and Galileo

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 27

Ministry of Transport - Romania

Reported projects 2012:

C. RNCMNR, Ministry of Transport,

Romanian Police, ITS Romania

1. Elaboration of ITS Development Strategy

and ITS National Action Plan for the Romanian National Road Network until 2020

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 28

Ministry of Transport - Romania

Reported projects 2012:

C. RNCMNR
2. Inclusion of ITS on Corridor IV, Romanian

sector (information services, traffic management services,

weather stations, SOS, CCTV, Licence plate recognition system, Variable Message System, radar, freight transport and logistics services, vehicle weight and dimensions in- motion monitoring and control services, infrastructure safety and security monitoring services) to eliminate “Black spots”, limit the number of road accidents, offer real time information for travellers, ensure environmental protection and future maintainance and development of road system

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 29

Ministry of Transport - Romania

Conclusions ITS are in an emerging stage of implementation Romania is taking important steps in the road ITS field The necessary framework has been created Romania has submitted the requested reports to the European Commission on its national activities and projects regarding the priority areas, as well as on national ITS actions envisaged over the following five year period

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 30

Ministry of Transport - Romania

Conclusions Many projects already implemented or envisioned at national level (e.g. local level, Motorways and National Roads)

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 31

Ministry of Transport - Romania

Conclusions Further steps envisioned at national level

creation of other control centres for

monitoring and information system in major Romanian cities

adoption of a Strategy and an Action

Plan in the road ITS field

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 32

Ministry of Transport - Romania

Thank you for your attention!

SEE-ITS PROJECT – 2nd Workshop 27th of September, 2013 Sofia

SLIDE 33

TRAFFIC AND TRANSPORT CONDITION MONITORING AND INFORMATION SYSTEM FOR A1 AND A2 MOTORWAYS OF ROMANIA

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

Romanian National Company for Motorways and National Roads

SLIDE 34

A1 Bucharest – Pitesti motorway, 120 km long

The ITS system deployed on A1 is the first ITS project in Romania, a pilot project meant to test the ITS technologies and thus develop a strategy for ITS on the national road network in Romania and harmonization of services at European road network level. It includes two services:

traffic and road infrastructure monitoring; information for road users concerning traffic and road conditions

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

Romanian National Company for Motorways and National Roads

Project description

SLIDE 35

Control centre with Complete ITS management platform

Monitoring Information system

Romanian National Company for Motorways and National Roads

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

SLIDE 36

CCTV system with PTZ (pan, tilt, zoom) cameras
– 12 cameras for motorway traffic monitoring
Video automatic incident detection system
– 2 locations
Video based traffic counting
– one location
Traffic counting & vehicle classification (inductive loops based)
– all 6 locations
Traffic counting & classification with infrared and ultrasound

technologies

one location
Traffic counting & classification with radar technology
2 locations
High speed weigh in motion system
– 1 location both directions
Weather and pavement data collection stations
– 2 locations
Licence plate recognition system with vignette enforcement system

Romanian National Company for Motorways and National Roads

Monitoring

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

SLIDE 37

The Information system consists of:
Variable Message Signs (VMS) with LED displays

– 3 locations

Short term weather forecast software
installed in Control centre
provides weather data collection
provides short term weather forecast
DATEX 2 Interfaces –exchange of data
with other centres
Traffic and Travel Information System
24 / 7, real time, graphical interface presenting

the Level of Services, the Map of crowded areas, Alerts, other traffic-related information.

Romanian National Company for Motorways and National Roads

Information system and accessories

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

SLIDE 38

Romanian National Company for Motorways and National Roads

A F B C D E

Dispatch

RNCMNR -DRDP Bucharest

Km 119+500 Km 105+910 Km 71 Km 36 Km 22+460 Km 10+650

Virtual Private Network VPN

External Data Transmission: Police, Commandament Centre MT (Dispatch) CESTRIN Centre for Road Technical Studies and Informatics

Direct wireless connection Radio relay Radio relay Radio relay Radio relay Radio relay Optical fiber Optical fiber/ /Radio Optical fiber direct connection

G H I

Radio relay Radio relay Radio relay Radio relay

Romanian National Company for Motorways and National Roads

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

SLIDE 42

Romanian National Company for Motorways and National Roads

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

Motorway equipments – B point

SLIDE 43

Romanian National Company for Motorways and National Roads

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

Motorway equipments – C point

SLIDE 44

SLIDE 51

A2 Bucharest – Constanta (the main city-port

n the Black Sea)

SLIDE 54

Romanian National Company for Motorways and National Roads

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

Motorway equipments – G point

SLIDE 55

Romanian National Company for Motorways and National Roads

SEE-ITS PROJECT – 2nd Workshop

SEE-ITS PROJECT – 2nd Workshop

27th of September, 2013 Sofia

System integration - dispatch

SLIDE 60
