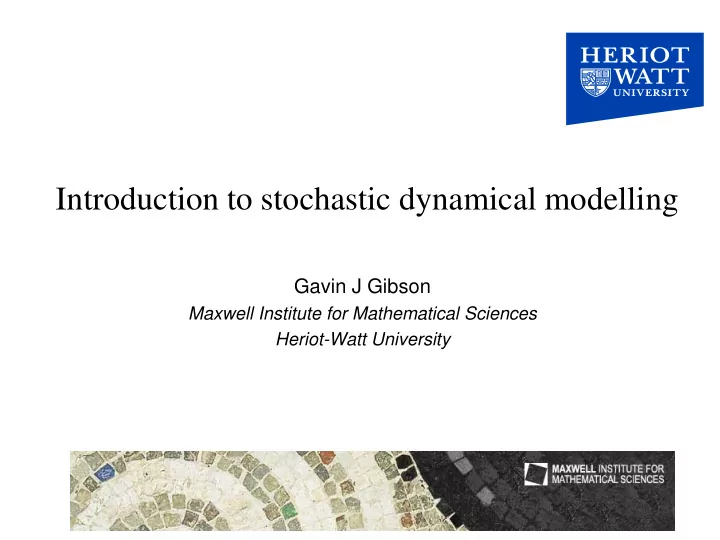

Introduction to stochastic dynamical modelling

Gavin J Gibson

Maxwell Institute for Mathematical Sciences Heriot-Watt University

Outline

• Motivation for stochastic modelling
• Structure of stochastic models
• Simulation of stochastic models
• Fitting stochastic models to data with Bayesian

methods

• Examples from epidemiology and ecology

Stochastic – what and why?

• Models explicitly represent the occurrence of random

events

• Repeated running of models allows a distribution of
• utcomes to be obtained
• Probabilities of extreme events (e.g. extinction of a

population) can be estimated

• Very valuable in risk assessment
• Important when observations display random

characteristics

Individual based stochastic compartment models

Example: Birth-death model

• Population at time t has N(t) individuals.
• Probability of any given individual giving birth in

(t, t+∆) is approximately α∆ (∆ small).

• Probability of any given individual dying in interval

(t, t+∆) is β∆. Net rate (per unit time) of births and deaths: αN(t) and βN(t).

5 10 15 20 10 20 30 40 50 60 70 t n 5 10 15 20 40 60 80 100 t n 2 4 6 8 10 2 4 6 8 10 12 t n 5 10 15 20 10 20 30 40 50 60 70 t n

4 realisations with α = 1.1, β = 1 and N(0) = 10 EXTINCTION!

Stochastic v deterministic

• For the immigration death model, if α ≤ β the population will

die out with certainty

• If β>α then it may die out but there is some probability it will

take off

• The probability of ‘taking off’ increases with the population

size

• If it takes off it will exhibit exponential growth in the long

term (like the deterministic version)

• Can show

E(N(t)) = N(0)exp((α-β)t) (exponential growth)

Stochastic compartment models e.g. SIR epidemic model

• Consider fixed size population whose members can

be in compartments Susceptible → Infected → Removed Instantaneous rates at time t at which a given individual transitions: S → I βI(t) I → R µ, Giving net rates of: βS(t)I(t); µI(t) for transitions from S → I and I → R respectively.

SIR (continued)

• Rates are non-linear functions of the numbers in each

compartment

• Simple solution for evolution of mean numbers in

each compartment doesn’t exist

• Similarly important to understand the probability of

dichotomous behaviour (large or small outbreak)

• R0 = βN/µ, threshold for large v. small epidemics
• Vaccination programmes aim to get R0 below 1

Theoretical justification

• If N is large and I(0) is small then rate of new

infections is approximately βNI(t)

• Rate of removals is µI(t)
• I(t) behaves like population governed by birth

death model with birth rate βN and death rate µ ฀ βN/µ > 1 possible outbreak ฀ βN/µ < 1 extinction assured.

Simulating stochastic compartment models

Gillespie algorithm: Current state (S(t), I(t)): [S+I+R = N] Total instantaneous rate: R = βS(t)I(t) + µI(t) 1. Simulate ∆ ~Exp(R), t → t+ ∆ 2. Choose event type to be infection with probability βS(t)/R (otherwise removal). 3. Update state vector at new time depending on the event type chosen. Repeat the process to generate a stochastic realisation of the process. Process generalises to compartment models of arbitrary complexity.

n_events = 1000 #number of times n = numeric(n_events) #vector for population sizes t = numeric(n_events) #vector of event times t[1] = 0 #initial time n[1] = 10 #initial population size beta = 1.1 #birth rate mu = 1 #death rate for( i in 1:(n_events-1) ) { #If extinct then nothing can happen! if(n[i] == 0) { n[i+1] = 0 t[i+1] = t[i] } #Otherwise simulate next event else{ del = rexp(1, n[i]*(beta + mu)) #time till event t[i+1] = t[i]+del #next event time #now select and implement event if( runif(1, 0, 1) < beta/(beta + mu) ) n[i+1] = n[i] + 1 else n[i+1] = n[i] - 1 } } plot(t, n, type = "l")

Applications of SIR Model

• Help understand how effective vaccination can

be

• Suppose we can immunise a proportion p of

the population

• Initial number of susceptibles is N(1-p), and

effective R0 decreases by this factor

• How large must p be so that

(1-p)βN/µ < 1?

Adding realism to SIR

• SIR model considered thus far makes certain

unrealistic assumptions

• Time spent by individual in class I has Exponential

distribution (memoryless)

• More realistic to assume distribution with some clear

mode (such as Gamma distribution)

• Not so straightforward to simulate – needs each

individual’s history to be represented.

‘Method of stages’

• A way of removing Exponential assumption

while keeping Markovian property by having 2 (or more stages in the I compartment) β 2µ 2µ S → I1 → I2 → R Combined time in I1 and I2 follows Gamma(2, 2µ).

Further extensions

• SEIR models – E class corresponds to exposed

but not yet infectious

• Structured populations with different contact

rates between groups (AIDS, influenza, measles)

• Spatial interactions (see later)

Parameter estimation for epidemic models (SIR)

• Parameter vector θ = (β, µ) – we want to

estimate this, e.g. to estimate R0.

• If complete knowledge, z, of all events (both

infections and removals is available) then likelihood L(θ) = Pr(z | θ) can be calculated and maximised.

• Problem is we often only see subset of the

information – e.g. removal times

Partially observed process

time T i1 i2 S→I I→R

Challenge: How do we estimate the parameters if we only see the removal times?

Snapshot data: Rhizochtonia in radish

18 time (days)

2 4 6 8 10 12 14 16

diseased plants

5 10 15 20 25 30 35

time (days)

2 4 6 8 10 12 14 16

diseased plants

5 10 15 20 25 30 35 (a) (b)

5 reps with trichoderma 5 reps without trichoderma

Bayesian inference for epidemics

Experiment: yields partial data y. Stochastic model: with parameter θ specifying π(y|θ). Aim: Express belief re θ as a probability density π(θ|y). Bayesian solution: Assign prior distribution π(θ), to yield posterior π(θ|y) ∝ π(θ)π(y|θ). Problem: π(y|θ) is often intractable integral. Data augmentation: Consider complete data z for which π(z|θ) is tractable. Consider π(θ, z | y) ∝ π(θ)π(z |θ)π(y|z). Can simulate from π(θ, z |y) e.g. using MCMC.

Likelihood Prior

Data-augmented Markov chain Monte Carlo

• Set up Markov chain with state (θ, z) whose

stationary distribution is π(θ, z | y)

• In practice involves proposing and accepting and

rejecting changes to θ and z repeatedly and storing the states (θ, z) visited.

• Posterior distributions of individual parameters can

be estimated from histograms

• Makes otherwise difficult statistical problems

tractable

• Can be used to make inference on unobserved events

(e.g. time and location of first infection – index case)

Benefits of data-augmented MCMC Disadvantages?

• Difficult to implement – usually need to develop code

from scratch

• Long computation times – even for quite small

problems

Model: SEI with ‘quenching’, primary and secondary infection constant latent period. S→E rate: R(t) = e-at(rpS(t) + rsS(t)I(t)) Stay in E for fixed period κ 3 ‘submodels’:

• 1. Latent period = 0 (SI)
• 2. SEI with observations

recording I

• 3. SEI with observations

recording E+I

No trichoderma Trichoderma

Example application: R solani in radish

Although quantitative estimates

• f parameters changes with model the

qualitative conclusion seems robust. There is consistent evidence that T viride appears to affect the primary infection parameter. Models are useful ‘lenses’ even if they cannot be used as ‘crystal balls’!

• 3. SEI model, E+I observed

Primary Secondary Quenching Latent

Extension to spatio-temporal SI models

Susceptible j acquires infection at rate: Rj = f(t; γ)(ε + β Σi K(dij, α )) Spatial kernels (examples):

• 1. K(d, α) = exp(-αd)
• 2. K(d, α) = exp(-αd2)
• 3. K(d, α) = (d+1)-α

j Can be fitted using standard Bayesian/data augmentation/MCMC approach See GJG (1997), Jamieson (2004), Cook et al (2008) , Chis-Ster & Ferguson (2009) If models are used to design control strategy – e.g. spatial eradication programmes – then model choice can be crucial.

Example: Miami Citrus Canker epidemic (Gottwald et

al., Phytopathology, 2002; Jamieson, PhD Thesis, U. Cambridge, 2004, Cook et al. 2008, Neri et al 2014)

Data: Dade county, Miami Optimal strategy for eradication sensitive to model choice

6056 susceptibles, 1124 infections after 12 30-day periods

Control strategies can be controversial

Experiment (Hughes et al., J. Gen. Virol. 2002):

32 sheep allocated to 4 groups G1, .., G4. Animals in G1 inoculated with FMD virus (4 at t=0, 4 at t=1 day). Thereafter animals mix according to the following scheme:

Day 1 2 3 4 .

G1 G2 G3 G4

Idea is to ‘force’ higher groups further down the chain of infection. Data: Daily tests on each animal, summarised by:

y = (time of 1st +ve test, last +ve test, peak viraemic level)

Model: SEIR

• Relationship between infectivity and viraemic load
• Weibull distributions for sojourn in E and I classes
• Peak viraemia independent of depth
• Vague priors for model parameters π(θ).

Depth 0 Depth 2 Depth 1 Depth 4

S conducts 1-way ANOVA

• n peak viraemic levels, to

generate p-value. E considers π(p|y) to identify potential conflict. Let x denote the infection network – must be imputed using MCMC x

Group 1 Group 2 From Streftaris & Gibson, PRSB (2004)

If we accept the modelling assumptions we must nevertheless concede that, with high posterior probability, an ANOVA test would provide significant evidence of differences in viraemia with depth in the infection chain.

Summing up

• Stochastic dynamical modelling increasingly applied

in epidemiology and ecology

• Can be used to predict, explain or interpret variability
• Bayesian methods allow parameters to be estimated

from limited data

• Methods for model testing and comparison are not so

well developed
