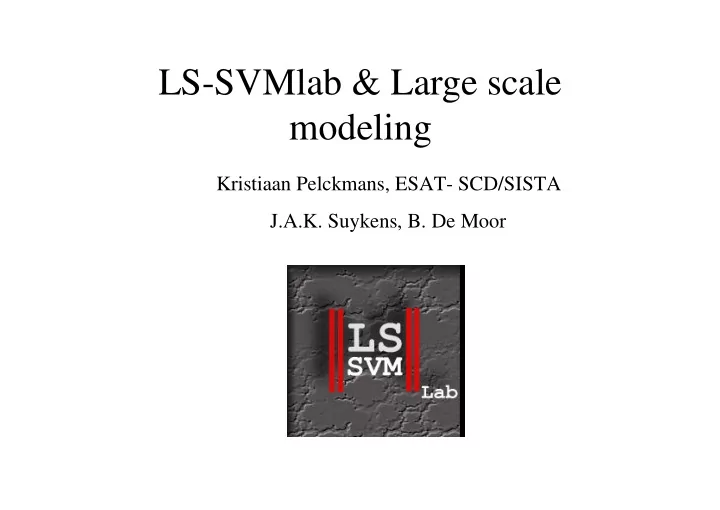

LS-SVMlab & Large scale modeling

Kristiaan Pelckmans, ESAT- SCD/SISTA J.A.K. Suykens, B. De Moor

Content Content

• I. Overview
• II. Classification
• III. Regression
• IV. Unsupervised Learning
• V. Time-series
• VI. Conclusions and Outlooks

People Contributors to LS-SVMlab:

• Kristiaan Pelckmans
• Johan Suykens
• Tony Van Gestel
• Jos De Brabanter
• Lukas Lukas
• Bart Hamers
• Emmanuel Lambert

Supervisors:

• Bart De Moor
• Johan Suykens
• Joos Vandewalle

Acknowledgements Our research is supported by grants from several funding agencies and sources: Research Council K.U.Leuven: Concerted Research Action GOA-Mefisto 666 (Mathematical Engineering), IDO (IOTA Oncology, Genetic networks), several PhD/postdoc & fellow grants; Flemish Government: Fund for Scientific Research FWO Flanders (several PhD/postdoc grants, projects G.0407.02 (support vector machines), G.0080.01 (collective intelligence), G.0256.97 (subspace), G.0115.01 (bio-i and microarrays), G.0240.99 (multilinear algebra), G.0197.02 (power islands), research communities ICCoS, ANMMM), AWI (Bil.

• Int. Collaboration South Africa, Hungary and Poland), IWT

(Soft4s (softsensors), STWW-Genprom (gene promotor prediction), GBOU McKnow(Knowledge management algorithms), Eureka-Impact (MPC-control), Eureka-FLiTE (flutter modeling), several PhD-grants); Belgian Federal Government: DWTC (IUAP IV-02 (1996-2001) and IUAP V- 10-29 (2002-2006): Dynamical Systems and Control: Computation, Identification & Modelling), Program Sustainable Development PODO-II (CP-TR-18: Sustainibility effects of Traffic Management Systems); Direct contract research: Verhaert, Electrabel, Elia, Data4s, IPCOS. JS is a professor at K.U.Leuven Belgium and a postdoctoral researcher with FWO

• Flanders. BDM and JWDW are full professors at K.U.Leuven

Belgium.

• I. Overview
• I. Overview
• Goal of the Presentation
• 1. Overview & Intuition
• 2. Demonstration LS-SVMlab
• 3. Pinpoint research challenges
• 4. Preparation NIPS 2002
• Research results and challenges
• Towards applications
• Overview LS-SVMlab

I.2 Overview research I.2 Overview research

“Learning, generalization, extrapolation, identification, smoothing, modeling”

• Prediction (black box modeling)
• Point of view: Statistical Learning,

Machine Learning, Neural Networks, Optimization, SVM

I.2 Type, Target, Topic I.2 Type, Target, Topic

I.3 Towards applications I.3 Towards applications

• System identification
• Financial engineering
• Biomedical signal processing
• Datamining
• Bio-informatics
• Textmining
• Adaptive signal processing

I.4 LS I.4 LS-

• SVMlab

SVMlab

I.4 LS I.4 LS-

• SVMlab

SVMlab (2) (2)

• Starting points:

– Modularity – Object Oriented & Functional Interface – Basic bricks for advanced research

• Website and tutorial
• Reproducibility (preprocessing)

• II. Classification
• II. Classification

“Learn the decision function associated with a set

• f labeled data points to predict the values of

unseen data”

• Least Squares – Support Vector

Machines

• Bayesian Framework
• Different norms
• Coding schemes

II.1 Least Squares II.1 Least Squares – – Support vector Machines Support vector Machines

(LS (LS-

• SVM

SVM (L,a)) )

1. Least Squares cost-function + regularization & equality constraints 2. Non-linearity by Mercer kernels 3. Primal-Dual Interpretation (Lagrange multipliers)

Primal parametric Model:

i i T i

e b x w y + + =

Dual non-parametric Model:

i n j j i i i

e b x x K y + + = ∑

=1

) , (

σ

α

→

γ

(.,.)

σ

K

II.1 LS II.1 LS-

• SVM

SVM (

(L

L,

,a

a)

)

“Learning representations from relations”

            > < > < > < > < > < > < = Ω

N N N N N

a a a a a a a a a a a a , ... ... , ... ... ... ... ... ... ... , , ... , ,

1 2 1 2 1 1 1

II.2 Bayesian Inference

• Bayes rule (MAP):
• Closed form formulas

Approximations: - Hessian in optimum

• Gaussian distribution
• Three levels of posteriors:

) ( ) ( ) | ( ) | ( X P P X P X P θ θ θ =

) | ( : Level ) , | ( : Level ) , , | ( : Level

3 2 1

X K P X K P X K P

σ σ σ

γ γ α

II.3 SVM formulations & norms II.3 SVM formulations & norms

• 1 norm + inequality constraints: SVM

extensions to any convex cost-function

• 2 norm + equality constraints: LS-SVM

weighted versions

II.4 Coding schemes II.4 Coding schemes

… 1 2 4 6 2 1 3 …

…

… 1 -1 1 1 … … -1 -1 -1 1 … … 1 -1 -1 -1 … … 1 2 4 6 2 1 3 …

Encoding Decoding Multi-class Classification task (multiple) binary classifiers Labels:

• III. Regression
• III. Regression

“Learn the underlying function from a set of data points and its corresponding noisy targets in

• rder to predict the values of unseen data”
• LS-SVM(L,a)
• Cross-validation (CV)
• Bayesian Inference
• Robustness

III.1 LS-SVM(L,a)

• Least Squares cost-function +

Regularization & Equality constraints

• Mercer kernels
• Lagrange multipliers:

Primal Parametric Dual Non-parametric

III.1 III.1 LS-SVM(L,a) (2)

• Regularization parameter:

– Do not fit noise (overfitting)! – trade-off noise and information

e x x x f + + = 5 ) 10 sin( ) sinc( ) (

→

III.2 Cross III.2 Cross-

• validation (CV)

validation (CV)

“How to estimate generalization power of model?”

• Division training set – test set
• Repeated division: Leave-one-out CV (fast implementation)
• L-fold cross-validation
• Generalized Cross-validation (GCV):
• Complexity criteria: AIC, BIC, …

[ ]

          =          

N N

y y y y K X S ˆ ... ˆ ... . ) , | (

1 1 σ

γ

1 2 3…t-l-1 t-l…t+l t+1+l … n 1 2 3 …. t-2 t-1 t t+1 t+2 … n 1 2 3 …. t-1 t … n

III.2 Cross III.2 Cross-

• validation Procedure

validation Procedure

(CVP) (CVP)

“How to optimize model for optimal generalization performance”

• Trade-off fitting – model complexity
• Kernel parameters
• Optimization routine?

III.1 III.1 LS-SVM(L,a) (3)

• Kernel type and parameter

“Zoölogy as elephantism and non-elephantism”

• Model Comparison
• By cross-validation or Bayesian Inference

III.3 Applications III.3 Applications

“ok, but does it work?”

• Soft4s

– Together with O. Barrero, L. Hoegaerts, IPCOS (ISMC), BASF, B. De Moor – Soft-sensor

• ELIA

– Together with O. Barrero, I.Goethals, L. Hoegaerts, I.Markovsky, T. Van Gestel, ELIA, B. De Moor – Prediction short and long term electricity consumption

III.2 Bayesian Inference

• Bayes rule (MAP):
• Closed form formulas
• Three levels of posteriors:

) ( ) ( ) | ( ) | ( X P P X P X P θ θ θ =

) | ( : ) Comparison (Model Level ) , | ( : ation) (Regulariz Level ) , , | ( : ) parameters (Model Level

3 2 1

X K P X K P X K P

σ σ σ

γ γ α

III.4 Robustness III.4 Robustness

“How to build good models in the case of non-

Gaussian noise or outliers”

• Influence function
• Breakdown point
• How:

– De-preciating influence of large residuals – Mean - Trimmed mean – Median

• Robust CV, GCV, AIC,…

• IV. Unsupervised Learning
• IV. Unsupervised Learning

“Extract important features from the unlabeled data”

• Kernel PCA and related methods
• Nyström approximation

– From Dual to primal – Fixed size LS-SVM

IV.1 Kernel PCA IV.1 Kernel PCA

Principal Component Analysis Kernel based PCA y x z

IV.2 Kernel PCA (2) IV.2 Kernel PCA (2)

• Primal Dual LS-SVM style formulations
• For Kernel PCA, CCA, PLS

IV.2 IV.2 Nystr Nyströ öm m approximation approximation

• Sampling of integral equation
• Approximating Feature map

for Mercer kernel

) ( ) ( ) ( ) , ( y dx x p y y x K

i i

λφ φ

σ

∫

=

) ( ) ( ) , (

1

y y y x K

i N j i i j

φ λ φ

σ

∑

=

= ) ( ) ( ) , (

1

y y y x K

i n j i i j

φ λ φ

σ

∑

=

=

⇓ ⇓

≈

) ( ) ( ) , ( y x y x K

Tϕ

ϕ

σ

=

(.) ϕ

(.) ϕ

IV.3 Fixed Size LS IV.3 Fixed Size LS-

• SVM

SVM

i i T i

e b x w y + + = ) ( φ

→

i n j j i i i

e b x x K y + + = ∑

=1

) , (

σ

α

?

• V. Time
• V. Time-
• series

series

“Learn to predict future values given a sequence of past values”

• NARX
• Recurrent vs. feedforward

V.1 NARX V.1 NARX

• Reducible to static regression
• CV and Complexity criteria
• Predicting in recurrent mode
• Fixed size LS-SVM (sparse

representation)

) ,..., , ( ˆ

1 1 l t t t t

y y y f y

− − −

=

,.... , , , , , ...,

5 4 3 2 1 + + + + + t t t t t t

y y y y y y

f

V.1 NARX (2) V.1 NARX (2)

Santa Fe Time-series competition

V.2 V.2 Recurrent models? Recurrent models?

“How to learn recurrent dynamical models?”

• Training cost = Prediction cost?
• Non-parametric model class?
• Convex or non-convex?
• Hyper-parameters?

) ˆ ,..., ˆ , ˆ ( ˆ

2 1 l t t t t

y y y f y

− − −

=

VI.0 References VI.0 References

• J. A. K. Suykens, T. Van Gestel, J. De

Brabanter, B. De Moor & J. Vandewalle (2002), Least Squares Support Vector Machines, World Scientific.

• V. Vapnik (1995), The Nature of

Statistical Learning Theory, Springer-Verlag.

• B. Schölkopf & A. Smola (2002),

Learning with Kernels, MIT Press.

• T. Poggio & F. Girosi (1990), ``Networks

for approximation and learning'', Proc. of the IEEE, , 78, 1481-1497.

• N. Cristianini &J. Shawe-Taylor (2000), An

Introduction to Support Vector Machines, Cambridge University Press.

• VI. Conclusions
• VI. Conclusions

“Non-linear Non-parametric learning as a generalized methodology”

• Non-parametric Learning
• Intuition & Formulations
• Hyper-parameters
• LS-SVMlab

Questions?
