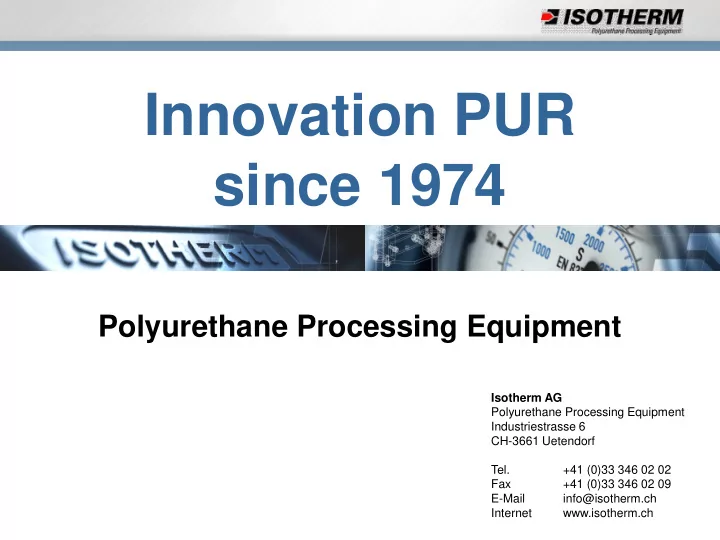

Innovation PUR since 1974 Polyurethane Processing Equipment Isotherm AG Polyurethane Processing Equipment Industriestrasse 6 CH-3661 Uetendorf Tel. +41 (0)33 346 02 02 Fax +41 (0)33 346 02 09 E-Mail info@isotherm.ch Internet www.isotherm.ch

About us  Isotherm AG develops, constructs and delivers high-pressure PUR-processing equipment for different spraying, casting and Injection molding applications in Europe and overseas.

About us  Know-how gathered since 1974 and the will to develop continuously new and optimal solutions for our customers are the counterstones of the high reputation of our company.

About us  We are a machine manufacturing company with own, wide range of machinery and wealth of ideas, accessories, but still independent of raw materials. Thus we offer objective consultation and optimal solutions, either for spraying or molding installations. Our flexible team of specialists is bound to quality, by tradition.

Isotherm AG  Polyurethane equipments High-pressure impingement mixing for spraying, casting, injection molding of 2K PUR-Foam and Elastomers.  Process Technology  Engineering

Product overview Mixing heads Dosing systems ISOTHERM injection- and sprayheads Polyurethane high-pressure equipments for spraying and injection are based on the principle of the of 2K PUR-Foam and Elastomers highpressure impingement mixing Automatic mechanic  self-cleaning No solvent flushing needed  No daily cleaning necessary  Eeven after a long period of  machine-stop the function is every time assured

Dosing systems  PSM700 varicontrol Universal machine for spraying purposes, for elastomer and foam applications. The small high- pressure-unit for a large application field.  Pulsations free metering by double ball check pumps  Counterflow injection principle  No solvent needed  Spraying purposes of Coatings, Elastomers, Polyurea und PU-Foams

Dosing systems  PSM90 Compact PUR high-pressure unit for the economic, ecologic production of technical parts in small shot sizes.  Metering by two oilheated vertical piston pumps (plungers)  Counterflow injection principle  No solvent needed  Smallest shot size 3 g  For PU-Foams, Elastomers and Polyurea

Dosing systems  PSM3000 Modular 4-Plunger tandem PUR high-pressure unit for single shots or continuous output for casting, injection or spraying purposes.  Metering by 4 oilheated vertical piston pumps (plungers)  Counterflow injection principle  No solvent needed  Smallest shot size 3 g  For PU-Foams, Elastomers and Polyurea

PUR-Mixing heads  It occurs in the mixing-head! The components collide against each other with high speed, get intensely mixed and leave instantly as a liquid mixture, in form of a spray jet or injection beam.

PUR-Mixing heads  Abstract ISOTHERM injection- and sprayheads are based on the principle of the highpressure impingement mixing.  Automatic mechanic self-cleaning No solvent flushing needed  No daily cleaning necessary  Eeven after a long period of  machine-stop the function is every time assured

PUR-Mixing heads  GP600 (hydraulic)  SP200 (hydraulic) The right one for narrow PUR L-shaped mixing head with an accuracy repeating spaces!  RSP400 (hydraulic) The robot spray head!

PUR-Mixing heads  SP300 (pneumatic)  GP500 (hydraulic) Hydraulic controlled mixing The handy one! head for timer controlled pouring  SP300 H (hydraulic) Hydraulic controlled mixing head for spraying or pouring by hand

Engineering – Process Technology  Linear conveyor system

Engineering – Process Technology  Oscillating unit

Engineering – Process Technology  Manufacturing-plant of air and oil filters

Process Technology Spraying  Abrasion protection  Coating spray Hard coating gives an For steel buckets, slides, funnels etc. integral skin for spoilers  In-Mold-Skinning (IMS)  Spraying of adhesives Compact, flexible outer skin With oscillating unit or for flexible foam production line

Process Technology Spraying  Mobile spray Thermal insulation with rigid foam and elastomere-spraying for seamless sealings  PU-reinforced fibrous structures Stability, good insulation values and light weight are a must for cover parts in automotive

Process Technology Casting / Injection  Wire harness  Filter casting or direct-forming of filter Encapsulation of wire harnesses and connectors seals  Table edging  Wood glueing To produce frames and Glueing of wood elements edges on tables and screens for furniture etc

Process Technology Casting / Injection  Shoe soles  Skinjection molding Injection of a soft skin Cast or injection of Ether or Ester-systems  Transparent systems  Golf balls Injection of brillant, Encapsulation of golf balls transparent PUR-Systems
