Industrial Commission Update Justin J Kringstad Geological Engineer Director North Dakota Pipeline Authority February 12, 2019 US Williston Basin Oil Production, BOPD 2 2 2 2 JJ Kringstad - North Dakota Pipeline Authority Estimated

slide-1
SLIDE 1

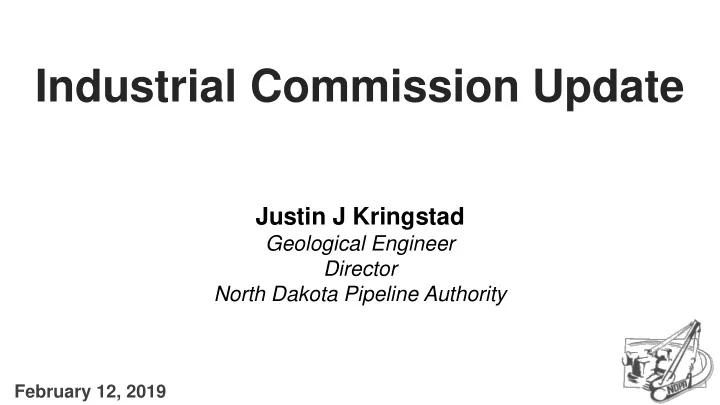

Industrial Commission Update

February 12, 2019

Justin J Kringstad

Geological Engineer Director North Dakota Pipeline Authority

slide-2
SLIDE 2

US Williston Basin Oil Production, BOPD

2 2 2 JJ Kringstad - North Dakota Pipeline Authority 2

slide-3
SLIDE 3

Estimated Williston Basin Oil Transportation

3 3 3 JJ Kringstad - North Dakota Pipeline Authority 3

slide-4
SLIDE 4

4

Estimated ND Rail Export Volumes

4 JJ Kringstad - North Dakota Pipeline Authority 4

slide-5
SLIDE 5

Rail Destinations Market Share (Oct 2018)

5 5 Data for Rail Destination Market Share Provided by the US Energy Information Administration JJ Kringstad - North Dakota Pipeline Authority 5

slide-6
SLIDE 6

Cushing $51.52 Brent $61.21 WTI + $9.69

Crude Oil Prices – February 11, 2019

6 JJ Kringstad - North Dakota Pipeline Authority

Pricing Data: Bloomberg & CME (LLS-Argus) Houston WTI WTI + $5.69

JJ Kringstad - North Dakota Pipeline Authority 6

slide-7
SLIDE 7
slide-8
SLIDE 8

Midwest (PADD 2) Refinery Crude Oil Consumption

8 8 JJ Kringstad - North Dakota Pipeline Authority 8 EIA Data

slide-9
SLIDE 9

North Dakota Oil Pricing

9 9 JJ Kringstad - North Dakota Pipeline Authority 9

slide-10
SLIDE 10

10

Statewide Oil Performance

JJ Kringstad - North Dakota Pipeline Authority 10

Average BKN/TF Well Performance Statewide

~12% Improvement Over 2017

slide-11
SLIDE 11

11

Statewide Initial Oil Production Rates – 24hr

JJ Kringstad - North Dakota Pipeline Authority 11

slide-12
SLIDE 12

North Dakota Oil Production Forecast

Assumes Current Technology – Enhanced Oil Recovery Not Included

12 12 JJ Kringstad - North Dakota Pipeline Authority 12

slide-13
SLIDE 13

13 13 JJ Kringstad - North Dakota Pipeline Authority 13

North Dakota Oil Production Forecast

Assumes Current Technology – Enhanced Oil Recovery Not Included

slide-14
SLIDE 14

14 14 JJ Kringstad - North Dakota Pipeline Authority 14

slide-15
SLIDE 15

Williston Basin Oil Production & Export Capacity, BOPD

Assumes Current Technology – Enhanced Oil Recovery Not Included

Production forecast is for visual demonstration purposes only and should not be considered accurate for any near or long term planning.

15

15 JJ Kringstad - North Dakota Pipeline Authority JJ Kringstad - North Dakota Pipeline Authority 15

slide-16
SLIDE 16

NDPA North Dakota Gas Production Forecast

Assumes Current Technology – Enhanced Oil Recovery Not Included

16 16 JJ Kringstad - North Dakota Pipeline Authority 16

slide-17
SLIDE 17

17 17 JJ Kringstad - North Dakota Pipeline Authority 17

NDPA North Dakota Production Forecast Summary

Assumes Current Technology – Enhanced Oil Recovery Not Included

slide-18
SLIDE 18

Simple Terms Blue – Lack of pipelines Orange – Challenges on existing infrastructure GREEN – % of gas captured and sold Blue – % flared from zero sales wells Orange – % flared from wells with at least one mcf sold.

  • Nov. 2018 Data – Non-Confidential Wells

Statewide

Solving the Flaring Challenge

JJ Kringstad - North Dakota Pipeline Authority 18

slide-19
SLIDE 19

19

Statewide Gas Performance

JJ Kringstad - North Dakota Pipeline Authority 19

Average BKN/TF Well Performance Statewide

~12% Improvement Over 2017

slide-20
SLIDE 20

20

Statewide Initial Gas Production Rate: 24hr

JJ Kringstad - North Dakota Pipeline Authority 20

slide-21
SLIDE 21

Bakken and Three Forks Gas Performance

JJ Kringstad - North Dakota Pipeline Authority 21

slide-22
SLIDE 22

22

Statewide Gas Oil Ratio (MCF/BBL)

JJ Kringstad - North Dakota Pipeline Authority 22

Average BKN/TF Well Performance Statewide

slide-23
SLIDE 23

23 JJ Kringstad - North Dakota Pipeline Authority JJ Kringstad - North Dakota Pipeline Authority 23

Solving the Flaring Challenge

Assumes Current Technology – Enhanced Oil Recovery Not Included

slide-24
SLIDE 24

24 JJ Kringstad - North Dakota Pipeline Authority

Solving the Flaring Challenge

Assumes Current Technology – Enhanced Oil Recovery Not Included

JJ Kringstad - North Dakota Pipeline Authority 24

slide-25
SLIDE 25

25 JJ Kringstad - North Dakota Pipeline Authority JJ Kringstad - North Dakota Pipeline Authority 25

Upcoming or Recent Plant Expansion

WBI Transmission Andeavor

Major Gas Pipeline and Processing Infrastructure

slide-26
SLIDE 26

JJ Kringstad - North Dakota Pipeline Authority 26

slide-27
SLIDE 27

WBI Energy – Valley Expansion Project Update

JJ Kringstad - North Dakota Pipeline Authority 27

Project Highlights

  • 38 Miles - 16” Pipeline
  • $60 Million
  • 40,000 MCFD Capacity
  • In-Service Nov. 2018
slide-28
SLIDE 28

WBI Energy – North Bakken Expansion Project

JJ Kringstad - North Dakota Pipeline Authority 28

Project Highlights

  • 67 Miles - 20” Pipeline
  • $220 Million
  • 200,000 MCFD Capacity
  • Expandable to 375,000 MCFD
  • End of 2021 Proposed Completion
  • Residue Gas Service From North of

Lake Sakakawea to Northern Border Pipeline in McKenzie County

slide-29
SLIDE 29

WBI Energy – Natural Gas Storage

JJ Kringstad - North Dakota Pipeline Authority 29

Winter Withdrawals Summer Injection Working Gas Balance

Storage Data: WBI Energy

slide-30
SLIDE 30

JJ Kringstad - North Dakota Pipeline Authority 30

Northern Border Pipeline

*Data Source: Northern Border IPS

  • 42” Pipeline
  • Carries Canadian (Port of

Morgan) and Domestic Gas

  • Receives Gas From ND

Plants, WBI Transmission Interconnections, and WY Pipelines (Bison & Grasslands)

  • Midcontinent Deliveries
slide-31
SLIDE 31

JJ Kringstad - North Dakota Pipeline Authority

Simplified Example NB Calculations

Conclusion: IF no other gas export options open and all other deliveries on other pipelines stay static, ND gas production could increase 1.15-1.45 BCFD (from Nov-18) before Northern Border is 100% Bakken

  • production. BTU management becomes increasingly important for Bakken residue gas.

31

slide-32
SLIDE 32

Bakken Natural Gas Infrastructure

32 32 JJ Kringstad - North Dakota Pipeline Authority 32

slide-33
SLIDE 33

Regional NGL Infrastructure

Kinder

JJ Kringstad - North Dakota Pipeline Authority 33

slide-34
SLIDE 34

North Dakota Captured* NGL’s

34 34 JJ Kringstad - North Dakota Pipeline Authority 34 *Non-flared NGL’s & Assumes 10 GPM

slide-35
SLIDE 35

NGL Pipeline Takeaway Options

35 35 35 JJ Kringstad - North Dakota Pipeline Authority 35

slide-36
SLIDE 36

ONEOK Elk Creek NGL Pipeline

Project Highlights

  • 900 Miles - 20” Pipeline
  • $1.4 Billion
  • 240,000 BPD Capacity
  • Expandable to 400,000

BPD

  • End of 2019 Proposed

Completion

  • Y-Grade Transportation

JJ Kringstad - North Dakota Pipeline Authority 36

slide-37
SLIDE 37

Traditional and Straddle Gas Processing Plants

(Clarification Prompted by HB 1205)

JJ Kringstad - North Dakota Pipeline Authority 37

Traditional Gas Processing Plant Straddle Plant “Dry” Gas NGL’s Pipe/Truck/Rail NGL’s

Interstate Gas Transmission Pipeline (High Volume – Multiple Plant Sources)

Typical ND “Dry” Gas Methane > 80% Ethane < 20% Small % Propane, Butane+ Captures NGL’s “rejected” into the interstate gas network Raw Gas Gathering

slide-38
SLIDE 38

Raw Natural Gas (1400+ BTU) Processing Plant Consumer Quality Dry Natural Gas “Residue Gas” Methane 57.67% NGL’S (8-12 gallons per 1,000 cubic feet

  • f raw gas)

Y-Grade or Fractionated “Y-Grade” if NGL’S are left together in

  • ne mix for

separation later Ethane 19.94% Propane 11.33% Butane 3.80% Natural Gasoline 1.29%

38

Natural Gas Processing – “Ethane Capture”

JJ Kringstad - North Dakota Pipeline Authority 38

slide-39
SLIDE 39

Raw Natural Gas (1400+ BTU) Processing Plant Consumer Quality Dry Natural Gas “Residue Gas” Methane 57.67% Ethane 19.94% NGL’S (8-12 gallons per 1,000 cubic feet

  • f raw gas)

Y-Grade or Fractionated “Y-Grade” if NGL’S are left together in

  • ne mix for

separation later Propane 11.33% Butane 3.80% Natural Gasoline 1.29%

Natural Gas Processing – “Ethane Rejection”

JJ Kringstad - North Dakota Pipeline Authority 39

slide-40
SLIDE 40

Justin J. Kringstad, Director North Dakota Pipeline Authority 600 E. Boulevard Ave. Dept. 405 Bismarck, ND 58505-0840 Phone: (701)220-6227 Fax: (701)328-2820 E-mail: jjkringstad@ndpipelines.com Websites: www.pipeline.nd.gov www.northdakotapipelines.com

Contact Information

JJ Kringstad - North Dakota Pipeline Authority 40
