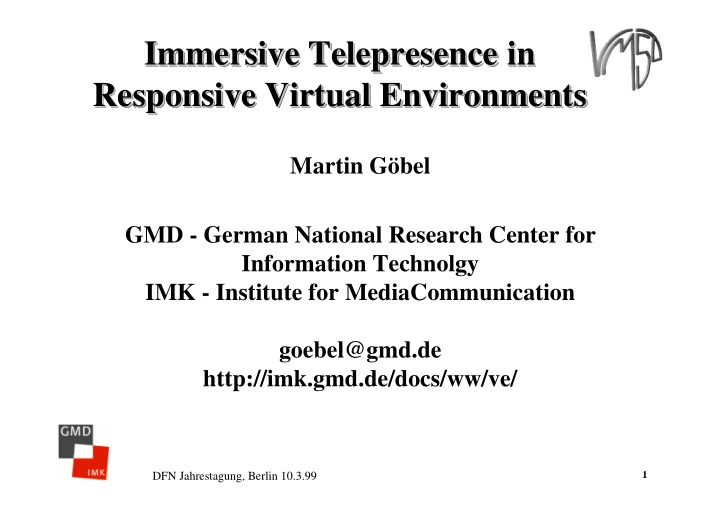

Immersive Telepresence in in Immersive Telepresence Immersive Telepresence in Responsive Virtual Environments Environments Responsive Virtual Responsive Virtual Environments Martin Gbel GMD - German National Research Center for


slide-1
SLIDE 1

1

DFN Jahrestagung, Berlin 10.3.99

Immersive Telepresence in Responsive Virtual Environments Immersive Telepresence Immersive Telepresence in in Responsive Virtual Responsive Virtual Environments Environments

Martin Göbel GMD - German National Research Center for Information Technolgy IMK - Institute for MediaCommunication goebel@gmd.de http://imk.gmd.de/docs/ww/ve/
