Dr Hongbin Liu Haptic Mechatronics and Medical Robotics (HaMMeR) Lab Senior Lecturer in Informatics (Robotics) http://kclhammerlab.com Kings College London Director and Principal Investigator A Brief History of Soft Robots Soft Robots

slide-1
SLIDE 1

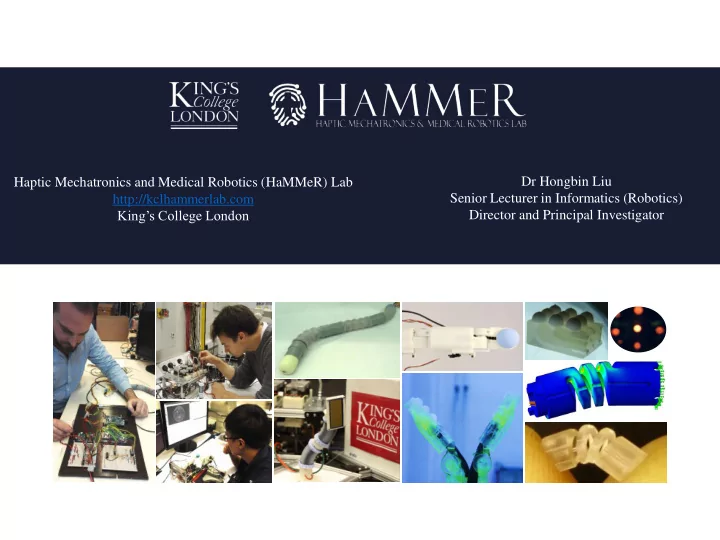

Haptic Mechatronics and Medical Robotics (HaMMeR) Lab http://kclhammerlab.com King’s College London Dr Hongbin Liu Senior Lecturer in Informatics (Robotics) Director and Principal Investigator

slide-2
SLIDE 2

A Brief History of Soft Robots

slide-3
SLIDE 3

Soft Robots 2010: the beginning of growth

1990 2010

slide-4
SLIDE 4

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 4 IROS 2015 – Hamburg King’s College London 4 Kclhammerlab.com 4

Soft Robots 2010

slide-5
SLIDE 5

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 5 IROS 2015 – Hamburg King’s College London 5 Kclhammerlab.com 5

Soft Robots 2010

Festo – Gemany, Bionic Handling Assistant

slide-6
SLIDE 6

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 6 IROS 2015 – Hamburg King’s College London 6 Kclhammerlab.com 6

Soft Robots 2010

slide-7
SLIDE 7

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 7 IROS 2015 – Hamburg King’s College London 7 Kclhammerlab.com 7

Robotic Octopus -2010

slide-8
SLIDE 8

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 8 IROS 2015 – Hamburg King’s College London 8 Kclhammerlab.com 8

Soft Robots in Medicine - 2012

King’s College London, 2012 Harvard University 2017 2013

slide-9
SLIDE 9

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 9 IROS 2015 – Hamburg King’s College London 9 Kclhammerlab.com 9

Octopus inspired Soft Robots for surgery

slide-10
SLIDE 10

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 10 IROS 2015 – Hamburg King’s College London 10 Kclhammerlab.com 10

Octopus inspired Soft Robots for surgery

slide-11
SLIDE 11

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 11 IROS 2015 – Hamburg King’s College London 11 Kclhammerlab.com 11

Soft Robots hand

Passive compliance to increase adaptiveness

Pisa Harvard

slide-12
SLIDE 12

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 12 IROS 2015 – Hamburg King’s College London 12 Kclhammerlab.com 12

Soft worm robots

slide-13
SLIDE 13

Koichi Suzumori

slide-14
SLIDE 14

Soft robotics are hot in the research

  • but still waiting for major industry success

13-06-2018

slide-15
SLIDE 15

None 3 5 ~20 Number of haptic sensing elements or dimension ~10

Limited Haptic Capability

slide-16
SLIDE 16

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 16 IROS 2015 – Hamburg King’s College London 16 Kclhammerlab.com 16

16 ~ 50 μm Hairs as mechanorece ptors: touch, vibration, motion Pores on the hair act a s chemoreceptor recei ves taste and smell

Nature

slide-17
SLIDE 17

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 17 IROS 2015 – Hamburg King’s College London 17 Kclhammerlab.com 17

Our lab designs robots with advanced haptic perception and interaction capabilities to address unmet needs in medicine, enabling safer and more effective diagnosis and treatment. Lab Mission

slide-18
SLIDE 18

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 18 IROS 2015 – Hamburg King’s College London 18 Kclhammerlab.com 18

Soft Medical Devices

slide-19
SLIDE 19

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 19 IROS 2015 – Hamburg King’s College London 19 Kclhammerlab.com 19

Nature

  • Full body haptic sensing
  • Shape awareness
  • Distributed neural processing
slide-20
SLIDE 20

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 20 IROS 2015 – Hamburg King’s College London 20 Kclhammerlab.com 20

Challenge in haptic sensing and interaction

  • Thin and flexible with large deflection

and internal friction

  • Difficult to instrument sensors
  • Multiple contacts along the body:

boundary condition is unknown

slide-21
SLIDE 21

Haptic Interaction with unknown contacts on the body

slide-22
SLIDE 22
slide-23
SLIDE 23

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 23 IROS 2015 – Hamburg King’s College London 23 Kclhammerlab.com 23

23

Soft robot haptic interaction

  • Making use of the morphology

(physical properties-stiffness, shape of both robot and environment )

slide-24
SLIDE 24

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 24 IROS 2015 – Hamburg King’s College London 24 Kclhammerlab.com 24

Soft Robotic Platform for Ultrasound Imaging

Soft end-effector Passive arm Hydraulic actuated soft actuators with intrinsic force sensing

intelligent Fetal Imaging and Diagnosis

slide-25
SLIDE 25

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 25 IROS 2015 – Hamburg King’s College London 25 Kclhammerlab.com 25

Constrained motion

End-effector in contact with phantom Image feedback

A novel soft, parallel end-effector for robot-assisted ultrasound interventions, L Lindenroth, A Soor, J Hutchinson, A Shafi, J Back, K Rhode, H Liu, IEEE International Conference on Intelligent Robots and Systems 2017

intelligent Fetal Imaging and Diagnosis

slide-26
SLIDE 26

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 26 IROS 2015 – Hamburg King’s College London 26 Kclhammerlab.com 26

Intrinsic force sensing

Pressure feedback

Intrinsic force sensing capabilities in compliant robots comprising hydraulic actuation, L Lindenroth, C Duriez, J Back, K Rhode, H Liu, IEEE Int ernational Conference on Intelligent Robots and Systems 2017

intelligent Fetal Imaging and Diagnosis

slide-27
SLIDE 27

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 27 IROS 2015 – Hamburg King’s College London 27 Kclhammerlab.com 27

Example: Head Circumference measurement Evaluation by Sonographer

slide-28
SLIDE 28

Soft and self propelled endoscope for diagnosis and intervention for lower digestive tract

slide-29
SLIDE 29

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 29 IROS 2015 – Hamburg King’s College London 29 Kclhammerlab.com 29

The Challenge of Colonoscopy

Idealised procedure

slide-30
SLIDE 30

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 30 IROS 2015 – Hamburg King’s College London 30 Kclhammerlab.com 30

Real State-of-the-Art Procedure

It is this deformation of the colon which induces pain for the patient. Before After

slide-31
SLIDE 31

Earthworm

Setae

slide-32
SLIDE 32

Earthworm

Setae Bioinspired soft worm robot Artificial setae Artificial setae

slide-33
SLIDE 33

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 33 IROS 2015 – Hamburg King’s College London 33 Kclhammerlab.com 33

Morphology matters!

slide-34
SLIDE 34

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 34 IROS 2015 – Hamburg King’s College London 34 Kclhammerlab.com 34

kclhammerlab.com

Locomotion with local morphology change

slide-35
SLIDE 35

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 35 IROS 2015 – Hamburg King’s College London 35 Kclhammerlab.com 35

Morphology of environment

35

slide-36
SLIDE 36

Lessons learned

slide-37
SLIDE 37

Robotic Endovascular Interventions – Hamlyn Workshop 23 June 2015 37 IROS 2015 – Hamburg King’s College London 37 Kclhammerlab.com 37

Acknowledgments

HaMMeR Team

  • Junghwan Back
  • Julius Bernth
  • Yu Chen
  • Jian Hu
  • Lukas Lindenroth
  • George Abrahams
  • Teng Sun
