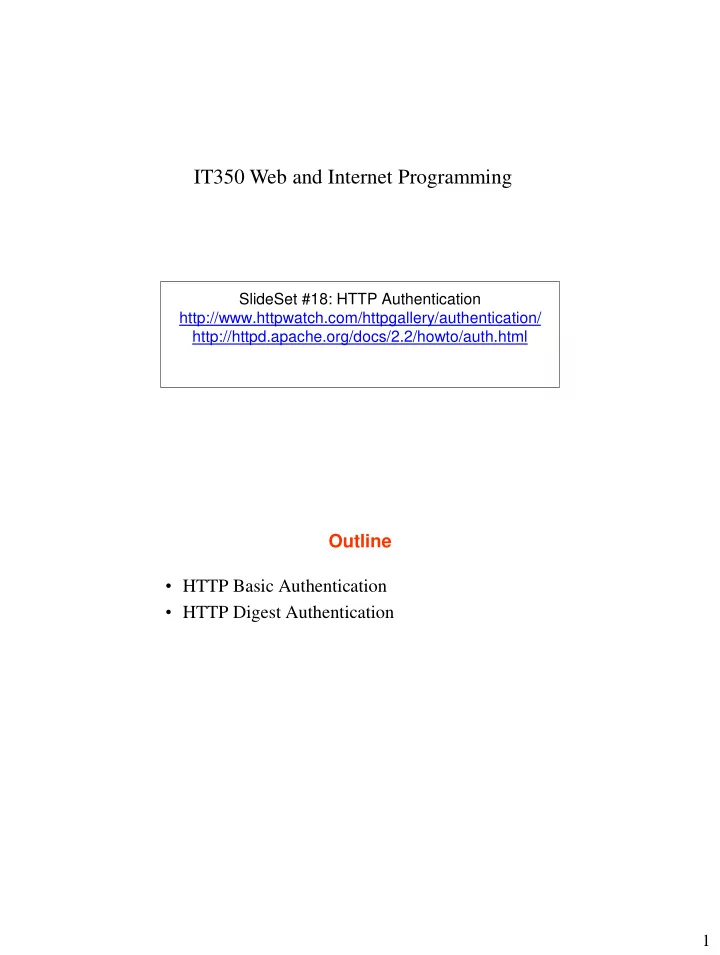

IT350 Web and Internet Programming SlideSet #18: HTTP Authentication http://www.httpwatch.com/httpgallery/authentication/ http://httpd.apache.org/docs/2.2/howto/auth.html Outline HTTP Basic Authentication HTTP Digest Authentication 1


slide-1
SLIDE 1

1

SlideSet #18: HTTP Authentication http://www.httpwatch.com/httpgallery/authentication/ http://httpd.apache.org/docs/2.2/howto/auth.html

IT350 Web and Internet Programming

Outline

  • HTTP Basic Authentication
  • HTTP Digest Authentication
slide-2
SLIDE 2

2

HTTP Authentication

Client Server

Authentication?

Basic Authentication Demo

slide-3
SLIDE 3

3

Basic Authentication

  • Client 

GET /secret.html HTTP/1.0

  •  Server

HTTP/1.1 401 Access Denied WWW-Authenticate: Basic realm=“secret files“ Content-Length: 0

  • Client 

GET /secret.html HTTP/1.0 Authorization: Basic dXNlcjpwYXNzd29yZA==

  • Notes:

How to set up Basic Authentication

  • Have mod_auth_basic enabled on web server
  • Create password file (not on web accessible path)

htpasswd –c myfile myuser

  • Configure server to ask for credentials
  • Ex. In .htaccess

AuthType Basic AuthName myrealm AuthBasicProvider file AuthUserFile myfile Require valid-user

http://httpd.apache.org/docs/2.2/howto/auth.html

slide-4
SLIDE 4

4

Lab Exercise

  • ssh into mope.academy.usna.edu
  • Create password file basicUsers.txt in your home dir (not web accessible) for

your user mXXXXXX

htpasswd –c basicUsers.txt mXXXXXX

  • From Windows or Unix: Create new folder BasicSecret in your public_html

folder

  • Save starter page starter.html from website in BasicSecret
  • Create .htaccess file in BasicSecret with content

AuthType Basic AuthName "Restricted files for basic" AuthBasicProvider file AuthUserFile /home/mids/mXXXXXX/basicUsers.txt Require valid-user

  • In browser:

http://mope.academy.usna.edu/~mXXXXXX/BasicSecret/starter.html

  • Might need to change permissions for basicUsers.txt – in Unix

setfacl –m u:www-data:rx basicUsers.txt

Base64 Encoding

  • Encoding binary to text (NOT encryption)
  • Uses 64 characters (6 bits needed to represent each

symbol)

  • To encode user:password

– Concatenate ASCII binary representation for each character – If nb of bytes not multiple of 3, add one or two all-zero bytes – Separate each 3 8-bits (byte) block in 4 6-bits blocks – Translate each 6-bit block to the Base64 character – If the 6-bit block was all from the padding, translate to =

http://en.wikipedia.org/wiki/Base64

slide-5
SLIDE 5

5

ASCII table: http://www.rapidtables.com/code/text/ascii-table.htm

ICE: Encode “it350”

slide-6
SLIDE 6

6

ICE: Decode aXQzNTA6dGVzdA== Digest Authentication

  • Similar with basic authentication BUT
  • Passwords are not sent in plain (base64) text
  • Based on challenge-response authentication

– Uses MD5 hash

slide-7
SLIDE 7

7

Digest Authentication – Part 1

  • Client 

GET /secret.html HTTP/1.0

  •  Server

HTTP/1.1 401 Access Denied WWW-Authenticate: Digest realm="Restricted", nonce=“SQzKShMSBQA=03e769c8c1c9062dcd9adcb06a8f787897 de64fb", algorithm=MD5, qop="auth" Content-Length: 0

Digest Authentication – Part 2

  • Client 

GET /secret.html HTTP/1.0 Authorization: Digest username=“johnny", realm="Restricted", nonce="SQzKShMSBQA=03e769c8c1c9062dcd9adcb06a8f787897 de64fb", uri="/secret.html", algorithm=MD5, response="ffd5ebb687c6198ef663e43b25a32d0e", qop=auth, nc=00000001, cnonce="80ddead374b429b7“ Pros: Cons:

slide-8
SLIDE 8

8

How to set up Digest Authentication

  • Have mod_auth_digest enabled on web server
  • Create password file (not on web accessible path)

htdigest –c myfile myrealm myuser

  • Configure server to ask for credentials
  • Ex. In .htaccess

AuthType Digest AuthName myrealm AuthDigestProvider file AuthUserFile myfile Require valid-user

http://httpd.apache.org/docs/2.2/howto/auth.html

Other types of authentication

  • NTLM Authentication
  • Certificates Authentication
  • Integrated Windows Authentication
  • Form-based authentication
