High Performance Multi-Node File Copies and Checksums for Clustered File Systems Paul Kolano, Bob Ciotti NASA Advanced Supercomputing Division {paul.kolano,bob.ciotti}@nasa.gov Overview Problem background Multi-threaded copies

slide-1
SLIDE 1

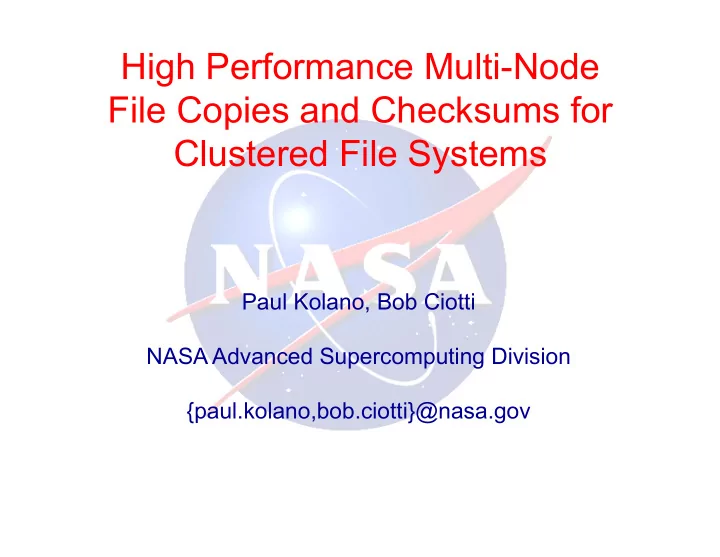

High Performance Multi-Node File Copies and Checksums for Clustered File Systems

Paul Kolano, Bob Ciotti NASA Advanced Supercomputing Division {paul.kolano,bob.ciotti}@nasa.gov

slide-2
SLIDE 2

Overview

  • Problem background
  • Multi-threaded copies
  • Optimizations

 Split processing of files  Buffer cache management  Double buffering

  • Multi-node copies
  • Parallelized file hashing
  • Conclusions and future work

LISA'10 -- San Jose, CA 2

slide-3
SLIDE 3

File Copies

  • Copies between local file systems are a frequent

activity

 Files moved to locations accessible by systems with

different functions and/or storage limits

 Files backed up and restored  Files moved due to upgraded and/or replaced hardware

  • Disk capacity increasing faster than disk speed

 Disk speed reaching limits due to platter RPMs

  • File systems are becoming larger and larger

 Users can store more and more data

  • File systems becoming faster mainly via parallelization

 Standard tools were not designed to take advantage of

parallel file systems

  • Copies are taking longer and longer

LISA'10 -- San Jose, CA 3

slide-4
SLIDE 4

Existing Solutions

  • GNU coreutils cp command

 Single-threaded file copy utility that is the

standard on all Unix/Linux systems

  • SGI cxfscp command

 Proprietary multi-threaded file copy utility

provided with CXFS file systems

  • ORNL spdcp command

 MPI-based multi-node file copy utility for

Lustre

LISA'10 -- San Jose, CA 4

slide-5
SLIDE 5

Motivation For a New Solution

  • A single reader/writer cannot utilize the full

bandwidth of parallel file systems

 Standard cp only uses a single thread of

execution

  • A single host cannot utilize the full bandwidth
  • f parallel file systems

 SGI cxfscp only operates across a single host (or

single system image)

  • There are many types of file systems and
  • perating environments

 ORNL spdcp only operates on Lustre file systems

and only when MPI is available

LISA'10 -- San Jose, CA 5

slide-6
SLIDE 6

Mcp

  • Copy program designed for parallel file

systems

 Multi-threaded parallelism maximizes single

system performance

 Multi-node parallelism overcomes single system

resource limitations

  • Portable TCP model

 Compatible with many different file systems

  • Drop-in replacement for standard cp

 All options supported  Users can take full advantage of parallelism with

minimal additional knowledge

LISA'10 -- San Jose, CA 6

slide-7
SLIDE 7

Parallelization of File Copies

  • File copies are mostly embarrassingly

parallel

 Directory creation

  • Target directory must exist when file copy begins

 Directory permissions and ACLs

  • Target directory must be writable when file copy

begins

  • Target directory must have permissions and ACLs
  • f source directory when file copy completes

LISA'10 -- San Jose, CA 7

slide-8
SLIDE 8

Multi-Threaded Copies

  • Mcp based on cp code from GNU coreutils

 Exact interface users are familiar with  Original behavior

  • Depth-first search
  • Directories are created with write/search

permissions before contents copied

  • Directory permissions restored after subtree

copied

LISA'10 -- San Jose, CA 8

slide-9
SLIDE 9

Multi-Threaded Copies (cont.)

  • Multi-threaded parallelization of cp using OpenMP

 Traversal thread

  • Original cp behavior except when regular file encountered

 Create copy task and push onto semaphore-protected task queue  Pop open queue indicating file has been opened

 Worker threads

  • Pop task from task queue
  • Open file and push notification onto open queue

 Directory permissions and ACLs are irrelevant once file is opened

  • Perform copy
  • Optionally, push final stats onto stat queue

 Stat (and later...hash) thread

  • Pop stats from stat queue
  • Print final stats received from worker threads

LISA'10 -- San Jose, CA 9

slide-10
SLIDE 10

Test Environment

  • Pleiades supercluster (#6 on Jun. 2010 TOP500 list)

1.009 PFLOPs/s peak with 84,992 cores over 9472 nodes

Nodes used for testing

  • Two 3.0 GHz quad-core Xeon Harpertown
  • 1 GB DDR2 RAM per core
  • Copies between Lustre file systems

1 MDS, 8 OSSs, 60 OSTs each

IOR benchmark performance

  • Source read: 6.6 GB/s
  • Target write: 10.0 GB/s

Theoretical peak copy performance: 6.6 GB/s

  • Performance measured with dedicated jobs on (near) idle file systems

Minimal interference from other activity

  • Test cases, baseline performance, and stripe count

LISA'10 -- San Jose, CA 10

tool stripe count 64x1 GB 1x128 GB cp default (4) 174 102 cp max (60) 132 240

slide-11
SLIDE 11

Multi-Threaded Copy Performance (MB/s)

LISA'10 -- San Jose, CA 11

  • Less than expected and diminishing returns
  • No benefit in single large file case

tool threads 64 x 1 GB 1 x 128 GB cp 1 174 240 mcp 1 177 248 mcp 2 271 248 mcp 4 326 248 mcp 8 277 248

slide-12
SLIDE 12

Handling Large Files (Split Processing)

  • Large files create imbalances in thread

workloads

 Some may be idle  Others may still be working

  • Mcp supports parallel processing of

different portions of the same file

 Files are split at a configurable threshold  The main traversal thread adds n “split” tasks  Worker threads only process portion of file

specified in task

LISA'10 -- San Jose, CA 12

slide-13
SLIDE 13

Split Processing Copy Performance (MB/s)

LISA'10 -- San Jose, CA 13

  • Less than expected and diminishing returns
  • Minimal difference in overhead

 Will use 1 GB split size in remainder

tool threads split size 1 x 128 GB mcp * 248 mcp 2 1 GB 286 mcp 2 16 GB 296 mcp 4 1 GB 324 mcp 4 16 GB 322 mcp 8 1 GB 336 mcp 8 16 GB 336

slide-14
SLIDE 14

Less Than Expected Speedup (Buffer Cache Management)

  • Buffer cache becomes liability during copies

 CPU cycles wasted caching file data that is only

accessed once

 Squeezes out existing cache data that may be in

use by other processes

  • Mcp supports two alternate management

schemes

 posix_fadvise()

  • Use buffer cache but advise kernel that file will only be

accessed once

 Direct I/O

  • Bypass buffer cache entirely

LISA'10 -- San Jose, CA 14

slide-15
SLIDE 15

Managed Buffer Cache Copy Performance (64x1 GB)

LISA'10 -- San Jose, CA 15

200 400 600 800 1000 1200 1400 1 2 3 4 5 6 7 8 Copy Performance (MB/s) Threads direct I/O posix_fadvise() none cp

slide-16
SLIDE 16

Managed Buffer Cache Copy Performance (1x128 GB)

LISA'10 -- San Jose, CA 16

200 300 400 500 600 700 800 1 2 3 4 5 6 7 8 Copy Performance (MB/s) Threads direct I/O posix_fadvise() none cp

slide-17
SLIDE 17

We Can Still Do Better On One Node (Double Buffering)

  • Read/writes of file blocks are serially

processed within the same thread

 Time:

n_blocks * (time(read) + time(write))

  • Mcp uses non-blocking I/O to read next

block while previous block being written

 Time:

time(read) + (n_blocks-1) * max(time(read), time(write)) + time(write)

LISA'10 -- San Jose, CA 17

slide-18
SLIDE 18

Double Buffered Copy Performance (64x1 GB)

LISA'10 -- San Jose, CA 18

200 400 600 800 1000 1200 1400 1600 1800 1 2 3 4 5 6 7 8 Copy Performance (MB/s) Threads direct I/O (double buffered) direct I/O (single buffered) posix_fadvise() (double buffered) posix_fadvise() (single buffered) cp

slide-19
SLIDE 19

Double Buffered Copy Performance (1x128 GB)

LISA'10 -- San Jose, CA 19

200 300 400 500 600 700 800 1 2 3 4 5 6 7 8 Copy Performance (MB/s) Threads direct I/O (double buffered) direct I/O (single buffered) posix_fadvise() (double buffered) posix_fadvise() (single buffered) cp

slide-20
SLIDE 20

Multi-Node Copies

  • Multi-threaded copies have diminishing

returns due to single system bottlenecks

  • Need multi-node parallelism to maximize

performance

  • Mcp supports both MPI and TCP models

 Only TCP will be discussed (MPI similar)

  • Lighter weight
  • More portable
  • Ability to add/remove workers nodes dynamically

 Can use larger set of smaller jobs instead of one large job  Can add workers during off hours and remove during peak

LISA'10 -- San Jose, CA 20

slide-21
SLIDE 21

Multi-Node Copies Using TCP

  • Manager node

 Traversal thread, worker threads, and stat/hash thread  TCP thread

  • Listens for connections from worker nodes

 Task request

  • Pop task queue
  • Send task to worker

 Stat report

  • Push onto stat queue
  • Worker nodes

 Worker threads

  • Push task request onto send queue
  • Perform copy in same manner as original worker threads
  • Push stat report onto send queue instead of stat queue

 TCP thread

  • Pop send queue
  • Send request/report to TCP thread on manager node
  • For task request, receive task and push onto task queue

LISA'10 -- San Jose, CA 21

slide-22
SLIDE 22

TCP Security Considerations

  • Communication over TCP is vulnerable to attack (especially for root

copies)

 Integrity

  • Lost/blocked tasks

Files may not be updated that were supposed to be

  • e.g. cp /new/disabled/users /etc/passwd
  • Replayed tasks

Files may have been changed between legitimate copies

  • e.g. cp /tmp/shadow /etc/shadow
  • Modified tasks

Source and destination of copies

  • e.g. cp /attacker/keys /root/.ssh/authorized_keys

 Confidentiality

  • Contents of normally unreadable directories can be revealed

Tasks intercepted on the network

Tasks falsely requested from the manager

 Availability

  • Copies can be disrupted by falsely requesting tasks
  • Normal network denials of service (won’t discuss)

LISA'10 -- San Jose, CA 22

slide-23
SLIDE 23

TCP Security Implementation

  • Mcp secures all communication via TLS-

SRP

 Transport Layer Security (TLS)

  • Provides integrity and privacy using encryption

 Tasks cannot be intercepted, replayed, or modified over

the network

 Secure Remote Password (SRP)

  • Provides strong mutual authentication using simple

passwords

 Workers will only perform tasks from legitimate managers  Manager will only reveal task details to legitimate

workers

LISA'10 -- San Jose, CA 23

slide-24
SLIDE 24

Multi-Node Copy Performance (64x1 GB w/ posix_fadvise())

LISA'10 -- San Jose, CA 24

1000 2000 3000 4000 5000 6000 7000 1 2 3 4 5 6 7 8 Copy Performance (MB/s) Threads Per Node theoretical peak 16 nodes 8 nodes 4 nodes 2 nodes 1 nodes cp

slide-25
SLIDE 25

Multi-Node Copy Performance (1x128 GB w/ direct I/O)

LISA'10 -- San Jose, CA 25

1000 2000 3000 4000 5000 6000 7000 1 2 3 4 5 6 7 8 Copy Performance (MB/s) Threads Per Node theoretical peak 16 nodes 8 nodes 4 nodes 2 nodes 1 nodes cp

slide-26
SLIDE 26

Good New and Bad News

  • Good news

 We can do fast copies

  • 10x/27x of original cp on 1/16 nodes
  • 72% of peak based on 6.6 GB/s max read/write
  • Bad news

 The more data copied, the greater the probability

for corruption

  • Disk corruption, memory glitches, etc.
  • Traditional approach to verify integrity

 Hash file at source (e.g. md5sum)  Hash file at destination and verify (e.g. md5sum –c)

 Hashes are inherently serial

  • hash(ab) != hash(ba)

LISA'10 -- San Jose, CA 26

slide-27
SLIDE 27

Good News About the Bad News

  • Use hash trees

 Leaf nodes are standard hashes of each

subset of file at a given granularity

 Internal nodes are hashes of concatenated

child hashes

 Root is single hash value

  • Hash trees can be parallelized

 All subtrees computed in parallel  Computation of remaining root of tree done

serially

LISA'10 -- San Jose, CA 27

slide-28
SLIDE 28

Another Utility: Msum

  • Drop-in replacement for md5sum

 Based on md5sum code from GNU coreutils

  • Supports multiple hash types
  • Supports all the performance enhancements of mcp

 Multi-threading, split processing, buffer cache management,

double buffering

  • Details and performance in paper

 Multi-node support via TCP/MPI

  • Works mostly the same as mcp but instead of copy tasks, there are

sum tasks

 Worker threads compute hash subtrees they are responsible for  Subtree roots sent to stat/hash thread on main node  Stat/hash thread computes remaining root of tree once all

subtrees received

LISA'10 -- San Jose, CA 28

slide-29
SLIDE 29

Multi-Node Checksum Performance (64x1 GB w/ posix_fadvise())

LISA'10 -- San Jose, CA 29

1000 2000 3000 4000 5000 6000 7000 1 2 3 4 5 6 7 8 Checksum Performance (MB/s) Threads Per Node theoretical peak 16 nodes 8 nodes 4 nodes 2 nodes 1 nodes md5sum

slide-30
SLIDE 30

Multi-Node Checksum Performance (1x128 GB w/ direct I/O)

LISA'10 -- San Jose, CA 30

1000 2000 3000 4000 5000 6000 7000 1 2 3 4 5 6 7 8 Copy Performance (MB/s) Threads Per Node theoretical peak 16 nodes 8 nodes 4 nodes 2 nodes 1 nodes md5sum

slide-31
SLIDE 31

Integrity-Verified Copies

  • Cost of verified copies

 msum + mcp + msum = 3 reads + 1 write  Theoretical peak: 2.2 GB/s

  • Mcp already has access to the source data during the

copy

  • Mcp includes embedded hashing functionality

 Worker threads compute hash subtrees with data read for

copy

 Subtree roots sent to stat/hash thread on main node  Stat/hash thread computes remaining root of tree once all

subtrees received

  • Final cost of verified copies

 mcp (w/ sum) + msum = 2 reads + 1 write  Theoretical peak: 3.3 GB/s

LISA'10 -- San Jose, CA 31

slide-32
SLIDE 32

Multi-Node Verified Copy Performance (64x1 GB w/ posix_fadvise())

LISA'10 -- San Jose, CA 32

500 1000 1500 2000 2500 3000 3500 1 2 3 4 5 6 7 8 Verified Copy Performance (MB/s) Threads Per Node theoretical peak 16 nodes (mcp (w/ sum) + msum) 16 nodes (msum + mcp + msum) 8 nodes (mcp (w/ sum) + msum) 8 nodes (msum + mcp + msum) 4 nodes (mcp (w/ sum) + msum) 4 nodes (msum + mcp + msum) 2 nodes (mcp (w/ sum) + msum) 2 nodes (msum + mcp + msum) 1 nodes (mcp (w/ sum) + msum) 1 nodes (msum + mcp + msum) md5sum + cp + md5sum

slide-33
SLIDE 33

Multi-Node Verified Copy Performance (1x128 GB w/ direct I/O)

LISA'10 -- San Jose, CA 33

500 1000 1500 2000 2500 3000 3500 1 2 3 4 5 6 7 8 Verified Copy Performance (MB/s) Threads Per Node theoretical peak 16 nodes (mcp (w/ sum) + msum) 16 nodes (msum + mcp + msum) 8 nodes (mcp (w/ sum) + msum) 8 nodes (msum + mcp + msum) 4 nodes (mcp (w/ sum) + msum) 4 nodes (msum + mcp + msum) 2 nodes (mcp (w/ sum) + msum) 2 nodes (msum + mcp + msum) 1 nodes (mcp (w/ sum) + msum) 1 nodes (msum + mcp + msum) md5sum + cp + md5sum

slide-34
SLIDE 34

Conclusion

  • Mcp/msum provide significant performance

improvements over cp/md5sum

 Multi-threaded parallelism to maximize single

system performance

  • Buffer cache management to eliminate kernel

bottlenecks

  • Double buffering to overlap reads/writes/hashes
  • Split processing to achieve single file parallelism

 Multi-node parallelism to overcome single system

resource limitations

 Hash trees to achieve checksum parallelism

LISA'10 -- San Jose, CA 34

slide-35
SLIDE 35

Conclusion (cont.)

  • Summary of performance improvements

 cp

  • 10x/27x on 1/16 nodes
  • 72% of peak

 md5sum

  • 5x/19x on 1/16 nodes
  • 88% of peak

 md5sum + cp + md5sum

  • 7x/22x on 1/16 nodes
  • 66% of peak
  • Mcp and msum are drop-in replacements for

cp and md5sum

LISA'10 -- San Jose, CA 35

slide-36
SLIDE 36

Future Work

  • Find bottleneck in single node single file

case

  • Parallelize other utilities

 install, mv, rm, cmp

  • Extend mcp to high performance remote

transfer utility

 Most of required infrastructure already exists  Need network bridge between read buffer and

write buffer

LISA'10 -- San Jose, CA 36

slide-37
SLIDE 37

Finally...

  • Mcp and msum are open source and

available for download

 http://mutil.sourceforge.net

  • Contact info

 paul.kolano@nasa.gov

  • Questions?

LISA'10 -- San Jose, CA 37
