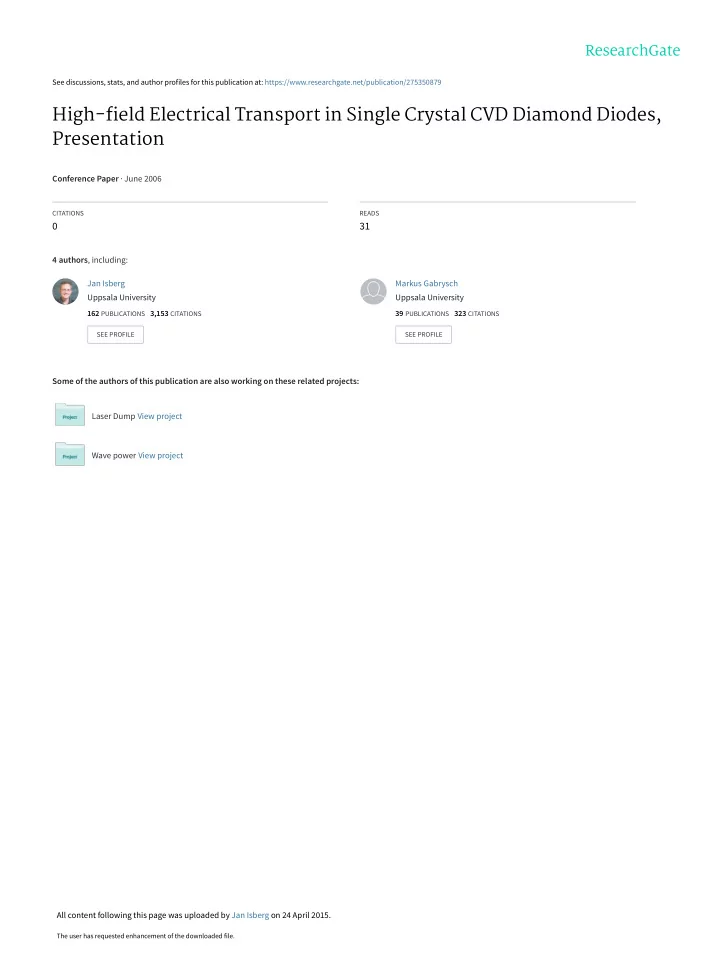

See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/275350879

High-field Electrical Transport in Single Crystal CVD Diamond Diodes, Presentation

Conference Paper · June 2006

CITATIONS READS

31

4 authors, including: Some of the authors of this publication are also working on these related projects: Laser Dump View project Wave power View project Jan Isberg Uppsala University

162 PUBLICATIONS 3,153 CITATIONS

SEE PROFILE

Markus Gabrysch Uppsala University

39 PUBLICATIONS 323 CITATIONS

SEE PROFILE

All content following this page was uploaded by Jan Isberg on 24 April 2015.

The user has requested enhancement of the downloaded file.

slide-2
SLIDE 2

High-field Electrical Transport in Single Crystal CVD Diamond Diodes

Jan Isberg, Markus Gabrysch Uppsala University Antonella Tajani, Daniel Twitchen Element Six Ltd

Uppsala University: Jan Isberg Markus Gabrysch Element Six Ltd: Antonella Tajani Daniel Twitchen

slide-3
SLIDE 3

Contents

  • Impact Ionization at high electric fields
  • High voltage diamond diodes
  • Attempts to measure impact ionization

coefficients in SC-CVD diamond

  • Summary
slide-4
SLIDE 4

Impact Ionization

  • R. Raghunathan, B. Baliga,

Solid-State Electronics 43 (1999) 199-211

Silicon Carbide

E

Holes and electrons accelerated in high electric field attain enough energy to create new electron hole pairs by impact ionization

Impact Ionisation Diodes Experiment Summary

slide-5
SLIDE 5

Modelling Impact Ionization

t E j j j N N n p q E j j r j t p q j j r j t n q p qD E qp j n qD E qn j

p n d a p p n n SRH p p p n n SRH n p p p n n n

∂ ∂ + + = − + − = ⋅ ∇ + + − ⋅ ∇ = ∂ ∂ + + − ⋅ ∇ = ∂ ∂ ∇ − = ∇ + =

− +

ε ε α α α α µ µ ) ( | | | | | | | |

Drift-diffusion currents Continuity eq. including avalanche generation Poisson eq. Total current

E p b E n b

e a e a

p p n n − −

= = α α

Cynoweth relation

Impact Ionisation Diodes Experiment Summary

slide-6
SLIDE 6

Avalanche Simulation

α

t=0 2kV over 50µm 7.2kV over 50µm

Hole conc.

Impact Ionisation Diodes Experiment Summary

slide-7
SLIDE 7

Avalanche simulation movies

Impact Ionisation Diodes Experiment Summary

slide-8
SLIDE 8

Charge multiplication

Low voltage: no carrier multiplication, electrons extracted quickly, holes extracted after transit High voltage: generation of electron-hole pairs by impact ionization

Impact Ionisation Diodes Experiment Summary

slide-9
SLIDE 9

p+ (~ 1020 [B]/cm3)

50-500 µm

HV p-i-metal Diamond Diode

anode Ti/Al/Au or Ti/Al/Pt/Au p++ boron ion-implanted intrinsic (< 1013 [B]/cm3, very low [N]) few µm Al or Au cathode

Impact Ionisation Diodes Experiment Summary

slide-10
SLIDE 10

Boron Doping

  • In-growth B doping in the range 1015 to 1021 cm-3

for thick layers

  • No contamination between doped and undoped

layers

  • Sharp interfaces (<1 µm)

i p

Optical micrograph

p i

SIMS analysis

Impact Ionisation Diodes Experiment Summary

slide-11
SLIDE 11

HV p-i-metal diamond diodes

p+

Au cathode anode p++ intrinsic Space charge limited hole current in intrinsic layer Similar to vacuum diode

Edge field enhancement Impact Ionisation Diodes Experiment Summary

slide-12
SLIDE 12

Forward Conduction

Similar to vacuum diode

e-

Forward conduction: space charge limited hole current in intrinsic layer p+ i

+

  • L

Ideally: Mott – Gurney behaviour

3 2

8 9 L V j

h

εµ =

2 2 / 3

9 8 L V m q j

e

ε =

c.f. Child’s law for vacuum tubes (ballistic transport)

Impact Ionisation Diodes Experiment Summary

slide-13
SLIDE 13

Layer thickness

C-V measurement

  • n 1.2 mm2 diode.

Note almost constant capacitance in this type of diode Diode illuminated from side, 10 μm i-layer

Impact Ionisation Diodes Experiment Summary

slide-14
SLIDE 14

EBIC in diamond

no secondary impact ionization at attainable bias voltage…

Ti/Al/Au Au p+ i

Impact Ionisation Diodes Experiment Summary

slide-15
SLIDE 15

Impact ionization experiment

Two α-emitting spherical gold tips made at The Svedberg Lab (3 & 5 kBq) Advantages:

  • Small contact area
  • Experiment can be done in insulating oil

→ higher bias possible

Impact Ionisation Diodes Experiment Summary

slide-16
SLIDE 16

Alpha particle penetration

Isotropic distribution

0° incidence

Impact Ionisation Diodes Experiment Summary

slide-17
SLIDE 17

Impact ionization setup

Impact Ionisation Diodes Experiment Summary

slide-18
SLIDE 18

Preliminary results

Noise (shot noise) due to excessive leakage current

Solid line: ap= 4.0·106 cm-1, bp=1.1·107 V/cm Dashed line: ap= 6.0·105 cm-1 and bp=0.8·107 V/cm Impact Ionisation Diodes Experiment Summary

slide-19
SLIDE 19

Summary

  • Measurements of impact ionization

coefficients in diamond difficult due to th very high electric fields necessary

  • Carrier multiplication from impact

ionization at high electric fields has been observed

  • Reduced leakage currents necessary to
  • btain reliable data on avalanche

ionization coefficients

Impact Ionisation Diodes Experiment Summary
