SLIDE 1

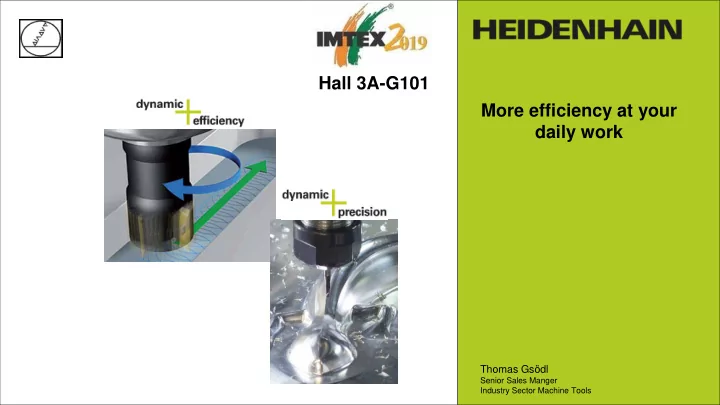

More efficiency at your daily work Hall 3A-G101
Thomas Gsödl
Senior Sales Manger Industry Sector Machine Tools
Hall 3A-G101 More efficiency at your daily work Thomas Gsdl - - PowerPoint PPT Presentation
Hall 3A-G101 More efficiency at your daily work Thomas Gsdl - - PowerPoint PPT Presentation
Hall 3A-G101 More efficiency at your daily work Thomas Gsdl Senior Sales Manger Industry Sector Machine Tools Welcome @ History 1890 1900 1910 1920 1930 1940 1950 1960 1970 1980 1990 2000 2010 Founding of the metal-etching
SLIDE 2
SLIDE 3
History
3
Founding of the metal-etching company
- Dr. Johannes Heidenhain joins
- DR. JOHANNES HEIDENHAIN GmbH
Founding of the non-profit
- W. HEIDENHAIN in Berlin
his father’s company starts over in Traunreut
- DR. JOHANNES HEIDENHAIN-STIFTUNG GmbH
Stitching templates Photomechanically copied glass scale Photoelectrical linear and angle encoders Interferential linear encoder Steel scale tapes Copied circular scale Numerical position display Absolute linear encoder Precision gratings Optical linear and angle encoders Numeric contouring control for 3 axes Interferential angle encoder
1940 1890 1900 1910 1920 1930 2010 1950 1960 1970 1980 1990 2000
SLIDE 4
Sales and Service - Worldwide
LX V-B WZM / Oct. 18
SLIDE 5
Topic overview
Dynamic Efficiency Dynamic Precision
SLIDE 6
Topic overview
Dynamic Efficiency Dynamic Precision
SLIDE 7
TNC 640 – Running of NC programs Dynamic Efficiency
Dynamic Efficiency – Solutions for Efficient Heavy Machining ACC – Active suppression of chatter vibrations
Better surfaces during roughing Increased metal removal rate
Cycle 275 – Efficient trochoidal milling of deep slots
Efficient feed rate profile in combination with AFC
AFC – Automatic adaptation of the feed rate based on the spindle performance
Time optimization Overload protection Standard syntax for simple applications
M-NC, 03.2014
SLIDE 8
SV M-NC
ACC (Active Chatter Control)
SLIDE 9
SV M-NC
Without ACC (Active Chatter Control)
SLIDE 10
SV M-NC
With ACC (Active Chatter Control)
SLIDE 11
SV M-NC
Trochoidal milling and AFC
SLIDE 12
Topic overview
Dynamic Efficiency Dynamic Precision
SLIDE 13
TNC 640 – Running of NC programs Dynamic Precision
Dynamic Precision – High production rates of precisely machined workpieces
CTC (Cross Talk Compensation) prevents errors caused
by acceleration forces.
AVD (Active Vibration Damping) reduces machine
vibrations
PAC (Position Adaptive Control) always offers the
- ptimum controller setting irrespective of the position in
the working space
LAC (Load Adaptive Control) permits adjusting the
controller settings depending on the workpiece weight
M-NC, 03.2014
SLIDE 14
Cross Talk Compensation (CTC)
SV M-NC
SLIDE 15
CTC – Application Example
CTC off Motion errors lead to surface defects CTC on Precise TCP motion provides better surface quality and accuracy
JK, 09.2013
SLIDE 16
Accuracy of Circular Movement
Damage to the stud from milling the square Deviation from the nominal contour enlarged 500-fold
JK, 09.2013
SLIDE 17
Active Vibration Damping (AVD)
SV M-NC
SLIDE 18
Active Vibration Damping (AVD) – KGM Measurement
5-axis vertical machining centre
Oscillation at 17 Hz caused by foundation TCP position error AVD off:15 µm
AVD on: 4 µm KGM cross grid measurement, deviation (2000x magnified) AVD off AVD on x [mm] y [mm] y [mm]
- 80
- 40
40 80
x [mm]
- 80
- 40
40 80 80 40
- 40
- 80
80 40
- 40
- 80
JK, 09.2013
SLIDE 19
Active Vibration Damping (AVD) - Benefits
The adaptive control function AVD can significantly reduce the level of machine vibration
Fast and oscillation free movements Enhanced surface quality Optimized machining time
AVD off AVD on
JK, 09.2013
SLIDE 20
Series production of single parts with Dynamic Precision
Increase in productivity using the example of an 8-element bridge (7 %) Shorter processing time Better surface Higher workpiece accuracy
Dynamic Precision in Dental Technology
SV M-NC
SLIDE 21
Cycle 239 determines the loading weight for a quick adaption of LAC (Option 143)
LAC optimize feed forward and controller parameter
dependent on the loading weight continuously
Cycle 239: Reset parameters to enable safe controlling of
critical axes independently on the loading weight
Determines the loading weight and adapt LAC for a
volatile variation of it Benefits
Very easy to use for the operator OEM configures the cycle process No adaption in the PLC is necessary
TNC availiability
TNC 620 / TNC 640
Determine the loading weight for LAC
M-NC, 10.2014
SLIDE 22
Determine the loading weight for LAC
M-NC, 10.2014
SLIDE 23
Resume The HEIDENHAIN solution for high production rates of precisely machined workpieces
increases accuracy during dynamic
contouring movements
reduces scrap and rework saves time and costs
JK, 09.2013
SLIDE 24
HEIDENHAIN at IMTEX 2019
Hall 3A-G101
