Greenway Criteria & Design Guide Webinar September 19, 2019 East Coast Greenway Alliance Connecting people to places, Maine to Florida greenway.org Agenda Welcome & Introductions Where & how is the Greenway built?

slide-1
SLIDE 1

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

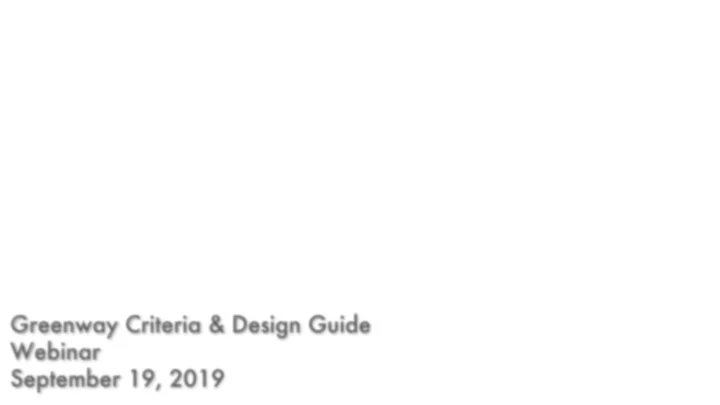

Greenway Criteria & Design Guide Webinar September 19, 2019

slide-2
SLIDE 2

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Agenda

  • Welcome & Introductions
  • Where & how is the Greenway built?
  • Helpful terminology
  • Surface, width, grades
  • Crossings and on-road facilities
  • Signage & bridges
  • On-Road designation exceptions
  • Questions
  • Guide update process
slide-3
SLIDE 3

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

slide-4
SLIDE 4

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Where & how is the Greenway built?

  • Sewer easement
  • Rail to trail conversion
  • Riverfront easement
  • Widened sidepath parallel to roadway

Where is the Greenway built?

Walnut Creek Trail Hudson River Greenway American Tobacco Trail Tinicum Sidepath

slide-5
SLIDE 5

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Where & how is the Greenway built?

  • Federal (e.g. TAP, TIGER/BUILD program)
  • State bond funding and state specific programs (e.g. SUN

Trail in Florida)

  • Private foundation and local funding

How is the Greenway funded?

Spanish Moss Trail Farmington Canal Heritage Trail ECCR Trail Schuylkill Boardwalk

slide-6
SLIDE 6

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Helpful Terminology

slide-7
SLIDE 7

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Helpful Terminology (cont.)

Glossary as its own webpage: greenway.org/design-guide/glossary

slide-8
SLIDE 8

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Surface, width, grades

  • Criteria
  • Easily navigable by all users
  • ADA accessible (firm & stable)
  • Considerations
  • Anticipated user volumes
  • Types of users
  • Geographic context
  • Types
  • Asphalt
  • Concrete
  • Crushed stone
  • Boardwalk

Surface

East Bay Bike Path- Providence, RI

slide-9
SLIDE 9

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Surface, width, grades (cont.)

Less Expensive

  • $150k- 350k

Moderately Expensive

  • $350k- 750k

More Expensive

  • $750k- 1.5m

Material Investment per Mile

*Design & construction prices vary by region

slide-10
SLIDE 10

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Asphalt

  • Accessibility: preferred
  • Best for: cyclists (esp. commuting), walkers,

skateboard/rollerbladers, strollers

  • Cost: moderately $
  • Lifespan: 7-15 yr/avg
  • Maintenance: more frequent, $1,900/yr per mile
  • Geographic context: urban, suburban, rural
  • Construction Considerations: aggregate & binder,

drainage, thickness, sub-grade, compaction

Surface, width, grades (cont.)

Head of the Meadow Bike Path- Truro, MA

slide-11
SLIDE 11

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

  • Accessibility: preferred
  • Best for: similar to asphalt
  • Cost: more $
  • Lifespan: 25+ yr/avg
  • Maintenance: less frequent, good for

flood prone areas

  • Geographic context: urban, suburban

Concrete

Surface, width, grades (cont.)

Harborwalk- New Bedford, MA

slide-12
SLIDE 12

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

  • Accessibility: not preferred, but if

firm & stable then ADA

  • Best for: cyclists (rec & touring),

walkers/runners, equestrians

  • Cost: less $
  • Lifespan: 2-5 yr/avg
  • Maintenance: more frequent,

$1,000/yr per mile

  • Geographic context: suburban, rural
  • Construction Considerations:

material type, aggregate size, compaction, cross-slope, drainage

Crushed Stone

Surface, width, grades (cont.)

Eastern Trail- Scarborough, Maine

slide-13
SLIDE 13

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

  • Accessibility: not preferred (unless

concrete decking)

  • Best for: walkers
  • Cost: more $
  • Lifespan: 15 yr/avg for timber, 50-

75 years with concrete

  • Maintenance: less frequent, good for

flood prone areas

  • Geographic context:

suburban, rural

  • Construction Considerations:

material type, railings, water clearance

Boardwalk

Surface, width, grades (cont.)

Quequechan River Rail Trail- Fall River, MA

slide-14
SLIDE 14

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Width

  • Criteria
  • Goal 12’
  • “AASHTO 5.2.1 Width”
  • Minimum 10’
  • 11-14’ for higher user volumes
  • 8’ in rare circumstances
  • Considerations
  • Primary hard tread surface &

parallel soft shoulders

Surface, width, grades (cont.)

American Tobacco Trail- Durham, NC

slide-15
SLIDE 15

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Grade

  • Criteria
  • “AASHTO 5.2.7 Grade”
  • Maximum 5%
  • Considerations
  • Sidepaths should be ≤ 5%, but can follow the grade of

the adjacent roadway

Surface, width, grades (cont.)

Sea Street sidepath- Hyannis, MA

slide-16
SLIDE 16

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Crossings and Separated on-road facilities

Midblock Crossings: signage, refuge islands, raised crosswalks

Guidance on Crossings: Small Town and Rural Multimodal Networks, FHWA (2016) Don’t Give Up at the Intersection, Designing All Ages and Abilities Bicycle Crossings, NACTO (2019)

WB&A Trail with raised crosswalk and signage, Odenton, MD Mass Central Rail Trail, Wayland, MA

Johnson Trolley Line Trail, Lawrence Township, NJ

slide-17
SLIDE 17

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Crossings and Separated on-road facilities

Midblock Crossings: rapid flashing beacons, refuge islands

Jack A. Markell Trail, New Castle, DE

slide-18
SLIDE 18

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Crossings and Separated on-road facilities

Intersection Crossings: signage, pedestrian and bike signals

Newark Riverfront Trail, Newark, NJ Hudson River Greenway, New York, NY

slide-19
SLIDE 19

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Crossings and Separated on-road facilities

Intersection Crossings: protection and wide turning radii for motorists

Lakeside Dr, Oakland, CA Northern Delaware Greenway, Wilmington, DE

slide-20
SLIDE 20

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Top left: 1st St NE, DC Top right:Top right: Cathedral St, Baltimore Bottom left: Long Wharf Dr, New Haven (parallel footpath to left of cycletrack) Bottom right: Jay St NE, DC

Separated On-Road Facilities: At-grade with road, including a parallel footpath

Crossings and Separated on-road facilities (cont.)

slide-21
SLIDE 21

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Separated On-Road Facilities: Raised sidepaths with and without bike/ped separation

Crossings and Separated on-road facilities (cont.)

Top left: Frankford Greenway, Philadelphia Top right: 58th St Greenway, Philadelphia Bottom left: Maine Ave SW, DC; Bottom right: Delaware River Trail, Philadelphia

slide-22
SLIDE 22

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

FHWA: Separated Bike Lane Planning and Design Guide (2015); Bikeway Selection Guide (2019) Massachusetts Department of Transportation: Separated Bike Lane Planning & Design Guide (2019)

Crossings and Separated on-road facilities (cont.)

slide-23
SLIDE 23

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

FHWA Bikeway Selection Guide (2019)

Figure 3: Seven Principles of Bicycle Network Design

Crossings and Separated on-road facilities (cont.)

slide-24
SLIDE 24

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Bridge design specifications:

  • Follow AASHTO and/or NACTO guidance (minimum 8' width)
  • Plan for both pedestrians and bicyclists
  • Safety - Bypass dangerous and/or impractical at-grade crossings
  • Directness - Leverage demand for the shortest path, usefulness
  • Network necessity - Reinforce need with connectivity on each side
  • Impact - Flip cost into benefit: safety, economic, equity, environment
  • Prominence - Create iconic structures as a legacy for future generations

Bridges

slide-25
SLIDE 25

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Farmington Canal Heritage Bridge over Route 6 in Farmington, CT.

Bridges, (cont.)

117 ft long 12 ft wide $1.54 mil Existing RR ROW

slide-26
SLIDE 26

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Bridges vs. Crossings

  • At-grade design solutions:
  • Should be prioritized instead of a bridge (where possible)
  • Benefits users by reducing speeds and encouraging multi-modal, sustainable transportation
  • Help trail users avoid climbing and descending a bridge
  • Particularly helpful for those with physical disabilities and issues with mobility
  • Formalize bike/ped crossings that would still likely occur (despite being illegal and less safe)
  • Cost is much less than engineered bridges

Bridges (cont.)

slide-27
SLIDE 27

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Bridges (cont.)

Bolton, CT Bridge on the Hop River Trail over I-384.

122 ft long 12 ft wide $1.71 mil $3.1 total All new construction

  • vs. at-grade
slide-28
SLIDE 28

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Re-Designed Crossings

Bridges (cont.)

Bolton, CT Bridge on the Hop River Trail over I-384.

Scudder Falls I-295 Bridge Re-Design PA to NJ

slide-29
SLIDE 29

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Wayfinding Signage

  • Inform users that they are on the East Coast Greenway
  • Identify route direction changes
  • Proper wayfinding
  • ECGA standard 5.5” x 15” signs
  • Arrows are 5.5” x 5.5”
  • May be installed on trails and roads pending permission

For more information and specifications, see the East Coast Greenway Signage Manual: http://greenway.org/signage-manual

Signage

slide-30
SLIDE 30

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Manual on Uniform Traffic Control Devi ces, Ch. 9 18”x18” if installed

  • n road and

12”x12” if installed

  • n greenways

Non-Standard Wayfinding Signs MUTCD Signage

Newark, NJ - Liberty Water Gap Trail

Signage (cont.)

Click to add text

slide-31
SLIDE 31

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Other Signage

Signage (cont.)

  • Trailside kiosk or other structures
  • “Billboard” signs
  • Informational kiosk
slide-32
SLIDE 32

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

ECGA Bridge Signage

  • Special identification signs to be installed on or adjacent to

trail bridges

  • To date, all Greenway bridge ID signs have generally

followed MUTCD standards

  • Approved and installed by highway maintenance

personnel or contractors.

  • Bridges over I-384 in Bolton, CT and over I-40 in Durham, NC

Signage (cont.)

slide-33
SLIDE 33

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

On-Road Designation Exceptions

Crows Nest Rd, Baltimore, MD - Jones Falls Trail on-road connector

slide-34
SLIDE 34

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

On-Road Designation Exceptions (cont.)

Harley Ave, Philadelphia, PA - Bartram’s Garden driveway entrance, slow speed, low traffic shared road

slide-35
SLIDE 35

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

On-Road Designation Exceptions (cont.)

Eastern Rd advisory bike lanes, Scarborough, ME

slide-36
SLIDE 36

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Questions?

slide-37
SLIDE 37

East Coast Greenway Alliance • Connecting people to places, Maine to Florida • greenway.org

Guide Update Process

  • Updated yearly
  • Questions, comments, and other feedback continuously

collected:

  • www.greenway.org/design-guide
  • Fall 2020 update

Next Steps
