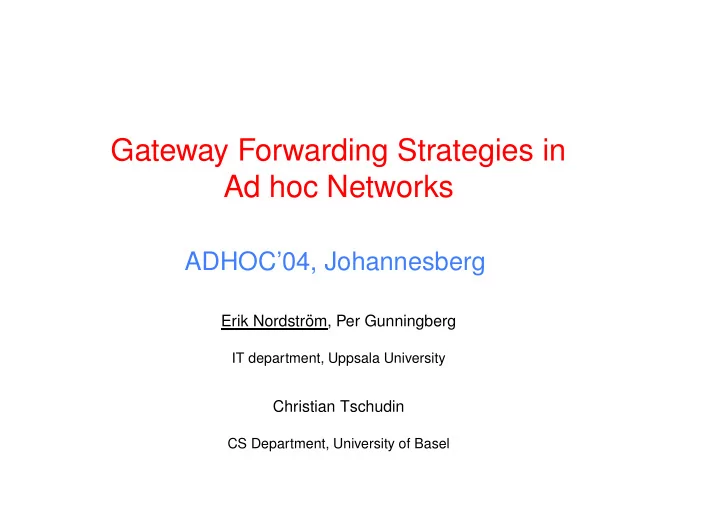

Gateway Forwarding Strategies in Ad hoc Networks

ADHOC’04, Johannesberg

Erik Nordstr¨

  • m, Per Gunningberg

IT department, Uppsala University

Christian Tschudin

CS Department, University of Basel

slide-2
SLIDE 2

The story so far. . .

Ad hoc ≈ Mobile Multi-hop Wireless Networking IETF started MANET (Mobile Ad hoc NETworks) working group on ad hoc routing in 1995/96. Since then:

  • Four routing protocols going for RFC status (AODV, OLSR,

DSR, TBRPF)

  • AODV implementations ≈ 10
  • Zero deployment

One explanation: No Internet integration

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 2/16

slide-3
SLIDE 3

Common MANET Internet connectivity scenarios

  • Extending the reach of wireless LANs
  • Disaster area rescue drones with connection to rescue central
  • Military units communicating with headquarters

– Uppsala students are building rescue robots with ad hoc routing for participation in Robocup.

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 3/16

slide-4
SLIDE 4

So what has gone wrong?

Internet and ad hoc networks are very different:

  • Hierarchical vs. Flat addressing and routing
  • Fixed vs. Mobile (macro and micro mobility)

For Internet connectivity many suggest Mobile IP (MIP).

  • It is only half the solution (solves macro mobility)
  • Provides topologically correct (care-of) addresses
  • Operates (mainly) at gateways towards the Internet (i.e., MIP

does not really matter until packets reach the gateway)

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 4/16

slide-5
SLIDE 5

Example of an Internet connected ad hoc network

Combining Ad hoc Networking with MIP connectivity:

  • Computers are mobile and use their home

addresses

  • Multiple gateways (MIP agents, FA, HA) to

the Internet

  • Multi-hop paths to gateways

130.238.12.5 63.3.5.23 142.67.8.245 10.0.4.2 130.238.12.1 192.168.6.1 65.43.32.1 66.35.250.151 192.168.1.1 130.238.8.1

MIP Tunnel

HA FA MN

Internet

How do we stitch all this together?

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 5/16

slide-6
SLIDE 6

Challenges

  • Gateways have to be discovered and self-configured at nodes
  • Gateway changes have to be trackable so that MIP can

re-register (otherwise return traffic is lost)

  • For smooth operation, hand-over and multi-homing might be

beneficial (i.e., we must support connectivity to more than one gateway at once)

  • Efficient integration with the routing protocol is important (for

example, mixing proactive gateway discovery with reactive routing does not make sense)

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 6/16

slide-7
SLIDE 7

Our contribution

A lot of Previous Work on:

  • Address configuration
  • Gateway discovery (efficiency in gateway advertisements)

Our complementary work is a comparison of different gateway forwarding strategies:

  • Default routes – one generic path to a gateway for all external

(Internet) destinations.

  • Tunneling – temporary replace the destination address with the

gateway address

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 7/16

slide-8
SLIDE 8

Default Routes – Routing Tables

Destination Next Hop Hop Cnt default 3 66.35.250.151 192.168.1.1 63.3.5.23 63.3.5.23 63.3.5.23 default 192.168.1.1 _ 3 1 (b) Destination Next Hop Hop Cnt 63.3.5.23 63.3.5.23 66.35.250.151 default default 63.3.5.23 1 _ 3 (a)

a) we need host state (to avoid subsequent route lookups on source and intermediate nodes). . . b) but also a gateway route to track gateways (Globalv6 proposal)

  • as much as three routing table lookups might be necessary

(host→default→gateway/next hop)

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 8/16

slide-9
SLIDE 9

Default Routes – State Replication Problem

Extra routing table state (host, gateway, default route) introduces problems:

  • states (e.g., SA) must be replicated on intermediate nodes
  • how do we handle repairs or route optimizations?

SA SA SA SA SA A B C A B GW GW C D D (b) (a)

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 9/16

slide-10
SLIDE 10

Default Routes – Gateway Tracking Problem

A default route might not stay consistent along a hop by hop path when there are multiple gateways

  • Breaks two-way communication (e.g., TCP)

GW2

A B C

RREP GW1 GW2

A B C

mismatch GW1 GW2

A B C

Default route pointing to GW1 Default route pointing to GW2

RREQ GW1

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 10/16

slide-11
SLIDE 11

Tunneling – Routing Tables

Next Hop Hop Count Flags Destination Next Hop Hop Count Flags Destination Next Hop Hop Count Flags Destination

Internet

66.35.250.151 192.168.1.1 63.3.5.23 63.3.5.23 1 1 3 G I 192.168.4.3 63.3.5.23 192.168.1.1 65.3.5.23 63.3.5.23 192.168.1.1 2 1 1 192.168.4.3 192.168.4.3 65.43.32.1 65.43.32.1 192.168.1.1 65.43.32.1 1 1 2 192.168.4.3 65.43.32.1 65.43.32.1 65.43.32.1 3 1 Flags Hop Count Next Hop Destination 63.3.5.23 192.168.1.1

66.35.250.151 63.3.5.23 130.238.12.5

Ad hoc src node

192.168.1.1 130.238.8.1

Gateway

Tunnel

Encapsulation 63.42.32.1 Decapsulation

  • Gateways addressed in packets – not in nodes (some overhead)
  • No extra state at intermediate nodes – only a gateway route
  • Can be done one-way to gateway only

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 11/16

slide-12
SLIDE 12

Tunneling – Benefits

  • Protocol transparency
  • Route aggregation
  • Stability (no gateway tracking problem)
  • Multiple gateways (multi-homing, load-balancing, hand-over)

(a) (b) (c)

Figure 1: (a) Default route. (b) & (c) Tunnel configurations.

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 12/16

slide-13
SLIDE 13

Comparison

ns-2 simulations with:

  • Two gateways, 10 - 20 mobile nodes, fixed density
  • Tunneling to gateways
  • Globalv6-draft style default routes
  • Modified default routes – A reference implementation that

forwards all traffic on a default route, ignoring host route state (we have no traffic among ad hoc nodes)

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 13/16

slide-14
SLIDE 14

Some simulation results – CBR Traffic (UDP)

70 75 80 85 90 95 100 8 10 12 14 16 18 20 CBR Delivery ratio (%) Number of nodes Tunneling Default routes Default routes mod. 2 4 6 8 10 12 8 10 12 14 16 18 20 Control traffic / data (%) Number of mobile nodes Tunneling Default routes Default routes mod.

  • Default routes have state replication problems – ignoring state

helps

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 14/16

slide-15
SLIDE 15

Some simulation results – TCP Traffic (FTP)

0.1 0.2 0.3 0.4 8 10 12 14 16 18 20 TCP Throughput (Mbps) Number of nodes Tunneling Default routes Default routes mod. 1 2 3 4 5 6 7 8 9 10 8 10 12 14 16 18 20 Control traffic / data (%) Number of mobile nodes Tunneling Default routes Default routes mod.

  • With TCP we also need to track gateways – ignoring state does

not help as much here

c Erik Nordstr¨

  • m, Uppsala University

ADHOC’04, Johannesberg 15/16

slide-16
SLIDE 16

Conclusions

Internet connectivity is critical for MANET deployment. Our comparison shows:

  • The default route concept does not transfer well to MANETs
  • Default routes operate incorrectly with multiple gateways
  • Tunneling is efficient, simple, transparent and works with

multiple gateways at the cost of a small overhead We will demo ad hoc network Internet connectivity today!
