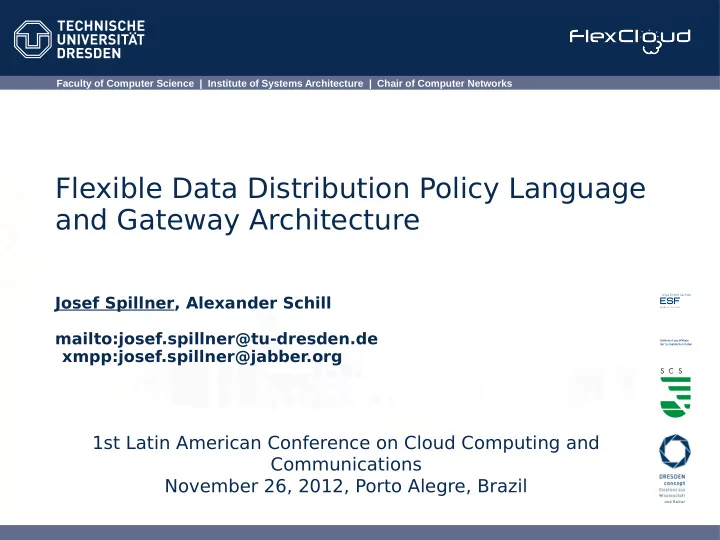

Faculty of Computer Science | Institute of Systems Architecture | Chair of Computer Networks Flexible Data Distribution Policy Language and Gateway Architecture Josef Spillner, Alexander Schill mailto:josef.spillner@tu-dresden.de

slide-1
SLIDE 1

Faculty of Computer Science | Institute of Systems Architecture | Chair of Computer Networks

Flexible Data Distribution Policy Language and Gateway Architecture

1st Latin American Conference on Cloud Computing and Communications November 26, 2012, Porto Alegre, Brazil

Josef Spillner, Alexander Schill mailto:josef.spillner@tu-dresden.de

xmpp:josef.spillner@jabber.org

slide-2
SLIDE 2

# 2 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Background: Storage Services

3 months limit; tariff choice utility billing backup/sync

  • vs. storage

web access

  • nly

proprietary client file size limit institutional pricing: progressive/ degressive

slide-3
SLIDE 3

# 3 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Background: Storage Service Integration

slide-4
SLIDE 4

# 4 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Background: Controller Configuration (1)

slide-5
SLIDE 5

# 5 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Background: Controller Configuration (2)

slide-6
SLIDE 6

# 6 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Background: Storage Service Gateways

slide-7
SLIDE 7

# 7 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Cloud Storage Engine (ClouSE) [mysqld] (in my.cnf) clouse_cloud_data_url=\ s3://s3.amazonaws.com CREATE TABLE clouse_t (

  • bject_name, object_id,

...); SecCSIE database entries CREATE TABLE providers ( name varchar(50), username varchar(50), ...); CREATE TABLE fragments ( encryption tinyint(1), ...);

Deficiencies

NubiSave configuration files [parameter] server = 10.0.2.5 remotedir = /home/store [properties] redundancy = 49 matchmakerURI = local:80 Main shortcomings

  • no interoperability between

configuration approaches

  • no capturing of intended policies

and higher-level configuration

  • no extensibility towards advanced

storage processing outside of the controller/gateway scope

slide-8
SLIDE 8

# 8 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Introducing FlexDDPL

Conf table Conf files Conf base Flex DDPL instance Processing components Flexible Data Distribution Policy Language

  • primarily targeting storage controllers, gateways and associated tools
  • capturing higher-level policies
  • mapping onto concrete configuration directives of processing components

Language design

  • separation of syntax and rule/scope vocabulary
  • extensible through vocabulary and scope application
  • declarative with imperative (verbial) elements

Flex DDPL grammar Flex DDPL vocabul.

slide-9
SLIDE 9

# 9 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

FlexDDPL Syntax

FlexDDPL Syntax Elements+Vocabulary (full EBNF grammar: see paper) scopes → applied in contexts (e.g. user database) ~user !negation T:22:00-06:00 @group fragment mime:message/rfc822 rules → applied to targets (e.g. storage provider) store control adapt FlexDDPL Syntax Example adapt scaleimage control redundancy 200% fragment { store region europe @developers { adapt compress } } Observations

  • rules arguments entirely

determined by targets

  • scopes can be arbitrarily

combined, re-ordering assumed to follow

slide-10
SLIDE 10

# 10 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

FlexDDPL Vocabulary

Rule targets (imperative/verbial) store

  • cloud storage service selection
  • sign-up, if present
  • matches on non-functional

properties in descriptions control

  • client-side storage controller
  • weighted dispersion, if present
  • redundancy and recovery

adapt

  • data adaptation, if present
  • dismissal as specialisation

Scopes (declarative) ~user, @group, T:*, mime:*

  • evaluated by suitable sensor
  • further candidates: privacy:*

and size:* !negation

  • logically applicable to the above
  • relies on boolean scopes

fragment

  • can appear once or more
  • relates to the dispersion
  • is boolean per fragment
slide-11
SLIDE 11

# 11 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Storage Gateway with FlexDDPL

slide-12
SLIDE 12

# 12 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Language Evaluation

slide-13
SLIDE 13

# 13 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Gateway Evaluation: NubiSave Controller

slide-14
SLIDE 14

# 14 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Gateway Evaluation: Integration

NubiSave configuration Flex DDPL instance Online Service Sign-up Tool configuration Apache WebDAV configuration AdaptiveSyncer configuration Implementation and integration

  • open source components around user-space file systems (FUSE)

Configuration reload

  • NubiSave has hot-pluggable configuration
  • web server needs reload, other tools pick up changes on next invocation

<Directory /storage/scope%SCOPE%> Dav On require user %USER%

Custom parser and processor

slide-15
SLIDE 15

# 15 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Gateway Evaluation: Measurements

Experiment setup

  • user database with 1000 entries, on Intel i5 quad-core notebook, 4 GB RAM

Experiment execution

  • FlexDDPL document with 1000 users, one NubiSave filesystem mount for each
  • Measurements with shell commands: time & free
slide-16
SLIDE 16

# 16 LatinCloud, 26.11.2012 Flexible Data Distribution Policy Language and Gateway Architecture

  • J. Spillner & A. Schill

Summary

Further Material: nubisave.org

  • NubiSave optimal cloud storage controller - web pages, git repository, ...

flexcloud.eu

  • EU/ESF-funded project: Flexible Service Architectures for Cloud Computing

Results

  • FlexDDPL: flexible policy language to capture cloud storage requirements
  • Characteristics: rigid structure, portability, extensibility
  • Storage gateway using the NubiSave controller and a FlexDDPL parser

Open Issues and Next Steps

  • standardisation of vocabulary
  • reference parser and processor for FlexDDPL
  • less resource-consuming reference implementation
