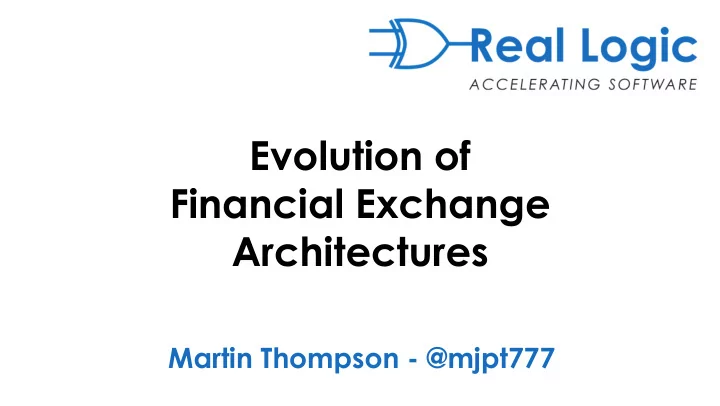

Evolution of Financial Exchange Architectures

Martin Thompson - @mjpt777

slide-2

SLIDE 2

10 years ago…

slide-3

SLIDE 3

Evolution

Design Resilience Performance Deployment

slide-4

SLIDE 4

Design

slide-5

SLIDE 5

Input × State → State

State Machines

slide-6

SLIDE 6

Input × State → State Input × State → Output

State Machines

slide-7

SLIDE 7

Ordered Inputs + Deterministic Execution => Same State & Outputs

Replicated State Machines

slide-8

SLIDE 8

Distributed Event Log

slide-9

SLIDE 9

Rich Domain Models (DDD)

slide-10

SLIDE 10

Rich Domain Models (DDD) Data Structures (CS)

slide-11

SLIDE 11

Time & Timers

slide-12

SLIDE 12

Fairness

slide-13

SLIDE 13

Clients

Matching Engine Matching Engine Gateway Gateway Gateway Gateway Gateway Gateway

slide-14

SLIDE 14

Clients

Matching Engine Matching Engine Gateway Gateway Gateway Matching Engine

slide-15

SLIDE 15

Clients

Matching Engine Matching Engine Gateway Gateway Gateway Matching Engine Gateway Gateway Gateway Gateway Gateway Gateway

slide-16

SLIDE 16

Clients

Matching Engine Matching Engine Gateway Gateway Gateway Matching Engine Gateway Gateway Gateway Gateway Gateway Gateway Matching Engine Matching Engine Matching Engine

slide-17

SLIDE 17

Migration by Asset Class OTC => Exchange Traded

slide-18

SLIDE 18

Resilience

slide-19

SLIDE 19

Fault Tolerance

slide-20

SLIDE 20

Primary + Secondary

vs

Consensus

Fault Tolerance

slide-21

SLIDE 21

Leslie Lamport - Paxos Barbara Liskov - Viewstamp Replication Ken Birman - Virtual Synchrony

slide-22

SLIDE 22

https://raft.github.io/raft.pdf

slide-23

SLIDE 23

Raft Safety Guarantees

Election Safety
Leader Append-Only
Log Matching
Leader Completeness
State Machine Safety

slide-24

SLIDE 24

Client Client Client Client Client Consensus Module Service Consensus Module Service Consensus Module Service

slide-25

SLIDE 25

Client Client Client Client Client Consensus Module Service Consensus Module Service Consensus Module Service

15 25 21 29 18 23 20 25 21

slide-26

SLIDE 26

Client Client Client Client Client Consensus Module Service Consensus Module Service Consensus Module Service

15 25 21 29 18 23 20 25 21 Append Position/Index

slide-27

SLIDE 27

Client Client Client Client Client Consensus Module Service Consensus Module Service Consensus Module Service

15 25 21 29 18 23 20 25 21 Commit Position/Index

slide-28

SLIDE 28

Client Client Client Client Client Consensus Module Service Consensus Module Service Consensus Module Service

15 25 21 29 18 23 20 25 21 Service Position/Index

slide-29

SLIDE 29

Client Client Client Client Client Consensus Module Service Consensus Module Service Consensus Module Service

15 25 21 29 18 23 20 25 21

Boom!

slide-30

SLIDE 30

Client Client Client Client Client Consensus Module Service Consensus Module Service Consensus Module Service

15 25 21 29 18 23 20 25 21

slide-31

SLIDE 31

Importance of Code Quality & Model Fidelity

slide-32

SLIDE 32

Robustness

slide-33

SLIDE 33

How well does your application handle errors?

slide-34

SLIDE 34

Performance

slide-35

SLIDE 35

Latency distribution awakening

slide-36

SLIDE 36

Systemic & queueing events

slide-37

SLIDE 37

Garbage Collectors

slide-38

SLIDE 38

Memory Access Patterns & Data Structures

slide-39

SLIDE 39

Binary Codecs

slide-40

SLIDE 40

Spectre & Meltdown

slide-41

SLIDE 41

Greatly increased cost for system calls, page faults, and context switching

slide-42

SLIDE 42

Advances in Hardware

slide-43

SLIDE 43

New IO APIs

slide-44

SLIDE 44

Mechanical Sympathy

slide-45

SLIDE 45

Does programming language choice matter?

slide-46

SLIDE 46

Deployment

slide-47

SLIDE 47

Continuous Delivery

slide-48

SLIDE 48

24 * 7 Operations

slide-49

SLIDE 49

Flexible Scaling

slide-50

SLIDE 50

Wrapping up…

slide-51

SLIDE 51

What will the next 10 years hold?

slide-52

SLIDE 52

@mjpt777 https://github.com/real-logic/aeron

“The future is already here – it's just not evenly distributed”

William Gibson
