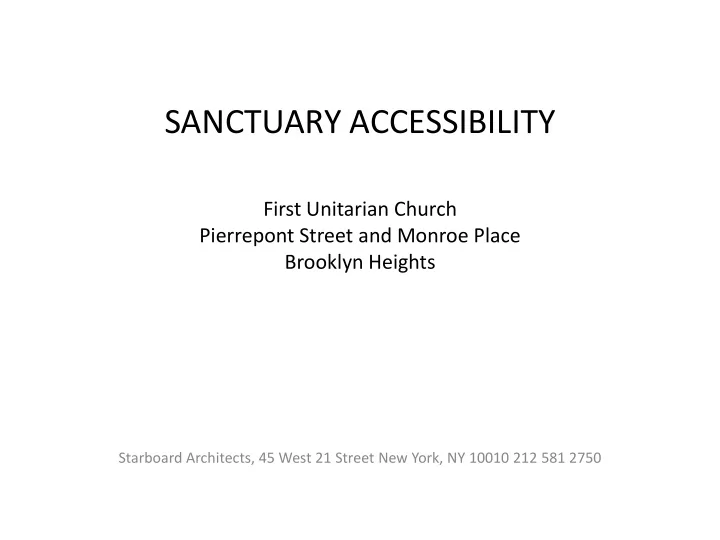

SLIDE 1

SANCTUARY ACCESSIBILITY

First Unitarian Church Pierrepont Street and Monroe Place Brooklyn Heights

Starboard Architects, 45 West 21 Street New York, NY 10010 212 581 2750

slide-2
SLIDE 2
  • Church of the Saviour (1844)

Minard Lafever’s Gothic Revival design

  • Built for and continuously
  • ccupied by the Unitarian Society
  • f Brooklyn
  • Included in Brooklyn Heights

Historic District in 1965

  • Interior and exterior is historically

intact and carefully maintained

2

slide-3
SLIDE 3

3

slide-4
SLIDE 4

Accessibility Issues

  • Sanctuary floor level is six foot above street

elevation.

– Plinth is 3 feet above street level – Narthex level 3 feet above platform

  • Restricted circulation and layout within the

building limit interior options.

  • Exterior inclined platform lift provides logical

solution.

4

slide-5
SLIDE 5

Ground Floor Plan Note elevation changes

5

slide-6
SLIDE 6

Sanctuary Level

6

slide-7
SLIDE 7

Choir Loft and Balconies

7

slide-8
SLIDE 8

Alternate Access Options

  • Exterior Ramp
  • Interior Elevator
  • Exterior Inclined Platform Lift

8

slide-9
SLIDE 9

9

slide-10
SLIDE 10

10

Interior Elevator Option One

slide-11
SLIDE 11

Interior Elevator Option 2

11

slide-12
SLIDE 12

Interior Elevator Option 3

12

slide-13
SLIDE 13

Alternate Exterior Location for Inclined Platform Lift

13

Pathway to Chapel Stairs to Sanctuary Plinth

slide-14
SLIDE 14

Alternate Location of Inclined Chair Lift Chapel side

14

slide-15
SLIDE 15

East spiral stairs provides limited access between the Sanctuary and Undercroft

15

slide-16
SLIDE 16

Corner of Monroe Place and Pierrepont Street Proposed Lift Location

16

slide-17
SLIDE 17

Pierrepont St Façade. Proposed lift location at flanking stair

17

slide-18
SLIDE 18

Flanking stairs to Sanctuary – Proposed location of Inclined Lift Hand rail and secondary door to be removed.

18

slide-19
SLIDE 19

Existing Plinth -Location of new stairs and lift to Monroe Place

Bluestone Pavers to be salvaged and reinstalled

slide-20
SLIDE 20

Fence wrapping around corner of Monroe and Pierrepont.

20

slide-21
SLIDE 21

Iron fence with church announcement board Monroe and Pierrepont

21

slide-22
SLIDE 22

Church announcement Board to be re- supported

22

slide-23
SLIDE 23

Detail of ornamental finial at existing fence

23

slide-24
SLIDE 24

Gate at Chapel Entry

24

slide-25
SLIDE 25

25

slide-26
SLIDE 26

26

slide-27
SLIDE 27

27

slide-28
SLIDE 28

28

slide-29
SLIDE 29

SCOPE OF WORK

  • Remove six foot section of wrought iron fence on Monroe Place and stone curb
  • Replace Fence with double leaf gate of similar details
  • Relocate Church Message Board
  • Extend plinth to the north and construct a set of poured in place concrete

steps

  • Dress steps with bluestone to match existing
  • Provide a level platform at base of stairs
  • Remove center railing from existing north steps between platform and

sanctuary level

  • Remove pair of non-original storm doors to narthex
  • Install an inclined stair lift.

29

slide-30
SLIDE 30

Inclined Lift at the Puck Building

30
