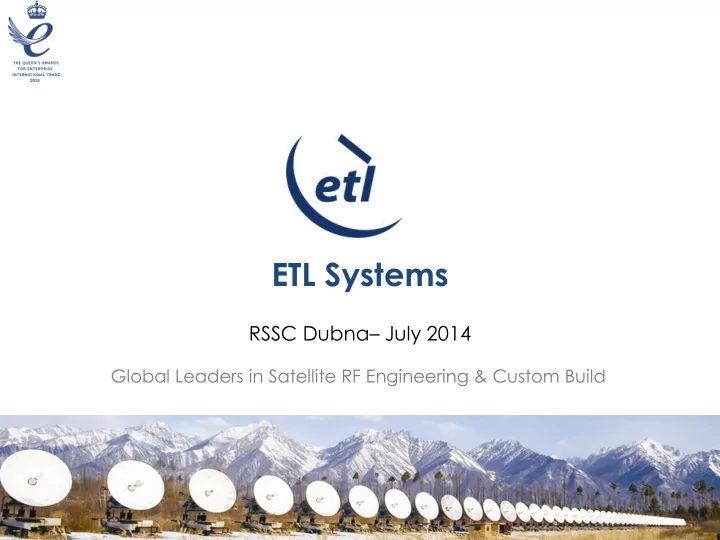

ETL Systems RSSC Dubna July 2014 Global Leaders in Satellite RF Engineering & Custom Build ROUTE AMPLIFY SPLIT SWITCH Heritage Custom Build & Design Specialist RF equipment for 25 years 80% International Sales

slide-1
SLIDE 1

ROUTE AMPLIFY SPLIT SWITCH

ETL Systems

Global Leaders in Satellite RF Engineering & Custom Build

RSSC Dubna– July 2014

slide-2
SLIDE 2

ROUTE AMPLIFY SPLIT SWITCH

Heritage Custom Build & Design

ROUTE AMPLIFY SPLIT SWITCH

  • Specialist RF equipment for 25 years
  • 80% International Sales
  • 75 staff in 3 global offices (UK, US, ME)
  • Cover R&D, Production & Test
slide-3
SLIDE 3

ROUTE AMPLIFY SPLIT SWITCH

Global RF Equipment Coverage

ROUTE AMPLIFY SPLIT SWITCH

Broadcasters Government Satellite Operators

slide-4
SLIDE 4

ROUTE AMPLIFY SPLIT SWITCH

The challenge:

ROUTE AMPLIFY SPLIT SWITCH

  • More and more space crafts orbiting the earth
  • Bigger and more teleports with many different sizes and

designs of antennas

slide-5
SLIDE 5

ROUTE AMPLIFY SPLIT SWITCH

Importance of Signal Handling

ROUTE AMPLIFY SPLIT SWITCH

  • Ever increasing traffic between space & terrestrial networks
  • GEO orbiting satellites well exceed 420
  • Hundreds of LEO and MEO satellites provide interlinks

between spacecraft. All eventually beamed down to earth

  • Increasing traffic density, as well as capacity means

broader IF bands (E.G HTS Satellites)

  • Bigger earth stations and wider range of antennas at each
  • f these teleports
  • Antennas designed to handle multiple RF links of different

frequencies; Ka, Ku and C-bands

slide-6
SLIDE 6

ROUTE AMPLIFY SPLIT SWITCH ROUTE AMPLIFY SPLIT SWITCH

Routing Your Satellite Signal – Old vs New

slide-7
SLIDE 7

ROUTE AMPLIFY SPLIT SWITCH

ETL supply all of the satcoms segments

ROUTE AMPLIFY SPLIT SWITCH

40% Government & Defense 40% Broadcast 10% Satellite Operators 10% Telecoms

ETL

slide-8
SLIDE 8

ROUTE AMPLIFY SPLIT SWITCH

ETL Products

ROUTE AMPLIFY SPLIT SWITCH

slide-9
SLIDE 9

ROUTE AMPLIFY SPLIT SWITCH

What ETL matrices do

ROUTE AMPLIFY SPLIT SWITCH

BROADCAST

slide-10
SLIDE 10

ROUTE AMPLIFY SPLIT SWITCH ROUTE AMPLIFY SPLIT SWITCH

RE-BROADCAST

slide-11
SLIDE 11

ROUTE AMPLIFY SPLIT SWITCH

Case Studies & applications

Excelling in RF Engineering

slide-12
SLIDE 12

ROUTE AMPLIFY SPLIT SWITCH

Case Study 1

Rack layout of ETL Modular system with 50 downlink and 50 uplink chains. system ETL solution & roles:

  • Initial definition of requirements
  • Customisation: each RF path has a

variable gain amplifier and splitter (combiner on TX) with variable gain per output; based on ETL’s modular system chassis. New RF cards developed.

  • Supply of amplifiers, splitters, fan

trays, termination panels, and intra- module cables.

  • Supply and integration into racks.

The brief: European teleport wanting to balance, equalise & distribute all downlink and uplink traffic with variable gain & slope to compensate cable losses; and have variable gain on each splitter output to balance signals

slide-13
SLIDE 13

ROUTE AMPLIFY SPLIT SWITCH

Case Study 2

The brief: US government upgrading and expanding L-band switch matrices and need 64x384 with specific RF performance; compact space and simple cable installation

Vulcan based 64x384 system in comfortable 3 racks ETL solution & roles:

  • Rack layouts and cabling agreed,

with particular regard to concerns

  • ver total cabling requirements to

modems and antennas

  • Customisation: cable management

and termination panels (standard RF performance)

  • Supply of complete system from

termination panel in to termination panel out.

  • Supply and integration into racks.
slide-14
SLIDE 14

ROUTE AMPLIFY SPLIT SWITCH

Marine TVRO

  • Typically 2 or 4 antennas
  • Typically 4 L-band feeds per antenna (Ku or Ka

band)

  • 16 to 128 receivers (some digiboxes STB’s; and

some IRD receivers)

  • A pair of tracking antennas (e.g. Seatel) with

programmed blockage zones for superstructure

  • Fibre or direct Coax install with LNB powering
  • Poor isolation and high losses lead to lost

signal, especially for Ka band

Case Study 3

slide-15
SLIDE 15

ROUTE AMPLIFY SPLIT SWITCH

  • 1. RF Level Detection redundancy switching for 1 Satellite position with LNB control

ROUTE AMPLIFY SPLIT SWITCH

4 off 2x1 Redundancy Switches in a modular system chassis ETL Model 26128-SW103-B7B7 4x64 L-band Optimus Matrix ETL Model 21150-B7B7

DC 13/18V +/- 22 kHz DC 13/18V +/- 22 kHz DC 13/18V +/- 22 kHz

Switching based on RF detection – provides DC (0V/13/18V +/- 22 kHz Upto 64 feeds to set top boxes selecting inputs via 13/18V +/- 22 KHz Upto 64 feeds to receivers with remote routing control

slide-16
SLIDE 16

ROUTE AMPLIFY SPLIT SWITCH

Case Study 4 -Enigma RF Matrix

  • 32x32 matrix (expandable)
  • Fan-out, fan-in, and FIFO options
  • high resilience applications; custom

requirements & asymmetric systems (n>>m)

  • NEW: NGM-40: 1200-3000 MHz and vari gain;

NGM-34: excellent RF specs to 2450 MHz for Ka-band; NGM-35 low noise variant

ROUTE AMPLIFY SPLIT SWITCH Benefits & basics:

  • IF, wideband ,L-band & XL-band options
  • 1 RF card for each RF input & output adding resilience
  • Hot swap of all active components
  • Dual redundant CPU’s & PSU’S
  • On board monitoring & diagnostics
slide-17
SLIDE 17

ROUTE AMPLIFY SPLIT SWITCH

Static camera’s single matrix with dual input receivers

ROUTE AMPLIFY SPLIT SWITCH

A1M A1B A2M A2B A3M A3B

CAM 1 RX CAM 3 RX CAM 2 RX

CAM 1 CAM 2 Matrix Size Calculation

  • No of Camera’s = No of Diversity Receivers
  • 1 Receiver per camera
  • 2 matrix outputs per camera
  • 2 Matrix inputs per antenna
  • For 18 antenna sites = 36 antenna’s = 36 matrix inputs
  • For 20 camera’s there are 40 receiver inputs = 40 matrix
  • utputs
slide-18
SLIDE 18

ROUTE AMPLIFY SPLIT SWITCH

Victor IF to L-band Matrix

  • 16x16 full fan-out matrix (8x8, 8x16)
  • Compact form factor (1U)
  • Designed for smaller head-ends and SNG trucks
  • NEW: VTR-56 is to 2500 MHz for Ka-band and HTS

ROUTE AMPLIFY SPLIT SWITCH Benefits & basics:

  • VTR-10 offers LNB powering and RF level

detection

  • Variable gain
  • Dual redundant PSU’s
  • VTR-50 is lower cost, no LNB
slide-19
SLIDE 19

ROUTE AMPLIFY SPLIT SWITCH

Product Reference – RF over Fibre

Excelling in RF Engineering

slide-20
SLIDE 20

ROUTE AMPLIFY SPLIT SWITCH

StingRay- RF over Fibre

  • Ultra compact design
  • High isolation
  • Hot-swap
  • Wide dynamic range and output MGC

ROUTE AMPLIFY SPLIT SWITCH Benefits & Basics

  • Up to 16 RX or TX modules in a 1U hot-swap chassis for high capacity

applications

  • Part populate and / or mix TX and RX modules for downlink and uplink

with VSAT or small number of terminals

  • High Isolation between modules and good RF performance
  • Front panel local control and ethernet remote control
  • Automatic link optimisation
slide-21
SLIDE 21

ROUTE AMPLIFY SPLIT SWITCH

Product Reference - Amplifiers

Excelling in RF Engineering

slide-22
SLIDE 22

ROUTE AMPLIFY SPLIT SWITCH

Alto Amplifiers – typical application

ROUTE AMPLIFY SPLIT SWITCH

slide-23
SLIDE 23

ROUTE AMPLIFY SPLIT SWITCH

Alto L-band Amplifiers

Variable gain, high performance amplifiers (flatness & noise figure)

  • NEW: 1:1 redundant model, hot swap, variable gain and slope and
  • ptions for monitor port, 10 MHz & DC pass, outputs (1U)
  • NEW: 2+1 and 4+2 redundant Alto shelves
  • NEW: 2U shelf with hot swap PSU’s and enhanced linearity
  • NEW: High performance auto gain control (AGC) & MGC modules

ROUTE AMPLIFY SPLIT SWITCH Benefits & basics:

  • 8-38 dB gain with local and remote control variants
  • Options for LNB powering and Slope Compensation

(0-8 dB)

  • 4,8, or 16 amplifier shelves (1U and 2U)
  • User settable AGC output (-20 to 0dBm)
  • Wide AGC dynamic range (-55 to +5dBm)
  • +30 dBm OIP3
  • Hot swap amplifier modules and on board monitoring
slide-24
SLIDE 24

ROUTE AMPLIFY SPLIT SWITCH

Product Reference - Splitters

Excelling in RF Engineering

slide-25
SLIDE 25

ROUTE AMPLIFY SPLIT SWITCH

DEXTRA Splitters / Combiners - NEW

ROUTE AMPLIFY SPLIT SWITCH

  • 4, 8, 16-way splitters & combiners in

single and dual configurations.

  • high resilience RF distribution, and
  • ptimum satellite signal quality
  • Ka-band and HTS applications

Advanced functionality:  0/13/18V LNB powering (±22 KHz tone)  LNB current monitoring  Customer settable alarm thresholds for LNB current  Dual redundant amplifiers (option)  20 dB monitor port on the front panel  Web browser access (and SNMP) for voltage and LNB alarm threshold selection and status monitoring  Compact 1RU 19” chassis RF performance:  Specified to ensure optimum signal quality with high throughput / high bandwidth satcoms.  850-2450 MHz operating range  Excellent Gain flatness (frequency response)  High return loss  High linearity  Low noise figure

slide-26
SLIDE 26

ROUTE AMPLIFY SPLIT SWITCH

Modular System - RF signal handling

  • Hot swap chassis with dual redundant PSU’s

and CPU -Up to 16 RF modules

  • Ideal for larger teleports & broadcasters
  • NEW: AGC version of 4-way splitter; 4-way

with RF level monitoring; and IF redundant amplifier splitters / combiners

ROUTE AMPLIFY SPLIT SWITCH Benefits & Basics

  • Splitters / combiners – 4 & 8-way – fixed gain, variable gain,

redundant amplifier, and output gain control options

  • 2x1 redundancy switches with RF detection
  • Dual redundant amplifier cards
  • Variable gain, variable slope compensation amplifier

modules

slide-27
SLIDE 27

ROUTE AMPLIFY SPLIT SWITCH

Product Reference - Switches

Excelling in RF Engineering

slide-28
SLIDE 28

ROUTE AMPLIFY SPLIT SWITCH

Monitoring Switches – DC to 22GHz

  • LS Series – compact and low cost (8x1, 16x1, 32x1)
  • Standard carrier monitoring applications
  • NEW: Ka-band and HTS monitoring switches 50-2450 MHz

(8x1 model 23194, 16x1model 23195, 32x1model 23196)

  • NEW: 1x8, 1x32 LS Switch version

ROUTE AMPLIFY SPLIT SWITCH Benefits & Basics

  • Multiple modules for 63x1 etc
  • Compact form factor (1U)
  • IF through L-band
  • SHF (S-band, Ka and Ku)
  • Local and remote control
  • Dual redundant PSU’s
slide-29
SLIDE 29

ROUTE AMPLIFY SPLIT SWITCH

Product Reference - Components

Excelling in RF Engineering

slide-30
SLIDE 30

ROUTE AMPLIFY SPLIT SWITCH

Component range

ROUTE AMPLIFY SPLIT SWITCH

slide-31
SLIDE 31

ROUTE AMPLIFY SPLIT SWITCH

Component Mounting System (CMS)-NEW!

ROUTE AMPLIFY SPLIT SWITCH

  • New: ETL 1U 19 inch Chassis
  • Designed to house Scorpion Style passive

splitter/combiners

  • Will accommodate 2, 4 and 8-way modules
  • Capacity for 8 x 2 way or 4 x 4-way or 4 x 8-

way or a combination.

Functions include:

  • DC & 10 MHz pass all ports
  • DC and 10 MHz block all ports
  • DC and 10 MHz pass on 1 port and

blocked on the rest

slide-32
SLIDE 32

ROUTE AMPLIFY SPLIT SWITCH

ETL Summary

  • Strong engineering and performance bias
  • Solutioneering culture for new designs
  • 25 years of worldwide experience
  • World-class switch matrices, supported by a

very strong range of peripherals.

  • Winners of the 2007, 2009 & 2013 Queen’s

Award for Enterprise
