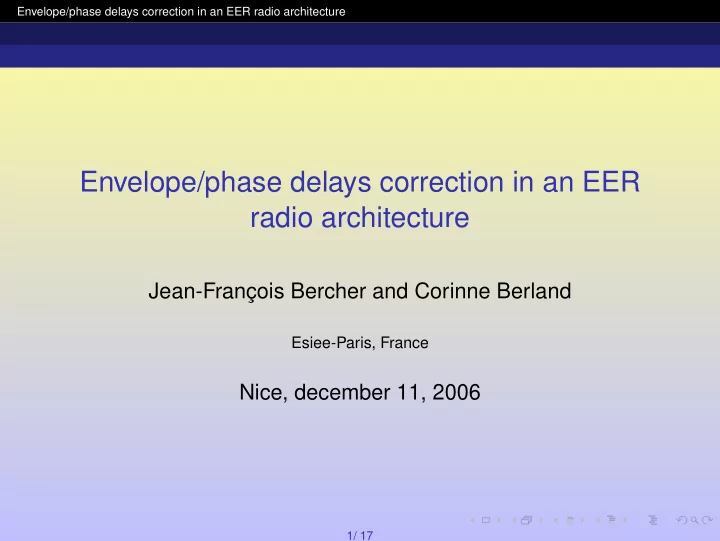

Envelope/phase delays correction in an EER radio architecture

Envelope/phase delays correction in an EER radio architecture

Jean-François Bercher and Corinne Berland

Esiee-Paris, France

Nice, december 11, 2006

1/ 17

slide-2
SLIDE 2

Envelope/phase delays correction in an EER radio architecture Background

Efficient modulations present significant envelope variations

+ + + + + +

2/ 17

slide-3
SLIDE 3

Envelope/phase delays correction in an EER radio architecture Background

Efficient modulations present significant envelope variations Non linearities in RF transmitter cause severe distorsions which would impact both EVM and output spectrum

+ + + + + +

2/ 17

slide-4
SLIDE 4

Envelope/phase delays correction in an EER radio architecture Background

Efficient modulations present significant envelope variations Non linearities in RF transmitter cause severe distorsions which would impact both EVM and output spectrum Possible solution: Envelope Elimination and Restoration (EER) — Polar components are amplified separately

2 2

I Q + PWM Class D PA Class E PA

2 2

I I Q +

2 2

Q I Q + Frequency synthesizer +/- 90°

2 2

I Q + PWM Class D PA Class E PA

2 2

I I Q +

2 2

Q I Q + Frequency synthesizer +/- 90° 90°

2/ 17

slide-5
SLIDE 5

Envelope/phase delays correction in an EER radio architecture Background

BUT time mismatch ∆ between envelope and phase signals at the recombination has especially a great impact on EVM and spectral re-growths. This is caused by different operations on each of the two paths.

3/ 17

slide-6
SLIDE 6

Envelope/phase delays correction in an EER radio architecture Background

BUT time mismatch ∆ between envelope and phase signals at the recombination has especially a great impact on EVM and spectral re-growths. This is caused by different operations on each of the two paths.

10ns 2ns 4ns

4960 4980 5000 5020 5040 4940 5060

  • 60
  • 40
  • 20
  • 80

20

Mega_Hertz Spectrum

30% EVM 6.5% EVM

10ns 2ns 4ns

4960 4980 5000 5020 5040 4940 5060

  • 60
  • 40
  • 20
  • 80

20

Mega_Hertz Spectrum

10ns 2ns 4ns

4960 4980 5000 5020 5040 4940 5060

  • 60
  • 40
  • 20
  • 80

20

10ns 2ns 4ns

4960 4980 5000 5020 5040 4940 5060

  • 60
  • 40
  • 20
  • 80

20

Mega_Hertz Spectrum Mega_Hertz Spectrum

30% EVM 6.5% EVM

5 10 15 20 25 30 35 40 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 Maximum of spectral regrowths ∆ in % of symbol period Normalized log10 of spectral regrowths

Need of a synchronization procedure...

3/ 17

slide-7
SLIDE 7

Envelope/phase delays correction in an EER radio architecture Proposed procedure

Proposed procedure

Initial situation: distorded output

ρ(t-∆1) φ(t-∆2) RF Transmitter ρ(t) φ(t) ρ(t)cos(φ(t)) ρ(t-∆1)cos(φ(t-∆2)) ρ(n) φ(n) 4/ 17

slide-8
SLIDE 8

Envelope/phase delays correction in an EER radio architecture Proposed procedure

Proposed procedure

If envelope and phase are delayed by τ1 and τ2

ρ(t+τ1-∆1) φ(t+τ2-∆2) RF Transmitter ρ(t+τ1) φ(t+τ2) ρ(t)cos(φ(t)) ρ(t+τ1-∆1)cos(φ(t+t2-∆2)) ρ(n) φ(n) ' ρ(t)cos(φ(t)) 4/ 17

slide-9
SLIDE 9

Envelope/phase delays correction in an EER radio architecture Proposed procedure

Proposed procedure

If envelope and phase are delayed by τ1 and τ2

ρ(t+τ1-∆1) φ(t+τ2-∆2) RF Transmitter ρ(t+τ1) φ(t+τ2) ρ(t)cos(φ(t)) ρ(t+τ1-∆1)cos(φ(t+t2-∆2)) ρ(n) φ(n) ' ρ(t)cos(φ(t))

Procedure: adjusts delays τ1 and τ2 such that the output be- comes synchronous with the (unmodified) input

4/ 17

slide-10
SLIDE 10

Envelope/phase delays correction in an EER radio architecture Proposed procedure

Proposed procedure

ρ(t+τ1-∆1) φ(t+τ2-∆2) RF Transmitter ρ(t+τ1) φ(t+τ2) ρ(t)cos(φ(t)) ρ(t+τ1-∆1)cos(φ(t+t2-∆2)) ρ(n) φ(n) ' ρ(t)cos(φ(t)) 5/ 17

slide-11
SLIDE 11

Envelope/phase delays correction in an EER radio architecture Proposed procedure

Proposed procedure

ρ(t+τ1-∆1) φ(t+τ2-∆2) RF Transmitter ρ(t+τ1) φ(t+τ2) ρ(t)cos(φ(t)) ρ(t+τ1-∆1)cos(φ(t+τ2-∆2)) ρ(n) φ(n) + − τ1,τ2 5/ 17

slide-12
SLIDE 12

Envelope/phase delays correction in an EER radio architecture Criterion

Criterion

Let x(t) = ρ(t)cos(φ(t)) ρ(t)sin(φ(t))

  • and cos(φ(t)) =

cos(φ(t)) sin(φ(t))

  • .

Let t1 = t +τ1 −∆1 and t2 = t +τ2 −∆2. The criterion is J(τ1,τ2) = E[|x(t)−ρ(t1)cos(φ(t2))|q] With q = 2, |x|2 = xtx, the criterion is simply

✞ ✝ ☎ ✆

J(τ1,τ2) = 4R(0,0)−4R(τ1 −∆1,τ2 −∆2) with R(µ1,µ2) = E[ρ(t)cos(φ(t))ρ(t − µ1)cos(φ(t − µ2))]

6/ 17

slide-13
SLIDE 13

Envelope/phase delays correction in an EER radio architecture Criterion

Criterion

−4 −2 2 4 −4 −3 −2 −1 1 2 3 4 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 Envelope delay Phase delay

7/ 17

slide-14
SLIDE 14

Envelope/phase delays correction in an EER radio architecture Criterion

Criterion

−1.5 −1 −0.5 0.5 1 1.5 −1.5 −1 −0.5 0.5 1 1.5 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 Envelope delay Phase delay

7/ 17

slide-15
SLIDE 15

Envelope/phase delays correction in an EER radio architecture Criterion

Criterion

8/ 17

slide-16
SLIDE 16

Envelope/phase delays correction in an EER radio architecture Criterion

Criterion

There exist local minima

8/ 17

slide-17
SLIDE 17

Envelope/phase delays correction in an EER radio architecture Criterion

Criterion

There exist local minima A descent algorithm will avoid local minima for delays ∆1,∆2 ≤ Ts, with Ts the symbol period.

8/ 17

slide-18
SLIDE 18

Envelope/phase delays correction in an EER radio architecture Criterion

Criterion

There exist local minima A descent algorithm will avoid local minima for delays ∆1,∆2 ≤ Ts, with Ts the symbol period. J(τ1,τ2) is not factorizable as J(τ1,τ2) = K(τ1)L(τ2), because R(µ1,µ2) = Rρ(µ1)Rφ(µ2), but not so far. . .

8/ 17

slide-19
SLIDE 19

Envelope/phase delays correction in an EER radio architecture Criterion

Criterion

There exist local minima A descent algorithm will avoid local minima for delays ∆1,∆2 ≤ Ts, with Ts the symbol period. J(τ1,τ2) is not factorizable as J(τ1,τ2) = K(τ1)L(τ2), because R(µ1,µ2) = Rρ(µ1)Rφ(µ2), but not so far. . . R(τ1,τ2) reduces to the autocorrelation function R(τ) for τ = τ1 = τ2: the behaviour of the error function is linked to the shaping filter h.

8/ 17

slide-20
SLIDE 20

Envelope/phase delays correction in an EER radio architecture Algorithm Descent algorithms

Descent algorithms

Gradient algorithm τ1 τ2

  • (n+1) =

τ1 τ2

  • (n)−γ
  • ∂J

∂τ1 ∂J ∂τ2

  • τ1=τ1(n),τ2=τ2(n)

Newton algorithm τ(n+1) = τ(n)−γH(n)−1G(n) with H hessian matrix, G gradient vector.

9/ 17

slide-21
SLIDE 21

Envelope/phase delays correction in an EER radio architecture Algorithm Descent algorithms

The gradient is       

∂J(τ1,τ2) ∂τ1

= −2E

  • dρ(u)

du

  • u=t1

cos(φ(t2))t e(t)

  • ∂J(τ1,τ2)

∂τ2

= −2E

  • dφ(u)

du

  • u=t2

ρ(t1)dcos(φ(t2))t e(t)

  • with dcos(.) = [−sin(.) cos(.)] and

e(t) = x(t)−ρ(t +τ1 −∆1)cos(φ(t +τ2 −∆2)).

10/ 17

slide-22
SLIDE 22

Envelope/phase delays correction in an EER radio architecture Algorithm Descent algorithms

The gradient is       

∂J(τ1,τ2) ∂τ1

= −2E

  • dρ(u)

du

  • u=t1

cos(φ(t2))t e(t)

  • ∂J(τ1,τ2)

∂τ2

= −2E

  • dφ(u)

du

  • u=t2

ρ(t1)dcos(φ(t2))t e(t)

  • with dcos(.) = [−sin(.) cos(.)] and

e(t) = x(t)−ρ(t +τ1 −∆1)cos(φ(t +τ2 −∆2)). Of course, we do not have analytical expressions of the statistical expectations involved, and have to resort to “blocks estimates”,

  • r iterative/adaptive versions.

10/ 17

slide-23
SLIDE 23

Envelope/phase delays correction in an EER radio architecture Algorithm LMS-like algorithms

LMS-like algorithm

The LMS algorithm consists in using the instantaneous gradient rather than the (correct) statistical average, then update the equations at each new sample.        τ1(n+1) = τ1(n)+γ1(n)E

  • dρ(u)

du

  • t1(n) cos(φ(t2(n)))t e(t)
  • τ2(n+1)

= τ2(n)+γ2(n)E

  • dφ(u)

du

  • t2(n) ρ(t1(n))dcos(φ(t2(n)))t e(t)
  • 11/ 17
slide-24
SLIDE 24

Envelope/phase delays correction in an EER radio architecture Algorithm LMS-like algorithms

LMS-like algorithm

The LMS algorithm consists in using the instantaneous gradient rather than the (correct) statistical average, then update the equations at each new sample.        τ1(n+1) = τ1(n)+γ1(n)✓

E

  • dρ(u)

du

  • t1(n) cos(φ(t2(n)))t e(t)
  • τ2(n+1)

= τ2(n)+γ2(n)✓

E

  • dφ(u)

du

  • t2(n) ρ(t1(n))dcos(φ(t2(n)))t e(t)
  • 11/ 17
slide-25
SLIDE 25

Envelope/phase delays correction in an EER radio architecture Algorithm LMS-like algorithms

LMS-like algorithm

The LMS algorithm consists in using the instantaneous gradient rather than the (correct) statistical average, then update the equations at each new sample.      τ1(n+1) = τ1(n)+γ1(n) dρ(u)

du

  • t1(n) cos(φ(t2(n)))t e(t)

τ2(n+1) = τ2(n)+γ2(n) dφ(u)

du

  • t2(n) ρ(t1(n))dcos(φ(t2(n)))t e(t)

11/ 17

slide-26
SLIDE 26

Envelope/phase delays correction in an EER radio architecture Algorithm LMS-like algorithms

LMS-like algorithm

The LMS algorithm consists in using the instantaneous gradient rather than the (correct) statistical average, then update the equations at each new sample.      τ1(n+1) = τ1(n)+γ1(n) dρ(u)

du

  • t1(n) cos(φ(t2(n)))t e(t)

τ2(n+1) = τ2(n)+γ2(n) dφ(u)

du

  • t2(n) ρ(t1(n))dcos(φ(t2(n)))t e(t)

What do we need?

11/ 17

slide-27
SLIDE 27

Envelope/phase delays correction in an EER radio architecture Algorithm LMS-like algorithms

LMS-like algorithm

The LMS algorithm consists in using the instantaneous gradient rather than the (correct) statistical average, then update the equations at each new sample.      τ1(n+1) = τ1(n)+γ1(n) dρ(u)

du

  • t1(n) cos(φ(t2(n)))t e(t)

τ2(n+1) = τ2(n)+γ2(n) dφ(u)

du

  • t2(n) ρ(t1(n))dcos(φ(t2(n)))t e(t)

What do we need? the error e(t)

11/ 17

slide-28
SLIDE 28

Envelope/phase delays correction in an EER radio architecture Algorithm LMS-like algorithms

LMS-like algorithm

The LMS algorithm consists in using the instantaneous gradient rather than the (correct) statistical average, then update the equations at each new sample.      τ1(n+1) = τ1(n)+γ1(n) dρ(u)

du

  • t1(n) cos(φ(t2(n)))t e(t)

τ2(n+1) = τ2(n)+γ2(n) dφ(u)

du

  • t2(n) ρ(t1(n))dcos(φ(t2(n)))t e(t)

What do we need? the error e(t) → easy to compute

11/ 17

slide-29
SLIDE 29

Envelope/phase delays correction in an EER radio architecture Algorithm LMS-like algorithms

LMS-like algorithm

The LMS algorithm consists in using the instantaneous gradient rather than the (correct) statistical average, then update the equations at each new sample.      τ1(n+1) = τ1(n)+γ1(n) dρ(u)

du

  • t1(n) cos(φ(t2(n)))t e(t)

τ2(n+1) = τ2(n)+γ2(n) dφ(u)

du

  • t2(n) ρ(t1(n))dcos(φ(t2(n)))t e(t)

What do we need? the error e(t) → easy to compute the derivatives dρ(u)

du

  • u=t1(n) and dφ(u)

du

  • u=t2(n) dcos(φ(t2(n))

11/ 17

slide-30
SLIDE 30

Envelope/phase delays correction in an EER radio architecture Algorithm LMS-like algorithms

LMS-like algorithm

The LMS algorithm consists in using the instantaneous gradient rather than the (correct) statistical average, then update the equations at each new sample.      τ1(n+1) = τ1(n)+γ1(n) dρ(u)

du

  • t1(n) cos(φ(t2(n)))t e(t)

τ2(n+1) = τ2(n)+γ2(n) dφ(u)

du

  • t2(n) ρ(t1(n))dcos(φ(t2(n)))t e(t)

What do we need? the error e(t) → easy to compute the derivatives dρ(u)

du

  • u=t1(n) and dφ(u)

du

  • u=t2(n) dcos(φ(t2(n))

→ approximation by finite differences of ρ(t) and cos(φ(t))

11/ 17

slide-31
SLIDE 31

Envelope/phase delays correction in an EER radio architecture Algorithm Interpolation

Interpolation

BUT the actual inputs of the system ρ(t +τ1(n)) and cos(φ(t +τ2(n)) are not known!

ρ(t+τ1-∆1) φ(t+τ2-∆2) RF Transmitter ρ(t+τ1) φ(t+τ2) ρ(t)cos(φ(t)) ρ(t+τ1-∆1)cos(φ(t+τ2-∆2)) ρ(n) φ(n) + − τ1,τ2 12/ 17

slide-32
SLIDE 32

Envelope/phase delays correction in an EER radio architecture Algorithm Interpolation

Interpolation

BUT the actual inputs of the system ρ(t +τ1(n)) and cos(φ(t +τ2(n)) are not known! What is only available are sequences ρ(n) and cos(φ(n)). One needs to interpolate so as to generate delayed inputs. Possibilities : Linear interpolation Newton interpolation Bessel interpolation Stirling interpolation

12/ 17

slide-33
SLIDE 33

Envelope/phase delays correction in an EER radio architecture Algorithm Results

Example of results – ∆1 = 0.36Ts,∆2 = 0.12Ts

200 400 600 800 1000 −0.05 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 Estimated envelope delay Symbols Estimated delay γ=0.06 True delay Estimated delay γ=0.3 200 400 600 800 1000 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 Estimated phase delay Symbols Estimated delay γ=0.06 True delay Estimated delay γ=0.3

13/ 17

slide-34
SLIDE 34

Envelope/phase delays correction in an EER radio architecture Algorithm Results

Example of results – ∆1 = 0.36Ts,∆2 = 0.12Ts

100 200 300 400 500 600 700 800 900 1000 −0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 Instantaneous error between the true and restored signals

586 588 590 592 594 596 −0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8 Signals comparison Symbols true signal restored signal signal without delays compensation

13/ 17

slide-35
SLIDE 35

Envelope/phase delays correction in an EER radio architecture Algorithm Results

Results – ∆1 = 0.36Ts,∆2 = 0.12Ts – EVM=0.62%

−0.5 −0.4 −0.3 −0.2 −0.1 0.1 0.2 0.3 0.4 0.5 −100 −80 −60 −40 −20 20 Normalized frequency Ideal Uncorrected Corrected 14/ 17

slide-36
SLIDE 36

Envelope/phase delays correction in an EER radio architecture Algorithm Results

Results – ∆1 = 0.76Ts,∆2 = 0.32Ts – EVM=1.2%

−0.5 −0.4 −0.3 −0.2 −0.1 0.1 0.2 0.3 0.4 0.5 −100 −80 −60 −40 −20 20 Normalized frequency Ideal Uncorrected Corrected 15/ 17

slide-37
SLIDE 37

Envelope/phase delays correction in an EER radio architecture Algorithm Results

Behaviour with adaptation step γ

10

−2

10

−1

10 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 Error vector Magnitude (%) γ

Bessel Linear Newton

EVM

10

−2

10

−1

10 100 200 300 400 500 Settling time γ Symbols bessel linear newton

Convergence

16/ 17

slide-38
SLIDE 38

Envelope/phase delays correction in an EER radio architecture Summary

Summary

proposed a new algorithm for delays correction in EER architecture, characterized and validated by simulations

17/ 17

slide-39
SLIDE 39

Envelope/phase delays correction in an EER radio architecture Summary

Summary

proposed a new algorithm for delays correction in EER architecture, characterized and validated by simulations Omitted sequence of decreasing steps, analytic derivation of J(τ1,τ2)

17/ 17

slide-40
SLIDE 40

Envelope/phase delays correction in an EER radio architecture Summary

Summary

proposed a new algorithm for delays correction in EER architecture, characterized and validated by simulations Omitted sequence of decreasing steps, analytic derivation of J(τ1,τ2) Todo block estimates - Newton algorithm Best strategy of minimization better/other interpolation - Farrow structure account for additive noise/robustness to noise dsp implementation - finite precision effects

17/ 17
