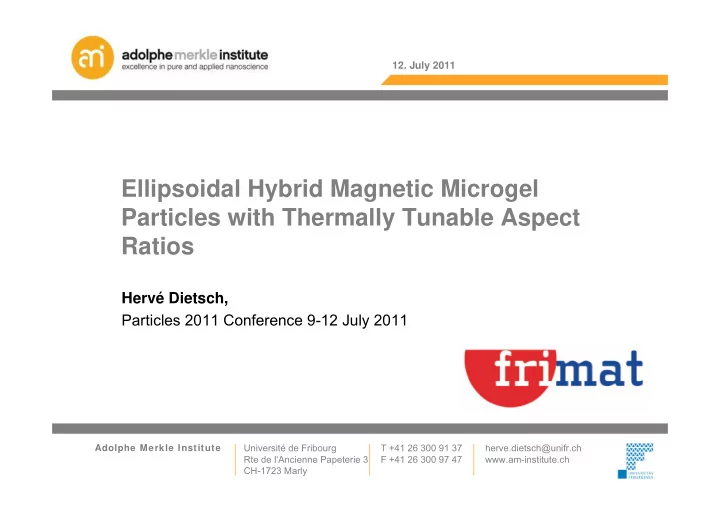

Ellipsoidal Hybrid Magnetic Microgel Particles with Thermally Tunable Aspect Ratios

Hervé Dietsch, Particles 2011 Conference 9-12 July 2011

I 12. July 2011 I p. 2

Functionalized Building Blocks: Colloids, Polymers, Surfactants

Properties Building Blocks Structures

Soft Materials

Interactions, Phase Behavior, Microstructure Nanostructured Materials

• > Novel Properties:

Crystallization, Phase Separation, Gelation

and Particle Assemblies Particle-particle interactions Particle-solvent interactions Eventually as a function of the used stimulus Stimuli-Responsive Particles Temperature, Magnetic field, Light, pH, Molecule to be detected, Protein…

Particles 2011 conference

I 12. July 2011 I p. 3

Thermoresponsive particles: LCST and VPTT

Example: PNIPAM a thermosensitive polymer Linear chain microgel

(network)

Microscopic scale T<LCST T>LCST

LCSTPNIPAM~33°C Low Critical Solution Temperature VPTT Volume Phase Transition Temperature

good solvent => swollen poor solvent => collapsed

H2O H2O

Tc≈33ºC soft shell hard sphere

good solvent => swollen poor solvent => collapsed

H2O H2O H2O H2O

Tc≈33ºC soft shell hard sphere

Microgel behavior

I 12. July 2011 I p. 4

Thermoresponsive particles: LCST and VPTT

Example: PNIPAM a thermosensitive polymer Linear chain microgel

(network)

Microscopic scale T<LCST T>LCST

LCSTPNIPAM~33°C Low Critical Solution Temperature VPTT Volume Phase Transition Temperature

good solvent => swollen poor solvent => collapsed

H2O H2O

Tc≈33ºC soft shell hard sphere

good solvent => swollen poor solvent => collapsed

H2O H2O H2O H2O

Tc≈33ºC soft shell hard sphere

Microgel behavior

Size, volume fraction and Interactions control One single trigger: Temperature

I 12. July 2011 I p. 5

Without phosphate ions Isotropic particle

3   6  

Another Stimulus and morphology: Ellipsoidal-shaped Magnetic Particles

Matijevic et. al. 1978 Ocaña et. al. 1999

Submicrosized 80nm<a<150nm

a

I 12. July 2011 I p. 6

Alternative: Tuning the aspect ratio by silica coating

NH3 in H2O in Ethanol TEOS

Based on Graf et. al. 2003

I 12. July 2011 I p. 7

Alternative: Tuning the aspect ratio by silica coating

NH3 in H2O in Ethanol TEOS

Based on Graf et. al. 2003

I 12. July 2011 I p. 8

uncoated 13 nm silica 30 nm silica 59 nm silica

• M. Reufer, HD et al., J. Phys. Chem. B, 2010, 114, 4763–4769.

More about magnetic properties: M. Reufer, HD et al., J Phys. Cond. Matter, 2011, 23,065102.

Morphology characterization using SAXS and TEM

I 12. July 2011 I p. 9

Control of the surface chemistry thanks to the silica layer

silane agent

Si R' R R R

HO OH OH OH OH HO HO OH

+ H-R

S i O S i O S i O S i O S i O S i O S i O S i O O O O O O O O O R' R' R' R' R' R' R' R'

silane agent Surface modification

Si O CH3 CH2 O O C H3 O C H3 O CH3

I 12. July 2011 I p. 10

Monomer, cross-linker, initiator, Δ Reactive silane on the surface Precipitation polymerization α-Fe2O3/PNIPAM

C H2 O N H CH3 C H3

NIPAM

Hybrid combination with the thermoresponsive PNIPAM shell

• C. Dagallier, H. Dietsch*, P. Schurtenberger and F. Scheffold, Soft Matter, 2010, 6(10): 2174-2177

I 12. July 2011 I p. 11

Hydrodynamic radius of PNiPAM microgel

• vs. temperature.

15 20 25 30 35 40 40 60 80 100 120

R [nm] T [°C]

Rh 0.03M NaSCN Rh

Rb1 Rb2 Ra Rb1>Rb2>Ra

DLS

15 20 25 30 35 40 45 200 250 300 350 400 450 500 550

Rh [nm] T [°C]

Hydrodynamic radius of hematite-PNIPAM core-shell particles vs. temperature. Rb1 Rb2 Ra

DLS

T Φ V V 30°C Rb2 15°C Rb1

Temperature response and dynamical arrest

I 12. July 2011 I p. 12

Probing the rotation of hybrid microgels Experiment: temperature ramp Pre-alignment



B

(Microscope)



B

35°C 35°C 10°C 10°C

Setup

 



B

Direction of Light beam

birefringent CCD



H

P A P A

I 12. July 2011 I p. 13

Probing the rotation of hybrid microgels Experiment: temperature ramp Pre-alignment



B

(Microscope)



B

35°C 35°C 10°C 10°C

Setup

 



B

Direction of Light beam

birefringent CCD



H

P A P A

I 12. July 2011 I p. 14

Properties of the hybrid microgels

Hematite particles PNIPAM microgels

• C. Dagallier, H. Dietsch*, P. Schurtenberger and F. Scheffold, Soft Matter, 2010, 6(10): 2174-2177

I 12. July 2011 I p. 15

Properties of the hybrid microgels

Hematite particles PNIPAM microgels

• C. Dagallier, H. Dietsch*, P. Schurtenberger and F. Scheffold, Soft Matter, 2010, 6(10): 2174-2177

Size, volume fraction, Interactions control, Optical anisotropy, magnetic orientation control Two triggers: Temperature and Magnetic field

I 12. July 2011 I p. 16

Remaining challenges



H



H

z y x y





• Orientation under magnetic field along the long axis
• Increase the magnetic response

Hematite are canted-antiferromagnetic

• Morphology changes with temperature

T

I 12. July 2011 I p. 17

Conclusion

• Particles with a proper surface chemistry can be incorporated in a microgel (or

another polymer shell or bulk) if used as seeds.

• Magnetic responsive can be tailored by control of the crystalline structure
• Combining two stimuli can lead to more than 2 new properties (magnetic and

thermosensitive can lead also to morphology mutation and polarization of light, X- ray…)

Can be used for rotation diffusion, friction, glass transition, phase diagrams, orientationna relaxation in dense microgel suspensions, active microrheology studies…
