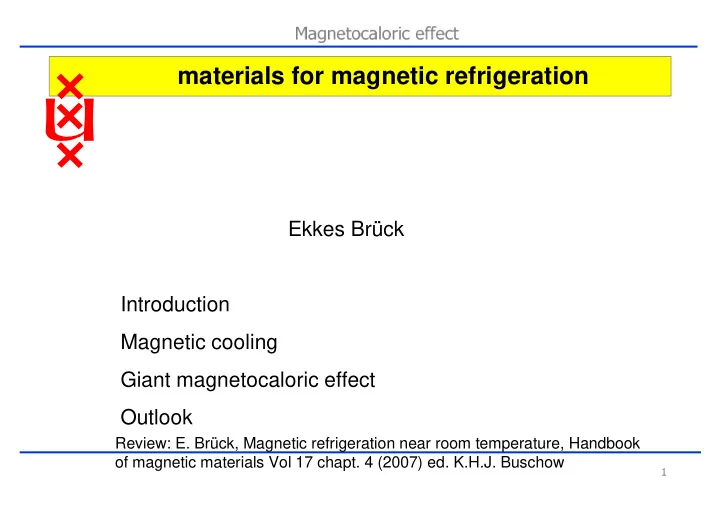

materials for magnetic refrigeration Ekkes Brck Introduction - - PowerPoint PPT Presentation

Magnetocaloric effect

1

materials for magnetic refrigeration

Ekkes Brück Introduction Magnetic cooling Giant magnetocaloric effect Outlook

Review: E. Brück, Magnetic refrigeration near room temperature, Handbook

• f magnetic materials Vol 17 chapt. 4 (2007) ed. K.H.J. Buschow

Magnetocaloric effect

2

spins lattice

Basic magnetocalorics

E

• Two energy reservoirs

Magnetocaloric effect

3

• E

Basic magnetocalorics

spins lattice

Magnetocaloric effect

4

Domain movement

Magnetocaloric effect

5

Magnetic cooling: Debye and Giauque 1926 61g Gd2(SO4)3·8H2O, ∆B=0.8T, 1.5K →0.25K Nobel prize 1949

Magnetocaloric effect

6

Zeeman effect for state with total moment J J Jz 2 1

• 1
• 2

B

• Ground state J is 2J+1 times degenerated: Jz=-J, -J+1, … J
• Splits in magnetic field into sublevels
• Spectroscopic splitting factor gLandee depends on L, S, and J
• Splitting at B=1 Tesla in the order of meV
• Atom behaves as if it has effective moment: µeff=-gLµBJ

B H

z P

⋅ − = ⋅ − = µ B µ ) 1 ( 2 ) 1 ( ) 1 ( 2 3 + + − + − = J J S S L L g Lande

z z B Lande P

B J g H E µ >= =<

z B L

B g E µ = ∆

Magnetocaloric effect

7

When a system, in contact with a heat bath at temperature T can be in a state with energy E, the probability for this is given by the Gibbs rule: where k is Boltzmann's constant. Z is called the partition sum,

Statistical physics description

Magnetocaloric effect

8

Z is needed to have the proper normalization The strength of statistical physics is that by calculating Z a lot of information about the system can be derived. The Helmholtz free energy is: while the Gibbs free energy is:

Magnetocaloric effect

9

Thermodynamic relations:

( )

p B

T G p B T S

,

, ,       ∂ ∂ − = ,

( )

p T

B G p B T M

,

, ,       ∂ ∂ − = , (

)

B T

p G p B T V

,

, ,         ∂ ∂ − =

Differential of Gibbs free energy Entropy Magnetization Volume Differential of entropy

dp p S dB B S dT T S dS

B T p T p B , , ,

        ∂ ∂ +       ∂ ∂ +       ∂ ∂ =

Magnetocaloric effect

10

Vdp dB B S dT T C dS

p T p B

α −       ∂ ∂ + =

, ,

Identification of terms Adiabatic process at constant pressure

dB B S C T dT

p T p B , ,

      ∂ ∂ − =

∫

      ∂ ∂ =

B B m

dB T M S ∆

Magnetic entropy Maxwell relations

B T

T M B S       ∂ ∂ =       ∂ ∂

Magnetocaloric effect

11

Easy measurable From definition of specific heat S0 can be set to zero because it is not depending on field

Magnetocaloric effect

12

B T T B T M B T M B T S

i i i i i i i m

∆ − − = ∆

∑

+ + + 1 1 1

) , ( ) , ( ) , (

Experimental determination from magnetic measurements

Magnetocaloric effect

13

Continuous phase transition

In the absence of an external field, H=0, the system with exchange interaction J/k=1may spontaneously order. T=0.3J/k T=0.25J/k T=0.2J/k

      − = +m) ( +m)

• m)+(

(

• m)

(

• NHm+NT

NJm F 2 1 ln 2 1 2 1 ln 2 1 2 1

2

Magnetocaloric effect

14

First order phase transition

If interactions with quartets play a role this may result in local minima in the free energy.

      − = +m) ( +m)

• m)+(

(

• m)

(

• NHm+NT

NJm F 2 1 ln 2 1 2 1 ln 2 1 2 1

4

T=0.0225 J/k T=0.025 J/k T=0.02 J/k

Magnetocaloric effect

15

MCE in iron 0T 3T

Cp [J/mol ·K] T [° C] T [K] ∆T [K]

Magnetic ordering T 10 0.8T 3T 6T

Magnetocaloric effect

16

Total entropy vs reduced temperature of gadolinium in low field (blue) and high field 9T (purple) (Gschneidner et al) MCE in gadolinium

Magnetocaloric effect

17

Magnetic entropy change (green left scale) and Temperature change (red right scale) Derived from specific heat

• data. (Gschneidner et al)

MCE in gadolinium

Magnetocaloric effect

18

8.316

• 0.2
• 0.7
• 4
• 12

~50a Gd2In 8.316 4.4 2.0 37 18.5 194 Gd2In 8.414 6.4 3.2 55 29 265 Gd4Sb3 8.834 6.4 3.2 49 26 273 Gd4(Bi0.75Sb2.25) 9.259 6.5 3.1 47 24 289 Gd4(Bi1.5Sb1.5) 9.679 6.8 3.7 47 27 308 Gd4(Bi2.25Sb0.75) 10.073 4.2 2.2 27 15 332 Gd4Bi3 0-5T 0-2T 0-5T 0-2T Compound Dens. (g/cm3) ∆Tad (K)

• ∆SM

(mJ/cm3K) TC (K)

Ilyn M I, Tishin A M, Gschneidner K A Jr, Pecharsky V K and Pecharsky A O 2001 Cryocoolers 11 ed R G Ross Jr (New York: Kluwer Academic/Plenum) p 457 Niu X J, Gschneidner K A Jr, Pecharsky A O and Pecharsky V K 2001 J. Magn. Magn. Mater. 234 193

The magnetocaloric properties of selected binary intermetallic compounds

aTemperature at which ∆SM has the largest positive value and ∆Tad has largest negative MCE value

Magnetocaloric effect

19

9.692

• 1.8c
• 0.4
• 131c
• 68

6.7d TmCu 9.692 3.6c 0.6 118c 25 ~10b TmCu 10.169

• 0.9c
• 0.4
• 55c
• 26

~ 7a TmAg 10.169 4.2c 0.8 74c 11 ~12b TmAg 8.707 8.5 3.0 57 22 323 Gd7Pd3 7.797 4.0 1.9 46 25 325 Nd2Fe17 0-5T 0-2T 0-5T 0-2T Comp. Density (g/cm3) ∆Tad (K)

• ∆SM

(mJ/cm3K) TC (K)

Dan’kov S Yu, Ivtchenko V V, Tishin A M, Gschneidner K A Jr and Pecharsky V K 2000 Adv. Cryog. Engin. 46 397 Canepa F, Napoletano M and Cirafici S 2002 Intermetallics 10 731 Rawat R and Das I 2001 J. Phys.: Condens. Matter 13 L379

The magnetocaloric properties of selected binary intermetallic compounds

aTemperature at which ∆SM has the largest positive value and ∆Tad has largest negative MCE value bMaximum in MCE (no magnetic ordering observed at this temperature) cInterpolated dNéel temperature

Magnetocaloric effect

20

The magnetocaloric properties of selected ternary intermetallic compounds.

7.961

• 171

100 10 HoCoAl 9.358 8.6 3.2 142 42 17 GdPd2Si 7.619

• 125

70 37 DyCoAl 7.649

• 80

41 70 TbCoAl 7.575

• 79

37 100 GdCoAl 0-5T 0-2T 0-5T 0-2T Compound Dens. (g/cm3) ∆Tad (K)

• ∆SM

(mJ/cm3K) TC

a

Zhang X X, Wang F W and Wen G H 2001 J. Phys.: Condens. Matter 13 L747

Magnetocaloric effect

21

Temperature, T (K)

50 100 150 200 250 300

Lattice heat capacity, CL/R

0.0 0.2 0.4 0.6 0.8 1.0

ΘD = 150 K ΘD = 350 K ΘD = 250 K

Temperature, T (K)

50 100 150 200 250 300

Lattice heat capacity, CL/R

0.0 0.2 0.4 0.6 0.8 1.0

ΘD = 150 K ΘD = 350 K ΘD = 250 K

dimensionlless lattice heat capacity of three solids with different Debye temperatures, ΘD, vs. temperature

Magnetocaloric effect

22

Rules for magnetocaloric effect

Larger moment ⇒ larger ∆S & ∆T Lower temperature ⇒ larger ∆S & ∆T Smag ≈ J Lower thermal agitation Lower heat capacity

Magnetocaloric effect

23

Magnetic refrigeration: External magnetic field changes entropy of magnetic moments No CFCs, easy scalable, high efficiency, permanent magnets

Magnetocaloric effect

24

Chubu and Toshiba Refrigerator 2003

Gd metal Rotating magnet 0.76 T Cooling power 60 W T span 20 K

Magnetocaloric effect

25

Magnetocaloric effect

26 (Rowe et al. 2006)

∆T 50K 2.0 (S) Gd , Gd.74Tb.26

Gd.85Er.15

reciprocatin g University of Victoria (Gao et al. 2006) COPT 25 2.18 (E) Gd spheres; Gd5(Si,Ge)4 pwdr. reciprocatin g

Xian Jiaotong Univ.

(Vasile et al. 2006) Torque 10 Nm 1 (P) Gd plates rotary

Natl Inst.

• Appl. Sci. /

Cooltech (Zimm et

• al. 2006)

4 Hz 1.5 (P) Gd, Gd-Er, spheres LaFeSiH particles rotary Astronautics

(Clot et al. 2003)

COPR 2.2 0.8 (P) Gd foil reciprocatin g

• Lab. Electric

Grenoble

(Richard et

• al. 2004)

epoxy bonded pucks 2 (S) Gd , Gd.74Tb.26 reciprocatin g University of Victoria

(Bohigas et

• al. 2000)

Olive oil 0.3 (P) Gd foil rotary Barcelona

(Zimm et

• al. 1998)

COPT 10 5 (S) Gd spheres reciprocatin g Ames Laboratory/ Astronautics Ref. Remarks Magnetic Field (T) AMR Material AMR Type Name

Other AMR prototypes

Magnetocaloric effect

27

1990 FeRh (Nikitin et al.) 1997 Gd5Si2Ge2（(Percharsky & Gschneidner Jr.) 1998 RCo2 (Foldeaki et al. ) 2000-2002 La(Fe,Si)13 (Zhang et al., Fukamichi et al.) 2001 MnAs1-xSbx (Wada et al.) 2002 MnFe(P,As) (Tegus et al.) 2003 Co (S1-xSex)2 (Yamada & Goto)

Replace Gd with material with large MCE

Magnetocaloric effect

28

Giant magnetocaloric effect in Gd5Ge2Si2 Magnetically dilute yet higher effect double transition?

Pecharsky & Gschneidner PRL 78 (1997) 4494

Magnetocaloric effect

29

Crystal growth Crystal growth

D=4mm Sphere was cut by spark erosion from as grown rod Crystal was grown in a mirror furnace by means of traveling solvent floating zone method

Magnetocaloric effect

30

• Extraordinary magnetic behavior: first-order character of the

paramagnetic-ferromagnetic transition.

Unusual behavior Unusual behavior

50 100 150 200 250 300 350 400 0.0 0.5 1.0 1.5 2.0 2.5 3.0

Gd5Si1.65Ge2.35 Crystal Sphere d=4mm B=0.05T Stepwise heating mode

a b c

M (µB /f.u.) T (K)

1 2 3 4 5 10 20 30 40

Gd5Ge2.35Si1.65 crystal Sphere d=4mm at 5K

a b c

M (µB/f.u) B (T)

20 40 60 80 100 120 140 160 180 200 220 240 260 50 100 150 200 250 300 350 400 450 500 550 600

C (J/mol·K) T (K)

Magnetocaloric effect

31

• The high temperature paramagnetic monoclinic phase transforms to the low

temperature ferromagnetic orthorhombic phase. The low temperature phase has a higher symmetry than the high temperature, which is the opposite of what is normally observed for other polymorphic systems.

Unusual behavior Unusual behavior

Crystallographic data comes from W Choe PRL v84, n20, p4617, 2000

>Tc: P1121/a, No.14 <Tc: Pnma, No.62

b b

Magnetocaloric effect

32

• Volume decreases when cooling through the transition, i.e., the cell volume in

the low-temperature ferromagnetic phase is smaller ( ∆v>0.4%) than in the high-temperature paramagnetic one. This is in contrast with the general physical picture of the magnetovolume effects which are transtions from a low- volume low-moment to a high-volume high-moment state.

Unusual behavior Unusual behavior

Normal: Unusual:

Magnetocaloric effect

33

Gd5Si4 based

• rthorhombic

Pnma Ferro magnet Q.L.Liu et al.

Recent XRD investigation

reported that Gd5(SixGe1-x)4 alloys form a completely miscible solid-solution crystallized in the Gd5Si4-type Pnma structure below TC regardless of the composition. Ground state is low temperature (Gd5Si4–based) orthorhombic ferromagnet

Temperature of structural phase

transition always coincides with Curie temperature TC.

Unusual behavior Unusual behavior

Magnetocaloric effect

34

x > 0.5 0.4 < x < 0.5 x < 0.3 Gd5Si4 type Pnma Gd5Si2Ge2 type P1121/a Gd5Ge4 type Pnma T=Si, Ge (Gd3+)5(T2

6-)2(3e-) (Gd3+)5(T2 6-)1.5(T4-)(2e-) (Gd3+)5(T2 6-) (T2 6-)2 (1e-)

• V. K. Pecharsky and K. A. Gschneidner, Jr., J. Alloys Compd. 260, 98-106 (1997)

b a

What is responsible for the unusual behaviors? What is responsible for the unusual behaviors?

Breaking and making bond RKKY or superexchange Breaking and making bond RKKY or Breaking and making bond RKKY or superexchange superexchange

Magnetocaloric effect

35

Magnetically driven 1st order structural transition below 270 K. Gd5Ge2Si2 monoclinic above magnetic transition

• rthorhombic below.

Anisotropy on X-tals. Exceptional coupling of lattice with s-state 4f-magnetism. Hysteretic transition: locking of structure? Mechanical stability?

Summary Gd5Ge2Si2

Magnetocaloric effect

36

Transition-metal compounds

High abundance (low price) Intermediate magnetic moment (moderate MC effect) Strong coupling to lattice (Simultaneous magnetic and structural transitions or metamagnetism)

• ther alternative

Magnetocaloric effect

37

La(Fe,Si)13 compound

Cubic CaZn13 type of structure stabilized by addition of 10% Si (Kripyakewich et al. 1968) Invar type of behavior and unusual magnetic transition (Palstra et al 1983) Difficult to obtain single phase.

Magnetocaloric effect

38

Concentration dependence of Curie temperature and moment

Palstra et al. 1983

Tc increase with dilution

Magnetocaloric effect

39

LaFe13 system

APL Zhang et al 2000 Fujieda et al 2002

MCE decrease with dilution

Magnetocaloric effect

40

PRB Fujita et al 2003

Tc increase with hydrogen! Sharp transition maintained! LaFe13 system with hydrogen

Magnetocaloric effect

41

PRB Fujita et al 2003

LaFe13 system with hydrogen MCE almost not affected with hydrogen

Magnetocaloric effect

42

Field driven 1st order metamagnetic transition around 200 K . La(Fe,Si)13 cubic above magnetic transition cubic below volume change 1.5%. Low Tc can be increased by addition of Cobalt or Hydrogen. Hysteretic transition: powder after hydrogenation? Mechanical stability?

Summary La(Fe,Si)13

Magnetocaloric effect

43

MnFeP1-xAsx Hexagonal Fe2P type of structure Bacmann, JMMM 1994 Space group: P62m Mn 3g sites Fe 3f sites P/As 1b&2c sites _

Magnetocaloric effect

44

Sample preparation

Starting Fe2P, Mn2As3, Mn & P mechanical alloying sintering 1000oC annealing 800oC

Magnetocaloric effect

45

Temperature dependence of magnetization with different compositions Tc tunable

Magnetocaloric effect

46

Temperature dependence in different fields Strong shift of Tc with field

Magnetocaloric effect

47

Magnetization process near Tc Field induced transition with small hysteresis

Magnetocaloric effect

48

0.2 0.3 0.4 0.5 0.6 0.7 160 180 200 220 240 260 280 300 320 340 PM FM

T (K) X

Concentration dependence of TC for MnFeP1-xAsx Somewhat higher TC compared with lit. Almost linear concentration dependence.

Magnetocaloric effect

49

Comparison with Gd metal Step-like transition first order but very little hysteresis

Magnetocaloric effect

50

Comparison of magnetocaloric effect in different materials Entropy change concentrated in relevant T interval

Tegus et al. Nature 415

Magnetocaloric effect

51

150 200 250 300 350 5 10 15 20 25 30 35

2 T 5 T x=0.35 x=0.5 x=0.25 x=0.65 x=0.55 x=0.45

MnFeP1-xAsx

• ∆

∆ ∆ ∆Sm(J/kgK) T (K)

MCE as function of composition Broad T interval covered

Magnetocaloric effect

52

285 290 295 300 305 310 315 1 2 3 4 5

∆ ∆ ∆ ∆B = 1.45 T MnFeP0.45As0.55 MnFeP0.47As0.53 Mn1.1Fe0.9P0.47As0.53 ∆ ∆ ∆ ∆Tad (K)

T (K)

Direct measurements MSU Adiabatic temperature-change Sample dependence need for careful preparation

Magnetocaloric effect

53

Field driven 1st order magnetoelastic transition 150 K < Tc < 450 K . MnFe(P,As) hexagonal above magnetic transition hexagonal below. Hardly any volume change( 0.1 %) but change of c/a. Hysteretic transition: Hysteresis depends on grain size? High chemical stability allows As content?

Summary MnFe(P,As)

Magnetocaloric effect

54

Conclusions

• First order magnetic transition common to the different systems!
• Structural transition may cause extra hysteresis.
• Control of hysteresis very important.
• Evaluation of entropy change needs care.
• Fe and Mn based systems with much lower materials costs.
• Relevant T range covered by La(Fe,Si)13Hx and MnFe(P,As,Si,Ge).
• Sample preparation simplest for MnFe(P,As) with As replaced by
• ther element.

Magnetocaloric effect

55

Cooltech current N°4 Prototype

IMPORTANT issues: 1 – The AMRR Cycle (Active Magnetic Regenerator Refrigeration): with Gd inserts as cross-flow plate heat-exchangers. 2 - Amplification of ∆Τ ∆Τ ∆Τ ∆Τ by accumulation of cycles. 3 - Reduction in torque (10 Nm) obtained by ensuring a ferromagnetic continuity on the disc. 4 - Very low level of noise and vibrations (< 25 dB) 5 - Creation of magnetic fields of 0.7 to 2 Tesla with standard permanent magnets. 6 - Low thermal losses, completely separate “hot” and “cold” fluid circuits.

Registered Patents, Brand and Models

Outlook

Magnetocaloric effect

56

Availability

60t? WW prod=90t, avail 10t ? Ga Ni0.501Mn0.227Ga0.258 4000 4000 none WW prod=90t, avail 10t ? 1000 Estimated availability 7000t La Manganites

LaMnO3

22000t La Lathanum alloys

La(Fe13-xMx)

No limitation for an industrial production none Manganese alloys

Mn(As1-xSbx) MnFe(P1-xAsx)

140t Ge Gadolinium Silicon alloys Gd4(Si1-xGex)5 1000t Gd Gd metal Total availability of MC material Limiting ingredient

Data : Cooltech source and USGS.GOV

Magnetocaloric effect

57

25 20 15 10 5 0 20 40 60 80

T (C0) ∆S (J/K·kg) Increased T span with active magnetic regenerator containing different materials with tailored TC
