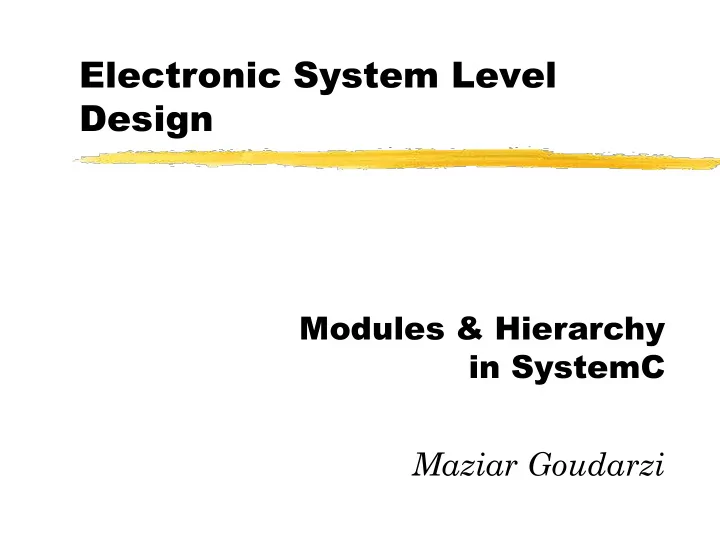

Electronic System Level Design

Modules & Hierarchy in SystemC Maziar Goudarzi

2009 ESL Design 2

Today Program

Modules in SystemC Hierarchical Design in SystemC

2009 ESL Design 3

Why Modules?

Advantages

Building Block in Design Hierarchy Team Work Design Encapsulation Design Re-use

2009 ESL Design 4

Parts of a Module

Ingredients

Module Ports Module Signals Internal Data Storage Processes Module Constructors

2009 ESL Design 5

General Syntax for Module Definition

SC_MODULE( module_name ) { sc_in< bool > in; sc_out< int > out; sc_inout< float > inout; sc_signal< char > aSignal; long l; // internal data storage void process() { ... } // processes SC_CTOR( module_name ) { ... } };

Port mode Port type

2009 ESL Design 6

What is SC_MODULE?

 Defined in <SystemC>\include\kernel\sc_module.h #define SC_MODULE(user_module_name) \ struct user_module_name : sc_module class sc_module: public sc_object{

... };

2009 ESL Design 7

Ports

 Port modes

sc_in< > sc_out< > sc_inout< > Specific to clock ports (only for backward compatibility)

sc_in_clk sc_out_clk sc_inout_clk

Actually: (look at <systemc>/include/communication/sc_clock_ports.h )

typedef sc_in<bool> sc_in_clk; typedef sc_inout<bool> sc_inout_clk; typedef sc_out<bool> sc_out_clk;

2009 ESL Design 8

Signals

 Signal

Used to connect ports of lower-level modules Correspond to wires Unlike ports, no mode (in, out, inout) required

Bi-directional transmission possible Actual direction depends on the connecting ports

Syntax

sc_signal< signal_type > signal_name;

2009 ESL Design 9

Connecting Ports & Signals

Note: when connecting ports using signals

Type of signals and ports must match

sc_in< int > intInput; sc_signal< int > intSignal;

Port mapping

Positional port mapping Named port mapping

2009 ESL Design 10

Positional Port Mapping

// filter.h #include "systemc.h" #include "mult.h" #include "coeff.h" #include "sample.h" SC_MODULE(filter) { sample *s1; coeff *c1; mult *m1; sc_signal< int > q, s, c; SC_CTOR(filter) { s1 = new sample ("s1"); (*s1)(q,s); c1 = new coeff ("c1"); (*c1)(c); m1 = new mult ("m1"); (*m1)(s,c,q); } }; // sample.h SC_MODULE(sample) { sc_in<int> din; sc_out<int> dout; ... };

Module instantiation Port mapping

2009 ESL Design 11

Positional Port Mapping (cont’d)

Positional port mapping

Ports are connected in the same order as in the module definition Orders and number of ports MUST match in the definition and in the instantiation One C++ statement to map all ports Advantage

Compactness Good when only having a few ports

Disadvantage

Lower readability Error prone

2009 ESL Design 12

Named Port Mapping

#include "sample.h“ SC_MODULE(filter) { sample *s1; coeff *c1; mult *m1; sc_signal< int > q, s, c; SC_CTOR(filter) { s1 = new sample ("s1"); s1->dout(s); s1->din(q); c1 = new coeff ("c1"); c1->out(c); m1 = new mult ("m1"); m1->a(s); m1->b(c); m1->q(q); } }; // sample.h SC_MODULE(sample) { sc_in<int> din; sc_out<int> dout; ... };

2009 ESL Design 13

Named Port Mapping (cont’d)

Named port mapping

Ports can be connected in any order One C++ statement to map each port Advantage

Higher readability Lower probability of errors

Disadvantage

More verbose

2009 ESL Design 14

Port Mapping: Another Positional Mapping Style

// filter.h #include "systemc.h" #include "mult.h" #include "coeff.h" #include "sample.h" SC_MODULE(filter) { sample *s1; coeff *c1; mult *m1; sc_signal< int > q, s, c; SC_CTOR(filter) { s1 = new sample ("s1"); (*s1)(q,s); c1 = new coeff ("c1"); (*c1)(c); m1 = new mult ("m1"); (*m1)(s,c,q); } } // filter.h #include "systemc.h" #include "mult.h" #include "coeff.h" #include "sample.h" SC_MODULE(filter) { sample *s1; coeff *c1; mult *m1; sc_signal< int > q, s, c; SC_CTOR(filter) { s1 = new sample ("s1"); (*s1) << q <<s; c1 = new coeff ("c1"); (*c1) << c; m1 = new mult ("m1"); (*m1) << s << c << q; } }

2009 ESL Design 15

Hierarchical Design

Key to implementing complex designs

Divide and conquer

Two approaches

Bottom-up design Top-down design

2009 ESL Design 16

Hierarchical Design (cont’d)

 Two basic styles for connecting modules

One module connected to the

• ther one

In the same level of hierarchy Example

• The filter example: sample,

coeff, and mult modules

One module inside the other one

Hierarchical design Example: A register consisting

• f several DFFs

2009 ESL Design 17

Hierarchical Modules Example

Register Module

Register

DFF DFF DFF DFF clk d q

2009 ESL Design 18

Hierarchical Modules Example (cont’d)

#include "dff.h“ #define REG_WIDTH 10 SC_MODULE(reg) { sc_in<bool> d[REG_WIDTH]; sc_in<bool> clk; sc_out<bool> q[REG_WIDTH]; DFF *ff[REG_WIDTH]; SC_CTOR(reg) { for(int i=0; i<REG_WIDTH; i++) { ff[i] = new DFF( itoa(i,NULL,10) ); ff[i]->d(d[i]); ff[i]->q(q[i]); ff[i]->clk(clk); } } };

Register

DFF DFF DFF DFF clk d q

Direct port-to-port connection (no signal)

2009 ESL Design 19

Rules for Connecting Ports

In hierarchical design

Port modes must match

sc_in<> to sc_in<> sc_out<> to sc_out<> sc_inout<> to sc_inout<>

2009 ESL Design 20

Parts of a Module (cont’d)

Ingredients

Module Ports Module Signals Internal Data Storage Processes Module Constructors

2009 ESL Design 21

Internal Data Storage: Counter with Synchronous-Load

void counter::count_up() { if (load) count_val = din; else count_val++; dout = count_val; } SC_MODULE(counter) { sc_in<bool> load; sc_in<int> din; sc_in<bool> clock; sc_out<int> dout; int count_val; void count_up(); SC_CTOR(counter) { SC_METHOD(count_up); sensitive_pos << clock; } };

Counter w.

• sync. load

load clock din dout

2009 ESL Design 22

Internal Data Storage (cont’d)

Can be any C++ type or user-defined type Visible outside the module

Remember: SC_MODULE is a C++ struct NOTE: C++ allows it, but DO NOT change values of internal variables from outside a module

2009 ESL Design 23

Process

 Implement the real functionality of the module  Sensitivity list:

List of ports that this process is sensitive to

 Registered with “SystemC Simulation Kernel” at run-time

Name of the process + its sensitivity list Place & time: at module instantiation time (when the constructor is called)

 Called by “SystemC Simulation Kernel”

whenever one of the ports in the “sensitivity list” changes value

 Executes sequentially until return() or wait()

2009 ESL Design 24

Process (cont’d)

// dff.h #include "systemc.h" SC_MODULE(dff) { sc_in<bool> din; sc_in<bool> clock; sc_out<bool> dout; void doit() { dout = din; } SC_CTOR(dff) { SC_METHOD(doit); sensitive_pos << clock; } };

2009 ESL Design 25

Module Constructor

Register module Processes, and their sensitivity list with “SystemC Kernel” Create and initialize “Internal Data Structures”

• f the module

Initialize Internal Data Storage An “instance name” is passed to the constructor at instantiation time

Each instantiated module (even from the same SC_MODULE type) can have its own name Helps in reporting debug, error, and information messages from the module

2009 ESL Design 26

Module Constructor (cont’d)

// ram.h #include "systemc.h" SC_MODULE(ram) { sc_in<int> addr; sc_in<int> datain; sc_in<bool> rwb; sc_out<int> dout; int memdata[64]; // local memory storage int i; void ramread(); void ramwrite(); SC_CTOR(ram){ SC_METHOD(ramread); sensitive << addr << rwb; SC_METHOD(ramwrite) sensitive << addr << datain << rwb; for (i=0; i++; i<64) memdata[i] = 0; } };

Process declaration

2009 ESL Design 27

What we learned today

Module concept in SystemC and its ingredients Hierarchical Design in SystemC Reading material

Chapters 1, 2, and 4 of “A SystemC Primer” book Further reading:

SystemC ver. 2.0 User’s Guide (Chapters 1 2 3)

2009 ESL Design 28

Assignment 1

Design a 4-bit adder using only basic gates (i.e., AND, OR, NOT, NAND, NOR gate) and hierarchical design (top-down or bottom-up) Write a complete test bench for your adder and compile and simulate your model. Due date: Sunday, Mehr 26th Submit one compressed file (zip/rar)

2009 ESL Design 29

Other Notes

 Course project phases set.

 4 phases.

 2 Aban: Deadline for phase 0 of course project:

 1-page document

 Your group members for course project  The definition of the project  Rough schedule
