EET413 HIGH VOLTAGE ENGINEERING CHAPTER 1 INTRODUCTION TO ELECTROSTATIC FIELD STRESS CONTROL Topic Outline Introduction Electric Field Stress Gas/vacuum Insulation Liquid Dielectrics Solid Dielectrics Estimation and


slide-1
SLIDE 1

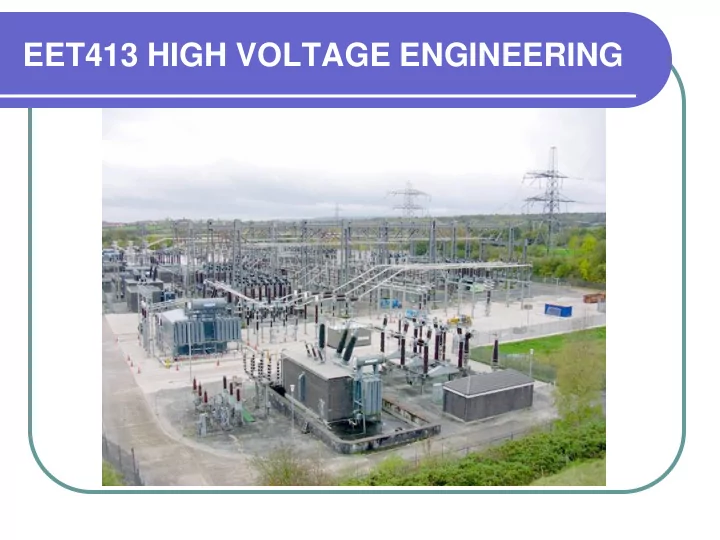

EET413 HIGH VOLTAGE ENGINEERING

slide-2
SLIDE 2

CHAPTER 1

INTRODUCTION TO ELECTROSTATIC FIELD STRESS CONTROL

slide-3
SLIDE 3

Topic Outline

 Introduction  Electric Field Stress  Gas/vacuum Insulation  Liquid Dielectrics  Solid Dielectrics  Estimation and Control of Electric Stress

slide-4
SLIDE 4

Introduction

 In modern time, high voltages are used for a wide

variety of applications covering the power systems, industry and research laboratories.

 High voltage apparatus is used necessitate careful

design of its insulation and the electrostatic field profiles.

 The principal media of insulation used are gases,

vacuum, solid, liquid or a combination of these.

 For achieving reliability and economy, a knowledge of

the causes of deterioration is essential and the tendency to increase the voltage stress for optimum design calls for judicious selection of insulation in relation to the dielectric strength, corona discharges and other relevant factors.

slide-5
SLIDE 5

Electric Field Stress

 In high voltage applications, the dielectric

strength of insulating materials and the electric field stresses developed in them when subjected to high voltages are the important factors in high voltage systems.

 In a high voltage apparatus the important

materials used are conductors and insulators.

 While the conductors carry the current, the

insulators prevent the flow of currents in undesired paths.

slide-6
SLIDE 6

Cont…

 The electric stress to which an insulating material is

subjected to is numerically equal to the voltage gradient, and is equal to the electric field intensity.

 E

: electric field intensity

 φ

: applied voltage

:

  • perator (defined as

 Where ax, ay and az are components of position vector

r = axx + ayy + azz ∆ z a y a x a

z y x

         

slide-7
SLIDE 7

Cont…

 The most important material used in a high

voltage apparatus is the insulation.

 The dielectric strength of an insulating material

can be defined as the maximum dielectric stress which the material can withstand.

 The electric breakdown strength of insulating

materials depends on pressure, temperature, humidity, field configurations, nature of applied voltage, imperfections in dielectric materials, material of electrodes, surface condition of electrodes, etc.

slide-8
SLIDE 8

Cont…

 The most common cause of insulation failure

is the presence of discharges either within the voids in the insulation or over the surface of the insulation.

 The probability of failure will be greatly

reduced if such discharges could be eliminated at the normal working voltage.

 Then, failure can occur as a result of thermal

  • r electrochemical deterioration of the

insulation.

slide-9
SLIDE 9

Gas/Vacuum Insulation

 Air at atmospheric pressure is the most common

gaseous insulation.

 Breakdown occurs in gases due to the process of

collisional ionization.

 Practical insulating gases used are carbon dioxide

(CO2), dichlorodifluoromethane (CCl2F2) (freon), sulphur hexafluoride (SF6) and nitrogen (N2).

 SF6 has been found to maintain its insulation

superiority compared to any other gases.

 Ideally, vacuum is the best insulator with field

strengths up to 107 V/cm.

slide-10
SLIDE 10

Cont…

 Under high vacuum conditions, where the

pressures are below 10-4 torr, the breakdown cannot occur due to collisional processes like in gases, and hence the breakdown strength is quite high.

 Vacuum insulation is used in particle

accelerators, x-ray and field emission tubes, electro microscopes, capacitors and circuit breakers. 1 torr = 1 mmHg = 1.3158 x 10-3 atm

slide-11
SLIDE 11

Liquid Dielectrics

 Liquids are used in high voltage equipment to serve

the dual purpose of insulation and heat conduction.

 Highly purified liquids have dielectric strength as high

as 1 MV/cm. The breakdown strength can reduce due to the presence of impurities.

 Petroleum oils are the commonest insulating liquids.

However, askarels, fluorocarbons, silicones and

  • rganic esters including castor oil are used in

significant quantities.

 The important electrical properties of the liquid are

dielectric strength, conductivity, flash point, gas content, viscosity, dielectric constant, dissipation factor, stability, etc.

slide-12
SLIDE 12

Cont…

 Askarels and silicones are particularly useful in

transformers and capacitors and can be used at temperatures of 200°C and higher. Castor

  • il is a good dielectric for high voltage energy

storage capacitors because of its high corona resistance, high dielectric constant, non- toxicity and high flash point

 In practical applications, liquids are normally

used at voltage stresses of about 50 - 60 kV/cm when the equipment is continuously

  • perated.
slide-13
SLIDE 13

Solid Dielectrics

 Many organic and inorganic materials are

used for high voltage insulation purpose.

 Widely used inorganic materials are ceramics

and glass.

 The most widely used organic materials are

PVC, PE or XLPE.

 Kraft paper, natural rubber, silicon rubber and

polypylene rubber are some of the other materials used as insulation in electrical equipment.

slide-14
SLIDE 14

Solid Dielectrics

XLPE cable Ceramic insulator

slide-15
SLIDE 15

Cont…

 The breakdown stress in solid will be as high as 10

MV/cm if the solid insulating material is truly homogeneous and free from imperfections.

 The breakdown occurs due to many mechanisms such

as intrinsic or ionic breakdown, electromechanical breakdown, treeing and tracking, thermal breakdown, electrochemical breakdown and breakdown due to internal discharges. These mechanisms of breakdown vary depending on the time of application of voltages.

 In general, the breakdown occurs over the surface

than in the solid itself, and the surface insulation failure is the most frequent cause of trouble in practice.

slide-16
SLIDE 16

Cont…

 The failure of solid insulation by discharges,

which may occur in the internal voids and cavities of the dielectric, is called partial discharges.

 The effect of the partial discharges can be

minimized by vacuum impregnation of the insulation.

 High voltage switchgear, bushings, cables and

transformers are typically devices for which partial discharge effects should be considered in design.

slide-17
SLIDE 17

Estimation and control of Electric Stress

Electric Field

 The electric field distribution is usually

governed by the Poison’s equation:

 φ : potential  : discharge density  : vacuum permittivity

2

     

slide-18
SLIDE 18

Cont…

 Figure 1.1 shows the methods of stress control at an

electrode edge. In the design of hv apparatus, the electric field intensities have to be controlled,

  • therwise higher stresses will trigger or accelerate the

aging of the insulation.

slide-19
SLIDE 19

Cont…

Most of space charge are not normally present , and the potential distribution is governed by the Laplace’s equation:

The most commonly used methods for determining the potential distribution are:

1) The electrolytic tank method 2) The numerical methods

2

     

slide-20
SLIDE 20

Cont…

Uniform and Non-uniform Electric Fields

 In a uniform field gap, the average field E is the same

throughout the field region, whereas in a non-uniform field gap, E is different at different points of the field region

 Uniform fields distributions exist between two infinite

parallel plates or two spheres of equal diameters when the gap distance is less than diameter of the sphere

 The average field E in a non-uniform field gap is

maximum at the surface of the conductor having the large radius of curvature

slide-21
SLIDE 21

Cont…

Estimation of Electric Field in Some Geometric Boundaries

 The mean electric field over a distance d between two

conductors with a potential difference of V12 is

 The maximum electric field Em is always higher than

average value in non-uniform fields

d V Eav

12

slide-22
SLIDE 22

Numerical Methods for Electrical Field Computation

Numerical methods are employed for the calculation of electric fields,i.e.,

1) Finite Difference Method (FDM) 2) Finite Element Method (FEM) 3) Charge Simulation Method (CSM) 4) Surface Charge Simulation Method

(SSM) or Boundary Element Method (BEM)
