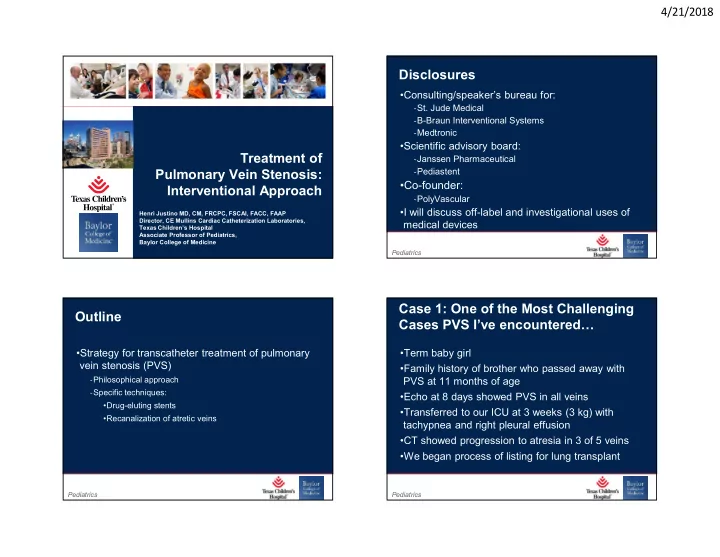

Treatment of Pulmonary Vein Stenosis: Interventional Approach

Henri Justino MD, CM, FRCPC, FSCAI, FACC, FAAP Director, CE Mullins Cardiac Catheterization Laboratories, Texas Children’s Hospital Associate Professor of Pediatrics, Baylor College of Medicine

Page 2

Pediatrics

Disclosures

• Consulting/speaker’s bureau for:

‐St. Jude Medical ‐B-Braun Interventional Systems ‐Medtronic

• Scientific advisory board:

‐Janssen Pharmaceutical ‐Pediastent

• Co-founder:

‐PolyVascular

• I will discuss off-label and investigational uses of

medical devices

Page 3

Pediatrics

• Strategy for transcatheter treatment of pulmonary

vein stenosis (PVS)

‐Philosophical approach ‐Specific techniques:

• Drug-eluting stents
• Recanalization of atretic veins

Outline

Page 4

Pediatrics

Case 1: One of the Most Challenging Cases PVS I’ve encountered…

• Term baby girl
• Family history of brother who passed away with

PVS at 11 months of age

• Echo at 8 days showed PVS in all veins
• Transferred to our ICU at 3 weeks (3 kg) with

tachypnea and right pleural effusion

• CT showed progression to atresia in 3 of 5 veins
• We began process of listing for lung transplant

4/21/2018 2

Page 5

Pediatrics

CT Angiogram at Presentation

Page 6

Pediatrics

• PVS is a rapidly progressive disease that can be

fatal (especially if bilateral)

• Delay in care leads to

‐Worsening disease at the venous ostia ‐Worsening distal hypoplasia ‐Worsening pulmonary hypertension

• i.e. PVS medical emergency!
• Referrals are processed rapidly and a cath date is

provided within a few weeks at most

Take Home Point #1

Page 7

Pediatrics

• In cases of severe instability… do FIRST what is

likely to help MOST

Take Home Point #2

Page 8

• At cath: unstable on induction, started on epi and

vasopressin with BP 40/20

• BP improved to 69/28 after septostomy

Emergent Septostomy

4/21/2018 3

Page 9

Pediatrics

• Presence of an atrial septal defect (ASD) is very

helpful…

‐In unstable patients: ASD enlargement improves cardiac

• utput (at the expense of desaturation)

‐In all patients: avoids repeated transseptal punctures at future caths to reach the left atrium

• We create or enlarge an ASD in all patients with

PVS

Take Home Point #3

Page 10

Pediatrics

Immediate Stenting of the Vein with Best Distal Vasculature

4mm x 8mm Promus Premier stent (Everolimus eluting)

Page 11

Pediatrics

Hemodynamics: RVp ~150% Systemic RML PV Atresia RUL PV Atresia

Page 12

Pediatrics

Severe RLL PV Stenosis Severe RLL PV Stenosis LLL PV Atresia LLL PV Atresia

4/21/2018 4

Page 13

Pediatrics

• Every case receives complete evaluation of every

LOBE using wedge pressures and wedge angios

• In some cases, additional pressures and angios

are obtained in multiple SEGMENTS of each lobe

Take Home Point #4

Page 14 Page 15

Pediatrics

Wire Recanalization of Atretic RMPV Wire Recanalization of Atretic RMPV RMPV Angioplasty with 2mm Balloon RMPV Angioplasty with 2mm Balloon

Note resistant “waist”

• n the balloon,

indicating a non- compliant lesion

Page 16

Pediatrics

RLPV Post Angioplasty RLPV Post Angioplasty 2mm Cutting Balloon 2mm Cutting Balloon

4/21/2018 5

Page 17

Pediatrics

The Role for Cutting Balloons

• 3 or 4 microsurgical blades mounted

longitudinally on outer surface

• Approved to treat lesions resistant to

conventional balloon angioplasty in

‐Coronary arteries (2-4 mm balloons) ‐Peripheral arteries (5-8 mm balloons)

• Used off-label to treat resistant

lesions in a variety of conditions… including PVS

Page 18

Pediatrics

RML Angioplasty 3mm Balloon RML Angioplasty 3mm Balloon RML Promus 4mm x 8mm DES RML Promus 4mm x 8mm DES

Page 19

Pediatrics

Wire Recanalization of Atretic RUPV

Page 20

Pediatrics

Balloon Angioplasty of RUPV

4/21/2018 6

Page 21

Pediatrics

4mm x 8mm Promus DES in RULPV

Page 22

Pediatrics

RLPV After Standard & Cutting Balloon Angioplasty RLPV After Standard & Cutting Balloon Angioplasty

RLL Promus drug eluting stent RLL Promus drug eluting stent

Page 23

Wire Recanalization of Atretic LLPV

Page 24

LLPV Balloon Angioplasty

• Note resistant “waist”
• n the balloon,

indicating a non- compliant lesion

4/21/2018 7

Page 25

LLPV Standard Balloon Angioplasty LLPV Standard Balloon Angioplasty Cutting Balloon Rupture with Contrast Extravasation Cutting Balloon Rupture with Contrast Extravasation

Page 26

Pediatrics

• Atretic pulmonary veins can often be recanalized
• We use CUTTING BALLOONS to overcome

resistant lesions (lesions that cannot be dilated despite high pressures of ~20 ATM)

• Lesion preparation prior to stent placement is

paramount…

‐Once stented, resistant lesions can no longer be treated with cutting balloons

Take Home Point #5

Page 27

LLPV Promus DES LLPV Promus DES Final, After 5 Drug-Eluting Stents Final, After 5 Drug-Eluting Stents

RV: 63/0/11 Fem art: 75/37/52 RV: 63/0/11 Fem art: 75/37/52

Page 28

Pediatrics

• We aim to open EVERY LOBAR PULMONARY

VEIN at the initial catheterization

• When necessary, we treat first or second order

divisions deep into the lung (segmental or sub- segmental veins)

• These are LONG CASES (6-8 hours)

Take Home Point #6

4/21/2018 8

Page 29

Pediatrics

• We use drug-eluting stents (DES) in infants to

reduce intimal proliferation within the stents

Take Home Point #7

Page 30

Pediatrics

• 10 year follow-up: no hemoptysis after DES, LLPV is

widely patent at stents and has grown distally…

• No recurrence of hemoptysis, but needed multiple

interventions

Page 32

Pediatrics

• We repeat cath 3-4 mos after the initial intervention
• We DO NOT WAIT for

‐Evidence of worsening PVS on echo (unreliable for ostial disease, useless for distal disease) ‐Evidence of worsening PH ‐Symptoms to develop

• We don’t generally use CT angio to monitor

‐Radiation + contrast, without opportunity to intervene

• We don’t generally use MRI to monitor

‐General anesthesia, stent artifacts, without opportunity to intervene

Take Home Point #7

Page 33

Pediatrics

• Because of severity of disease and rapidity of

progression, I chose to repeat cath at 4 weeks…

• All stents widely patent, BUT…
• New severe stenosis just beyond each stent

Cath #2 - 1 Month Later…

4/21/2018 9

Page 34

Pediatrics

RUL PV

Page 35

Pediatrics

RML PV

Page 36

Pediatrics

RLL PV

Page 37

Pediatrics

LLL PV

4/21/2018 10

Page 38

Pediatrics

LUL PV

Page 39

Pediatrics

• DES are very thin, delicate, and hard to see!
• Each stent must be very carefully re-entered at

subsequent caths for re-dilation

‐Crossing a side cell of the stent with a wire is easy to do, and must be detected and corrected immediately before stent is deformed

• We use 2 or more coaxial catheters to allow us to

point in a variety of angles and directions

Take Home Point #8

Page 40

Pediatrics

Page 42

Pediatrics

All veins except LUPV were re- stented distally

4/21/2018 11

Page 43 Page 44

Pediatrics

Page 46

Pediatrics

• All stents widely patent, BUT…
• New severe stenosis just beyond all 5 stents

Cath #3: 1 Month Later…

Page 47

Pediatrics

Cath 3: 1 Month Later

4/21/2018 12

Page 48

Pediatrics

Page 49

Pediatrics

Page 50

Pediatrics

Page 51

Pediatrics

4/21/2018 13

Page 52

Pediatrics

• No additional stents were added
• She was started on systemic sirolimus (our first

patient to be treated this way)

Change of Plans…

Page 53

Pediatrics

Cath 4: 1 Months Later

Page 54

Pediatrics

Page 55

Pediatrics

4/21/2018 14

Page 56

Pediatrics

Page 57

Pediatrics

Page 58

Pediatrics

• She underwent repeat caths every 3-6 months to

redilate stents

• What happens when we reach the maximal

possible diameter of the “coronary”-type drug- eluting stents?

Over the Next 2 Years…

Page 59

Pediatrics

How Can we Overcome the Limitation of Re- Expansion of Small Stents in Growing Children?

4/21/2018 15

Page 60

Pediatrics

At 3 Years Old and 14 Caths Later…

Page 61

Pediatrics

Page 64

Pediatrics

Page 65

Pediatrics

4/21/2018 16

Page 66

Pediatrics

Page 67

Pediatrics

Page 68

Pediatrics

Page 69

Pediatrics

4/21/2018 17

Page 70

Pediatrics

• PA = 25/10/16 (pre LLL intervention)
• Femoral Artery = 76/41/53
• Asymptomatic
• Normal growth and development
• On aspirin and sirolimus

Best of All…

Page 71

Pediatrics

Page 72

Pediatrics

PVS After TAPVR Repair

• 1. Obstructed infradiaphragmatic total anomalous

pulmonary venous return, s/p repair (day 1)

• 2. LUL & LLL splayed open & anastomosed to left atrium,

RUL PV atresia, s/p repair and sutureless repair of right common PV (RUL + RLL PV) (2 months)

• 3. Cardiac arrest & CPR
• 4. Balloon angioplasty of LLL PV and confluence (6 months)
• 5. PV confluence balloon angioplasty (8 months)
• 6. LUL PV anastomosis to left atrial appendage and RUL &

RLL PV anastomosis to back of left atrium, fenestrated ASD closure (10 months)

• 7. 6 day ECMO course
• 8. Right diaphragm paralysis required plication (11 months)

Page 73

Pediatrics

PVS After TAPVR Repair

• When transferred to us, CT showed RL & LLPV

stenosis and RU & LUPV atresia

• At cath: PA= 65/23/40, femoral art= 66/38/49

4/21/2018 18

Page 74

Pediatrics

RU, RM & most of RLL PV are Atretic

Page 75

After Stenting of RL & LLL PV

Page 76

Atretic LUL PV Collateralized to LLL PV

Page 77

Atretic LUPV

4/21/2018 19

Page 78

Pediatrics

LLL PV Atresia Could not be Crossed with Wires: Resort to Radiofrequency

Catheterization and Cardiovascular Interventions 56:72–82 (2002)

Page 79

Pediatrics

LLL PV Atresia Could not be Crossed with Wires: Resort to Radiofrequency

Page 80

After Drug- eluting Stent After Drug- eluting Stent Confirmation of Intraluminal Location Confirmation of Intraluminal Location

Page 81

Pediatrics

PVS After TAPVR Repair

• At first cath RUL PV could not be recanalized
• 6 months later…
• Patient presented with severe tricuspid

regurgitation, near-systemic RV pressure, and RV dysfunction

• We proposed another attempt to recanalize RUL

PV

4/21/2018 20

Page 82

Pediatrics

Cath 2: RUL PA Wedge Angio

Page 83

Pediatrics

RPA Angio

Page 84

Pediatrics

PA Angio Overlay & Aim for RUL PV

Page 85

Pediatrics

PA Wedge Angio Overlay for RF

4/21/2018 21

Page 86

Pediatrics

Next Steps

• 1. Advance microcatheter over RF wire into lung
• 2. Remove RF wire
• 3. Inject contrast into microcatheter to find out if

catheter is intravascular or not

• 4. If staining (i.e. extravascular location), withdraw

microcatheter while injecting contrast to determine if can re-enter vascular space

• 5. If at first you don’t succeed, try and try again!
• 6. But… realize when to stop trying!

Page 87

Pediatrics

Page 88

Pediatrics

After a Few Tries…

Page 89

Pediatrics

Where Are We?

4/21/2018 22

Page 90

Pediatrics

Conclusion?

Page 91

Pediatrics

Conclusion?

• It’s almost time to stop!

Page 92

Pediatrics

After a Few More Failed Attempts…

Page 93

Pediatrics

Next Steps…

• Parents agreed to a 3rd try, 1 month later

4/21/2018 23

Page 94

Pediatrics

RF Perforation

Page 95

Pediatrics

Microcatheter advancement, and… Where are we?

Page 96

Pediatrics

After More Trying… Eureka!

Page 97

Pediatrics

Balloon angioplasty and stenting…

4/21/2018 24

Page 98

Pediatrics

Final Result

Page 99

Pediatrics

LUL PV Reassessment… Occluded

Page 100

Pediatrics

Unable to Recanalize with Wires… Use RF!

Page 101

Pediatrics

After Placement of 3 Stents…

4/21/2018 25

Page 102

Pediatrics

• PA= 42/14/27
• Femoral artery= 82/46/58
• All 4 PV stents were re-dilated

2 Years Later…

Page 103

Pediatrics

RUL PV After Before

Page 104

Pediatrics

LUL PV

Page 105

Pediatrics

After Dilation to 10 mm with Intentional Stent Fracture

4/21/2018 26

Page 106

Pediatrics

LLL PV After Before

Page 107

Pediatrics

RLL PV After Before

Page 108

Pediatrics

• Transferred to ICU in stable condition after cath
• Unplanned self-extubation overnight, required brief

CPR

• Intraperitoneal bleeding from liver puncture site

after CPR (did not require drainage)

• Several more episodes of self-extubations while

weaning sedation, CPR each time

• After a major cardiac arrest, developed severe

ventricular dysfunction, and eventually died

Clinical Course

Page 109

Pediatrics

• PVS remains a serious condition
• Initial threat is severe PH with RV dysfunction

‐Requires aggressive attempts to restore patency of pulmonary veins

• Other threats exist, such as complex co-morbidities

‐Developmental delay ‐Swallowing dysfunction & aspiration ‐Chronic lung disease ‐Diaphragmatic dysfunction ‐Iatrogenesis

Take Home Points

4/21/2018 27

Page 110

Pediatrics

• Interdisciplinary collaborators:

‐Interventional cardiology ‐Pulmonary hypertension team ‐Critical care ‐CV surgery

• Generous families who donated funds to start the

PVS registry

• Dr. Ron Day for securing funding, Dr. Rachel

Vanderlaan for spearheading the PVS registry

Acknowledgements

Page 111

Pediatrics

hjustino@bcm.edu

Page 113

Pediatrics

How do DES Work?

• 2 categories of drugs (Katz Curr Atheroscler Rep (2015) 17: 11)

‐Rapamycin-like (sirolimus, everolimus, zotarolimus, “-olimus”)

• Bind to cytosolic FK binding protein, inhibit mTOR (target
• f rapamycin)
• Inhibit conversion to the synthesis cell phase

‐Paclitaxel

• Inhibit microtubule depolymerization, excessively stable

microtubules inhibit spindle formation and mitosis

Page 114

Pediatrics

How do DES Work in PVS?

• Unknown

‐Inhibit myofibroblast proliferation? ‐Inhibit myofibroblast differentiation into smooth muscle cells?

4/21/2018 28

Page 115

Pediatrics

• DES are currently available only in coronary format

(delivered at 2-5 mm, can reach max diameters of ~8 mm)

‐We use 4 mm almost every time, regardless of vein size

• Stents must span the lesion

‐Ostial lesions are most common, requiring stents to protrude a variable length into the left atrium and into the lung

• We use the shortest stents available (8mm)
• Need to limit proximal left atrial protrusion (hard to

re-enter) and distal protrusion (jailing of healthy branches)

How We Use DES in PVS
