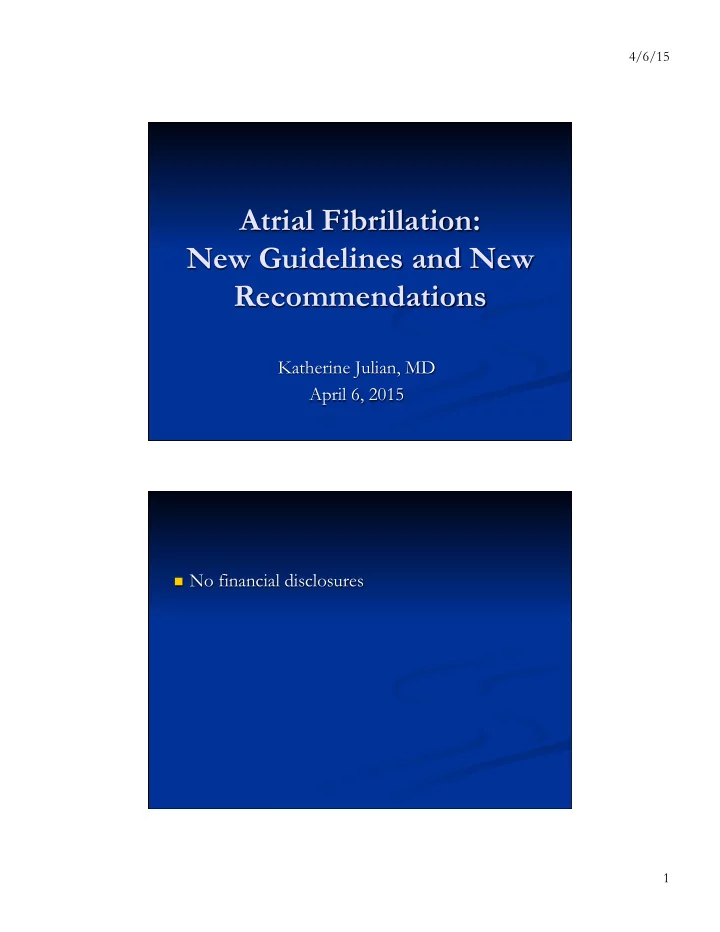

Atrial Fibrillation: New Guidelines and New Recommendations
Katherine Julian, MD April 6, 2015
n No financial disclosures
Atrial Fibrillation: New Guidelines and New Recommendations - - PDF document
4/6/15 Atrial Fibrillation: New Guidelines and New Recommendations Katherine Julian, MD April 6, 2015 n No financial disclosures 1 4/6/15 Epidemiology n Most common arrhythmia in clinical practice n Projected prevalence of more than
4/6/15 1
n No financial disclosures
4/6/15 2
n Most common arrhythmia in clinical practice
n Projected prevalence of more than 10 million by the
n Accounts for 1/3 of all hospitalizations for cardiac
n Increased prevalence with age: 8% in those older
n AF associated with an increased risk of stroke
n Six-fold increase in rate of ischemic stroke n Rate of ischemic stroke in non-valvular AF approx
n AF accounts for 15% of all strokes
n Associated with increased CHF and all-cause
n May be independently associated with MI
Singer DE, et al. Chest, 2004;126. Soliman EZ, et al. JAMA Intern Med. 2014
4/6/15 3
n Work-Up n Rate vs. Rhythm Control n Treatment Options n Anti-coagulation n Future Treatment Options
n 55 yo woman being seen for a new patient visit.
n PMH: HTN (untreated) n PE: 150/80, HR 125 Irregularly irregular
4/6/15 4
n Complete history and
n PIRATES
4/6/15 5
n PIRATES – secondary causes
n Pericarditis n Pulmonary disease/pulmonary embolism n Ischemia n Rheumatic heart disease n Atrial myxoma n Thyrotoxicosis n Ethanol n Sepsis
n Other Secondary Causes
n Obesity – likely due to LA dilatation n ?Smoking n Familial n ?Inflammation
n Treat Underlying Etiology
4/6/15 6
n Complete history and physical exam
n Pulmonary disease/pulmonary embolism n Ischemia n Ethanol n Sepsis
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
n ECHO
n LVH/LV size & function n Occult valvular disease n Occult pericardial disease
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
4/6/15 7
n Complete history and physical exam n TTE n EKG n Associated labs
n TSH, renal and hepatic function
n Other tests based on history…ex: event
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
n Recurrent: 2 or more episodes
n Paroxysmal: arrhythmia terminates spontaneously or
n Persistent: sustained beyond 7 days and is not self-
n Permanent: cardioversion has failed (or been
n Lone: patients <60 years without clinical/EKG
4/6/15 8
n Loss of atrial mechanical function - fibrosis n Irregular ventricular response n Elevated HR n Results in:
n Reduction in diastolic filling, stoke volume, CO n Risk of cardiomyopathy (chronic > 130 bpm)
n Asymptomatic afib 12X more common…
n AFFIRM Study
n Randomized 4070 patients with AF, F/U 3.5 years
n Rate-control = coumadin n Rhythm-control = cardioversion/meds/coumadin
n No difference in survival, stroke or QOL
n Trend towards increased survival in rate-control (P = .08) n Pts > 65 yrs and pts without h/o CHF had better outcomes
with rate-control therapy
n More thrombotic events in rhythm arm
AFFIRM Investigators, NEJM, 2002;347
4/6/15 9
n AFFIRM Study…the Caveats…
n No symptomatic patients n Average age of enrollees: 70 yrs n Only 63% of patients in control arm in sinus rhythm AFFIRM Investigators, NEJM, 2002;347
n 1376 patients with h/o afib, EF<35%, sx of CHF n RCT rate vs. rhythm n Outcome: time to death from CV causes, followed 37
n Results
n 27% in rhythm-control group died from CV causes n 25% in rate-control group died from CV causes n HR 1.06 n Other outcomes similar (CVA, worse CHF, all-cause mortality)
Roy, et al. NEJM, 2008;358.
4/6/15 10
n Previous goal HR: 60-80 bpm at rest; 90-115
n No evidence getting
n Guidelines: <110 BPM
Van Gelder IC et al. NEJM 2010;362 Groenveld HF, et al. J Am Coll Cardiol 2013
n What do I use?
n First choice: beta-blockers or calcium-channel
n Don’t give if Wolf-Parkinson-White or other accessory
pathways
n OK to combine nodal-blocking agents n Digoxin is second-line as it does not control HR
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
4/6/15 11
n Highly symptomatic or unstable:
n If minimal symptoms: rate
n Anticoagulation therapy should be
n Electrical cardioversion preferred
n Best if within 7 days of AF onset n Requires conscious sedation or anesthesia
n Most thrombi in atrial fibrillation arise from the LA
n Cardioversion can reduce LA appendage function n Peri-cardioversion period is particularly pro-
n Regardless of mode of cardioversion
4/6/15 12
n If AF < 48 hrs, AND low stroke risk, can safely undergo
cardioversion without anticoagulant therapy
n Must be documented!
n If AF > 48 hrs (or unknown duration) OR high-risk for
stroke (h/o stroke/TIA, mechanical heart valve), then 2 choices:
n Anti-coagulate X 3 weeks (therapeutic INR) before cardioversion n TEE to r/o clot
n Anti-coagulate for at least 4 weeks afterward
n Anti-coagulate also for those who would not normally require
coumadin
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
n Other factors besides LA clot may affect stroke risk
n Age n DM n LA flow velocity n HTN
n One study showed intra-atrial thrombus has been
n No difference in thrombus risk between electrical and
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
4/6/15 13
n Pharmacologic cardioversion in AF
n Type 1C
n Flecainide n Propafenone
n Type III
n Dofetilide (do not give out of the hospital) n Ibutilide
n Alternative to above: amiodarone
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
55 yo woman being seen for a new patient visit. Asymptomatic. PMH: HTN (untreated) PE: 150/80, HR 125 Irregularly irregular Does she need anti-coagulation?
1) Yes, with coumadin 2) Yes, with ASA 3) Yes, with coumadin and ASA 4) Yes, with dabigatran (pradaxa) 5) No
4/6/15 14
n A rhythm control strategy does not negate the
n Assuming anticoagulation is indicated
n Pooled analysis from five primary prevention
n Annual rate of stroke 4.3% in control group n 1.4% risk of stroke in the warfarin group (NNT=32) n Only 20% of subjects >75 yrs; excluded pts at risk
n Need to consider warfarin risks
n Symptomatic intracranial hemorrhage 0.4% with warfarin;
0.2% in control
n Major bleeding: 2.2% with warfarin; 0.9% in control
Bath PMW, et al. European Heart Journal, 2005
4/6/15 15
n Two randomized trials evaluated the use of ASA
n Pooled data: Risk of stroke with ASA 4.2%; risk of
n ASA may be better in preventing non-
Bath PMW, et al. European Heart Journal, 2005
n Risk of stroke with warfarin 3.1%; placebo 10% n Risk of stroke with ASA (300mg) 7.7%
EAFT Study Group, Lancet, 1993
4/6/15 16
n ACTIVE-W trial
n 3335 patients with AF + 1 other stroke risk factor n ASA + clopidogrel vs. coumadin n Outcomes: stroke, non-CNS systemic embolus, MI
n Stopped early because of superiority of warfarin in
Active Writing Group. Lancet, 2006;367(9526)
n Bottom line…anticoagulation with warfarin
Active Writing Group. Lancet, 2006;367(9526)
4/6/15 17
n CHADS2 previously used
n 0 pts: no treatment n 1 pt: ASA vs.
n 2 pts: anticoagulation
n Problem: doesn’t account
for other stroke RF
Gage BF, et al. JAMA, 2001;285. Risk Factor Score CHF (or reduced systolic function) 1 Htn 1 Age >75 yrs 1 DM 1 h/o Stroke/TIA 2
n For low-risk patients CHA2DS2-VASc
Olesen JB et al. BMJ, 2011;342 January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014 Risk Factor Score CHF/LV dysfunction 1 Htn 1 Age > 75 yrs 2 DM 1 Stroke/TIA/Thromboembolism 2 Vascular Dz (h/o MI, PVD) 1 Age 65-74 yrs 1 Sex category (female) 1
4/6/15 18
Lip GY et al. Stroke, 2010;41(12). CHA2DS2-VASc score Adjusted stroke rate based on cohort data (percent/year) 0% 1 1.3% 2 2.2% 3 3.2% 4 4.0% 5 6.7% 6 9.8% 7 9.6% 8 6.7% 9 15.2%
n CHA2DS2-VASc
n No benefit of oral anticoagulation if patients low-
n No treatment vs. ASA 81-325mg daily
n Neutral or positive benefit of anticoagulation for
n Score of 1: ASA or anticoagulation (anticoagulation
preferred)
n Score >2: anticoagulation
n Debate as to whether renal dz should be included
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
4/6/15 19
n 55 yo woman being seen for a new patient visit.
n PMH: HTN (untreated) n PE: 150/80, HR 125 Irregularly irregular n CHADS2 score=1 n CHA2DS2-VASc score = 2 points n Offer anticoagulation
n What about my 85 yo patient who falls?
n Predisposition to falling not considered a
n What about my patient with a remote h/o GIB?
n Risk of recurrent bleeding 1.2% n Resolved peptic ulcer disease bleeding (with H.
Man-Son-Hing M et al. Arch Intern Med, 2003;163.
4/6/15 20
n What are absolute contraindications to warfarin?
n Bleeding diathesis n Thrombocytopenia (<50K) n Untreated or poorly-controlled htn (> 160/90) n Non-compliance with INR monitoring
n Relative contraindications
n Significant ETOH use, NSAID use without PPI,
Man-Son-Hing M et al. Arch Intern Med, 2003;163.
n What about stopping anti-coagulation for a procedure?
n Mechanical heart valve→heparin (UFH vs LMWH)…most
n Non-valvular AF
n High-risk (CHADS 5 or 6) →heparin n Medium-risk (CHADS 3 or 4) →heparin full or low-dose n Low-risk (CHADS 1 or 2) →ok to stop coumadin for <1 week
n Novel agent: hold 1 day prior to procedure. If complete
Kraai EP et al. J Thromb Thrombolysis, 2009;28
4/6/15 21
n HAS-BLED risk
n Hypertension n Abnormal renal/liver
n h/o Stroke/TIA n Bleeding predisposition n Labile INR n Elderly (age>65 yrs) n Drugs*(NSAID or
Lip GY, et al. J Am Coll Cardiol, 2011;57(2):173-180
n Validated using trial data;
n Max=9pts n Risk of major
HAS-BLED score Bleeds/100 patients 1.13 1 1.02 2 1.88 3 3.74 4 8.70 5 12.50
4/6/15 22
XII Xa IX X VII XI II IIa Fibrin Fibrin Clot
Oral Xa Inhibitors Rivaroxaban Apixaban Edoxaban Oral IIa Inhibitor Dabigatran
Dabigatran (Pradaxa) Rivaroxaban (Xarelto) Apixaban (Eliquis) Edoxaban (Savaysa)
Approval Status
Afib
Treatment*
Afib
treatment
Afib
Afib
Treatment* Mechanism DTI Anti-Xa Anti-Xa Anti-Xa Renal Metabolism 80% 30-60% 25% 50-60%
4/6/15 23
Dabigatran (Pradaxa) Rivaroxaban (Xarelto) Apixaban (Eliquis) Edoxaban (Savaysa) T ½ Hours 12-17 5-9 8-15 10-14 CYP3A4
Yes
p-glycoprotein Yes Yes
Antidote None None None None Monitoring PTT Anti Xa Anti Xa Anti-Xa Dosing 150mg BID (CrCl >30) 15mg (CrCl 30-40) or 20mg/day 5mg BID (Cr <1.5) or 2.5mg BID (Cr >1.5, <60 kg or age >80) 60mg (CrCl 50<95) or 30mg (CrCl 15-50 or <60kg)
n AF Guidelines: “with prior stroke, TIA or
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
4/6/15 24
n Randomized Evaluation of Long-Term
n 18,113 patients with afib and stroke risk
n RCT Dabigatran vs. warfarin n Dabigatran 110mg or 150mg BID
Connolly SJ. N Engl J Med, 2009;361.
n RE-LY Study n Primary outcome: stroke or embolism, F/U 2
n 1.69% warfarin n 1.53% for 110mg dabigatran (non-inferior) n 1.11% for 150mg dabigatran (superior)
n Rate of major bleeding
n 3.36% warfarin n 2.71% dabigatran 110mg n 3.11% dabigatran 150mg (p-value NS)
Connolly SJ. N Engl J Med, 2009;361.; Nagarakanti R, et al. Circulation, 2011;123
4/6/15 25
n Caveats…
n Dyspepsia/gastritis n GI bleeding increased with dabigatran n Increased MI’s in dabigatran groups (RR 1.38; CI
n Valvular AF excluded n Warfarin 64% in therapeutic range
n As effective as coumadin post-cardioversion
n Pros: No INR monitoring, fewer dietary/drug
n Cons: BID, expensive, no antidote (is dialyzable),
n Dosing: 150mg BID if CrCl>30 (75mg BID if CrCl
n Substrate of transporter p-glycoprotein
n P-gp inducers (St. John’s wart, rifampin) decrease levels n P-gp inhibitors (ketoconazole) increase levels
4/6/15 26
n Baseline labs: CBC, Cr, PTT (LFTs) n Patient Education med guide n Monitoring
n Adherence n Adverse effects (GI) n Bleeding/Stroke
n 2014 Guidelines: “Re-evaluate renal function
n 12/7/11: FDA investigation into bleeding
n 11/2/12: “bleeding rates associated with new use of
n Meta-analysis: more coronary events
n 30,514 patients n OR 1.33 (CI 1.03-1.71) for MI or ACS n May be class effect
Uchino K and Hernandez AV. Arch of Intern Med, 2012
4/6/15 27
n Rivaroxaban, epixaban (edoxaban) n 4/13 Cochrane Review on Xa Inhibitors vs.
n Decreased strokes (OR 0.78, CI 0.69-0.89) n Decreased embolic events (OR 0.53, CI 0.32-0.87) n Decreased intra-cranial hemorrhages (OR 0.56; CI
n Decreased all-cause mortality (OR 0.88, CI
Bruins Slot KMH and Berge E. Cochrane Review, 2013 (8).
n Direct Xa inhibitor n Once daily dosing
n 20mg qhs if CrCl >50 n 15mg if CrCl 15-50
n Beware CYP3a4 inhibitors: diltiazem,
4/6/15 28
n 14,264 non-valvular afib (mean CHADS2=3.5)
n Rivaroxaban 20mg/d vs. 15mg/d vs. warfarin n Endpoint: stroke or systemic embolism n Non-inferior to warfarin in AF patients
n 1.7% rivaroxaban vs. 2.2% warfarin n Bleeding rates overall equal but statistically fewer intracranial
and fatal bleeding with rivaroxaban (more GIB)
n Low rate of therapeutic INR (58%)
Patel MR, et al. N Engl J Med, 2011;365(10).
n Factor Xa inhibitor n ARISTOTLE Trial
n 18,201 afib patients with 1 additional risk factor
n Apixaban 5mg BID (2.5mg BID in select pts) vs. warfarin n Outcomes: stroke, systemic embolism n Apixaban superior to warfarin in primary outcome
n Lower mortality and less bleeding
n Approved Dec 2012
Granger CB, et al. N Engl J Med, 2011;365.
4/6/15 29
n Dose 5mg vs. 2.5mg BID
n Use 2.5mg BID if 2 of the following:
n Cr >1.5 mg/dL, > 80 yrs, body weight <60 kg
n Not recommended if severe hepatic impairment
55 yo woman being seen for a new patient visit. Asymptomatic. PMH: HTN (untreated) PE: 150/80, HR 125 Irregularly irregular CHADS2 score=1; CHA2DS2-VASc score = 2 points; HAS-BLED score = 1 Does she need anti-coagulation?
1) Yes, with coumadin 2) Yes, with ASA 3) Yes, with coumadin and ASA 4) Yes, with dabigatran 5) No
4/6/15 30
n Design: Double-dummy RCT trial of 21,105
n End-pt: stroke or systemic embolism
Giugliano RP, et al. N Engl J Med, 2013;369.
n Results: Edoxaban non-inferior to warfarin n Primary end-point (per protocol)
n 1.5% warfarin n 1.18% high-dose edoxaban (HR 0.79, CI 0.63-0.99) n 1.61% low-dose edoxaban (HR 1.07, CI 0.87-1.31)
n Lower rates of major bleeding and mortality
Giugliano RP, et al. N Engl J Med, 2013;369.
4/6/15 31
n Black Box Warning
n Less effective in patients with CrCl>95 mL/min n Check renal function before treatment n Based on subgroup analysis
n Patients with CrCl >80 more strokes/emboli on 30mg dosing
n Substrate of transporter p-glycoprotein
n P-gp inducers (St. John’s wart, rifampin) decrease levels n P-gp inhibitors (ketoconazole, verapamil) increase levels
n Paroxysmal AF primarily emanates from the
n Less effective than ablation for SVT, a-flutter
n Guidelines: ablation recommended (in
Wann et al. JACC, 2011;57(2).
4/6/15 32
n 90% thrombi form in left
n Watchman Device
n Self-expanding, designed
Photo: Forbes.com
n PROTECT AF Study n 707 non-valvular AF patients + 1 stroke RF n Watchman device vs. warfarin n Percutaneous LA appendage closure filter device n End-points: stroke, systemic embolism, CV death n Mean follow-up 2.3 years n Non-inferior to warfarin but more safety events n 3.8 year follow-up Watchman device superior with 8.4% event
rate vs. 13.9% event rate
Circulation, 2013;127; JAMA 2014;312(19)
4/6/15 33
n Lariat device – transcatheter ligation of LAA.
n Being studied now
n Small studies, more bleeding, more pericardial
n May be best for patients who cannot take
n What’s “Out”---Dronedarone
n Approved July 2009 for low-to intermed-risk pts
n Similar to amiodarone but non-iodinated, thus no
4/6/15 34
n ANDROMEDA trial n Patients with symptomatic CHF RCT
n Stopped early due to increased mortality in
dronedarone group
n Mostly worsened CHF
Kober L, et al. NEJM, 2008;358.
n 3236 patients >65 yrs with at least 6 mo h/o permanent
n Dronedarone vs. placebo n Outcome: stroke, MI, systemic embolism, death from
n Study stopped early for safety reasons (more stroke, CV
n Post marketing reports of hepatocellular injury n Bottom line…would avoid dronedarone in CAD/
Connolly SJ et al. NEJM, 2011:365;24
4/6/15 35
n Paroxysmal
n Anticoagulate; treat if symptoms
n Persistant
n Anticoagulate, rate control n Can then decide whether to accept permanent AF
n Recurrent paroxysmal
n Anticoagulate, rate control n If disabling symptoms, antiarrhythmic meds and
Fuster et al. ACC/AHA/ESC Practice Guidelines. JACC, 2006;48(4).
n No heart disease→flecainide, propafenone,
n If no response→amiodarone or ablation
n If heart disease→dofetilide or sotolol
n If no response→amiodarone or ablation
n If CHF→amiodarone or dofetilide
n If no response→ablation
January CT et al. AHA/ACC/HRS Practice Guidelines. J Am Coll Cardiol. 2014
4/6/15 36
n Hypertension with LVH→amiodarone
n If no response→ablation
n Hypertension and NO LVH →flecainide,
n If no response→amiodaroneor dofetilide or ablation
Wann LS, et al. Circulation, 2011;123(1)
