slide-1
SLIDE 1

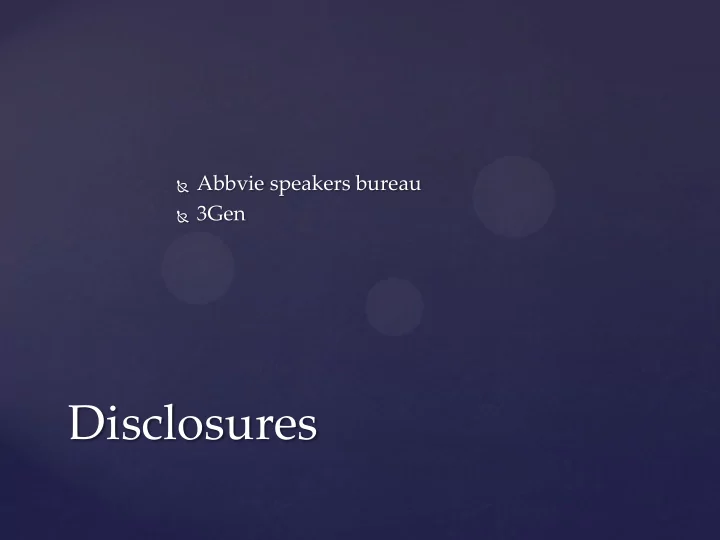

Disclosures

 Abbvie speakers bureau  3Gen

slide-2
SLIDE 2

Disclosures

 Today’s program sponsored by 3Gen,

manufacturer of dermatoscopes

slide-3
SLIDE 3

Mitigation of Bias

 Today’s program will focus on the science and

technique of dermoscopy rather than the sale of specific devices manufactured by 3Gen

slide-4
SLIDE 4

Dermoscopy: A closer look

Jenni Holman MD

slide-5
SLIDE 5

Dermatology Associates of Tyler

  • BS Zoology, University of Oklahoma
  • M.D., University of Oklahoma
  • Dermatology Residency, University of Missouri
  • Currently in Tyler, TX in dermatology group

practice

  • Medical, surgical, and cosmetic dermatology
  • Married to ER physician and mother of 3
slide-6
SLIDE 6
  • Define dermoscopy
  • Explain the applications of dermoscopy
  • Recognize dermoscopy basics
  • Identify dermatoscopic characteristics of

melanoma

  • Identify dermatoscopic characteristics of

common non-pigmented lesions

Dermoscopy: A Closer Look

slide-7
SLIDE 7

DERMNETNZ.ORG

slide-8
SLIDE 8
  • Dermoscopy: The examination of skin

lesions with a dermatoscope

  • Primarily used as a aid to differentiate

benign and malignant lesions

Dermoscopy defined

slide-9
SLIDE 9

Oil Immersion Dermatoscope

slide-10
SLIDE 10

Dermlite

slide-11
SLIDE 11

Dermoscopy Photography

slide-12
SLIDE 12

Smartphone Dermatoscopes

slide-13
SLIDE 13
  • Intoroduced in 1663 by Kolhaus
  • Improved by addition of oil immersion in 1878

by Ernest Abbe

  • Johann Saphier added a built-in light source
  • Goldman coined the term “dermascopy”

History of Dermoscopy

slide-14
SLIDE 14
  • Aid in melanoma diagnosis
  • Monitor pigmented lesions
  • Diagnosis of scabies or pubic lice
  • Wart diagnosis
  • Fungal diagnosis
  • Differentiate and diagnose tinea vs alopecia

areata

  • Trichoscopy
  • Surgical margin determination

Dermoscopy Applications

slide-15
SLIDE 15
  • Increase diagnostic accuracy for melanoma
  • Increased sensitivity by 20%
  • Increased specificity by 10%

Dermoscopy Applications

slide-16
SLIDE 16

Dermoscopy Basics

slide-17
SLIDE 17

Is it melanocytic or not?

FIRST STEP

slide-18
SLIDE 18
  • Melanocytic lesions are

composed of 3 basic structures

  • Pigment Network
  • Dots and Globules
  • Streaks
  • Amorphous Areas
  • Blue Areas

FIRST STEP

slide-19
SLIDE 19
  • A delicate regular grid of brownish

lines over a light brown background

  • Correlates to rete ridges (pigment)

and dermal papillae

  • A pigment network is the hallmark
  • f a melanocytic lesion

Pigment network

slide-20
SLIDE 20

Pigment Network

  • A Pigment Network
  • Reticular Pattern
  • Lattice like

structure

  • Localized or

Diffuse

slide-21
SLIDE 21

Dots and Globules?

slide-22
SLIDE 22

Amorphous Areas

slide-23
SLIDE 23

Is it melanocytic?

slide-24
SLIDE 24

Melanocytic: Benign or Not?

slide-25
SLIDE 25

Color

slide-26
SLIDE 26

Symmetry  Shape  Pattern

slide-27
SLIDE 27

Dermoscopy of Melanoma

slide-28
SLIDE 28
  • Mulitple Methods
  • 3 point Rule
  • Menzies Method
  • 7 point Rule
  • Pattern Analysis
  • ABCD
  • Kittler Method

Melanoma Diagnosis

slide-29
SLIDE 29
  • Asymmetry of Color
  • Asymmetry of Pattern
  • Blue or White Structures

3 Point Method

slide-30
SLIDE 30
  • Major Criteria
  • Irregular Pigment Network
  • Blue White Veil
  • Irregular vascularity
  • Minor Criteria
  • Irregular dots and globules
  • Irregular streaks
  • Irregular blotches
  • Regression Structures

7 Point Method

slide-31
SLIDE 31

Non-Melanocytic Lesions

slide-32
SLIDE 32
  • Pigmented non-Melanocytic

Lesions

  • Seborrheic Keratoses
  • Pigmented Basal Cell Carcinoma
  • Dermatofibromas
slide-33
SLIDE 33

Seborrheic Keratosis

  • No true network/globules
  • Milia-like cysts
  • “Fat Fingers”/ Cerebriform Surface
  • Fissures/Ridges
  • Blue-Gray dots
slide-34
SLIDE 34

Milia Like Cysts?

slide-35
SLIDE 35

Cerebriform Surface?

slide-36
SLIDE 36
  • Absence of pigment network
  • Linear and arborizing telangiectasia
  • Leaf like areas on periphery
  • Blue-grey ovoid nests or globules
  • Spoke wheel areas

Basal Cell Carcinoma

slide-37
SLIDE 37

Arborizing Telangiectasia?

slide-38
SLIDE 38

Basal Cell Carcinoma leaf like areas

slide-39
SLIDE 39

Basal Cell Carcinoma Blue–grey areas

slide-40
SLIDE 40
  • Widspread blue/red lacunae
  • Homogenous red-blue-black

areas

Vascular Lesions

slide-41
SLIDE 41

Vascular Lesions Lacunae

slide-42
SLIDE 42

Hemorrhage
