direct-write e-beam lithography U.D. Zeitner, T. Flgel-Paul, T. - PowerPoint PPT Presentation

Spectrometer gratings based on direct-write e-beam lithography U.D. Zeitner, T. Flgel-Paul, T. Harzendorf, M. Heusinger, E.-B. Kley Fraunhofer Institut fr Angewandte Optik und Feinmechanik Jena, Germany 10. October 2017 Electron-beam

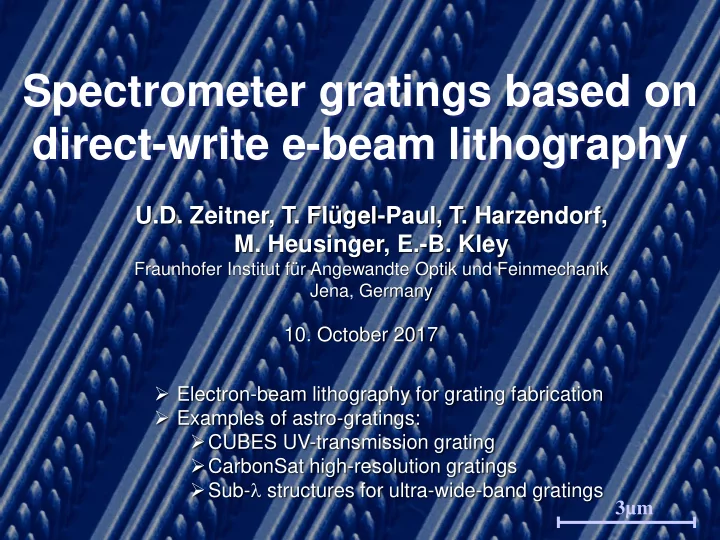

  1. Spectrometer gratings based on direct-write e-beam lithography U.D. Zeitner, T. Flügel-Paul, T. Harzendorf, M. Heusinger, E.-B. Kley Fraunhofer Institut für Angewandte Optik und Feinmechanik Jena, Germany 10. October 2017  Electron-beam lithography for grating fabrication  Examples of astro-gratings:  CUBES UV-transmission grating  CarbonSat high-resolution gratings  Sub-  structures for ultra-wide-band gratings 3µm

  2. High Performance Applications of Gratings Spectrometers for Astronomy Manipulation/Compression of and Earth Observation Ultra-Short Laser Pulses Sentinel 4 (ESA) compressed Pulse chirped Pulse relevant parameters:  spectral dispersion  bandwidth often extreme demands  efficiency / polarization to obtain required performance  wavefront  straylight  size, …

  3. Grating Technology at the IOF e - 1. Resist exposure with resist e-beam lithography Cr-layer SiO 2 -Substrate 2. Resist development 3. Chromium etching (RIE) 4. Deep etching into optional: substrate (ICP) multiple iterations of the process for multi-level elements 5. Removal of Cr-layer

  4. Gratings on dielectric layer stacks -1 st order 0 th order grating HR layer stack 1µm substrate • highly efficient reflection gratings • transmission gratings with tailored polarization properties

  5. The Vistec SB350 OS e-beam writer max. writing field: 300mm x 300mm max. substrate thickness: 15mm resolution (direct write): <50nm huge flexibility to address grid: 1nm tailor the structure stitching error: < 12nm P-V / < 2.2nm RMS parameters! placement error: < 14nm P-V writing strategy: variable shaped beam / cell projection e-beam angular apertures SB350 OS very fast electron optics (Vistec) writing process!

  6. Key Performance: Writing Accuracy wave-front measurement (1µm period grating + technology, Littrow-Mount) 19mm + 6.3 nm 50mm period variation [pm] - 6.6nm position [mm] wavefront placement PV 12.8nm <10.3 nm period variation < 5 pm rms 1.4nm <1.1 nm - Asphere-Test CGH Applications requiring - Puls compression gratings this accuracy - Spectrometer gratings (space application)

  7. Accuracy of writing process: straylight Optimization of e-beam writing process BSDF of -1 st DO: FIMAS EBB 51526 sr -1 2 10 conventional e-beam 20140711 #22 8Pass, Std I 20130917 FIMAS_uze147e_3 reflex from writing process Wein-Formula with  =2nm substrate 1 10 -1 ] BSDF [sr 0 10 optimized writing process -1 10  significant reduction of peak number and intensity -2 10 0 2 4 6 8 10 angle wrt. -1 st diffraction order  [°]

  8. Examples of realized spectrometer gratings

  9. CUBES – UV Transmission Grating  CUBES (Cassegrain U-Band Brazilian ESO-Spectrograph  Requirements: • spectral band: 300nm – 400nm • line density: 3448 lines/mm  p=290nm • AOI: 31° • grating size: 250 x 250 mm² ; mosaic of 2x [250mm x 130mm]  Challenges: • commercial VPH gratings difficult in the UV  Solution: • Binary fused silica gratings

  10. ESO Cubes Spectrometer Grating parameters: wavelength: 300nm ... 400nm period: 290nm SiO 2 -option: 706nm efficiency [%] 100nm ALD-option: Al 2 O 3 efficiency [%] 526nm 221nm

  11. Atomic-Layer-Deposition (ALD) ALD-layer precursor purge pulse 1 repeat ALD cycles N times precursor pulse 2 purge 1µm • surface activated chemical reactions • conformal overcoating of surface reliefs • large number of materials possible, e.g. TiO 2 , Ta 2 O 5 , Al 2 O 3 , HfO 2 …

  12. CUBES – UV Transmission Grating design best fit of measurement data realized grating during efficiency measurement grating size: 250mm x 130mm

  13. Tiling for Larger Gratings single grating 210mm x 210mm active alignment for wave-front optimization  also possible for arrangement of 2 reflection gratings transmission gratings (420mm x 210mm)

  14. Carbon Monitoring Satellite (CarbonSat) instrument concept: Parameter NIR SWIR-1 747nm 1590nm wavelength … 773nm … 1675nm NIR grating period 423nm 991nm angle of incidence to the 63.6° 55.5° SWIR-1 grating (equivalent in air) Transmission Gratings in -1. SWIR-2 mean angle of diffraction order Littrow configuration Angular dispersion 0.3 ° / nm 0.1°/nm polarization avg. >70% >70% efficiency polarization sensitivity <10% <10%

  15. NIR – High Resolution Transmission Grating

  16. NIR – High Resolution Transmission Grating use high-refractive-index (dielectric) coating to reduce depth

  17. SWIR-1-grating Optical Performance NIR-grating AOI: 64° AOI: 55°

  18. Direct Glass-to-Glass Bonding Advantages: adhesive free glass-to-glass connection no additional optical interface • achieved alignment accuracy: 0.25mrad (< 1 arcmin) • bond strength up to 2/3 of bulk fused silica • current TRL: 6

  19. Wide-Band Gratings • typical requirements for a low-resolution, broad-band disperser  spectral range: several 100nm  AOI: near-perpendicular incidence  period: few µm Blaze-Grating 100% classical 80% approach efficiency 60% 40% • blazed-grating in low order (saw-tooth profile) 20% 0% 340 440 540 640 740 840 940 1040 wavelength [nm]

  20. Echelle or Echellette Structures Electron Beam Lithography Ion Beam Etching of Mask Wet Chemical Etching of Silicon „Blaze Angle“ can be adjusted by crystalline orientation of Silicon substrate

  21. Echelle or Echellette Structures period = 30µm period = 2µm also lower line densities possible integrated cross- dispersion grating currently shown on 6” size substrates by direct-write (up to 12” possible) structuring

  22. Alternative: Effective Index Gratings  sub-wavelength pattern with varying fill factor blazed grating local effective index = sub-wavelength local fill-factor variation structures Ph. Lalanne et al. 1998 Advantages: only one lithography step tailoring of dispersion properties

  23. Effective Medium Gratings FLEX (fluorescence explorer); GAIA (global astrometic interferometer [500nm – 800nm] for astrophysics); [750nm – 800nm] top view grating period

  24. Wide-Band Reflection Grating • typical requirements  based on a concave grating  AOI: 0.5°  spectral range: 340nm – 1050nm  period: 30µm 100 • effective medium approach 80 TE diffraction eff. [%] pillars bulk air voids 60 top view 40 20 SiO 2 Al 2 O 3 (30nm) 0 400 600 800 1000 aluminum wavelength [nm] side view 30µm

  25. Wide- Band Reflection Grating … … realized by E -beam lithography measured diffraction efficiency: including reduced UV reflectivity of Al-layer  very weak spectral dependency of diffraction efficiency

  26. Summary • Direct write electron-beam lithography has a huge potential for the realization of high-performance gratings • It offers a unique flexibility and the accuracy to meet even Sub-period engineering by combining extreme requirements E-Beam lithography and Atomic-Layer-Deposition L To make use of the large flexibility and the • Atomic-Layer-Deposition (ALD) considerably extends the advantageous optical properties requires talking with flexibility to access the full potential of advanced grating designs the grating manufacturer already during the design of the instrument !!! L (not after PDR…) • Realization of GRISMs by direct bonding • Examples are: • high resolution gratings with low polarization sensitivity • echelle-type gratings with integrated cross-disperser • ultra-wide-band gratings for lower resolution spectrometers
