SLIDE 1
SETTING A TARGET
% l/con/hr ILI
X X X
SAME: Production Consumption Network length
- No. Service connections
Length service connections Average pressure SAME: Target Level ?
Economic problem having a technical solution
DIFFERENCE: Costs

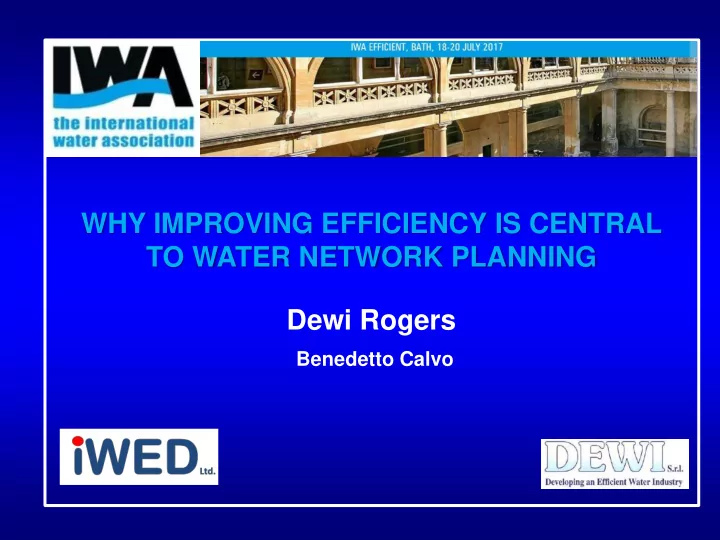

Dewi Rogers Benedetto Calvo SETTING A TARGET SAME: Production - - PowerPoint PPT Presentation
Dewi Rogers Benedetto Calvo SETTING A TARGET SAME: Production - - PowerPoint PPT Presentation
WHY IMPROVING EFFICIENCY IS CENTRAL TO WATER NETWORK PLANNING Dewi Rogers Benedetto Calvo SETTING A TARGET SAME: Production Consumption Network length No. Service connections Length service connections Average pressure SAME: Target Level ?
SLIDE 2
SLIDE 3
TECHNICAL SOLUTION
Single inlet sectors Pressure management Leakage detection and repair Hydraulic model
SLIDE 4
WATER LOSS
Economic and not technical parameter Leakage too high – excessive operational costs Varies from network to network Leakage too low – excessive intervention costs Has a direct impact on the customer - tariff
SLIDE 5
Exports Consumption Intervention
OPTIMUM LEAKAGE LEVEL
Requirement – system to generate the unique network curves
DMAs Pressure Control Repair leaks Replace network
Production Total
TARGET LEAKAGE
Current production
SLIDE 6
COMPONENTS INCLUDED
Typical accuracy of network data Impact of pressure management on leakage and maintenance costs Resource availability and intermittent supply Efficiency of pumps and their combination Cost / benefit of leakage detection and repair Commercial losses
SLIDE 7
EFFICIENCY INDICATOR
Intervention cost / economic benefit dewi@iwedwater.com
SLIDE 8
PALM+ checkup
Detail cost, benefit diagnostic
1 2 3 4 5 1 2 3 4 5 6 7 C (M €/year) Q (M m3/year)
Production cost Intervention cost Total cost
Actual 24/7 Optimum production (M m3/year) 5.16 5.16 3.17
- utflow (M m3/year)
consumption (M m3/year) 1.75 1.75 1.75 technical loss (M m3/year) 3.32 3.32 1.33 commercial loss (M m3/year) 0.09 0.09 0.09 total loss (M m3/year) 3.41 3.41 1.42 total loss (%) 66.03 66.03 44.70 total loss (l/s/km) 0.24 0.24 0.10 leakage recovery (M m3/year) 1.99 energy cost (M €/year) 1.16 1.16 0.30 maintenance cost (M €/year) 0.18 0.18 0.18 intervention cost (M €) 1.65 economic saving (M €/year) 0.86 TOE/year 690.19 690.19 180.54 new production cost (M €)
SLIDE 9
ACCURACY OF PALM+
Actual Cost - € 1.11 M Final Leakage value - 19.0%
SLIDE 10
PALM+sectors
Defining the priority – where to intervene
1 2 3 4 5 1 2 3 4 5 6 7 C (M €/year) Q (M m3/year)
Production cost Intervention cost Total cost
Sector Priority Loss recovery (m3/year) Actual loss (%) Optimum loss (%) I cost (€) ASIAGO 1 534596 59 25 L GALLIO 2 306175 71 29 L ROTZO 3 56391 70 29 L ENEGO 4 270134 80 33 L FOZA 5 79891 66 27 L ROANA 6 485812 69 29 L CONCO NO 41 41 LUSIANA NO 44 44 Study cost (€) Total intervention cost (€)
SLIDE 11
PALM+ masterplan
INVESTMENT COST ECONOMIC BENEFIT RESOURCE AVAILABILITY
Balancing leakage reduction, consumption growth and resource availability
SLIDE 12
PALM+ masterplan
Defining the priority – where to intervene, when and how
SLIDE 13
Maximum tariff Predicted tariff
IMPACT ON TARIFF
Engineer the solution and the finance
SLIDE 14
PALM+ resilience
Defining the most economic solution
200 400 600 800 1000 1200 1400 1600 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027 2028 2029 2030 2031 2032 2033 2034 2035 Q (M m3/year) Year
Production capacity Production
Reduce leakage further Increase production RESILIENCE
SLIDE 15
Dynamic control to maintain efficient operation
PALM+ control
PALM+ scada
SLIDE 16
CONCLUSIONS
Water loss is primarily an economic and not a technical issue PALM+ defines the target operating level for any network – also over extended time period PALM+ derives the future consumption and balances water loss reduction against new production facility PALM+ assesses the impact any investment will have
- n the tariff to ensure a viable solution before any
detail design has even started. PALM+ can maintain the efficient operation of a network in the future despite the dynamism.
SLIDE 17
