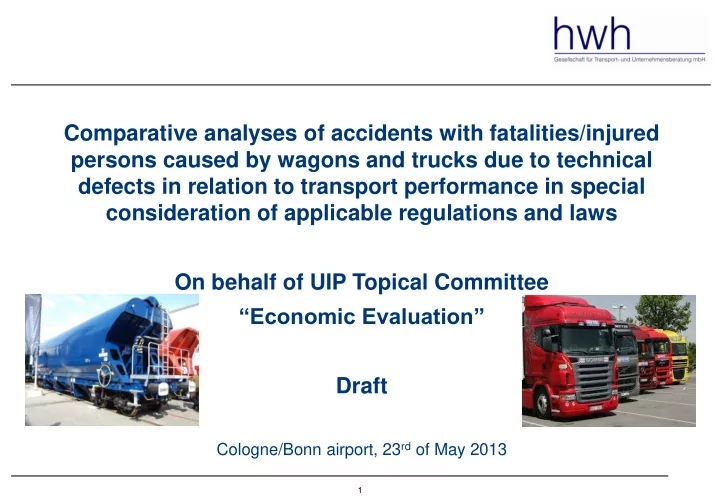

Comparative analyses of accidents with fatalities/injured persons caused by wagons and trucks due to technical defects in relation to transport performance in special consideration of applicable regulations and laws On behalf of UIP Topical Committee “Economic Evaluation” Draft

Cologne/Bonn airport, 23rd of May 2013

2

• 1. Overview accident statistics
• 2. Presentation of first results
• 3. Discussion further proceedings

3

Working packages of the study – mandated with effect of 11.04.13 only WP 1

UIP topical committee „economic evaluation“ has mandated hwh with effect of 11.04.2013 to fullfill a feasibilty study “accident statistics” (WP 1) in order to analyse, whether statistical information regarding deaths and casualties caused by technical failures wagon and truck is available for EU-countries for 2003 until 2012.

WP1 WP2 WP3 WP4

If statistical information is available in quantity and especially high quality the amount of deaths and casualties in rail freight and truck traffic shall be compared by tkm and/or km Interviews with selected IWK‘s will be carried out in order to receive more information about accident data as well as information about the mileage of wagons Interviews with selected wagon keepers from national railways in order to receive more information about accident data as well as information about the mileage of wagons

√ √

4

A lot of statistical information about accidents in EU-27 is available – but not for technical failures of trucks or wagons (1)

Quelle Bemerkungen AUT Getoetete_nach_unfallart_und_personenkategorie_a uf_dem_oesterr._schienenve_2011 Angaben über Getötete bei Schienenunfällen, ohne Unterscheidung nach PV und GV AUT Schwere_schienenverkehrsunfaelle_nach_art_der_un faelle_auf_dem_oesterr2011 Angaben über Art der Unfälle im Schienenverkehr AUT Vorfallstatistik_2011 Angaben über Getötete bei Schienenunfällen und Angaben über Unfallart ohne Unterscheidung nach PV und GV Eurostat Übersicht aller Toten ohne Unterscheidung nach GV und PV, Zahlen für EU-27 verfügbar CH BAV Publikation Verkehrsunfälle in der Schweiz 2011 Überblick Unfälle, Getötete über alle Verkehrsarten ohne Unterscheidung PV und GV CH BAV Unfallstatistik alle Verkehrsträger Überblick Unfälle, Getötete über alle Verkehrsarten ohne Unterscheidung PV und GV CH BAV Unfallstatistik Eisenbahn Überblick Unfälle, Getötete im SV ohne Unterscheidung PV und GV CH BAV_Sicherheitsbericht_2011_D Zahlen inkl. Passagiere, ohne Unterscheidung PV und GV, Zahlen Strasse für Auto- und Trollybus CH Bericht+Evaluation+Sicherheit+Schienengüterverkehr Überblick Unfälle, Getötete im SV ohne Unterscheidung PV und GV, Angaben über Unfallereignisse pro Tkm und Zkm, Vergleich Schiene, Strasse ADAC Anzahl Unfälle und Verunglückter im Güterstraßenverkehr 2008 Allianz pro Schiene Anzahl getöteter Reisende im Schienen- und Personenkraftverkehr BAG Angaben über Unfallzahlen und Personenschäden mit Beteiligung von Güterkraftfahrzeugen bis 2003, sowie Eisenbahnunfällen mit Beteiligung von Gefahrgut bis 2002 BASt Destatis Anzahl Unfälle mit Personenschaden und Anzahl Tote

• Stat. Bundesamt - Unfälle von Güterkraftfahrzeugen

Unfälle von Gkfz im Strassenverkehr, Zahlen auch pro Bundesland, nach Unfallgrund

5

Quelle Bemerkungen VdB Anzahl Unfälle von Gefahrguttransporten LKW und Schiene, Anteil der ödlich endenden Unfälle mit und

• hne Lkw-Beteiligung

http://www.era.europa.eu/Document- Register/Documents/SafetyReport2012.pdf Railway safety performance in the EU Unfälle mit Todesopfern und Schwerverletzten, Selbstmördern im Schienenverkehr, nach Unfallkategorien, ohne Unterscheidung GV, PV, Jahrestabellen ganz EU und aufgeteilt, FR Rapport accidente 2011 IT Lévoluzione della sicurezza 2011 Zahlen im internationalen vergleich, Unfälle/Verletzte pro trkm LUX - Rapport manuell 2011 Keine Unterscheidung GV, PV EBU Jahresbericht_2010 Übersicht aller Eisenbahnunfälle und Störungen ohne Unterscheidung nach GV und PV inkl. Unfälle mit Lkw, Anzahl der Verletzten, keine Toten EBU Jahresbericht_2011 Übersicht aller Eisenbahnunfälle und Störungen ohne Unterscheidung nach GV und PV ITF Road Safety Annual Report 2011 Zahlen im internationalen Vergleich für den Strassenverkehr, ohne Unterscheidung GV, PV UIC International Railway Statistics 2009 UIC International Railway Statistics 2010

A lot of statistical information about accidents in EU-27 is available – but not for technical failures of trucks or wagons (2)

But usually no differentiation between passenger and freight traffic. Especially no differentiation between technical failures and other causes for accidents Also research in the national railway agencies databases

6

All kind of information about accidents in rail and road are available but mostly without further differentiation

Source: EC Statistical Pocket Book, Transport in figures 2012

• Only passengers killed
• No rail freight
• Causation of accident not known
• All kind of road traffic
• Causation of accident not known

7

The amount of deaths caused by accidents with trucks involved is available until 2009

Source: European Road Safety Oberservatory – Traffic Safety Basis Facts 2011 - DaCoTA

Amount of deaths – Truck traffic EU 27 without Bulgaria and Latvia

8

The amount of deaths caused by accidents with rail is also available

Source: Eurostat 2011

EU Statistics 2011 for railway accidents in EU-27 No differentiation between freight and passenger trains No differentiation between causes of accidents

9

Source: ERA Accident Archive combined with ERADIS database

Fatal train accidents with five or more fatalities

10

Finally a data base for railway accidents with differentiation between the causations of accidents has been found

Source: http://erail.era.europa.eu/investigations.aspx

11

With three statistics the foundation is laid for further comparisons of accidents between rail and truck

• European Road Safety Oberservatory –

Traffic Safety Basis Facts 2011 - DaCoTA

• EU 27 without Bulgaria and Latvia
• Years 2003 until 2009
• Only truck accidents (all causations)
• Only deaths, number of casualties not

available on EU-level

• ETAC European Truck Accident Causation,

IRU (2007), Study about causations of truck accidents  appr. 5% of accidents were caused by technical failure

Truck

• www.erail.era.europa.eu/investigation.aspx
• EU 27, Norway, Switzerland and Croatia
• Years 2005 until 2012
• Manual research of accident reports for each

year and country

• Accounting of deaths and casualties only in

case of technical failure wagon responsible for accident

Rail freight

12

In focus of the statistical research have been EU 27 countries as well as Norway, Switzerland and Croatia

Albanien Monte- negro Serbien Schweiz NORDSEE ATLANTIK MITTELMEER Dänemark Finnland Polen Frankreich Deutschland Spanien Portugal Griechenland Italien Türkei Österreich Tschechien Estland Litauen Weißrussland Ukraine Rumänien Ungarn Moldau Bulgarien Russland Irland Großbritannien Kroatien Bosnien/ Herze- govina Norwegen Malta Schweden Slowakei

13

• 1. Overview accident statistics
• 2. Presentation of first results
• 3. Discussion further proceedings

14

It is assumed that appr. 5% of all truck accidents are caused by technical failures*

*Source: ETAC European Truck Accident Causation, IRU (2007),

85,2% 5,3% 5,1% 4,4%

Human Factors Technical Failure Infrastructure Condition Weather Condition Main causes for truck accidents

• The International Road Transport Union (IRU)

has executed the scientif study „ETAC“ – European Truck Accident Causation in 2007

• Appr. 624 accidents with truck involved have

been examined in detail

• In 5,3% of all cases the cause of the accident

lies in technical failure of the truck (brakes, steering, tires,….)

• On European level there exist no statistcs about

accidents of trucks because of technical failures

• For further comparisons between road and rail

it is assumed, that 5% of all truck accidents happen because of technical failure

15

In Germany statistics for truck accidents because of technical failures are available for single years

Source: Statistisches Bundesamt, Verkehr, Verkehrsunfälle, Fachserie 8 Reihe 7, 2011, S. 274 und S.85

Technical Failures Truck Accidents 2011 in Germany Technical Failure Fatalities Injured Persons Electric lighting

• 20

Tires 1 172 Brakes 2 63 Steering 1 17 Towing device

• 18

Others 1 86 Total 5 376 Fatalitites and injured persons all truck accidents 2011 in Germany All Truck accidents Fatalities Injured Persons Total 212 2.930 Share of fatalities caused by technical failure: 2,3% Share of injured persons caused by technical failure: 12,8% The german truck accident statistics 2011 shows, that the chosen causation rate for technical failures (5%) is not really an exact figure but solely an assumption, based

• n a scientific study.

16

As no other figures are available it will be assumed that

• appr. 5% of all truck accidents are caused by technical failures*

Amount of deaths – Truck traffic EU 27 without Bulgaria and Latvia

Source: European Road Safety Oberservatory – Traffic Safety Basis Facts 2011 – DaCoTA *Assumption based on study of ETAC European Truck Accident Causation, IRU (2007),

17

The amount of fatalities caused by technical failures truck is much higher than fatalities caused by rail freight accidents (technical defects wagon) Comparison Truck vs. Rail Freight Amount of deaths EU 27*

* Truck without Bulgaria and Latvia Source: European Road Safety Oberservatory – Traffic Safety Basis Facts 2011 – DaCoTA research on www.erail.era.europa.eu/investigation.aspx

18

The accident statistics have been matched with statistics about transport performance rail and road

Rail freight and Road traffic EU 27 Bn. tkm

Source: Eurostat

19

In proportion to traffic performance in tkm the amount of deaths in truck traffic is still much higher than in rail freight traffic

Comparison Truck vs. Rail Freight Amount of deaths EU 27* per Bn. tkm

* Truck without Bulgaria and Latvia Source: European Road Safety Oberservatory – Traffic Safety Basis Facts 2011 – DaCoTA research on www.erail.era.europa.eu/investigation.aspx

20

The accident of Viareggio in 2009 has been the most severe railway accident in the last years because of technical failures

Rail Freight Amount of deaths and casualties EU 27 per Bn. tkm

* Viareggio in 2009 with 32 deaths and 126 injured persons has been the most severe accident in this respect Source: European Road Safety Oberservatory – Traffic Safety Basis Facts 2011 – DaCoTA research on www.erail.era.europa.eu/investigation.aspx

21

Amount of deaths in road traffic caused by technical failures many times higher than in rail freight

Comparison rail freight vs. truck amount of deaths EU 27* 2005-2012 resp. 2003-2009

* Truck without Bulgaria and Latvia Source: European Road Safety Oberservatory – Traffic Safety Basis Facts 2011 – DaCoTA research on www.erail.era.europa.eu/investigation.aspx

22

• 1. Overview accident statistics
• 2. Presentation of first results
• 3. Discussion further proceedings

23

Working packages

Completed

WP1 WP2 WP3 WP4

• Further validation of the collected data
• Research of statistics for mileage of wagon and trucks (truck mileage available on

EU-level)

• Report

Interviews with selected IWK‘s (5 IWK‘s each for small, medium and large IWK‘s) in order to find out more information about the average mileage of different wagon types Interviews with selected wagon keepers from national railways in order to receive more information about accident data as well as information about the mileage of wagons
