Saving Bandwidth made Easy and Affordable DATUM SYSTEMS M7 Modular Series Introduction June 2014 New M7 Modular Modem Series with Smart Technology M7 / M7L / M7D / M7LD M7LT Remote Sat-Terminal Compact 1/2 Rack Wide

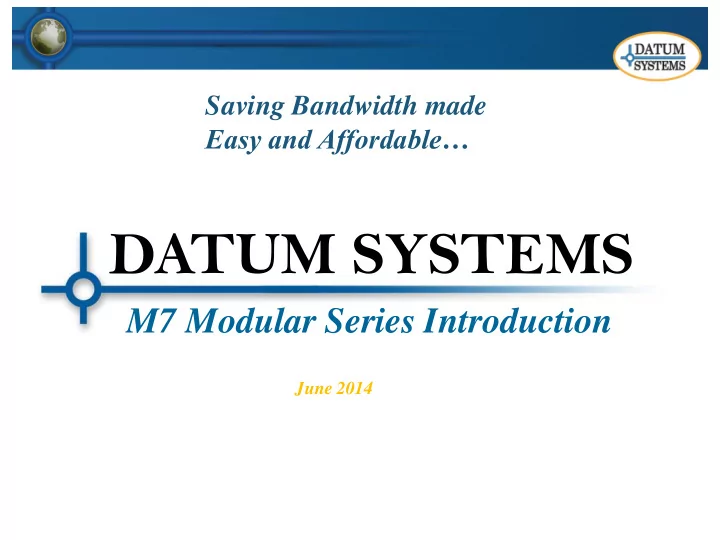

slide-1
SLIDE 1

DATUM SYSTEMS

Saving Bandwidth made Easy ¡and ¡Affordable…

M7 Modular Series Introduction

June 2014

slide-2
SLIDE 2

June 2014 Rev 0.1 - Datum Systems Proprietary 2

  • Compact 1/2 Rack Wide
  • Space Saver (50% Savings)
  • IF or L-Band
  • Modem or Dual-Demod

M7 / M7L / M7D / M7LD

  • Full Featured
  • 1:1 Redundancy in 1RU
  • 2 Units in a Single Rack
  • Modem or Dual-Demods
  • 4 Independent Demods in 1 RU

M7 Side x Side M7LT Remote Sat-Terminal

  • L-Band
  • High Stability
  • BUC & LNB Power

M7 Modem Card Sets

  • Stand-alone
  • IF or L-Band
  • DC Power
  • Advanced Web Interface
  • Modem, Mod or Demod
  • Dual-Demod Configurable

New M7 Modular Modem Series

with “Smart” ¡Technology

slide-3
SLIDE 3

June 2014 Rev 0.1 - Datum Systems Proprietary 3

  • Earth Station Benefits
  • Saves Rack Space
  • Power Efficient Design
  • Smaller Shipping Containers
  • Lower Shipping Costs
  • Mounting Options
  • M7/M7L/M7D/M7LD

M7 / M7L / M7D / M7LD Desktop

Compact and Efficient Design

slide-4
SLIDE 4

June 2014 Rev 0.1 - Datum Systems Proprietary 4

  • Rear Panel RF Connections
  • TX Out N(50Ω) or F(75Ω) Type
  • RX In N(50Ω) or F(75Ω) Type
  • BUC and LNB Indicators
  • Common M7 Assemblies

 Interfaces, Controller, Front Panel, Backplane

  • Features
  • Integrated BUC/LNB Power
  • High Stability 10 MHz Reference
  • Common M7 Interfaces
  • Light Weight – only ¡11” ¡Deep

Same M7 Rear Configuration

M7LT Features and Flexibility

slide-5
SLIDE 5

June 2014 Rev 0.1 - Datum Systems Proprietary 5 BUC Power Supply Input Voltage BUC Power Supply Output Voltage BUC power Supply Power Rating BUC power Supply Max Current 90-264 VAC 24 VDC 100 Watt 4.2 Amps 90-264 VAC 24 VDC 120 Watt 5.0 Amps 90-264 VAC 48 VDC 100 Watt 2.1 Amps 90-264 VAC 48 VDC 150 Watt 3.2 Amps 90-264 VAC 48 VDC 240 Watt 5.0 Amps 20-60 VDC 24 VDC 100 Watt 4.2 Amps 20-60 VDC 24 VDC 120 Watt 5.0 Amps 20-60 VDC 48 VDC 100 Watt 2.1 Amps 20-60 VDC 48 VDC 150 Watt 3.2 Amps 20-60 VDC 48 VDC 200 Watt 4.2 Amps

  • Features
  • AC and DC Input Optional
  • 5 BUC Power Supply Options
  • LNB Power 13 and 18 VDC

BUC P.S. Location

Available Input & BUC Power Options

M7LT Input and BUC PS Options

slide-6
SLIDE 6

June 2014 Rev 0.1 - Datum Systems Proprietary 6

  • IF 50 – 180 MHz or L-Band 950 to 2150 MHz (M7LT L-Band Only)
  • TX/ RX Carrier Filter Roll-Off Values: 5, 8,10,15,20,25,30,35,40%
  • AUPC Point-to-Point , Point-to-Multipoint or Mesh Modes
  • Compact Space Saver, Light Weight and Lowest Power
  • Highly Configurable Modem Platform with many Software Upgrade Features
  • Full Modem, Mod-Only or Dual Demod Configurations
  • Viterbi, Reed Solomon (Optional FlexLDPC SW Upgradeable, TPC HW Option)
  • Best Spectral Efficiency of ANY SCPC Modem
  • Lowest Latency in Industry, <15 ms at 64 kbps ¾ QPSK
  • 1.2 kbps to 1 Mbps (Optional SW Data Rate Upgrades up to 59 Mbps)
  • Unmatched EB/No vs. BER Performance
  • Fastest Carrier Acquisition Time
  • Modulation BPSK, QPSK & OQPSK (8PSK/8QAM & 16QAM Optional)
  • SNMP v1 & v2, plus an Advanced Web Browser Interface
  • MCC for very Efficient Remote Monitor and Control Channels
  • Easy Local and Remote (Over-the-Air) Software Upgrades via Web Browser
  • Up to 99 Store, Recall and Restore Locations (Auto Configuration Recall- ACR)
  • Built-in 1:1 Redundancy Control
  • Meaningful Event Log with over 2000 Time Stamped Events Available

Standard Features and Highlights

slide-7
SLIDE 7

June 2014 Rev 0.1 - Datum Systems Proprietary 7

  • FlexLDPC (Flexible LDPC FEC)
  • Sharp Carrier TX/RX Filter Roll-Off
  • Datum’s ¡8QAM ¡Advantage
  • Smart Carrier Cancelling

Datum Advanced Smart Features

slide-8
SLIDE 8

June 2014 Rev 0.1 - Datum Systems Proprietary 8 M7 Series Spectral Efficiency: Typical Performance

Most Spectral Efficient LDPC Modem

slide-9
SLIDE 9

June 2014 Rev 0.1 - Datum Systems Proprietary 9

Datum Performance Comparison

Datum Competitive Technology

slide-10
SLIDE 10

June 2014 Rev 0.1 - Datum Systems Proprietary 10

Carrier Alpha 0.4 0.35 0.3 0.25 0.2 0.15 0.1 0.08 0.05 # of 1Msps carriers 25 26 27 28 30 31 32 33 34 % improvement from 0.4 Alpha 0% 4% 8% 12% 20% 24% 28% 32% 36%

Sharp Carrier TX/RX Roll-Off Filters

TX/RX Roll-off Selections of 5, 8, 10, 15, 20, 25, 30, 35 and 40%

Example: Going from 35% to 8%, bandwidth savings of 20%!

to

slide-11
SLIDE 11

June 2014 Rev 0.1 - Datum Systems Proprietary 11

Datum's 8QAM Performance Advantage

Datum Competitive Technology

slide-12
SLIDE 12

June 2014 Rev 0.1 - Datum Systems Proprietary 12

The Smarter and More Affordable Carrier Cancelling!!

From

  • Up to 50 % Bandwidth Savings
  • Channel Capacity Increase of 2 dB
  • Robust Operation
  • Nonlinear Compensation
  • Modulation Independent

To

Smart Carrier Cancelling

slide-13
SLIDE 13

June 2014 Rev 0.1 - Datum Systems Proprietary 13

Up to 60% Bandwidth Savings!

35% to 8% Roll-Off

to Smart Carrier

Be Smart! FlexLDPC + Sharp & Smart Carrier

slide-14
SLIDE 14

June 2014 Rev 0.1 - Datum Systems Proprietary 14

No Canceller vs. Canceller Plot

2  1  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1 2 3 4 5 6 7 8 9 10

Shannon Capacity no Cancelling Datum QPSK Datum 8QAM Datum 16QAM Shannon Capacity, Symmetrical Carrier Cancelling Datum QPSK 2 Carriers Shared Datum 8QAM 2 Carriers Shared Datum 16QAM 2 Carriers Shared

Datum16 K ModCods Shannon Plot with Cancelling

C/N (dB) Bits/Hz

slide-15
SLIDE 15

June 2014 Rev 0.1 - Datum Systems Proprietary 15

Datum M7 Comparison Calculator Tool

slide-16
SLIDE 16

June 2014 Rev 0.1 - Datum Systems Proprietary 16

Express Ethernet Serial Dual G.703/E1 Drop & Insert Advanced IP HSSI

Easy Plug-in Interface Cards

slide-17
SLIDE 17

June 2014 Rev 0.1 - Datum Systems Proprietary 17

Serial (S7) - Advanced IP (I7) - Advanced IP (I7) - Express Ethernet (E7) - Dual G.703 (G7) - More Combinations Available! Dual G.703 (G7) -

M7 Dual Interface Examples

slide-18
SLIDE 18

June 2014 Rev 0.1 - Datum Systems Proprietary 18

Live Web Browser Monitors

Spectrum Analyzer Page Example I/Q Constellation Page Example

slide-19
SLIDE 19

June 2014 Rev 0.1 - Datum Systems Proprietary 19

Idle packets sent in place

  • f unused bandwidth for live PER

IP (E7 & I7) Web Browser Statistics

I7/E7 IP Statistics Page Example

slide-20
SLIDE 20

June 2014 Rev 0.1 Datum Proprietary 20

M7 Series Event Log

slide-21
SLIDE 21

June 2014 Rev 0.1 - Datum Systems Proprietary 21

Software Downloads via Web Browser

slide-22
SLIDE 22

June 2014 Rev 0.1 - Datum Systems Proprietary 22

On-the Move Point-to-Point Point-to-Multipoint Mesh

M7 Multi-Purpose Platform

slide-23
SLIDE 23

June 2014 Rev 0.1 - Datum Systems Proprietary 23

  • Remote Sites Benefit from Shared MCPC Outbound
  • Stat-Mux BW Saving Benefits on Outbound Traffic
  • Supports Full Asymmetrical Traffic Patterns
  • Reduced Cost of Hub Equipment using Multi-Demods

Why MCPC Point-to-Multipoint?

slide-24
SLIDE 24

June 2014 Rev 0.1 - Datum Systems Proprietary 24

  • Easy Order Process (Direct or Distributor)
  • Low Cost Universal Modem Series
  • Short Lead-times
  • Guaranteed Quality and Reliability
  • 2 Year Standard Warranty
  • Meets CE Standards for:
  • EN50022 Emissions
  • EN50024 Immunity
  • EN60950 Safety
  • Fully RoHS Compliant
  • Industry Best Customer Service and Support
  • No Annual Maintenance Contracts Required

Datum Systems Intangibles
