CSE 140: Components and Design Techniques for Digital Systems Lecture 9: Sequential Networks: Implementation CK Cheng Dept. of Computer Science and Engineering University of California, San Diego 1 Implementation Format and Tool

slide-1
SLIDE 1

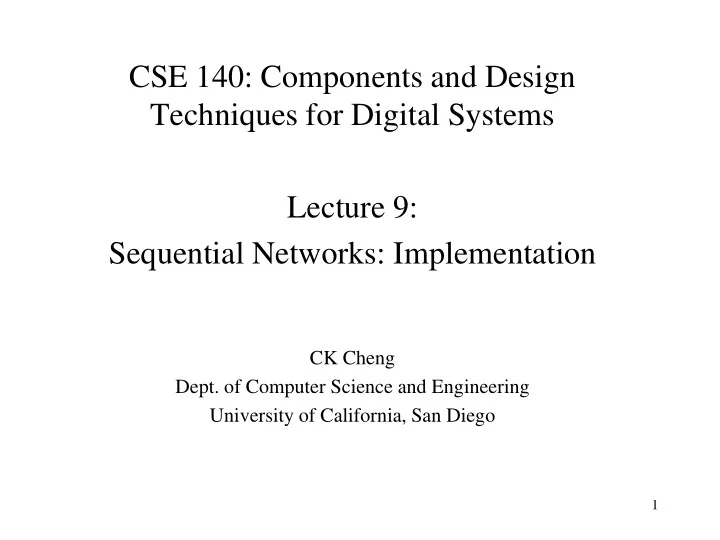

CSE 140: Components and Design Techniques for Digital Systems Lecture 9: Sequential Networks: Implementation

CK Cheng

  • Dept. of Computer Science and Engineering

University of California, San Diego

1

slide-2
SLIDE 2

Implementation

  • Format and Tool

– Mealy & Moore Machines, Excitation Table

  • Procedure

– State Table to Logic Diagram

  • Excitation Tables

– FFs

  • Examples

2

slide-3
SLIDE 3

3

Mealy Machine: yi(t) = fi(X(t), S(t)) Moore Machine: yi(t) = fi(S(t)) si(t+1) = gi(X(t), S(t))

C1 C2

CLK x(t) y(t)

Mealy Machine C1 C2

CLK x(t) y(t)

Moore Machine

S(t) S(t)

Canonical Form: Mealy and Moore Machines

slide-4
SLIDE 4

iClicker

4

D

y CLK

x

Q

In the logic diagram below, a D flip-flop has input x and

  • utput y.

A: x= Q(t), y=Q(t) B: x=Q(t+1), y=Q(t) C: x=Q(t), y=Q(t+1) D: None of the above

slide-5
SLIDE 5

Understanding Current State and Next State in a sequential circuit

5

today sunrise “Yesterday is

  • gone. Tomorrow

has not yet come. We have only

  • today. Let us

begin.” ― Mother Teresa

slide-6
SLIDE 6

C1 C2

CLK x(t) y(t)

Implementation Format

Q(t)

Q(t+1) = g(x(t), Q(t)) Circuit C1 y(t) = f(x(t), Q(t)) Circuit C2

6

Canonical Form: Mealy & Moore machines State Table  Netlist Tool: Excitation Table

slide-7
SLIDE 7

Implementation Tool: Excitation Table

7

x(t) Q(t)

CLK

C1

id x(t) Q(t) Q(t+1) 1 1 1 1 2 1 3 1 1

State Table Find D, T, (S R), (J K) to drive F-Fs Example:

slide-8
SLIDE 8

Implementation Tool: Excitation Table

8

x(t) Q(t)

CLK

Q(t)

C1

id x(t) Q(t) T(t) Q(t+1) 1 1 1 1 1 1 2 1 1 3 1 1 1 id x(t) Q(t) Q(t+1) 1 1 1 1 2 1 1 3 1 1

State Table Excitation Table Example with T flip flop

T(t)

Example:

slide-9
SLIDE 9

Implementation Tool: Excitation Table

9

x(t) Q(t)

CLK

Q(t)

C1

id x(t) Q(t) T(t) Q(t+1) 1 1 1 1 1 1 2 1 1 3 1 1 1

Excitation Table

Implement combinational logic C1 D(t), T(t), (S(t) R(t)), (J(t) K(t)) are functions of (x,Q(t))

Example:

slide-10
SLIDE 10

Implementation: Procedure

State Table => Excitation Table

Problem: To implement C1, we need D(t), T(t), (S(t) R(t)), (J(t) K(t)) as functions of (x,Q(t)).

  • 1. From state table, we have

NS: Q(t+1) = g(x(t),Q(t))

  • 2. Excitation Table of F-Fs: The setting of

D(t), T(t), (S(t) R(t)), (J(t) K(t)) to drive Q(t) to Q(t+1).

  • 3. Combining 1 and 2, we have excitation table of C1:

D(t), T(t), (S(t) R(t)), (J(t) K(t)) = h(x,Q(t)).

10

slide-11
SLIDE 11

Implementation: Procedure

F-F State Table <=> F-F Excitation Table

11

DTSRJK PS Q(t) NS Q(t+1) NS Q(t+1) PS Q(t) DTSRJK

  • D F-F
  • D(t)= eD(Q(t+1), Q(t))
  • T F-F
  • T(t)= eT(Q(t+1), Q(t))
  • SR F-F
  • S(t)= eS(Q(t+1), Q(t))
  • R(t)= eR(Q(t+1), Q(t))
  • JK F-F
  • J(t)= eJ(Q(t+1), Q(t))
  • K(t)= eK(Q(t+1), Q(t))
slide-12
SLIDE 12

State table of JK F-F: 00 1 01 10 1 1 11 1 1 Q(t) Q(t+1) JK Excitation table of JK F-F: 0-

  • 1

1 1-

1 PS NS Q(t) Q(t+1) JK Ex: If Q(t) is 1, and Q(t+1) is 0, then JK needs to be -1.

Excitation Table

12

slide-13
SLIDE 13

Excitation Tables and State Tables

0- XY 1 10

1 PS NS Q(t) Q(t+1) SR Excitation Tables: SR 00 1 01 1 PS SR Q(t) Q(t+1) 10 1 1 11

  • State Tables:

13

0-

  • 1

1 1-

1 PS NS Q(t) Q(t+1) JK 01 00 1 10 1 1 11 1 1 Q(t) Q(t+1) JK iClicker

  • A. XY= -1
  • B. XY= 01
  • C. XY= 10
  • D. XY= 1-
  • E. None of the above
slide-14
SLIDE 14

Excitation Tables:

1 1 1 1 PS NS Q(t) Q(t+1)

D

1 1 1 1 PS D Q(t) Q(t+1)

D State Tables:

Excitation Tables and State Tables

14

1 1 1 1 PS NS Q(t) Q(t+1)

T

1 1 1 1 PS T Q(t) Q(t+1)

T

slide-15
SLIDE 15

Implementation: Procedure

1. State table: y(t)= f(Q(t), x(t)), Q(t+1)= g(x(t),Q(t)) 2. Excitation table of F-Fs:

  • D(t)= eD(Q(t+1), Q(t));
  • T(t)= eT(Q(t+1), Q(t));
  • (S, R), or (J, K)

3. From 1 & 2, we derive excitation table of the system

  • D(t)= hD(x(t),Q(t))= eD(g(x(t),Q(t)),Q(t));
  • T(t)= hT(x(t),Q(t))= eT(g(x(t),Q(t)),Q(t));
  • (S, R) or (J, K).

4. Use K-map to derive combinational logic implementation.

  • D(t)= hD(x(t),Q(t))
  • T(t)= hT(x(t),Q(t))
  • y(t)= f(x(t),Q(t))

15

slide-16
SLIDE 16

Implementation: Example Implement a JK F-F with a T F-F

00 1 01 1 PS JK Q(t)

Q(t+1) = h(J(t),K(t),Q(t)) = J(t)Q’(t)+K’(t)Q(t) JK

10 1 1 11 1

Implement a JK F-F:

Q Q’ C1 J K T

16

Q

slide-17
SLIDE 17

id 1 2 3 4 5 6 7 J(t) 1 1 1 1 K(t) 1 1 1 1 Q(t) 1 1 1 1 Q(t+1) 1 1 1 1 T(t) 1 1 1 1

Excitation Table of T Flip-Flop

T(t) = Q(t) XOR ( J(t)Q’(t) + K’(t)Q(t))

Excitation Table of the Design

Example: Implement a JK flip-flop using a T flip-flop

17

1. State table: y(t)= f(Q(t), x(t)), Q(t+1)= g(x(t),Q(t)) 2. Excitation table of F-Fs:

  • D(t)= eD(Q(t+1), Q(t));
  • T(t)= eT(Q(t+1), Q(t));
  • (S, R), or (J, K)

3. From 1 & 2, we derive excitation table

  • f the system
  • D(t)= hD(x(t),Q(t))= eD(g(x(t),Q(t)),Q(t));
  • T(t)= hT(x(t),Q(t))= eT(g(x(t),Q(t)),Q(t));
  • (S, R) or (J, K).

4. Use K-map to derive combinational logic implementation.

  • D(t)= hD(x(t),Q(t))
  • T(t)= hT(x(t),Q(t))
  • y(t)= f(x(t),Q(t))

i.e. Q(t+1)(t) = JQ’(t)+K’Q(t)

1 1 1 1 PS NS Q(t) Q(t+1)

slide-18
SLIDE 18

0 2 6 4 1 3 7 5

Q(t)

J

0 0 1 1 0 1 1 0

K

T(J,K,Q): T = K(t)Q(t) + J(t)Q’(t)

Q Q’ J K T

Example: Implement a JK flip-flop using a T flip-flop

18

slide-19
SLIDE 19

iClicker

19

Before state assignment, the relation of its state table and excitation table is A.One to one B.One to many C.Many to one D.Many to many E.None of the above

slide-20
SLIDE 20

20

Let’s implement our free running 2-bit counter using T-flip flops

S0 S1 S2 S3

PS

Next state

S1 S2 S3 S0 State Table

S0 S1 S2 S3

slide-21
SLIDE 21

21

Let’s implement our free running 2-bit counter using T-flip flops

S0 S1 S2 S3

S1 S2 S3 S0 State Table

S0 S1 S2 S3

State Table with Assigned Encoding

0 0 0 1 1 0 1 1

Current

01 10 11 00

Next

slide-22
SLIDE 22

22

Let’s implement our free running 2-bit counter using T-flip flops

id Q1(t) Q0(t) T1(t) T0(t) Q1(t+1) Q0(t+1) 1 1 1 1 2 1 1 1 3 1 1

Excitation table

slide-23
SLIDE 23

23

Let’s implement our free running 2-bit counter using T-flip flops

id Q1(t) Q0(t) T1(t) T0(t) Q1(t+1) Q0(t+1) 1 1 1 1 1 1 1 2 1 1 1 1 3 1 1 1 1

Excitation table

slide-24
SLIDE 24

24

Let’s implement our free running 2-bit counter using T-flip flops

id Q1(t) Q0(t) T1(t) T0(t) Q1(t+1) Q0(t+1) 1 1 1 1 1 1 1 2 1 1 1 1 3 1 1 1 1

Excitation table

T0(t) = T1(t) = Q0(t+1) = T0(t) Q’0(t)+T’0(t)Q0(t)

Q1(t+1) = T1(t) Q’1(t)+T’1(t)Q1(t)

slide-25
SLIDE 25

25

Let’s implement our free running 2-bit counter using T-flip flops

id Q1(t) Q0(t) T1(t) T0(t) Q1(t+1) Q0(t+1) 1 1 1 1 1 1 1 2 1 1 1 1 3 1 1 1 1

Excitation table

T0(t) = 1 T1(t) = Q0(t)

slide-26
SLIDE 26

26

T Q Q’ T Q Q’

Q0 Q1 1 T1

Free running counter with T flip flops

T0(t) = 1 T1(t) = Q0(t)

slide-27
SLIDE 27

Summary: Implementation

27

  • Set up canonical form
  • Mealy or Moore machine
  • Identify the next states
  • state diagram ⇨ state table
  • state assignment
  • Derive excitation table
  • Inputs of flip flops
  • Design the combinational logic
  • don’t care set utilization
