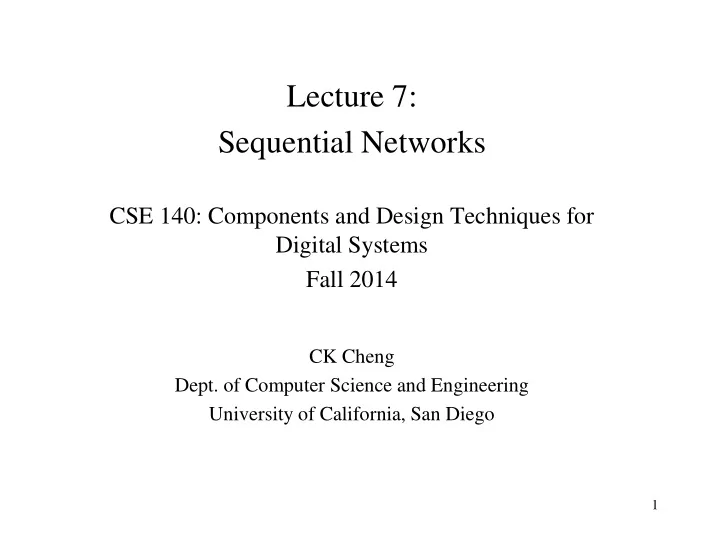

SLIDE 1

Lecture 7: Sequential Networks

CSE 140: Components and Design Techniques for Digital Systems Fall 2014

CK Cheng

Dept. of Computer Science and Engineering

University of California, San Diego

1

SLIDE 2

What is a sequential circuit?

2

“A circuit whose output depends on current inputs and past outputs” “A circuit with memory”

SLIDE 3

Part II. Sequential Networks (Ch. 3)

Memory: Flip flops Specification: Finite State Machines Implementation: Excitation Tables Main Theme: Timing Present time = t and next time = t+1 Timing constraints to separate the present and next times.

Memory / Time steps Clock

xi yi si yi = fi(St,X) si

t+1= gi(St,X)

3

SLIDE 4

Sequential Networks

Memory Components

– Hierarchy of Memory – Basic Mechanism of Memory – Types of Flip-Flops

Implementation

– Finite State Machine

4

SLIDE 5

The usage of a sequential machine

5

iClicker Question:

A. Digital systems are implemented using sequential

machines.

B. Only a small subset of digital systems can be

implemented using sequential machines.

C. Sequential machines are too simple for

complicated digital systems.

SLIDE 6

Hierarchy of Memory Devices

Memory Bank (Farms of memory cells)
Register (A vector of memory cells)
Flip-Flop (One bit memory cell)

– SR, D, T, JK flip-flops (Different types of memory cells) – State Tables (Truth table of sequential machine) – Characteristic Expressions (Switching algebraic expression of sequential machine)

6

SLIDE 7

Fundamental Memory Mechanism

Q Q Q Q I1 I2 I2 I1

7

SLIDE 8

Memory Mechanism: Capacitive Load

Fundamental building block of sequential circuits
Two outputs: Q, Q
There is a feedback loop!
In a typical combinational logic, there is no

feedback loop.

No inputs

Q Q Q Q I1 I2 I2 I1

8

SLIDE 9

Capacitive Loads

Q Q I1 I2 1 1

Consider the two possible cases:

– Q = 0: then Q’ = 1 and Q = 0 (consistent) – Q = 1: then Q’ = 0 and Q = 1 (consistent) – Bistable circuit stores 1 bit of state in the state variable, Q (or Q’ )

But there are no inputs to control the state

Q Q I1 I2 1 1

9

SLIDE 10

iClicker

10

Q. Given a memory component made out of a loop
f inverters, the number of inverters has to be
A. Even
B. Odd

SLIDE 11

SR (Set/Reset) Latch

R S Q Q N1 N2

SR Latch
Consider the four possible cases:

– S = 1, R = 0 – S = 0, R = 1 – S = 0, R = 0 – S = 1, R = 1

11

SLIDE 12

SR Latch Analysis

– S = 1, R = 0: – S = 0, R = 1:

R S Q Q N1 N2 1

12

SLIDE 13

SR Latch Analysis

– S = 1, R = 0: then Q = 1 and Q = 0 – S = 0, R = 1: then Q = 0 and Q = 1

R S Q Q N1 N2 1

13

SLIDE 14

SR Latch Analysis

– S = 1, R = 1:

R S Q Q N1 N2 1 1

14

SLIDE 15

SR Latch Analysis

– S = 0, R = 0:

15

R S Q Q N1 N2

SLIDE 16

SR Latch Analysis

– S = 0, R = 0: then Q = Qprev – S = 1, R = 1: then Q = 0 and Q = 0

R S Q Q N1 N2 1 1

R S Q Q N1 N2 R S Q Q N1 N2 Qprev = 0 Qprev = 1

16

SLIDE 17

S R y Q Q = (R+y)’ y = (S+Q)’

17

SLIDE 18

Flip-flop Components

S R

SR F-F (Set-Reset)

Inputs: S, R State: (Q, y) y Q

18

SLIDE 19

Id Q(t) y(t) S R Q(t1) y(t1) Q(t2)y(t2) Q(t3) y(t3) 0 0 0 0 0 1 1 0 0 1 1 1 0 0 0 1 0 1 0 1 0 1 2 0 0 1 0 1 0 1 0 1 0 3 0 0 1 1 0 0 0 0 0 0 4 0 1 0 0 0 1 0 1 0 1 5 0 1 0 1 0 1 0 1 0 1 6 0 1 1 0 0 0 1 0 1 0 7 0 1 1 1 0 0 0 0 0 0 8 1 0 0 0 1 0 1 0 1 0 9 1 0 0 1 0 0 0 1 0 1 10 1 0 1 0 1 0 1 0 1 0 11 1 0 1 1 0 0 0 0 0 0 12 1 1 0 0 0 0 1 1 0 0 13 1 1 0 1 0 0 0 1 0 1 14 1 1 1 0 0 0 1 0 1 0 15 1 1 1 1 0 0 0 0 0 0

Q y State Transition SR

10

00 11

00 10 SR 11 10 01 11 01 11 01 10 00 10 00 01 00 11

State Diagram

01

19

SLIDE 20

CASES: SR=01, (Q,y) = (0,1) SR=10, (Q,y) = (1,0) SR=11, (Q,y) = (0,0) SR = 00 => if (Q,y) = (0,0) or (1,1), the output keeps changing

20

Q. To avoid the SR latch output from toggling
r behaving in an undefined way which input

combinations should be avoided:

A. (S, R) = (0, 0)
B. (S, R) = (1, 1)

SLIDE 21

SR Latch Analysis

– S = 0, R = 0: then Q = Qprev and Q = Qprev (memory!) – S = 1, R = 1: then Q = 0 and Q = 0 (invalid state: Q ≠ NOT Q)

R S Q Q N1 N2 1 1

R S Q Q N1 N2 1 1 R S Q Q N1 N2 1 1 Qprev = 0 Qprev = 1

21

SLIDE 22

CASES SR=01: (Q,y) = (0,1) SR=10: (Q,y) = (1,0) SR=11: (Q,y) = (0,0) SR = 00: if (Q,y) = (0,0) or (1,1), the output keeps changing Solutions: Avoid the two cases 1) SR = (0,0), 2) SR = (1,1). 0 0 0 1 - 1 1 0 1 -

PS

inputs

00 01 10 11 State table Q(t+1)

SR Characteristic Expression Q(t+1) = S(t)+R’(t)Q(t)

NS (next state) Q(t)

22

SLIDE 23

SR Latch Symbol

SR stands for Set/Reset Latch

– Stores one bit of state (Q)

Control what value is being stored with S, R inputs

– Set: Make the output 1 (S = 1, R = 0, Q = 1) – Reset: Make the output 0 (S = 0, R = 1, Q = 0)

Must do something to avoid

invalid state (when S = R = 1)

S R Q Q SR Latch Symbol

23

SLIDE 24

D Latch

D Latch Symbol CLK D Q Q

Two inputs: CLK, D

– CLK: controls when the output changes – D (the data input): controls what the

utput changes to
Function

– When CLK = 1, D passes through to Q (the latch is transparent) – When CLK = 0, Q holds its previous value (the latch is opaque)

Avoids invalid case when Q ≠ NOT Q

24

SLIDE 25

D Latch Internal Circuit

CLK D Q Q

25

S R Q Q SR Latch Symbol

SLIDE 26

D Latch Internal Circuit

S R Q Q Q Q D CLK

D R S

CLK D Q Q

S R Q Q CLK D X 1 1 1 D

26

SLIDE 27

D Latch Internal Circuit

S R Q Q Q Q D CLK

D R S

CLK D Q Q

S R Q Qprev 1 1 1 Q 1 CLK D X 1 1 1 D X 1 Qprev

27

SLIDE 28

D Flip-Flop

Two inputs: CLK, D
Function

– The flip-flop “samples” D on the rising edge of CLK

When CLK rises from 0 to 1, D

passes through to Q

Otherwise, Q holds its previous value

– Q changes only on the rising edge of CLK

A flip-flop is called an edge-triggered device

because it is activated on the clock edge

D Flip-Flop Symbols D Q Q

28

SLIDE 29

D Flip-Flop Internal Circuit

CLK D Q Q CLK D Q Q Q Q D N1 CLK L1 L2

29

SLIDE 30

D Flip-Flop Internal Circuit

CLK D Q Q CLK D Q Q Q Q D N1 CLK L1 L2

Two back-to-back latches (L1 and L2)

controlled by complementary clocks

When CLK = 0

– L1 is transparent, L2 is opaque – D passes through to N1

When CLK = 1

– L2 is transparent, L1 is opaque – N1 passes through to Q

Thus, on the edge of the clock (when CLK

rises from 0 1)

– D passes through to Q

CLK D Q Q CLK D Q Q Q Q D N1 CLK L1 L2

30

SLIDE 31

D Flip-Flop vs. D Latch

CLK D Q Q D Q Q

CLK D Q (latch) Q (flop) 31

SLIDE 32

D Flip-Flop vs. D Latch

CLK D Q Q D Q Q

CLK D Q (latch) Q (flop) 32

SLIDE 33

Latch and Flip-flop (two latches)

A latch can be considered as a door CLK = 0, door is shut CLK = 1, door is unlocked A flip-flop is a two door entrance CLK = 1 CLK = 0 CLK = 1

33

SLIDE 34

D Flip-Flop (Delay)

D CLK Q Q’

Id D Q(t) Q(t+1) 0 0 0 0 1 0 1 0 2 1 0 1 3 1 1 1

Characteristic Expression: Q(t+1) = D(t) 0 0 1 1 0 1 PS D 0 1 State table NS= Q(t+1)

34

CLK D Q Q CLK D Q Q Q Q D N1 CLK L1 L2

SLIDE 35

iClicker

35

Can D flip-flip serve as a memory component? A.Yes B.No

SLIDE 36

JK F-F

J CLK Q Q’ 0 0 0 1 ? 1 1 0 1 ?

PS

JK 00 01 10 11

State table Q(t+1) K

36

SLIDE 37

JK F-F

J CLK Q Q’

Characteristic Expression Q(t+1) = Q(t)K’(t)+Q’(t)J(t)

0 0 0 1 1 1 1 0 1 0

PS

JK 00 01 10 11

State table Q(t+1) K

37

SLIDE 38

T CLK Q Q’

Characteristic Expression Q(t+1) = Q’(t)T(t) + Q(t)T’(t)

0 0 1 1 1 0 PS T 0 1 State table Q(t+1)

T Flip-Flop (Toggle)

38

SLIDE 39

Using a JK F-F to implement a D and T F-F

J K Q Q’ x CLK

39

iClicker What is the function of the above circuit?

A. D F-F
B. T F-F
C. None of the above

SLIDE 40

Using a JK F-F to implement a D and T F-F

J K Q Q’ T CLK T flip flop

40

SLIDE 41

Reading

41
