CORUHRIVERDEVELOPMENTPLAN InternationalWorkshopon TransboundaryWaterResourcesManagement Tbilisi,Georgia 810December2009 Ubeyd Sezer Geological Engineer U. Sezer GENERAL DIRECTORATE OF STATE HYDRAULIC

slide-1

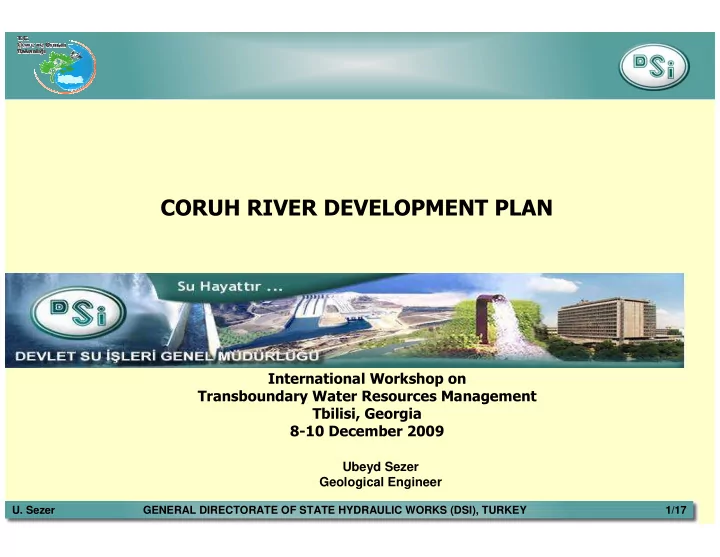

SLIDE 1
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 1/17

Ubeyd Sezer Geological Engineer

InternationalWorkshopon TransboundaryWaterResourcesManagement Tbilisi,Georgia 810December2009

CORUHRIVERDEVELOPMENTPLAN

slide-2
SLIDE 2
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 2/17

CORUH RIVER BASIN

The Coruh (or Chorokhi in Georgian) River Basin located in the NE part of Turkey, near the boundary between Turkey and Georgia

It rises from the Mescit Mountain Range (highest peak 3255 m) in Turkey and flows into the Black Sea in Batumi, Georgia

slide-3
SLIDE 3
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 3/17

Catchment's Area (approximately) In Turkey 19 872 km2 In Georgia 2,090 km2 Mean Annual Water Potential 6,824 hm3 Annual Sediment Load 5,8 million m³ Total length of the river 431 km In Turkey 410 km In Georgia 21km

Çoruh Basin

slide-4
SLIDE 4
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 4/17

CORUH RIVER BASIN CLIMATE

  • The Climate of the Coruh River Basin is

continental and Black Sea climatic conditions

  • Climate varies greatly due to;
  • high mean elevation of the land (1 132 m)

and

  • the influence of the mountainous areas

running parallel to the coast line

  • Mean annual rainfalls varies between 250 mm-

2650 mm

slide-5
SLIDE 5
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 5/17

T

  • r

t u m Ç a y ı Ç

  • r

u h N e h r i B a r h a l Ç a y ı Oltu Çayı Bulanık Çayı B e r t a Ç a y ı Meydancık Deresi Şavşat Deresi M u r g u l Ç a y ı İ ç k a l e D e r e s i Deviskel Deresi Kapistre Deresi Sundura Deresi

İ İspir spir

Çoruh Nehri Çoruh Nehri

2600mm2650mm 685mm700mm 250mm300mm

PRECIPITATION

slide-6
SLIDE 6
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 6/17

CORUH RIVER HYDROLOGY Drainage area in Turkey :19 872 km2 Mean annual run-off : 6,824 hm3 Mean, maximum and minimum flows (at Karıköy flow gauging station near Muratlı Dam) Mean : 200 m3/s Maximum : 2,431 m3/s Minimum : 38 m3/s

About About85% 85% ofthetotalannual

  • fthetotalannualflow

flow inCoruh inCoruhR River iver concentratedin concentratedinthreemonths threemonths periodfrom periodfromMaytoJuly MaytoJuly

slide-7
SLIDE 7
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 7/17

T

  • r

t u m Ç a y ı Ç

  • r

u h N e h r i B a r h a l Ç a y ı Oltu Çayı Bulanık Çayı B e r t a Ç a y ı Şavşat Deresi M u r g u l Ç a y ı Deviskel Deresi Kapistre Deresi

İ İspir spir

Çoruh Nehri Çoruh Nehri

Barhal Çayı

Ort.16m3/s

MeandischargesofCoruhRiver anditstributaries

Tortum Çayı

Ort.15m3/s

OltuÇayı

Ort.20m3/s

BulanıkÇayı

Ort.7m3/s

BertaÇayı

Ort.27m3/s

DeviskelDeresi

Ort.14m3/s

ĐçkaleDeresi

Ort.7m3/s

MurgulDeresi

Ort.12m3/s

CoruhRiver

Mean 200m3/sn

BarhalÇayı

Ort.16m3/s

KapistreDeresiÇoruhNehri

Ort.25m3/s

TortumÇayı

Ort.15m3/s

OltuÇayı

Ort.20m3/s

BulanıkÇayı

Ort.7m3/s

BertaÇayı

Ort.27m3/s

DeviskelDeresi

Ort.14m3/s

MurgulDeresi

Ort.12m3/s

ĐçkaleDeresi

Ort.7m3/s

Kapistre Deresi

Ort.15m3/s

slide-8
SLIDE 8
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 8/17

CORUH RIVER WATER QUALITY

  • Water quality in the main course and tributaries
  • f the Coruh River measured and analyzed

regularly from existing stations

  • According to Turkish Inland Water Quality

Standards (derived from Water Pollution Control Regulation) Water Quality of Coruh River generally Class I and Class II (Unpolluted and Less polluted water body)

  • General Pollution Sources:

Households, municipal wastewaters and dump sites

slide-9
SLIDE 9
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 9/17

CORUH RIVER BASIN

ÇORUH BASIN DEVELOPMENT PLAN

  • Çoruh River is one of the significant water resources of

Turkey, especially in terms of hydropower potential

  • The preliminary study for development plan started in 1962

by General Directorate of Electrical Power Resources Survey and Development Administration (EIA),

  • The Master plan for hydropower development of Çoruh River

was prepared in 1982

  • In the master plan and subsequent studies various options

were considered for the Coruh River Development Plan and as a result 10 hydropower projects in series along the main river in a cascade style were proposed on the main course of Coruh River

slide-10
SLIDE 10
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 10/17

LALELĐ HEPP 245GWh 99MW ĐSPĐRHEPP 327GWh 54MW GÜLLÜBAĞ HEPP 285GWh 84MW AKSUHEPP 344GWh 120MW ARKUNHEPP 788GWh 222MW

*

YUSUFELĐ HEPP 1705GWh 540MW

* ARTVĐNHEPP

1026GWh 332MW DERĐNERHEPP 2118GWh 670MW BORÇKAHEPP 1039GWh 300MW MURATLIHEPP 444GWh 115MW

LONGITUDINALPROFILEOF THECORUHRIVERDEVELOPMENTPLAN

1420m

*BAĞLIKHEPP

238GWh 67MW

*BAYRAMHEPP

265GWh 81MW

UpperÇoruh MiddleÇoruh Lower Çoruh

2130 millionm3 167 millionm3 1969 millionm3 419 millionm3 75 millionm3 7,3 millonm3 133 millonm3 969 million m3 367 millionm3 20 millionm3 184 millionm3 283 millionm3

410km

Inoperation UnderInvestmentprogram PlanningStage

LaleliDamMax.waterlevel :1,480m Muratlı DamThalweglevel:60m Totalvolumeofreservoirs:6,72billionm3 InstalledCapacity :2,236MW (fordamsonmaincourse) Energygeneration :8,320GWh/year

AYVALIHES 336GWh 125MW OLURHEPP 170GWh 60MW ALTIPARMAKHEPP 200GWh 50MW

BarhalKolu OltuKolu BertaKolu

slide-11
SLIDE 11
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 11/17

CORUHRIVER DEVELOPMENTPLAN

slide-12
SLIDE 12
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 12/17

Type of dam

: Rock fill

Height oh the dam Purpose of the dam

: 49 m Energy Mean annual flow : : 6 billion m³ : Reservoir Volume : 75 million m³ Dead Volume : 55 million m³ Active Volume : 20 million m³

MURATLIDAMANDHYDROPOWERPLANT It is located 100 metre upstream from the border

UNDEROPERATIONSINCE2005

slide-13
SLIDE 13
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 13/17

Installedcapacity 300MW Totalenergy 1039GWh/annual Reservoirvolume 419millionm3 Inoperation 2007

BORÇKADAMANDHYDROPOWERPLANT

slide-14
SLIDE 14
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 14/17

D E R İ N E R DAM AND HYDROPWER INSTALLATIONS

slide-15
SLIDE 15
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 15/17

CORUH RIVER BASIN ENVIRONMENTAL IMPACT ASSESSMENT (EIA)

  • Environmental Impact Assessment Report (EIA)

for Yusufeli Dam was prepared by ENCON in 2006 to fulfil the requirements of international standards,

  • The EIA Report Assess in detail:

The effects of the project on the natural and socio-economic environment, The respective mitigation measures including resettlement action plan

slide-16
SLIDE 16
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 16/17

CORUH RIVER BASIN

  • Consultation between Turkey and Georgia regarding

the hydropower development on Coruh River were started in 1996 with construction preparations for Deriner Dam.

  • Since then Turkish and Georgian experts have been

conducting joint studies that will serve to identify, monitor and evaluate changes, which may occur over time in the downstream of Coruh projects on the Georgian section of the river, including the mouth of the river and the Black Sea Coastline

CONSULTATIONANDCOOPERATIONBETWEENTURKEYANDGEORGIA

slide-17
SLIDE 17
  • U. Sezer

GENERAL DIRECTORATE OF STATE HYDRAULIC WORKS (DSI), TURKEY 17/17
