SLIDE 1

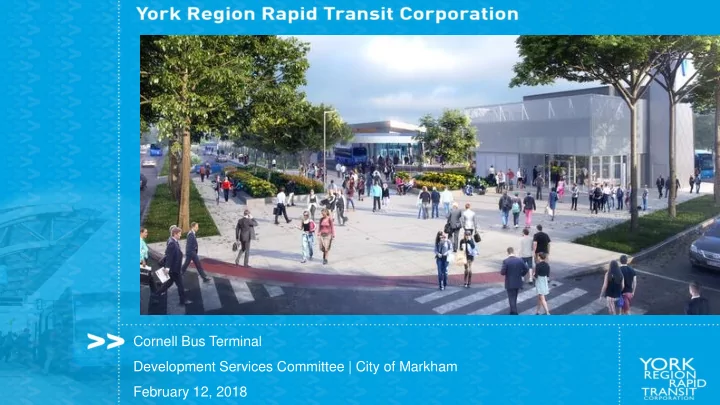

Cornell Bus Terminal Raj Mohabeer, Design Chief, Infrastructure & Development
2
Cornell Bus Terminal Development Services Committee | City of - - PowerPoint PPT Presentation
Cornell Bus Terminal Development Services Committee | City of - - PowerPoint PPT Presentation
Cornell Bus Terminal Development Services Committee | City of Markham February 12, 2018 Cornell Bus Terminal Raj Mohabeer, Design Chief, Infrastructure & Development 2 Terminal design that was tendered 3 Design principles should include
SLIDE 2
SLIDE 3
Terminal design that was tendered
3
SLIDE 4
Design principles should include place making contributions to the community Design principles reflected in revised Site Plan include:
- Creating a well-defined visual presence on the north, south and east facades to deliver
a building and terminal with solid place making contributions to the community
- Providing continuous weather protection for customers from the NE and SE urban
pedestrian plazas to the bus platforms
- Using a warm material palette, similar to the previous design
4
SLIDE 5
Revised design for Cornell Terminal
5
Site Plan
Diamondwood Road Arthur Bonner 11 median island bus platforms with fully covered roof Passenger Pick-Up Drop-Off NE Plaza SE Plaza
NORTH
Retail landscaped colonnade landscaped colonnade
3 1 2 4
SLIDE 6
Revised design for Cornell Terminal
6
Northeast pedestrian plaza (looking southwest from corner of Rustle Woods and Diamondwood) 1
SLIDE 7
Revised design for Cornell Terminal
7
Southeast pedestrian plaza (looking northwest from corner of Arthur Bonner and Diamondwood) 2
SLIDE 8
Revised design for Cornell Terminal
8
Landscaped East Façade and Passenger Pick-Up and Drop-Off (looking southwest) 3
SLIDE 9
Revised design for Cornell Terminal
9
Covered pedestrian access to bus platforms (wood trellis with glazed roof) 4
SLIDE 10
YRT Service Plan
10
SLIDE 11
Next steps
Revised target schedule Site Plan Approval: February-March 2018 Tender: February-March 2018 Award: End of March 2018 Construction: Spring 2018 – Summer 2019 Substantial Completion: Summer 2019 YRT to Begin Operations: Summer 2019
11
SLIDE 12
Thank you
12
