Construction USA Course Demonstration Wooden Planes: WAP 9.6.2018 - PowerPoint PPT Presentation

Sep 28, 2023 •154 likes •515 views

Why? Construction USA Course Demonstration Wooden Planes: WAP 9.6.2018 Project Plank 2012 WWAP Exhibition 2012 Construction of the planes very challenging Wooden Planes - advantages over metal ones Wooden Planes:

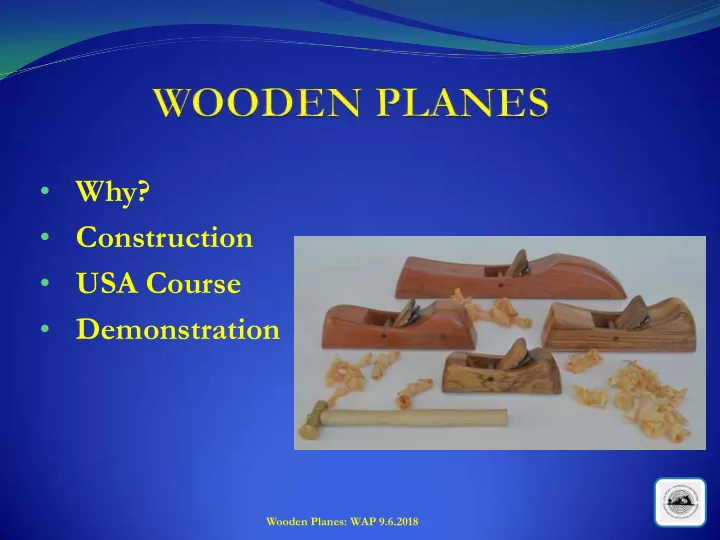

  1. • Why? • Construction • USA Course • Demonstration Wooden Planes: WAP 9.6.2018

  2. • Project Plank 2012 • WWAP Exhibition 2012 • Construction of the planes very challenging • Wooden Planes - advantages over metal ones Wooden Planes: WAP 9.6.2018

  3. • Classic tool • Closeness and sensitivity • Few metal planes rival performance • Shop-made planes shaped to own comfort • Transform machine surface to silky smoothness Wooden Planes: WAP 9.6.2018

  4. Wooden Planes: WAP 9.6.2018

  5. Wooden Planes: WAP 9.6.2018

  6. Wooden Planes: WAP 9.6.2018

  7. Cross-Pin Ramps Body Plane iron and chip breaker Wedge Wooden Planes: WAP 9.6.2018

  8. Throat Wooden Planes: WAP 9.6.2018

  9. • Make your own-see book • Buy -David Finck or Ron Hock www.davidfinck.com www.hocktools.com • Includes plane iron + chip breaker + screw • Cost US$ 50+shipping +customs duty each • Need to sharpen blade & chip breaker Wooden Planes: WAP 9.6.2018

  10. Hardwood, straight grain Ironwood (Ysterhout) Olea capensis sunsp. macrocarpa Rosewood (Rooshout, Bastermopanie) Guibourtia coleosperma (2 off) Mingerghout, Matumi , Breonadia salicina Wooden Planes: WAP 9.6.2018

  11. Wooden Planes: WAP 9.6.2018

  12. FRONT 45 0 6 2 0 Wooden Planes: WAP 9.6.2018

  13. Route slot for cap screw Wooden Planes: WAP 9.6.2018

  14. Minger Shape pin ends on lathe & body by hand Fit Wooden Planes: WAP 9.6.2018

  15. Dowels as index pins in cut-off areas Wooden Planes: WAP 9.6.2018

  16. Cut off index pins flush prior to glueing Fit cross-pin (centre point drill bit in press) Wooden Planes: WAP 9.6.2018

  17. Careful check of alignment and movement of cross-pin Alignment rod Wooden Planes: WAP 9.6.2018

  18. Wooden Planes: WAP 9.6.2018

  19. Plane/sand sole & set throat opening on jointer. Use temporary wedge to prevent damage! Wooden Planes: WAP 9.6.2018

  20. Wooden Planes: WAP 9.6.2018

  21. Shaping in two stages Wooden Planes: WAP 9.6.2018

  22. A variety of tools used for shaping Finishing: Woodoc 10 Wooden Planes: WAP 9.6.2018

  23. Wooden Planes: WAP 9.6.2018

  24. Wooden Planes: WAP 9.6.2018

  25. Wooden Planes: WAP 9.6.2018

  26. Wooden Planes: WAP 9.6.2018

  27. Wooden Planes: WAP 9.6.2018

  28. • David Finck • Valle’ Crucis, near Boone, North Carolina • Application of wooden planes • Application of cabinet scrapers Wooden Planes: WAP 9.6.2018

  29. Wooden Planes: WAP 9.6.2018

  30. Wooden Planes: WAP 9.6.2018

  31. Wooden Planes: WAP 9.6.2018

  32. Wooden Planes: WAP 9.6.2018

  33. Wooden Planes: WAP 9.6.2018

  34. Wooden Planes: WAP 9.6.2018

  35. Wooden Planes: WAP 9.6.2018

  36. • Sharpening • Setting and adjusting blade • Shavings produced from a highly sharpened blade have thicknesses between 0.05 mm (half the thickness of photocopy paper) and 0.15 mm Wooden Planes: WAP 9.6.2018
