Conservation Symposium We will get started in a couple minutes. Who - - PowerPoint PPT Presentation

Addressing the state’s water challenges by improving water efficiency through diverse community connections, innovative solutions and valuable member resources.

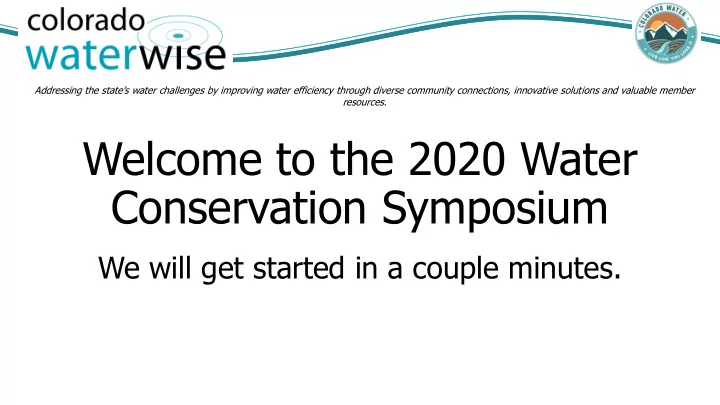

Welcome to the 2020 Water Conservation Symposium

We will get started in a couple minutes.

Who is CWW?

• Colorado WaterWise is addressing the state's water challenges

by improving water efficiency through diverse community connections, innovative solutions and valuable member resources.

• We offer educational tools, events and resources to our

members and the public to allow you to make a difference.

2020 Symposium Sessions

• Oct. 13 1 p.m. - System-wide technologies: real-world review of AMI and Leak

Detection systems

• Oct. 15 10 a.m. - Managing water in the headwaters of Colorado
• Oct. 20 10 a.m. - Supporting water resources through alternative water supplies
• Oct. 22 1 p.m. - Introduction to landscape and irrigation certification programs

in Colorado

• Oct. 27 2 p.m. - Understanding water conservation efforts across Colorado
• Oct. 29 10 a.m. - Advancing Water Efficient Landscape Ordinances: What’s been

done and where do we go next?

Thank you to our 2020 sponsors

The software solution that leverages our experience and the power of Salesforce to streamline customer-facing interactions

• Give Customers the ability to

submit rebate applications

• nline
• Automatically calculate water

savings and rebate date with

• ur industry-standard

calculations.

• Sync customer rebate profiles

with customer profiles.

• Allow site inspectors to

submit results electronically from the field, eliminating manual data entry.

• Enhance the effectiveness of

program outreach by tracking activities and outcomes.

• Easily update your customers
• n drought stages and water

restrictions.

• Maintain and track device

records to ensure up-to-date compliance with mandatory inspections.

• Allow testers to submit

inspection forms electronically from the field.

• Notify customers of upcoming

testing requirements with automated emails and texts to reduce likelihood of non- compliant devices.

Solutions

https://www.aiqueous.com/contact jbotto@aiqueous.com 512-391-9877

Housekeeping items

• Drop questions into the Q&A box and we will address them

toward the end.

• We will use audience polling throughout the session, we look

forward to hearing from you all!

• A recording will be available to CWW members following the

Symposium.

www.westernresources.org

20 2020 20 CWW WW Sym ymposiu posium Advanci ancing ng Wat ater er Ef Efficient icient La Land ndscape scape Ordinances: What’s been done and where do

• we

we go go ne next? t?

October 29, 2020 | John Berggren

www.westernresources.org

Wh Why y ar are e we we he here e tod

• day?

y?

www.westernresources.org

Wh Why y ar are e we we he here e tod

• day?

y? Climate change is no longer something we plan for in the future….

www.westernresources.org

Wh Why y ar are e we we he here e tod

• day?

y?

www.westernresources.org

Wh Why y ar are e we we he here e tod

• day?

y?

Water supply and demand planning is challenging, but luckily there are a lot

• f things communities can be doing to

become more resilient as we continue to see climate change impacts.

www.westernresources.org

Today’s agenda

1. 1. Intro ro to landsca scape pe regulatio ations/ ns/out utdoo door water effi ficien iency cy Marjo Curgus, Del Corazon Planning 2. 2. Case e studies ies SMWSA WSA Model l Landsc dscap ape e Ordinanc nance e (Logan Burba, Element Consulting) Town wn of Fre reder eric ick (Jenn Simmons, Frederick) City y of Aspen en (Rob Gregor, Aspen) 3.

• 3. What else

e can communit unities ies be doing? ? Marjo Curgus, Del Corazon Consulting 4.

• 4. Q&A

www.westernresources.org

Poll Question “Who is in the room today?”

WHERE & HOW WE BUILD MATTERS FOR WATER SAVINGS

1 SMALLER LOT SINGLE FAMILY DEVELOPMENT

Studies found 10 to 60% water savings with increased density

• f single-family residences.

2 MULTI FAMILY DEVELOPMENT

Multifamily units consume 35 to 50% less water than single family detached homes. If a high-density development requires cooling towers, the savings may decrease or be eliminated.

3 EFFICIENT LANDSCAPING AND IRRIGATION

Landscape code requirements can reduce outdoor water use by 35-50%.

4 INDOOR WATER USE

Water efficient fixtures and appliances, building and plumbing codes can have significant savings.

Voluntary Design Guidelines Landscape Standards Voluntary Water Use Restrictions Water Conservation Ordinance

Type of Standard Strength of Standard

Prescriptive Suggestive Voluntary Mandatory

• 1. Reduce the amount of water needed for irrigation by enhancing soil

conditions, appropriate plant types and landscape design.

• 2. Decrease water waste by improving site-specific water efficiency

through irrigation system design, best practices and technology.

• 3. Establish a maximum amount of water permitted for landscapes

with water budget.

• 4. Limit use of potable water through alterative water sources.

WATER EFFICIENT OUTDOOR WATER USE

OUTDOOR WATER EFFICIENCY BEST PRACTICES

PLANT MATERIALS

• 1. Add Soil Amendments
• 2. Specify Plant Material
• 3. Include Firewise and Water Efficient Landscapes
• 4. Require Restrictive Covenants

IRRIGATION EFFICIENCY

• 1. Require Mandatory Irrigation Scheduling
• 2. Require Efficient Irrigation System
• 3. Require Landscape Water Use Estimates and Maximum Allowable Water Budget
• 4. Separate Irrigation Meters
• 5. Prohibit Water Waste

WATER SUPPLY

• 1. Require Water Harvesting and Rain Gardens
• 2. Permit Alternative Water Sources
• 3. Utilize Water Connection Charge Incentives

Enhancing soil conditions, appropriate plant types and landscape design. :

Improving site-specific water efficiency through irrigation system design, best practices and technology.

Water Efficient Irrigation Systems

• Water-use management plan or water

budget.

• Hydrozones that group similar water

demands by irrigation zone.

• Non-potable water source.
• Separate irrigation meters.
• Irrigation system design.
• Irrigation shutoff valve.
• Efficient emitters.
• Master valves and flow sensors.
• Smart irrigation system controllers.
• Rain sensors.
• Soil moisture sensors.
• Overhead (spray) irrigation.

– Allowable only where sufficient width exists to prevent waste. – Pop-up height consistent with mature height of plants being watered – minimum of 6 inches. – Pop-up spray heads equipped with internal check valves, internal pressure regulations, and matched precipitation rate spray and rotary nozzle. – Rotors equipped with internal check valves and pressure regulations are more efficient than spray heads. – Head-to-head coverage.

• Drip systems.

– Point source drip or subsurface drip irrigation for all trees, shrubs, perennials and annuals. – Internal check valves at each drip emitter and for subsurface drip systems. – Subsurface drip irrigation may be used for turf or grass areas. – Bubblers may be substituted for drip emitters.

WATER EFFICIENCY IRRIGATION SYSTEMS

OUTDOOR WATER EFFICIENCY LESS CAPACITY/ LOW HANGING FRUIT

PLANT MATERIALS

• 1. Add Soil Amendments
• 2. Specify Plant Material
• 3. Include Firewise and Water Efficient Landscapes
• 4. Require Restrictive Covenants (HOAS)

IRRIGATION EFFICIENCY

• 1. Require Mandatory Irrigation Scheduling
• 2. Require Efficient Irrigation System
• 3. Require Landscape Water Use Estimates and Maximum Allowable Water Budget
• 4. Separate Irrigation Meters
• 5. Prohibit Water Waste

WATER SUPPLY

• 1. Require Rain Water Harvesting and Rain Barrels
• 2. Permit Alternative Water Sources
• 3. Utilize Water Connection Charge Incentives

OUTDOOR WATER EFFICIENCY HIGHER CAPACITY/IMPACT

PLANT MATERIALS

• 1. Add Soil Amendments
• 2. Specify Plant Material
• 3. Include Firewise and Water Efficient Landscapes
• 4. Require Restrictive Covenants (HOAS)

IRRIGATION EFFICIENCY

• 1. Require Mandatory Irrigation Scheduling
• 2. Require Efficient Irrigation System
• 3. Require Landscape Water Use Estimates and Maximum Allowable Water Budget
• 4. Separate Irrigation Meters
• 5. Prohibit Water Waste

WATER SUPPLY

• 1. Require Water Harvesting and Rain Gardens
• 2. Permit Alternative Water Sources
• 3. Utilize Water Connection Charge Incentives

MECHANISM OPTION A | LANDSCAPE ORDINANCE

MECHANISM OPTION B | WATER EFFICIENCY TAP FEE INCENTIVE Fountain, CO

Alternative and/or Complement to a Landscape Ordinance

• TIME OF DAY/SEASON: Outdoor irrigation is prohibited

between 11 AM to 7 PM from May through September of each year.

• WATER WASTE: Vehicle washing is only allowed with the use
• f a shut-off hose nozzle.
• WATER WASTE: An outdoor irrigation system may not be
• perated while a leak from it exists.
• WATER WASTE: All swimming pools, hot tubs and spas must

be covered to prevent evaporation when not in use. Swimming pools may only be emptied once per year.

• WATER WASTE: Water system leaks from private water lines

shall be repaired by the owner or property manager within fifteen (15) days of initial notification by the County or the

• wner’s knowledge of the leak. Proof of repair shall be

provided to the County upon completion of the repair when such notification is requested.

MECHANISM OPTION C | WATER CONSERVATION ORDINANCE

Alternative and/or Complement to a Landscape Ordinance

• TYPE OF PLANT MATERIAL: Planting sod or grass seed that

contains Kentucky bluegrass is not permitted

• IRRIGATION: Drip system requirements.
• HOAs: Must include conservation requirements in

convenants and file with County.

• WATER SUPPLY BUDGET: Set water budget lower than SEO

well standard.

• INDOOR: Requires water efficient plumbing fixtures.
• METERING: Requires self reporting on well meters.

MECHANISM OPTION C | WATER CONSERVATION ORDINANCE

SMWSA MODEL REGIONAL WATER EFFICIENT LANDSCAPE AND IRRIGATION ORDINANCE

OCTOBER 29, 2020

Logan Burba, P.E.

ABOUT SOUTH METRO WATER SUPPLY AUTHORITY

DRAFT/CONFIDENTIAL WORK PRODUCT

34

BACKGROUND

35

Water Efficiency Programs & Water-Land Use Nexus Recommendations (2015)

• 1. Common landscape and

irrigation regulations.

• 2. Contractor certification

program.

• 3. Outreach and education

program.

GENERAL INTENT AND BENEFITS

 Promote the value and benefits of landscapes while recognizing

need for efficient use of water outdoors and prevent waste

 Focus on new construction/rehabilitated projects  Promote standardization of best management practices across

the SMWSA area by providers that voluntarily elect to adopt

 Encourage efficient use of water through use of a maximum

landscape irrigation water budget

 Encourage local agencies to designate necessary authority to

implement and enforce provisions

36

POTENTIAL FOR STANDARDIZATION - EXAMPLE

37

ENTITY AMENDMENT RATE TILL DEPTH REQ’D?

Castle Pines North 6 cu yd per 1,000 sf 6 inches ? Castle Rock 4 cu yd per 1,000 sf, or per soil analysis 6 inches X Dominion/SR 4 cu yd per 1,000 sf 6 inches X ECCV not specified 4-6 inches ? Parker 5-6 cu yd per 1,000 sf 4-6 inches

SOIL AMENDMENT AND PREPARATION STANDARDS

TOP 10 RECOMMENDATIONS

38

LANDSCAPE CRITERIA

• Soil amendment & preparation
• Mulching

IRRIGATION SYSTEM CRITERIA

• Master shut-off valve & flow sensors
• Pressure-regulating devices
• Dedicated non-res landscape meters
• Irrigation system design specs
• Weather/soil moisture sensors
• Sprinkler spacing
• Emission device specs

HYDROZONE REQUIREMENTS

• Overhead sprinklers prohibited in narrow turf strips

CONSIDERATIONS FOR LOCAL UTILITIES

39

• Compare Top 10 to existing requirements

▪Consider updating standards/regs ▪Update materials that recommend but don’t require

regulatory changes

• Identify potential departmental

roles/responsibilities for implementing - reviewing plans, audits reports, etc.

• Determine local enforcement mechanisms
• Consider a pilot phase

FOR MORE INFORMATION VISIT:

SOUTHMETROWATER.ORG/EDUCATION/RESOURCES/MODEL-LANDSCAPE- IRRIGATION-ORDINANCE

Logan Burba, P.E.

lburba@elementwaterinc.com

Jennifer Simmons, AICP, Planning Director Town of Frederick

What do most of f us do when we hear something that’s too good to believe?

Frederick Landscaping Updates

Current status

• 20% of all Business Light Industrial and Industrial sites

must be landscaped including

• Turf (irrigated)
• Trees – site and street (irrigated)
• Shrubs (irrigated)
• FLOWERS!?! (irrigated)
• Why don’t rocks count as landscaping? – Or - If I

mow the weeds, does that count?

• Parking lot landscaping

Frederick Landscaping Updates

Desired status

• Landscaping to improve the look of business

parks

• Businesses shouldn’t have to take out a

second mortgage to finance watering the required landscaping

• Straightforward rules that small business
• wners can understand and maintain

Frederick Landscaping Updates

How Did Change Come About?

• CML Small Communities Workshop
• I heard something that was too good to be

true….

• WaterNow Alliance & Western Resource

Advocates

• Conversation/Exploration
• Anticipated political change

Frederick Landscaping Updates

Hurdles

• Political
• Staff time
• What do we really want???
• Water conservation
• Quality landscaping development
• Appropriate quantity of landscaping

required

• How do we quantify this

Frederick Landscaping Updates

Where Are We Now?

• Drafted land use code changes
• Relying on expertise in other municipalities
• Looking for specialized training

Frederick Landscaping Updates

How Did We Get Here?

• Listening
• Collaboration
• Focusing on
• Water conservation
• Quality landscaping development
• Appropriate quantity of landscaping required
• Relying on expertise of WaterNow Alliance and

Western Resource Advocates

Jennifer Simmons jsimmons@frederickco.gov

WATER EFFICIENT LANDSCAPING STANDARDS – Colorado WaterWise

Rob Gregor, CoA, and Logan Burba, Element Water

COA LANDSCAPE ORDINANCE BACKGROUND

Integrated Water Supply System

Surface Water Resources Deep Groundwater Shallow Groundwater Operations Reuse Water Storage Conservation and System Efficiencies

LANDSCAPE ORDINANCE BACKGROUND

➢ Promote healthy landscapes and recognize the need for water efficiency ➢ Establish a structure for planning, designing, installing, maintaining and managing water efficient landscapes ➢Use water efficiently by setting a Maximum Applied Water Budget ➢Builds a legacy of resource-conscious and sustainable landscapes, by promoting healthy soils, appropriate plants, and efficient irrigation infrastructure within the community.

LANDSCAPE ORDINANCE IMPLEMENTATION

January 2019

• Full Compliance

by City and County parcels

• n Aspen Water

within permit submissions is required

June 2017

• 18-Month Pilot

Program conducted includes community

• utreach and

process improvements

June 2017

• WELS Pilot

Program goes into effect

May 2017

• Council adopts

the Water Efficient Landscaping Standards (WELS)

WELS APPROVED SUBMITTALS

• 1

2 3 4 5 6 7 8

R-30 R-MF A H PUB MU R-6 R-15, R- 15A & R- 15B County CC

WATER NEEDS BY ZONING DISTRICT

• Avg. Water

Need

WELS PERMITTING PROCESS

• 1. Pre-Submission Checklist approved by Plans Reviewer prior to

Submission of Building Permit

▪ County parcels served by CoA water-process differs slightly. The CoA

Permit Coordinator forwards Applicant’s Submittal to WELS Plans Reviewer (and other appropriate depts)

• 2. Submission and Approval of WELS by Plans Reviewer (and

issuance of broader building permit)

▪ Important Objective: Minimize Number of Rounds of WELS Review to

Keep Building Permit Moving Forward

• 3. Audit & Inspection @ Post-Installation prior to issuance of C of O

WELS SUBMISSION REQUIREMENTS

• A complete WELS submission package includes:

▪ Site Plan ▪ Landscape Plan ▪ Irrigation Plan ▪ Hydrozone Plan ▪ Water Budget Worksheet ▪ Soils Criteria ▪ “Pre-submission Checklist”

3RD PARTY AUDIT OF IRRIGATION SYSTEM FOR C OF O

Prior to Issuance of a Certificate of Occupancy: ▪ 3rd Party Audit (mandatory) ▪ Approval Letter (mandatory) ▪ CoA Parks Inspection (case by case) Temporary CO Procedure: ▪ Cost Estimate by Applicant (approved by Parks) ▪ Deposit posted with City Water Dept. (WELS 5.8.3 c.) ▪ Deposit Released upon Completion of Landscaping, 3rd-Party Audit, and Inspection

www.westernresources.org

What else can communities be doing?

Discussion and Questions?

• Please type your questions into the Q&A box. We will get to as

many questions from attendees as we can.

• Thank you to our speakers today!

Thank you for joining the 2020 Conservation Symposium

You will be receiving a survey shortly that we would love to heard your feedback on.
