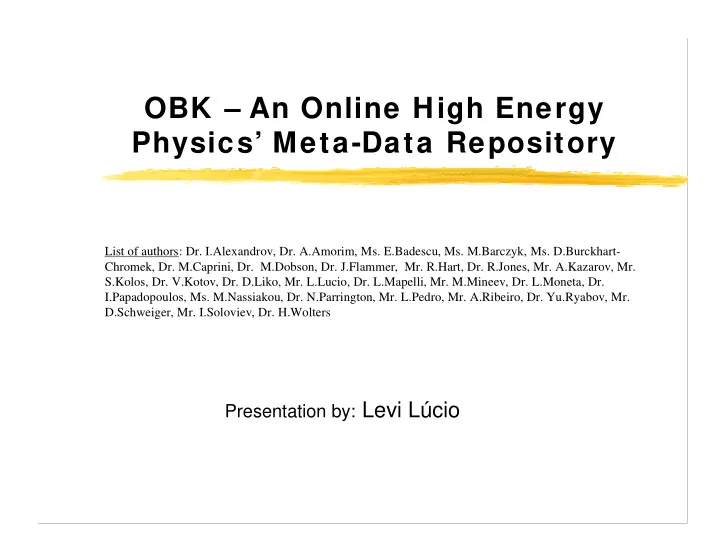

OBK – An Online High Energy Physics’ Meta-Data Repository

List of authors: Dr. I.Alexandrov, Dr. A.Amorim, Ms. E.Badescu, Ms. M.Barczyk, Ms. D.Burckhart- Chromek, Dr. M.Caprini, Dr. M.Dobson, Dr. J.Flammer, Mr. R.Hart, Dr. R.Jones, Mr. A.Kazarov, Mr. S.Kolos, Dr. V.Kotov, Dr. D.Liko, Mr. L.Lucio, Dr. L.Mapelli, Mr. M.Mineev, Dr. L.Moneta, Dr. I.Papadopoulos, Ms. M.Nassiakou, Dr. N.Parrington, Mr. L.Pedro, Mr. A.Ribeiro, Dr. Yu.Ryabov, Mr. D.Schweiger, Mr. I.Soloviev, Dr. H.Wolters

Presentation by: Levi Lúcio

slide-2
SLIDE 2

Levi Lucio - CERN EP/ATD, FCUL

Introduction (1) - CERN

Founded in 1954, CERN (European Organization for Nuclear Research) is a wide international collaboration (80 nationalities); The objective of CERN is the experimental study of physics, in particular the study of matter and the forces that hold it together; Within CERN’s lifetime, several important physics discoveries have been made, along with technology breakthroughs such as the WWW.

slide-3
SLIDE 3

Levi Lucio - CERN EP/ATD, FCUL

Introduction (2) - Accelerator

The LHC (Large Hadron Collider) accelerator is now being built at CERN to be ready in 2007. It will be the most powerful particle accelerator in the world and will allow breaking new barriers in HEP (High Energy Physics):

slide-4
SLIDE 4

Levi Lucio - CERN EP/ATD, FCUL

Introduction (3) - Detectors

Along the accelerator ring, several detectors (4) will be put in place. The ATLAS (A Toroidal LHC ApparatuS) is

  • ne of them:
slide-5
SLIDE 5

Levi Lucio - CERN EP/ATD, FCUL

Introduction (4) - Physics

Two particle beams travelling in the accelerator in opposite senses at 99.9999997% of the light speed meet head on in the detector, producing new particles; The interaction (collision) of two particles and their final state products is called an event; For ATLAS, many events need to be collected to have strong statistics that prove the theory - a very rare particle (Higgs boson) is searched for.

slide-6
SLIDE 6

Levi Lucio - CERN EP/ATD, FCUL

Introduction (5) - Triggers

The rate of events at ATLAS will be extremely high - 40 MHz; Only a fraction of those events (1/107) is interesting - a powerful filter (trigger) is necessary; This still means 100 events of 1Mbyte each per second - 100MByte/s storage; The ATLAS is expected to produce 1PByte/year of event data.

LVL1 LVL2 HLT

40 MHz 100 KHz 1 KHz 100 Hz (100 M/s)

DBMS

slide-7
SLIDE 7

Levi Lucio - CERN EP/ATD, FCUL

Introduction (6) - OBK

Online Book-keeper

Part of the Online Software system - online control, configuration and monitoring of the detector and triggers (thousands of machines); Records and manages log data (meta-data) about the detector and trigger chain (diversified information); Project undertaken in 1996 by the Lisbon FCUL / ATLAS group - L.Lucio, L.Pedro, A.Amorim, A.Ribeiro

ATLAS detector and triggers

Online Software

OBK

DBMS

slide-8
SLIDE 8

Levi Lucio - CERN EP/ATD, FCUL

Databases in HEP (1) - History

Before the 1980s - database market not mature to handle size and complexity; in-house solutions in FORTRAN; 1980s - relational solutions to handle book-keeping data; interest in OO persistent data model; 1990s - standardization of OO databases (ODMG); investigation and consequent usage of commercial Objectivity/DB by LHC and other HEP experiments; 2002 - LHC experiments dropped Objectivity/DB and are searching for alternatives - Oracle 9i, homegrown ROOT?

slide-9
SLIDE 9

Levi Lucio - CERN EP/ATD, FCUL

Databases in HEP (2)

Today’s needs

Management of large amounts of data (petabytes); Support of addition of significative quantities of data on a daily basis; Support of simultaneous queries; Support of data access over international networks; Flexible data model supporting versioning and schema evolution; Adequate interfacing to tertiary storage.

slide-10
SLIDE 10

Levi Lucio - CERN EP/ATD, FCUL

Databases in HEP (3)

Today’s trends

Indecision between homegrown (OO ROOT)

  • r external (OR Oracle 9i)

databases; Not clear what data model to use (pure OO, Object- Relational?); Heavy research on data distribution - replication, interfacing with GRID;

Homegrown/ external Data model OO/OR Distribution

slide-11
SLIDE 11

Levi Lucio - CERN EP/ATD, FCUL

The OBK (1) - Definition

Defined in the ATLAS technical proposal as the component that “archives information about the

data recorded to permanent storage by the data acquisition system. It records the information to be later used during data analysis1 on a per-run2 basis (run cataloger). It provides interfaces for retrieving and updating the information.”

1After being collected, event data is analyzed “manually”. 2A data taking period with a given machine parameterization.

slide-12
SLIDE 12

Levi Lucio - CERN EP/ATD, FCUL

The OBK (2)

Development approach

Prototypical spiral (3 prototypes - OBK/Objectivity, OBK/OKS and OBK/MySQL); Well defined software development process + documentation production; Usage of development support tools: CVS, CMT (platform management), Perl, Rose, documentation templates, etc.

Integration Requirements gathering High level design Implementation Testing

Requirements document DB and code diagrams

Developer and user manuals

Test report

slide-13
SLIDE 13

Levi Lucio - CERN EP/ATD, FCUL

The OBK (3)

Online Softw are context

The OBK is part of the Databases super-component of the Online Software:

LVL1 Detector DataFlow SCADA LVL2 EF Online Sw. Run Control

Messaging

Monitoring Databases Ancilliary

slide-14
SLIDE 14

Levi Lucio - CERN EP/ATD, FCUL

Requirements gathering

Main Use Cases

  • Data acquisition:

Data acquisition:

After being started with the Online Software, the OBK will acquire the specified data in an automatically without human intervention;

  • Information updating:

Information updating:

Users will want to add their own annotations to the acquired data;

  • Data access:

Data access:

It will be possible for several kinds of clients, such as humans, applications or offline data analysis frameworks to access the database adequately;

  • Data administration:

Data administration:

Users will want to manage and administrate the OBK database.

slide-15
SLIDE 15

Levi Lucio - CERN EP/ATD, FCUL

High level design (1)

Package overview

  • IS

IS

Information System

  • MRS

MRS

Message Reporting System

  • ConfDB

ConfDB

Configuration Databases

DBMS OBK acquisition software

C++ API Web Browser Administrative tools Online Software

IS MRS

ConfDB

slide-16
SLIDE 16

Levi Lucio - CERN EP/ATD, FCUL

High level design (2)

Logical database structure

  • Partition:

Partition: subset of the detector and triggers that can acquire data independently.

Partition n-1 Partition n Partition n+1 Run n Run n+1 Run n-1

Annotations IS Meta-info Configuration Data MRS Messages IS Messages

slide-17
SLIDE 17

Levi Lucio - CERN EP/ATD, FCUL

Implementation

Languages and tools

  • C+ + programming language

C+ + programming language

Used to code all OBK acquisition engines (including connections to the DBMSs) and API software;

  • STL (Standard Template Library)

STL (Standard Template Library)

Data containers and algorithm templates used as building blocks for C+ + applications;

  • Objectivity/ DB

Objectivity/ DB

Commercial distributed object oriented database management system;

  • OKS

OKS

In-memory persistent object manager implemented in-house to satisfy ATLAS’ needs in terms of configuration databases;

  • MySQL

MySQL

Open source relational database management system;

  • PHP

PHP

General purpose scripting language, specially adequate for web programming;

  • Perl

Perl

General purpose scripting language;

  • Apache

Apache

Widely used HTTP server.

slide-18
SLIDE 18

Levi Lucio - CERN EP/ATD, FCUL

Implementation

Objectivity prototype(1)

1 OBKSLCRun 1..*

OBKRun

OBKRunWEvents

OBKAnnotation

OBKAuthor

OBKMRSParam

OBKMRSMessage

OBKISInfo

OBKISAttribute OBKISAttrBasic OBKISAttrArray

OBKISDocument

OBKConfFiles

0..* 1 1 1 1 1 1 1 1..* 0..* 0..* 0..* 0..*

Federation Database Container Object Partition Run Object

class OBKRun : public ooContObj { public: Run (); Run (uint32 runNumb); void setRunNumb (uint32 runNumb); uint32 getRunNumb ();

  • oRef(OBKComment) runComms[] <-> commToRun[];
  • oRef(Coordinator) runCoordinator <-> rCoordinated[];
  • oRef(LockedStatus) runToLStat[] <-> lStatOfRun[];
  • oRef(OBKConfdb)hasConfig <-> appliesToRuns[];

protected: uint32 m_runNumb; d_Timestamp m_startDate; d_Timestamp m_endDate; };

Inherits from Objectivity class References to access persistent objects

slide-19
SLIDE 19

Levi Lucio - CERN EP/ATD, FCUL

Implementation

Objectivity prototype(2)

  • Comments

Comments

Objectivity/DB makes available specialized engines to handle connections and concurrency; Very good integration between code and DMBS - minimal difference between persistent and transient objects; The prototype makes use of Objectivity/DB transactions. A new transaction is started for each new run; Objectivity/DB’s locking mechanism is used explicitely in the code to avoid incoherent reads/writes. MROW (Multiple Readers One Writer) facility used to read data as soon as it is written.

slide-20
SLIDE 20

Levi Lucio - CERN EP/ATD, FCUL

Implementation

OKS prototype(1)

Data model includes XML data files and objects; A data file is either in-memory or in disk (atomic loads); Database schema equivalent to OBK/Objectivity’s one.

DB Root (File System)

Partition 1 Partition 2 Partition 3

Run 21 Run 22 Run 23

Federation data file Partition data files Run data files

OksClass *PartitionInfo = new OksClass( "PartitionInfo", false); { OksAttribute *partitionName = new OksAttribute( "partitionName", OksAttribute::string_type, false, "unknown", true); PartitionInfo->add(partitionName); PartitionInfo->add(inUse); }

Definition of a new OKS “object”

slide-21
SLIDE 21

Levi Lucio - CERN EP/ATD, FCUL

Implementation

OKS prototype(2)

  • Comments

Comments

OKS is a persistency C++ library. No services other than the

  • nes included in the library are made available;

No concurrency management is available. In the OBK case concurrency was implemented using OS mechanisms; No transactions are available. At the beginning of each run new data files are opened and at the end of the run closed; The prototype includes optimized accesses to certain parameters which are very requested. They are kept in a special central data file (cache).

slide-22
SLIDE 22

Levi Lucio - CERN EP/ATD, FCUL

Implementation

MySQL prototype(1)

  • Relational model

Relational model: completely different database schema from previous OO approaches.

MYSQL *sock,mysql; MYSQL_RES *res; MYSQL_ROW tmp; string selectqbuf; char * date; selectqbuf = ("SELECT MAX(StartDate) FROM run WHERE PartitionID =" + PartitionId); if(mysql_query(sock,selectqbuf.c_str())) { userMessaging->m_obkErr(new string("Query: " + selectqbuf + " failed! " + (string)mysql_error(sock)),2); } if(!(res = mysql_store_result(sock))) { userMessaging->m_obkErr(new string ("Couldn't get result from query: " + (string)mysql_error(sock)),2); } tmp = mysql_fetch_row(res); date =tmp[0]; }

Query execution request to the engine

slide-23
SLIDE 23

Levi Lucio - CERN EP/ATD, FCUL

Implementation

MySQL prototype(2)

  • Comments

Comments

As Objectivity/DB, MySQL also makes available an engine to deal with queries; Concurrency issues are managed transparently by the MySQL engine; Transactions and atomic operations are made available by the MySQL engine - not used by the OBK though; Indexes on certain key tables were created to accelerate queries (up to a factor of 45 speed difference); XML used to deal with the difficulty of storing collection types.

slide-24
SLIDE 24

Levi Lucio - CERN EP/ATD, FCUL

Implementation - Data Access

  • Command line dump

Command line dump

Debug situations, not many available resources;

  • C+ + API

C+ + API

Shared library; uses STL for return structures;

  • Web

Web-

  • based browser

based browser

More sophisticated, includes administrative tools. Heavier

  • n resources than previous

solutions.

slide-25
SLIDE 25

Levi Lucio - CERN EP/ATD, FCUL

Performance & Scalability (1)

While for the OBK/Objy and the OBK/OKS store times rise (check if the run already exists), the OBK/MySQL presents low and constant store times.

OBK/Objy OBK/OKS OBK/MySQL

All tests performed in unloaded linux7.1/gcc2.96 PIII/800MHz

slide-26
SLIDE 26

Levi Lucio - CERN EP/ATD, FCUL

Performance & Scalability (2)

The OBK/OKS is the fastest - the operation takes place in memory, no I/O accesses.

OBK/Objy OBK/OKS OBK/MySQL

slide-27
SLIDE 27

Levi Lucio - CERN EP/ATD, FCUL

Performance & Scalability (3)

While being accessed simultaneously by multiple IS servers the OBK/OKS presents the best performance - fastest IS storing time. Also, the Online Software is affected by OBK’s performance; Worst performance in storage space by OBK/Objy - a container always allocates a predefined number of fixed size pages, even if they are not used.

P r o t o t y p e v s . # o f I S s e r v e r s

1 0 2 0 5 0 1 0 0

O B K / O b j y

O K

O K , b u t s o m e t i m e s t h e I S/ M R S s e r v e r s g e t b lo c k e d O n lin e s o f t w a r e b e c o m e s b lo c k e d

  • O B K / O K S

O K

O K

O K , b u t s o m e t i m e s t h e I S / M R S s e r v e r s g e t b lo c k e d O n lin e s o f t w a r e b e c o m e s b l o c k e d

O B K / M y S Q L

O K

O K , b u t s o m e t i m e s t h e I S/ M R S s e r v e r s g e t b lo c k e d O n lin e s o f t w a r e b e c o m e s b lo c k e d

  • OBK/ Objy

OBK/ OKS OBK/ MySQL

63.4 M 3.7 M 2.11 M

slide-28
SLIDE 28

Levi Lucio - CERN EP/ATD, FCUL

Performance & Scalability (4)

Best results by OBK/MySQL, due to the efficiency of the MySQL query engine, faster than hand-coded queries in the OO prototypes; In query 2 the OBK/Objy presents the worse performance - the parameters which are searched for are cached in the case of OBK/Objy and OBK/OKS;

Local Remote OBK/Objy

0.13 0.94

OBK/OKS

0.38 1.42

OBK/MySQL

0.39 0.70

Local Remote OBK/Objy

18.13 116.08

OBK/OKS

0.35 1.18

OBK/MySQL

0.02 0.08

slide-29
SLIDE 29

Levi Lucio - CERN EP/ATD, FCUL

Performance & Scalability

Overall Results

Best overall results by the MySQL OBK prototype; Strong results also from the OKS OBK prototype, mainly due to its in-memory features; Less optimal results achieved by the Objectivity/ DB prototype - requires deep know-how to be properly tuned.

slide-30
SLIDE 30

Levi Lucio - CERN EP/ATD, FCUL

Deployment

Large scale tests of the Online Software

(simulated environment):

2001 (OBK/OKS): 111 nodes running on 111 machines; 2002 (OBK/MySQL): 210 nodes running on 210 machines.

Testbeams (real data acquisition with parts of

the detector running):

2000 (OBK/Objy): 2 Gbytes acquired; 2001 (OBK/OKS): 3 Gbytes acquired; 2002 (OBK/MySQL): 5 Gbytes acquired (still running).

slide-31
SLIDE 31

Levi Lucio - CERN EP/ATD, FCUL

Some metrics

Effort (man/ month) Lines of Code OBK/ Objy

18 4166

OBK/ OKS

4 8799

OBK/ MySQL

3 6193

Effort (man/month) OBK/Objy

1

OBK/OKS

1

OBK/MySQL

0.5

Requirements gathering: 2 man/month, 2 documents produced. Documentation: 3 man/month, User & Developer’s manual,Test report.

slide-32
SLIDE 32

Levi Lucio - CERN EP/ATD, FCUL

Lessons learnt

  • Software Development Process

Software Development Process

Following a formal approach to the development of the three prototypes yielded: easy comparison of the OBKs; diminishment of the effort to build the latter prototypes; delivery of a quality OBK product;

  • Technology

Technology

OO DBMS technology is very flexible in terms of data mapping and provides natural integration with programming languages. It is possible to follow an OO development approach both for application and database. RDBMS technology is less elegant but very efficient…

  • Interaction with users

Interaction with users

Good and constant interaction with the final users of the system makes development simpler and faster. Continuous enhancement of the knowledge about the systems and the people the software interacts with is essencial while putting the problem under perspective.
