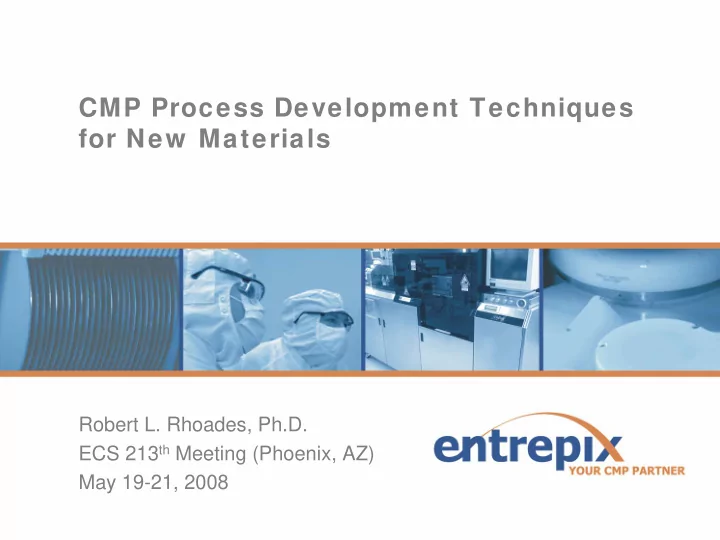

CMP Process Development Techniques for New Materials

Robert L. Rhoades, Ph.D. ECS 213th Meeting (Phoenix, AZ) May 19-21, 2008

Our Expertise, Our Services, Your Success

2

Outline

• Background and Industry Drivers
• Generalized Development Sequence
• CMP Process Development Techniques
• Examples
• Conclusions

Our Expertise, Our Services, Your Success

3

A Market Divided Background

• Why are development techniques so important? SPEED and COST!

– New products must be ready on time for market launch – Long term efficiency improves competitive strength

• Moore’s Law dominates the CMOS industry

– Not affected by cycles, markets, analysts, or the economy

• Photolithography and CMP are two critical process technologies to

continue both cost and performance improvements

– Photolithography enables SHRINKS – CMP enables more complex STACKS

• Trend has held for >35 years !

Source: Intel Corporation

Our Expertise, Our Services, Your Success

4

Market Driver … The Consumer

• What do they want?

More, Better, Faster, Smaller, and Cheaper.

• 2005 inflection point for

semiconductors: consumer-based products become primary industry driver.

• Consumers demand

More for Less.

• Consumers demand

More in Less.

• Historically enabled by

Moore’s Law – device shrinks & larger wafers.

Source: 2007 Industry Strategy Symposium – Hans Stork, CTO, Texas Instruments Source: 2007 MEPTEC – Jim Walker, Gartner Dataquest

Our Expertise, Our Services, Your Success

5

CMP Drivers

(1) % of Wafers Using CMP is Increasing (2) # CMP Polishes per Wafer is Increasing

+

= VOLUME

(3) # CMP Polish Applications is Increasing

+

= TECHNOLOGY

(4) Each Application Requires a New CMP Process

1995 2001 2008 Glass (oxide) Glass (oxide) Glass (oxide) Tungsten Tungsten Tungsten Copper Copper Shallow Trench Shallow Trench Polysilicon Polysilicon Low k Cap Ultra Low k Metal Gates Gate Insulators

Sources: Cabot Microelectronics Corp. & Entrepix, Inc.

High k Dielectrics Ir & Pt Electrodes Magnetics

Our Expertise, Our Services, Your Success

6

Grow th in Applications

CMP is still growing for CMOS applications ... And many newer applications are now also being developed beyond “traditional” CMP.

• Traditional CMOS Applications
• Oxide (ILD, pre-metal dielectric, etc.)
• Tungsten (plugs or local interconnect)
• Shallow trench isolation (STI)
• Copper (integrated with or w/o low-k dielectric)
• New Apps for CMOS devices
• Polysilicon
• Polymers (both low-k and other uses)
• Capping layers
• High-k dielectrics
• Gate insulators
• Metal gates
• Noble metal contacts
• MEMS
• Oxides (doped or undoped)
• Polysilicon (usually structural)
• Nitrides and oxynitrides
• Separation layer (MEMS-first or MEMS-last)
• Other
• Strained layer epi substrates
• Custom III-IV and II-IV epi layers
• Phase change memory materials
• Photoresist and other polymers
• Magnetic materials (active or shielding)
• Grating structures
• Integrated optical layers
• Advanced packaging
• 3D IC’s and similar structures

Our Expertise, Our Services, Your Success

7

Development Sequence

Materials Selection Integration Planning Process Development Device Prototype Optimization Qualification Pilot Production High Volume Manufacturing Development Sequence Design Concept

• The vast majority of development

efforts follow this basic path

• Each stage has certain inputs

required, activities to be performed, and desired outputs that increase in difficulty and complexity for each successive stage

• Each stage assumes successful

completion of the previous stage, or at least overlapping execution of the previous stage

• Failure at any stage usually means

backing up at least one stage to try again

Our Expertise, Our Services, Your Success

8

Stage Detail #1

Stages leading to a working device prototype …

Stage Resources Activities Stage Outputs Design Concept Designers 1.Brainstorming Approval from R&D team, R&D team 2.Sketches/drawings/etc. management for design 3.Documentation approach & use of CMP Materials Selection Designers 1.Assess extendability of List of primary materials and R&D team existing materials & processes backups, if possible, for all Materials scientists 2.Propose/evaluate alternatives materials to be polished Integration Planning Designers

• 1. Assess extendability of

First pass process flow R&D team integration & process flow showing each CMP level Integration team

• 2. Propose alternatives

Process Development Integration team 1.Process screening expt Demonstration of initial Process engineering 2.Repeat trials until acceptable process for new materials, Test wafers performance on blanket films new modules or processes Eng time on process tools 3.Early patt test wfrs (maybe) needing major improvements Device Prototype Integration team 1.First silicon on new masks One or a few working devices Process engineering 2.Lots of analysis (SEM,etc.) & proposals for improving Analytical support team any critical path items Wafers & process tool (eng)

Our Expertise, Our Services, Your Success

9

Stage Detail #2

Stages leading to revenue …

Stage Resources Activities Stage Outputs Optimization Integration team 1.Refine CMP process based Iterative improvements until Process engineering

• n details from first silicon

acceptable performance and Analytical support team 2.Explore process windows yield are achieved Wafers & process tools (1x) 3.Repeat trials (consistency) Qualification Engineering teams 1.Produce live devices for qual Devices for burn-in & life test Manufacturing teams 2.Prep for transfer to mfg Documentation in place for Wafers & process tools (1x) 3.Establish initial SPC limits each process step Pilot Production Manufacturing teams 1.Transfer control to mfg Sellable devices Engineering teams 2.Monitor device and process Assessment of any issues Wafers metrics for signs of instability showing up as volume ramps Process tools (multiple) 3.Refine and lock SPC limits Volume Manufacturing Manufacturing teams 1.Manufacturing controls Profitable devices Engineering teams 2.Monitor SPC trends Technical inputs for next gen Wafers 3.ID yield/cost improvement device designs Process tools (multiple) targets & requal when justified

Our Expertise, Our Services, Your Success

10

CMP Metrics

• Most CMP processes are measured on 5 basic metrics

Removal Rate and Uniformity Defectivity Planarization

(step height, dishing/erosion, surface roughness, etc.)

Process Stability

(repeatability from wfr-to-wfr, run-to-run, etc.)

Cost per Wafer

Our Expertise, Our Services, Your Success

11

Interactions

Process Settings Rate Uniformity Defectivity Planarization Down force, DF STRONG weak Moderate STRONG Back pressure, BP weak Moderate weak weak Table speed, TS STRONG weak Moderate STRONG Carrier speed, CS weak Moderate (often nonlinear) weak weak Slurry flow, SF nonlinear nonlinear Moderate weak Conditioner force weak weak weak Moderate Conditioner speed don't care don't care weak weak CMP Process Metrics

Our Expertise, Our Services, Your Success

12

CMP Development

• Zoom in on CMP process development
• Assumes fundamentals of pad/slurry

research are already done by suppliers

• Test wafer availability and quality often

impact timeline, validity of results, etc.

• Initial process DOE’s generally focus on

removal rate and gross surface quality

• Optimization stages can be interchanged
• r executed in parallel
• Planarity can mean step height, dishing,

erosion, roughness, etc. depending on the material and intended application

• Failure at any stage usually means

backing up at least one stage to try again

Consumables Screening Process DOE's Optimize Uniformity Optimize Planarity Optimize Defectivity Stability (marathon) Release for Device Qualification

CMP Development Sequence

Generate Test Wafers Repeatability (multiple runs)

Our Expertise, Our Services, Your Success

13

Early CMP Stages

Early stage development efforts often involve:

• Immature deposition or growth processes
• Poorly characterized materials or integrations
• Technologists who may not be familiar with CMP and

how it interacts with other process modules

• Wide variation in pattern density/feature sizes
• Wafer sizes smaller than 200 mm
• Limited availability of test wafer

These factors can create huge challenges for CMP

Our Expertise, Our Services, Your Success

14

Consumables Screening

Resources

Pads (one or more types) Slurries (one or more types) Blanket film test wafers

Experimental Plan Inputs

Include blanket films or bulk samples of ALL materials Change pads with major changes in slurry Stick to one mid-point recipe as a common data point for all combinations Include supplier-recommended process recipes whenever practical Keep data analysis quick and simple (optimize later)

Desired Outputs

Choose pad/slurry that achieve: Removal Rate at or above target Surface finish acceptable (1st pass)

Our Expertise, Our Services, Your Success

15

Rate Screening

Removal Rate 1000 2000 3000 4000 5000 6000 7000 8000

Slurry #1 Slurry #2 Slurry #3 Slurry #4 Slurry #5 Slurry #6 Slurry #7 Slurry #8 Slurry #9 Slurry #10

Removal Rate (Ang/min)

• Metal CMP

application

• Pad selection

frozen

• Goal of 4 kA/min
• Multiple slurry

candidates

• Slurry #8 was

chosen for further

• ptimization

Our Expertise, Our Services, Your Success

16

Process DOE’s

Resources

Consumables (Pad and slurry) Blanket film test wafers (all mtrls) Defect monitor wafers (if available)

Experimental Plan Inputs

Goal is to get preliminary process responses to major variables Preston’s Equation (RR=k*P*V) is only an approximation Keep % changes below 25% to keep DOE’s as “linear” as possible Responses to slurry flow and back pressure are not usually linear Successive 2x2 or 3x3 DOE’s are generally preferable to massive designs Include defectivity as an output metric if wafers are available

Desired Outputs

Rate and uniformity responses to changes in major process variables Identify a process to start further

• ptimization

Our Expertise, Our Services, Your Success

17

Optimization

Resources

Consumables (Pad and slurry) Blanket film wafers (selected mtrls) Defect monitor wafers Patterned wafers for planarization

Experimental Plan Inputs

Be careful using DOE’s … single-variable curves often more helpful at this stage Focus on variables with strongest link to parameter being optimized Uniformity: Carrier-to-table speed ratio, back pressure or carrier zones Planarization: Downforce, table speed (keep in mind rate tradeoffs) Defectivity: Downforce, slurry flow, final recipe steps (remember tradeoffs) Number of wafers can quickly get large

Desired Outputs

Single process recipe that meets all required process metrics Data supporting chosen recipe and responses in nearby process space

Our Expertise, Our Services, Your Success

18

Repeatability

Resources

Consumables (multiple batches) Blanket film wafers Defect monitor wafers Patterned wafers (optional)

Experimental Plan Inputs

Keep process recipe consistent throughout trials Measure all relevant metrics, not just removal rate Planarization monitor can be low sampling frequency Defect monitor can likewise be low frequency if confident in process

Desired Outputs

Consistent process performance data using same process settings across multiple consumable sets

Our Expertise, Our Services, Your Success

19

Marathon Run

Resources

Consumables Blanket film wafers (selected mtrls) Defect monitor wafers Patterned wafers

Experimental Plan Inputs

Generally want to prove stability for duration of pad life, or at least 250 wafers Different than repeatability … focus is on process stability of a single pad set Can be a continuation of the last pad set of the repeatability trial Liberal use of filler wafers can save cost Sample at some low frequency for defects and planarization

Desired Outputs

Data showing process consistency through pad life (or at least a reasonably large number of wafers)

Our Expertise, Our Services, Your Success

20

Example: MEMS Oxide

Critical Concerns:

Minimize oxide deposition Incoming topography 2.8 um Final topography must be < 0.4 um Smooth – No sharp corners anywhere Batch to batch consistency

1000 2000 3000 4000 5000 6000 1 2 3 4 5 6 7 8 9 10 11 12 Run # Removal Rate (Ang/min)

Key Process Metrics & Constraints

Metric Incoming Value Post-CMP Target Actual Oxide film thickness 6.5 um 2.8 um n/a Step Height 3.02 um 3.0 um < 0.4 um 0.5 0.2 um Removal Rate (um/min) 0.488

Our Expertise, Our Services, Your Success

21

Example: SiGe Epi

Metric Incoming Value Target Actual Surface Roughness, Ra >10 nm n/a n/a Removal Rate 0.2-1.4 nm <1 nm >500 A/min 0.25-0.75 um 480-1600 A/min Total Mtrl Removal Within 5%

Process Factors:

Standard Si process left Ra too high Post-CMP clean had to be developed Composition varied widely

500 1000 1500 2000 2500 0% 20% 40% 60% 80% 100%

Epi Layer %Ge Polish Rate (Ang/min)

3 6 9 12

Pre-CMP Post-CMP

Roughness, Ra (nm)

Our Expertise, Our Services, Your Success

22

Multiple Materials

Multiple Materials

Final surface is comprised of oxide, polymer, and two different metals Goals of CMP process: High rate on oxide and polymer Low Ra on all materials Planar surface across all mtrls Initial focus: slurry screening

Material Removal Rates by Formulation

10000 20000 30000 40000 Baseline Sample A Sample B Sample C Sample D Sample D+ Sample E+

RR (Ang/min)

Oxide Rate Polymer Rate Metal #1 Rate Metal #2 Rate sample delaminated.

Data Removal Rate Roughness (Ra)

Run Order Slurry Oxide Rate Polymer Rate Metal #1 Rate Metal #2 Rate Oxide Ra (Ang) Polymer Ra (Ang) Metal #1 Ra (Ang) Metal #2 Ra (Ang)

1 Baseline 7129 25233 2834 4521 6 12 n/a 5 2 Sample A 7121 21688 2118 2846 6 6 13 14 3 Sample B 10918 30655 4431 1942 14 6 37 7 4 Sample C 8940 33784 521 1071 16 19 672 7 5 Sample D 7595 25859 6060 6163 5 14 48 11 6 Sample D+ 8307 17726 2248 n/a 5 6 26 n/a 7 Sample E+ 14004 18977 3225 2411 5 9 13 11

Our Expertise, Our Services, Your Success

23

Direct Wafer Bonding

Example #2: Inlaid Cu in TEOS

Incoming topography >2.5 kA Goal of <200 A total topography POST-CMP TOPOGRAPHY ACHIEVED 70-90 Angstroms

Example #1: TEOS on X

Oxide surfaces tend to bond well when polished to sufficiently low Ra Incoming roughness driven by surface prep of underlying material Sufficient oxide thickness must be deposited to remove at least 2x initial peak-to-valley roughness

Material Stack Incoming Ra (A) Post-CMP Ra (A) TEOS on Silicon 7 3 TEOS on AlN 187 11 72 87 332 TEOS on SiC 7 TEOS on Polysilicon 7 TEOS on Metal 8

Flat across Feature

Our Expertise, Our Services, Your Success

24

Early Stage Summary

In general, the key requirements for early stages

• f CMP development are:
• Strong understanding of materials and key integration

issues with CMP

• Fully capable process equipment and metrology
• Experimental methods adapted to non-linear systems
• Creativity and innovation

Successful early stage efforts lead to working prototype devices and sufficient understanding to move forward with qual

Our Expertise, Our Services, Your Success

25

Transition to HVM

• Development team stays heavily involved through qualification
• Handoff to manufacturing occurs during ramp to volume
• Requirements for smooth transition include:

– Documented procedures – SPC (at least initial limits) – Training of manufacturing staff (operators, techs, sustainers, etc.) – Followup of any issues uncovered during initial ramp

• Same basic requirements apply to qualifying an existing fab

process in an outsource facility (example follows)

Our Expertise, Our Services, Your Success

26

Blanket w afer marathon

1000 2000 3000 4000 5000 Start 25 50 75 100 125 150 175 200 225 250

Wafer Number

Removal Rate (Ang/min)

0.0 5.0 10.0 15.0 20.0

Uniformity (% 1-sigma)

Removal Rate % NU Oxide CMP Qualification Run Polisher: AMAT Mirra Mesa Pad: IC1010 Slurry: Klebosol 1501-50 Conditioning: In-situ Metrology: 49-point diameter scan, 3mm EE

Our Expertise, Our Services, Your Success

27

Oxide Defectivity

50 100 150 200 250

S e t u p W a f e r

• 1

2 W a f e r

• 3

7 W a f e r

• 6

2 W a f e r

• 8

7 W a f e r

• 1

1 2 W a f e r

• 1

3 7 W a f e r

• 1

6 2 W a f e r

• 1

8 7 W a f e r

• 2

1 2 W a f e r

• 2

3 7 LPD Count Pre LPD Post LPD

Mesa Cleaner: 2% NH4OH in both brush stations Metrology Platform: AMAT Orbot

Our Expertise, Our Services, Your Success

28

Contamination

• Post-CMP residual surface contamination (shown

in table at left) was compared between existing qualified process and desired outsource process – no differences were observed

• Planarization efficiency was compared on test

wafers (data not shown) to verify that results were exactly equivalent to in-fab data

• Based on accumulated data, authorization was
• btained to run product split lots to compare

device yield

Fab Reference Entrepix Polisher #1 Entrepix Polisher #2 Element All Units = 1E10 atoms/cm2 S 354.86 440.95 268.84 Cl 33.8 62.63 65.46 K Ca 2.35 2.89 3.21 Sc Ti V 2 Cr Mn Fe Co Ni Cu Zn W

Our Expertise, Our Services, Your Success

29

Split Lot Yields

Wfr 1-6 Wfr 7-12 Wfr 13-18 Wfr 19-24

Product yield equivalent between all split lot groups Qualification complete for outsource production

Our Expertise, Our Services, Your Success

30

Conclusions

• Efficient development of new products is required for a fab to

remain competitive

• Many new device technologies require new CMP processes
• CMP process development generally proceeds along a

consistent sequence of stages

• Choose experimental methods appropriate to the stage

– Simple rate and surface quality screening to select pad/slurry – DOE’s for first pass recipe development – Optimize uniformity/planarization/defectivity using combination of DOE’s, single-variable focus, and engineering instinct – Verify repeatability and stability (marathon run) on all metrics – Characterize yield and live device performance at appropriate points in preparation for product qual and ramp

Our Expertise, Our Services, Your Success

31

Contact info

Anyone desiring copies of this presentation or any other information can contact any of the following individuals:

Rob Rhoades Chief Technology Officer Tel: 602 426-8668 Fax: 602 426-8678 rrhoades@entrepix.com Bob Tucker V.P. and General Manager Tel: 602 426-8675 Fax: 602 426-8678 btucker@entrepix.com
