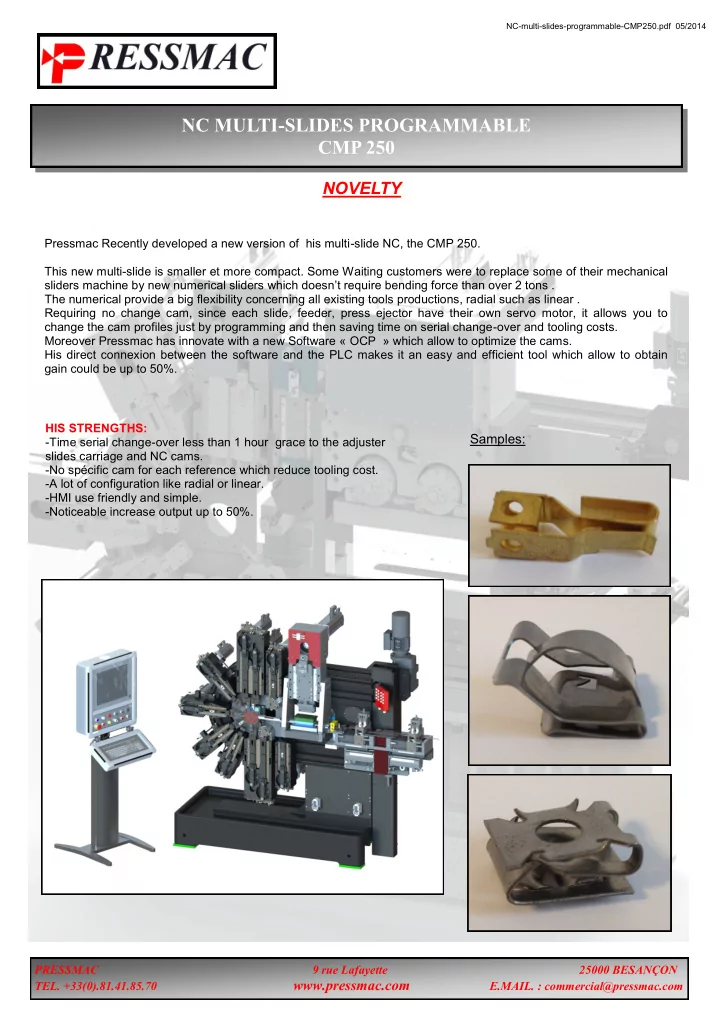

NC MULTI-SLIDES PROGRAMMABLE CMP 250

Pressmac Recently developed a new version of his multi-slide NC, the CMP 250. This new multi-slide is smaller et more compact. Some Waiting customers were to replace some of their mechanical sliders machine by new numerical sliders which doesn’t require bending force than over 2 tons . The numerical provide a big flexibility concerning all existing tools productions, radial such as linear . Requiring no change cam, since each slide, feeder, press ejector have their own servo motor, it allows you to change the cam profiles just by programming and then saving time on serial change-over and tooling costs. Moreover Pressmac has innovate with a new Software « OCP » which allow to optimize the cams. His direct connexion between the software and the PLC makes it an easy and efficient tool which allow to obtain gain could be up to 50%. HIS STRENGTHS:

• Time serial change-over less than 1 hour grace to the adjuster

slides carriage and NC cams.

• No spécific cam for each reference which reduce tooling cost.
• A lot of configuration like radial or linear.
• HMI use friendly and simple.
• Noticeable increase output up to 50%.

NOVELTY

Samples:

PRESSMAC 9 rue Lafayette 25000 BESANÇON

• TEL. +33(0).81.41.85.70 www.pressmac.com

E.MAIL. : commercial@pressmac.com

NC MULTI-SLIDES PROGRAMMABLE CMP 250

Specifications:

Min Max Standard Option Speed strk/mn 300 Depend application Drives-motor All numerical NC Number slides CN on the frame 20 Slide 4 Tons CN stroke 40/50 mm Linear or radial Slide 2 Tons CN stroke 40 mm Linear or radial Angle gear angle

• 90°/+90°

Double slides 2T stroke 40 mm Feeder CN Speed 0 str/mn 200 str/mn 1 fixed gripper and 1 mo- bil gripper Buffer

• r

hydraulic gripper 0 str/mn 300 str/mn 2 mobil grippers Press modul Press kind simple Cam Speed 0 str/mn 250 str/mn Dynamic force mea- surement Force 0 kn 120Kn Stroke 20 or 16 mm Press kind double Cam Speed 0 str/mn 250 str/mn Dynamic force mea- surement Force 0 kn 240Kn Stroke 20 or 16 mm Ejector // Conform slide stroke 100mm Double ejector CN Force 60 Dan 2*60 Dan Positioning slides Radial By adjust carriage Lineaire By adjust carriage Scrolling direction Right to left Left to right Weight short version 5 Tons depending confi- guration Weight long version 6 Tons depending confi- guration Dimensions short version L=1960 x H=2203 x W=800 Dimension long version L=2460 x H=2203 x W=800

For additional information on our modules please refer to our other. Pdf or contact the sales department

PRESSMAC 9 rue Lafayette 25000 BESANÇON

• TEL. +33(0).81.41.85.70 www.pressmac.com

E.MAIL. : commercial@pressmac.com

NC-multi-slides-programmable-CMP250.pdf 05/2014

CONFIGURATIONS

NC MULTI-SLIDES PROGRAMMABLE CMP 250

His configurations are multiples and necesseraly fit at your production, either linear or radial applications Radial tool Linear tool Radial tool

Automation:

All settings are made using a swivel and handy panel including a large format touch screen, all buttons and remote control security for the manual mode that allows easy among other band introductions. Axis Controller ELAU C600 (Schneider electric). 8 Inputs control are free and configurable with a lot of monitoring mode. 8 Output control are free and configurable with a lot of mode. Watching tonnage slides in static. Watching tonnage press in dynamic Software OCP which allow to optimize the cycle program to be the most efficient possible. Télémaintenance possible by VPN tunnel which could allow to modify or realise a quick diagnostic at distance (safety connexion). PRESSMAC 9 rue Lafayette 25000 BESANÇON
