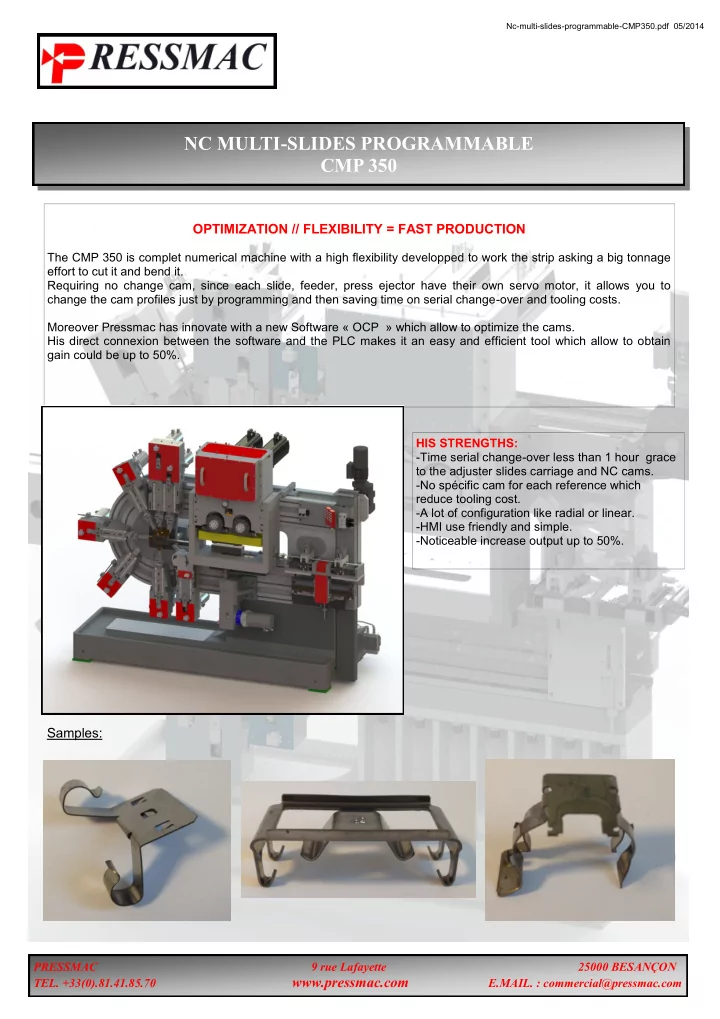

NC MULTI-SLIDES PROGRAMMABLE CMP 350

OPTIMIZATION // FLEXIBILITY = FAST PRODUCTION

The CMP 350 is complet numerical machine with a high flexibility developped to work the strip asking a big tonnage effort to cut it and bend it. Requiring no change cam, since each slide, feeder, press ejector have their own servo motor, it allows you to change the cam profiles just by programming and then saving time on serial change-over and tooling costs. Moreover Pressmac has innovate with a new Software « OCP » which allow to optimize the cams. His direct connexion between the software and the PLC makes it an easy and efficient tool which allow to obtain gain could be up to 50%. HIS STRENGTHS:

• Time serial change-over less than 1 hour grace

to the adjuster slides carriage and NC cams.

• No spécific cam for each reference which

reduce tooling cost.

• A lot of configuration like radial or linear.
• HMI use friendly and simple.
• Noticeable increase output up to 50%.

Samples:

PRESSMAC 9 rue Lafayette 25000 BESANÇON

• TEL. +33(0).81.41.85.70 www.pressmac.com

E.MAIL. : commercial@pressmac.com

NC MULTI-SLIDES CMP 350

Specifications:

Min Max Standard Option

Speed strk/mn

3 220

Depend application Drives-motor All numerical NC Number slides CN on the frame

20

Slide 4 Tons CN

Stroke 50 mm

Linear or radial Slide 8 Tons CN

Stroke 60 mm

Linear or radial Angle gear

angle

• 90°/+90°

Double slides 4T

Stroke 50 mm

Feeder CN

Speed 0 str/mn 200 str/mn

1 fixed gripper and 1 mobil gripper

Buffer or hy- draulic gripper 0 str/mn 300 str/mn

2 mobil grippers

Press module Presse excentrique une bielle CN Speed 3 str/mn 220 str/mn

Dynamic force mea- surement

Force 0 kn 200Kn Stroke 20 or 16 mm Presse excentrique deux bielles CN Speed 3 str/mn 220 str/mn

Dynamic force mea- surement

Force 0 kn 400Kn Stroke 20 or 16 mm

Ejector // Conform slide

Stroke 100mm Ejecteur simple ou double CN Force 120 Dan

Positioning slides

Radial

By adjust carriage

Linear

By adjust carriage Scrolling direction Right at left Left at right

Total weight

9 Tons depending confi- guration

Dimensions L=3200 x H=2600 x W=800 For additional information on our modules please refer to our other. Pdf or contact the sales department

PRESSMAC 9 rue Lafayette 25000 BESANÇON

• TEL. +33(0).81.41.85.70 www.pressmac.com

E.MAIL. : commercial@pressmac.com

Nc-multi-slides-programmable-CMP350.pdf 05/2014

NC MULTI-SLIDES PROGRAMMABLE CMP 350

PRESSMAC 9 rue Lafayette 25000 BESANÇON

• TEL. +33(0).81.41.85.70 www.pressmac.com

E.MAIL. : commercial@pressmac.com

CONFIGURATIONS

His configurations are multiples and necesseraly fit at your production, either linear or radial applications Radial tool Linear tool Radial tool

Automation:

All settings are made using a swivel and handy panel including a large format touch screen, all buttons and remote control security for the manual mode that allows easy among other band introductions. Axis Controller ELAU C600 (Schneider electric). 8 Inputs control are free and configurable with a lot of monitoring mode. 8 Output control are free and configurable with a lot of mode. Watching tonnage slides in static. Watching tonnage press in dynamic Software OCP which allow to optimize the cycle program to be the most efficient possible. Télémaintenance possible by VPN tunnel which could allow to modify or realise a quick diagnostic at distance (safety connexion).
