CMOS Transistor Theory (and its effects on scaling) Michael Niemier (Some slides based on lecture notes by David Harris) Nanowire-based Gates Can make very small pn junctions and diode based lgoic If each wire was just 5 nm in diameter, would


slide-1
SLIDE 1

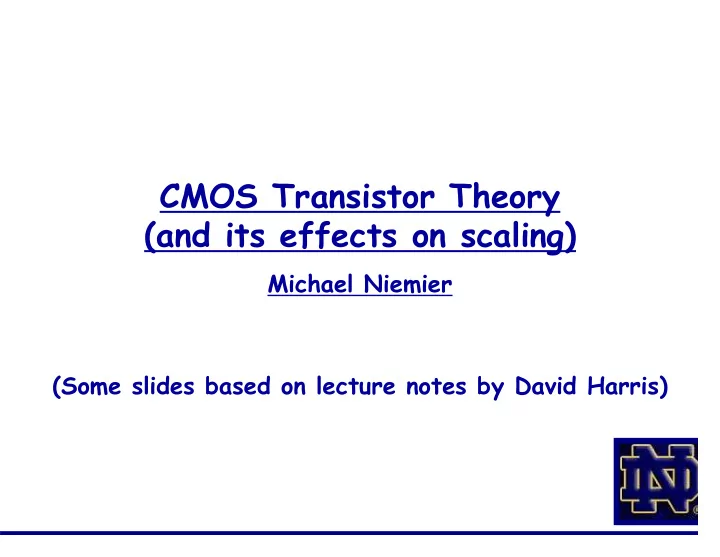

CMOS Transistor Theory (and its effects on scaling)

Michael Niemier (Some slides based on lecture notes by David Harris)

slide-2
SLIDE 2

Nanowire-based Gates

If each wire was just 5 nm in diameter, would you be excited about this technology? Can make very small pn junctions and diode based lgoic

slide-3
SLIDE 3

MOSFET cross section…

n P

With applied Vgs, depletion region forms

n

slide-4
SLIDE 4

To recap…

  • So far, we have treated transistors as ideal switches
  • An ON transistor passes a finite amount of current

– Depends on terminal voltages – Derive current-voltage (I-V) relationships

  • Transistor gate, source, drain all have capacitance

– I = C (ΔV/Δt) -> Δt = (C/I) ΔV – Capacitance and current determine speed

slide-5
SLIDE 5

MOS Capacitor

  • Gate and body form MOS capacitor
  • Operating modes

polysilicon gate (a) silicon dioxide insulator p-type body +

  • Vg < 0

(b) +

  • 0 < Vg < Vt

depletion region (c) +

  • Vg > Vt

depletion region inversion region

slide-6
SLIDE 6

Terminal Voltages

  • Mode of operation depends on Vg, Vd, Vs

– Vgs = Vg – Vs – Vgd = Vg – Vd – Vds = Vd – Vs = Vgs - Vgd

  • Source and drain are symmetric diffusion terminals

– By convention, source is terminal at lower voltage – Hence Vds ≥ 0

  • nMOS body is grounded. First assume source is 0 too.
  • Three regions of operation

– Cutoff – Linear – Saturation

Vg Vs Vd Vgd Vgs Vds +

  • +
  • +
slide-7
SLIDE 7

nMOS Cutoff

  • No channel formed, so no current flows
  • Ids = 0

+

  • Vgs = 0

n+ n+

+

  • Vgd

p-type body b g s d

slide-8
SLIDE 8

nMOS Linear

  • Channel forms
  • Current flows from d to s

– e- from s to d

  • Ids increases with Vds
  • Similar to linear resistor

+

  • Vgs > Vt

n+ n+

+

  • Vgd = Vgs

Vds = 0 p-type body b g s d

Vgs > Vt Vds = 0, no current

+

  • Vgs > Vt

n+ n+

+

  • Vgs > Vgd > Vt

0 < Vds < Vgs-Vt p-type body b g s d Ids

Vgs > Vt Vds > 0, but < (Vgs - Vt) (current flows)

slide-9
SLIDE 9

nMOS Saturation

  • Channel pinches off
  • Ids independent of Vds
  • We say current saturates
  • Similar to current source

+

  • Vgs > Vt

n+ n+

+

  • Vgd < Vt

Vds > Vgs-Vt p-type body b g s d Ids

Vds > Vgs - Vt Essentially, voltage difference over induced channel fixed at Vgs - V (current flows, but saturates) (or ids no longer a function of Vds)

slide-10
SLIDE 10

Outline (part 2)

  • Today…

– nMOS & pMOS I-V characteristics

  • Why (part 1):

– Quantify - or at least estimate - how we represent & move information

  • Why (part 2):

– This way we can estimate what happens when we make device smaller -- and in theory, better.

  • Possibly today…

– A very brief discussion of RC delay models

  • Why?

– Important because delay = one of the 2 performance metrics we care most about.

  • Another, “why”

– Can leverage in 1st HW :-)

  • David Frank talk - starts with 1st principles, extrapolates

to practical, chip-level performance

slide-11
SLIDE 11

A little bit of foreshadowing

 Board digression #0 S2 S2/U2 1 P/Area

Power Density

1 1/U2 1/S2 IsatV P 1/S 1/S 1/S RonCgate

Intrinsic Delay

1 1 1 V/Isat Ron S2 S2/U S Isat/Area

Current Density

1 1/U 1/S CoxWV Isat S S S CoxW/L kn, kp 1/S 1/S 1/S CoxWL Cgate S S S 1/tox Cox 1/S2 1/S2 1/S2 WL Area/device S2 S2/U S V/Wdepl

2

NSUB 1 1/U 1/S Vdd, Vt 1/S 1/S 1/S W, L, tox

Fixed-Voltage Scaling General Scaling Full Scaling Relation Parameter

slide-12
SLIDE 12

A little bit of foreshadowing

 Board digression #0

slide-13
SLIDE 13

A little bit of foreshadowing

 Board digression #0

slide-14
SLIDE 14

tox

350 nm 250 nm 180 nm 150 nm 120 nm 90 nm 65 nm 350/250=1.4 250/180~1.39 180/150~1.2 150/120~1.25 120/90~1.33 90/65~1.38 8/6~1.333 6/3.8~1.58 3.8/2.6~1.46 2.6/1.5~1.7 1.5/1.2~1.25 1.25/1~1.25

slide-15
SLIDE 15

Ok, let’s derive some I-V relationships

slide-16
SLIDE 16

I-V Characteristics

  • In Linear region, Ids depends on

– How much charge is in the channel? – How fast is the charge moving?

slide-17
SLIDE 17

Channel Charge

  • MOS structure looks like parallel plate capacitor while
  • perating in inversion

– Gate – oxide – channel

  • Qchannel =

n+ n+ p-type body + Vgd gate + + source

  • Vgs
  • drain

Vds channel

  • Vg

Vs Vd Cg

n+ n+ p-type body W L tox SiO2 gate oxide (good insulator, ox = 3.9) polysilicon gate

 Board digression #1

slide-18
SLIDE 18

Channel Charge

  • MOS structure looks like parallel plate capacitor while
  • perating in inversion

– Gate – oxide – channel

  • Qchannel = CV
  • C =

n+ n+ p-type body + Vgd gate + + source

  • Vgs
  • drain

Vds channel

  • Vg

Vs Vd Cg

n+ n+ p-type body W L tox SiO2 gate oxide (good insulator, ox = 3.9) polysilicon gate

slide-19
SLIDE 19

Channel Charge

  • MOS structure looks like parallel plate capacitor while
  • perating in inversion

– Gate – oxide – channel

  • Qchannel = CV
  • C = Cg = εoxWL/tox = CoxWL
  • V =

n+ n+ p-type body + Vgd gate + + source

  • Vgs
  • drain

Vds channel

  • Vg

Vs Vd Cg

n+ n+ p-type body W L tox SiO2 gate oxide (good insulator, ox = 3.9) polysilicon gate

Cox = εox / tox

slide-20
SLIDE 20

Channel Charge

  • MOS structure looks like parallel plate capacitor while
  • perating in inversion

– Gate – oxide – channel

  • Qchannel = CV
  • C = Cg = εoxWL/tox = CoxWL
  • V = Vgc – Vt = (Vgs – Vds/2) – Vt

n+ n+ p-type body + Vgd gate + + source

  • Vgs
  • drain

Vds channel

  • Vg

Vs Vd Cg

n+ n+ p-type body W L tox SiO2 gate oxide (good insulator, ox = 3.9) polysilicon gate

Cox = εox / tox

 Board digression #2

slide-21
SLIDE 21

Carrier velocity

  • Charge is carried by e-
  • Carrier velocity v proportional to lateral E-field

between source and drain

  • v =
slide-22
SLIDE 22

Carrier velocity

  • Charge is carried by e-
  • Carrier velocity v proportional to lateral E-field

between source and drain

  • v = µE

µ called mobility

  • E =

 Board digression #3 How I try not to teach…

slide-23
SLIDE 23

Carrier velocity

  • Charge is carried by e-
  • Carrier velocity v proportional to lateral E-field

between source and drain

  • v = µE

µ called mobility

  • E = Vds/L
  • Time for carrier to cross channel:

– t =

slide-24
SLIDE 24

Carrier velocity

  • Charge is carried by e-
  • Carrier velocity v proportional to lateral E-field

between source and drain

  • v = µE

µ called mobility

  • E = Vds/L
  • Time for carrier to cross channel:

– t = L / v

 Board digression #4

slide-25
SLIDE 25

nMOS Linear I-V

  • Now we know

– How much charge Qchannel is in the channel – How much time t each carrier takes to cross

ds

I =

slide-26
SLIDE 26

nMOS Linear I-V

  • Now we know

– How much charge Qchannel is in the channel – How much time t each carrier takes to cross

channel ds

Q I t = =

slide-27
SLIDE 27

nMOS Linear I-V

  • Now we know

– How much charge Qchannel is in the channel – How much time t each carrier takes to cross

channel

  • x

2 2

ds ds gs t ds ds gs t ds

Q I t W V C V V V L V V V V µ

  • =
  • =
  • =
  • x

= W C L

  • µ

 Board digression #5

slide-28
SLIDE 28

Let’s go back to…

 Board digression #6 S2 S2/U2 1 P/Area

Power Density

1 1/U2 1/S2 IsatV P 1/S 1/S 1/S RonCgate

Intrinsic Delay

1 1 1 V/Isat Ron S2 S2/U S Isat/Area

Current Density

1 1/U 1/S CoxWV Isat S S S CoxW/L kn, kp 1/S 1/S 1/S CoxWL Cgate S S S 1/tox Cox 1/S2 1/S2 1/S2 WL Area/device S2 S2/U S V/Wdepl

2

NSUB 1 1/U 1/S Vdd, Vt 1/S 1/S 1/S W, L, tox

Fixed-Voltage Scaling General Scaling Full Scaling Relation Parameter

slide-29
SLIDE 29

nMOS Saturation I-V

  • If Vgd < Vt, channel pinches off near drain

– When Vds > Vdsat = Vgs – Vt

  • Now drain voltage no longer increases current

ds

I =

slide-30
SLIDE 30

nMOS Saturation I-V

  • If Vgd < Vt, channel pinches off near drain

– When Vds > Vdsat = Vgs – Vt

  • Now drain voltage no longer increases current

2

dsat ds gs t dsat

V I V V V

  • =
slide-31
SLIDE 31

nMOS Saturation I-V

  • If Vgd < Vt, channel pinches off near drain

– When Vds > Vdsat = Vgs – Vt

  • Now drain voltage no longer increases current

( )

2

2 2

dsat ds gs t dsat gs t

V I V V V V V

  • =
  • =
  •  Board digression #7
slide-32
SLIDE 32

nMOS I-V Summary

( )

2

cutoff linear saturatio 2 2 n

gs t ds ds gs t ds ds dsat gs t ds dsat

V V V I V V V V V V V V V

  • <
  • =
  • <
  • >
  • Shockley 1st order transistor models
slide-33
SLIDE 33

Again, let’s go back to…

 Board digression #8 S2 S2/U2 1 P/Area

Power Density

1 1/U2 1/S2 IsatV P 1/S 1/S 1/S RonCgate

Intrinsic Delay

1 1 1 V/Isat Ron S2 S2/U S Isat/Area

Current Density

1 1/U 1/S CoxWV Isat S S S CoxW/L kn, kp 1/S 1/S 1/S CoxWL Cgate S S S 1/tox Cox 1/S2 1/S2 1/S2 WL Area/device S2 S2/U S V/Wdepl

2

NSUB 1 1/U 1/S Vdd, Vt 1/S 1/S 1/S W, L, tox

Fixed-Voltage Scaling General Scaling Full Scaling Relation Parameter

slide-34
SLIDE 34

Look at IDS in context of scaling

 Board digression #8

slide-35
SLIDE 35

 Board digression #8
