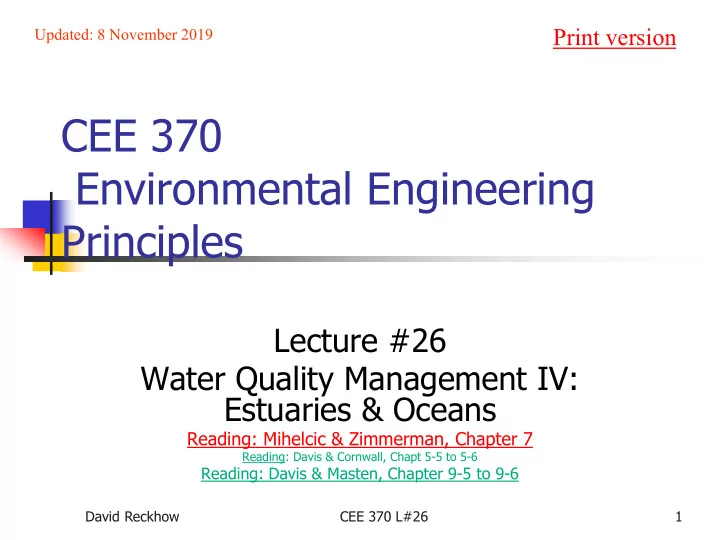

Print version Updated: 8 November 2019 CEE 370 Environmental Engineering Principles Lecture #26 Water Quality Management IV: Estuaries & Oceans Reading: Mihelcic & Zimmerman, Chapter 7 Reading: Davis & Cornwall, Chapt 5-5 to 5-6

slide-1
SLIDE 1

David Reckhow CEE 370 L#26 1

CEE 370 Environmental Engineering Principles

Lecture #26 Water Quality Management IV: Estuaries & Oceans

Reading: Mihelcic & Zimmerman, Chapter 7

Reading: Davis & Cornwall, Chapt 5-5 to 5-6

Reading: Davis & Masten, Chapter 9-5 to 9-6 Updated: 8 November 2019

Print version

slide-2
SLIDE 2

Combined sewer overflows

David Reckhow

CEE 370 L#26

2

Pg 72, from Fair & Geyer, 1954

 CSOs

 Intended to protect

wastewater systems from high flows

 A major source of

contamination in many surface waters

slide-3
SLIDE 3

David Reckhow

CEE 370 L#26

3

Combined Sewer Overflows

 Most CSOs are in the Northeast

slide-4
SLIDE 4

David Reckhow

CEE 370 L#26

4

Combined Sewer Overflows

City # outfalls

Agawam 12 Chicopee 40 Erving 1 Holyoke 15 Ludlow 5 Montague 3 Palmer 26 South Hadley 11 Springfield 25

City # outfalls

Boston 66 Cambridge 13 Chelsea 5 Fall River 19 Fitchburg 27 Gloucester 4 Haverhill 23 Lawrence 2 Lowell 15 Lynn 4 New Bedford 39 Somerville 12 Taunton 1 Worcester 1

slide-5
SLIDE 5

David Reckhow

CEE 370 L#26

5

Hypoxia in the Gulf of Mexico

slide-6
SLIDE 6

David Reckhow

CEE 370 L#26

6

slide-7
SLIDE 7

David Reckhow

CEE 370 L#26

7

slide-8
SLIDE 8

David Reckhow

CEE 370 L#26

8

4 Disciplines

 Geological Oceanography

 Structure of the sea floor

 Chemical Oceanography

 Chemical composition and properties of

seawater

 Physical Oceanography

 Waves, tides, currents

 Biological Oceanography

 Oceanic life forms

slide-9
SLIDE 9

Physical Characteristics of the Oceans

Pacific 181 714 3,940 11,022 Atlantic 107 351 3,293 9,219 Indian 74 285 3,870 7,400 Total 362 1350 3,729 11,022

Chemical Oceanography

Sea Area Volume Depth (m)

(106 km2) (106 km3)

ave max

David Reckhow

9

CEE 370 L#26

slide-10
SLIDE 10

David Reckhow

CEE 370 L#26

10

Regional Oceanography

Wilkinson Basin Jordan Basin George’s Basin George’s Bank

slide-11
SLIDE 11

David Reckhow

CEE 370 L#26

11

 Composition

  • f sea water

From Johnson et al., 2000

slide-12
SLIDE 12

Sediment Types

Chemical Oceanography

David Reckhow

12

CEE 370 L#26

slide-13
SLIDE 13

Descriptive Oceanography

Distribution of t, S and density

Currents in the World Oceans

Water Masses in the Oceans

Use of Chemical Tracers

14C, Tritium, 3He, CFC

Age of Water Masses

The Ocean Conveyor Belt

Chemical Oceanography

David Reckhow

13

CEE 370 L#26

slide-14
SLIDE 14

Surface Temperatures

Chemical Oceanography

David Reckhow

14

CEE 370 L#26

slide-15
SLIDE 15

Temperature Distribution

Solar Radiation

Waters are colder in Polar regions Waters are warmer in Equatorial Regions

Upwelling

Waters are colder off the Western Coasts

  • f continents

Chemical Oceanography

David Reckhow

15

CEE 370 L#26

slide-16
SLIDE 16

David Reckhow

CEE 370 L#26

16

Temperature Depth Profiles

Summer Fall Winter Spring

Seasonal: North Atlantic

slide-17
SLIDE 17

Temperature Profiles

LOW LATITUDES 10 20 DEPTH (m) 200 400 600 800 1000 1200 1400 1600 MID LATITUDES 10

HIGH LATITUDES

  • 5

5

MIXED LAYER MAIN THERMOCLINE ZONE WINTER SEASONAL THERMOCLINE (SUMMER) DICOTHERMAL LAYER

David Reckhow

17

CEE 370 L#26

slide-18
SLIDE 18

Growth and Decay of Thermocline

Temperature (oC)

2 4 6 8 10 12 14 16 Depth (m) 20 40 60 80 100

MAR MAY NOV JAN JULY AUG SEPT

David Reckhow

18

CEE 370 L#26

slide-19
SLIDE 19

Surface Salinity of Ocean Waters

David Reckhow

19

CEE 370 L#26

slide-20
SLIDE 20

Salinity Distribution

Precipitation and Melting of Ice

  • 1. Salinity is lower in Polar Regions
  • 2. Salinity is lower in Equatorial Regions
  • 3. Salinity is lower in Estuarine Regions

Evaporation and Freezing

  • 1. Salinity is higher in mid-Latitudes
  • 2. Salinity is higher in Med. and Red Seas
  • 3. Salinity is higher in the Atlantic than the

Pacific

David Reckhow

20

CEE 370 L#26

slide-21
SLIDE 21

Salinity vs Evaporation minus Precipitation

LATITUDE

  • 60
  • 40
  • 20

20 40 60

SALINITY

33 34 35 36 37

Salinity Evap - Ppt

100

  • 100

EVAPORATION - PRECIPITATION, cm/y

David Reckhow

21

CEE 370 L#26

slide-22
SLIDE 22

Salinity of Ocean Waters

33 35 37 1000 2000 3000 4000 33 35 Depth (m) Salinity 34 36 500

High Lat. Low and Mid Lat. High Lat. Low and Mid Lat.

Atlantic Pacific Tropics

David Reckhow

22

CEE 370 L#26

slide-23
SLIDE 23

Temperature in Atlantic Ocean

David Reckhow

23

CEE 370 L#26

slide-24
SLIDE 24

Salinity in Atlantic Ocean

Chemical Oceanography

David Reckhow

24

CEE 370 L#26

slide-25
SLIDE 25

David Reckhow

CEE 370 L#26

25

Ocean Currents

From Johnson et al., 1992

slide-26
SLIDE 26

David Reckhow

CEE 370 L#26

26

Depth profiles

 Atlantic vs  Pacific

slide-27
SLIDE 27

David Reckhow

CEE 370 L#26

27

 To next lecture
