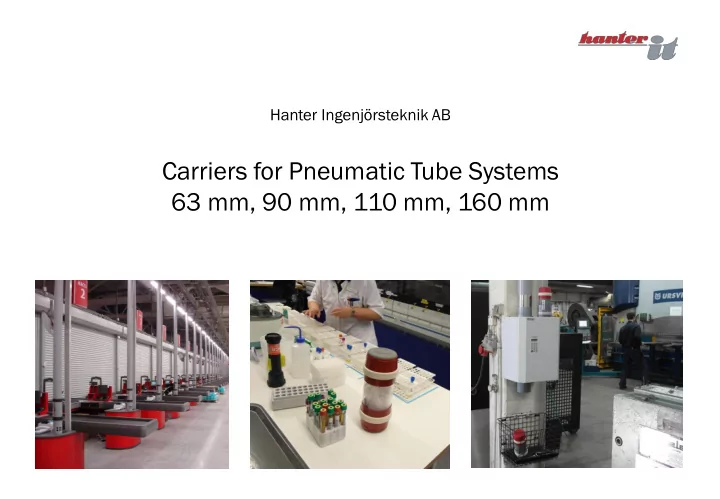

Hanter Ingenjörsteknik AB

Carriers for Pneumatic Tube Systems 63 mm, 90 mm, 110 mm, 160 mm

Carriers for Pneumatic Tube Systems 63 mm

Capsule 63 Red Cpl

• Art. 6035200

Flight bags 63

• Art. 6035101, purple
• Art. 6035102, dark red
• Art. 6035103, dark blue
• Art. 6035104, yellow
• Art. 6035105, red Art.

6035106, green Art. 6035107, orange

• Art. 6035108, light blue
• Art. 6035109, steel gray
• Art. 6035110, blue
• Art. 6035112, dark green
• Art. 6035113, black
• Art. 6035114, cerise

Carrier for Pneumatic Tube Systems 90 mm

Carrier CHS 90 White

Screw Cap

• Art. 6036082

(carrier caps available in red, black,

• range)

Carrier 90 Clear 56x320

Screw Cap

• Art. 6035002

(carrier caps available in red, black, blue, green)

Important! Felt rings and rubber

rings provide secure transport, acceleration and deceleration of carriers in PTS. It is important to exchange worn rings, especially if PTS is used to transport heavy or/and sensitive goods. Worn rings affect even other equipment in PTS, such as diverters, stations and tube line, which can lead to system stops and higher frequency of system services.

Rubber ring 90 – art.6338005. Felt ring 90 – art.6337003. Cap to art.6036082: red – art.6336012, black – art.6336011, orange – art.6336013. Cap to art.6035002: blue – art.6336003, black – art.6336008, green – art.6336000.

Carriers for Pneumatic Tube Systems 110 mm

Carrier 110/78-240

Screw Cap

• Art. 6036080

Carrier 110 Clear 75x350

Screw Cap

• Art. 6035022

(screw cap available in black, red, green)

Important! Felt rings and rubber rings provide secure transport,

acceleration and deceleration of carriers in PTS. It is important to exchange worn rings, especially if PTS is used to transport heavy or/and sensitive goods. Worn rings affect even other equipment in PTS, such as diverters, stations and tube line, which can lead to system stops and higher frequency of system services.

Rubber ring 110 – art.6338010. Felt ring 110 – art.6337004. Cap to art.6036022: red – art.6336015, black – art.6336016.

Carrier 110 56x320 Swivel Lid

• Art. 6036085, dark red
• Art. 6036105, blue
• Art. 6036100, yellow
• Art. 6036106, green
• Art. 6036110, purple

Carriers for Pneumatic Tube Systems 160 mm

Carrier 160 White

Screw Cap

• Art. 6035040

(screw cap available in black)

Carrier 160 2SL

Swivel Lid Red – Art.6036200 Blue – Art.6036217

Important! Felt rings and

rubber rings provide secure transport, acceleration and deceleration of carriers in PTS. It is important to exchange worn rings, especially if PTS is used to transport heavy or/and sensitive

• goods. Worn rings affect even other

equipment in PTS, such as diverters, stations and tube line, which can lead to system stops and higher frequency of system services.

Rubber ring 160 – art.6338015. Felt ring 160 for Carrier 160 2SL – art.6165010. Felt ring 160 for Carrier 160 White – art.6337001. Cap to Carrier 160 White: black – art.6336016.
